An incorrect air-fuel ratio is the leading cause of engine failure. The air-fuel ratio is the ratio of the mass of air to the mass of fuel in the combustion mixture. It directly influences the combustion process, affecting power output, fuel efficiency, and emissions. The ideal ratio for a gasoline engine is 14.7:1 (14.7 parts of air to 1 part of fuel by mass). This is known as the stoichiometric ratio, which causes all of the oxygen and fuel to be consumed inside the engine during combustion, resulting in only harmless water and carbon dioxide exiting the vehicle's tailpipe.
A rich air-fuel mixture contains less air than the stoichiometric ratio, whereas a lean mixture contains more air. A rich mixture can improve engine power but at the cost of increased fuel consumption and emissions. On the other hand, a lean mixture can improve fuel efficiency but may lead to reduced power and increased nitrogen oxide emissions.
To fix the air-fuel ratio in your car, you can use a scan tool to check the fuel trim data and determine if the engine is running rich or lean. Modern fuel-injected engines are tuned automatically by onboard computers, and oxygen sensors are used to measure the air in the exhaust stream. These sensors provide feedback to the Engine Control Module (ECM), which adjusts the fuel injection for optimal combustion.

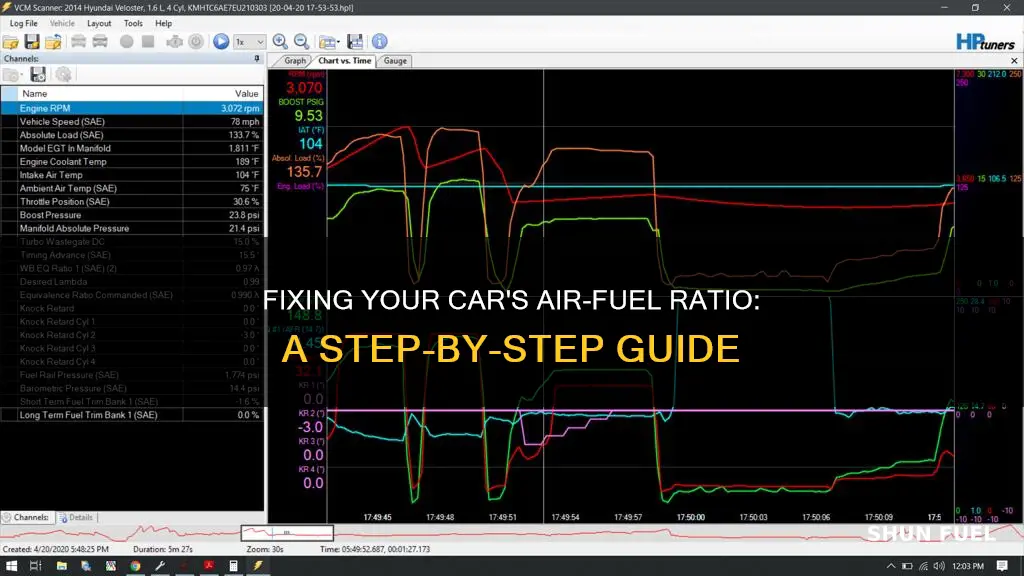

How to fix the air-fuel ratio in a car
| Characteristics | Values |
|---|---|
| Air-fuel ratio | 14.7:1 for stoichiometric ratio, 14.5:1 to 16:1 for diesel engines, 8:1 to 18.5:1 for gasoline engines |
| Air-fuel ratio for maximum engine power | 12:1 |
| Air-fuel ratio for idling and light throttle cruising | 14.7:1 |
| Air-fuel ratio for E10 gasoline | 14.04:1 |
| Air-fuel ratio measurement tools | Oxygen sensors, scan tools, spark plugs, Innovate Motorsports products |
| Air-fuel ratio adjustment | Modify engine, adjust fuel pressure, replace sensors |
| Consequences of incorrect air-fuel ratio | Detonation, pre-ignition, cylinder pressure issues, engine failure, reduced fuel efficiency, increased emissions |
Explore related products
What You'll Learn
Understanding detonation and pre-ignition
Detonation is when the air-fuel mixture ignites on its own, without the spark plug, due to excess heat and pressure. This causes severe cylinder pressures, which can lead to a blown head gasket, melted pistons, and engine failure. It can be identified by a rattling or knocking sound and is preventable by reducing the heat in the chamber and using higher octane fuel.
Pre-ignition, on the other hand, is the ignition of the air-fuel mixture before the spark plug fires. It occurs when the fuel-air mixture enters the combustion chamber as the piston is on its downward intake stroke, and the piston then returns upward for the compression stroke. The longer duration of heat and pressure in pre-ignition results in more melted parts. There are usually no early warning signs, but it can be minimised by ensuring the engine is set up correctly to reduce potential hot spots.
Both detonation and pre-ignition are forms of abnormal combustion, which can be extremely detrimental to your engine. While detonation often results in parts being blown apart, pre-ignition leads to more melting. It is important to be able to identify and address these issues to prevent costly repairs and engine failure.
Fueling with the Car Running: Is It Safe?
You may want to see also
Explore related products
Using a scan tool to check fuel trim data
The air-fuel ratio is critical to the power, economic running, and longevity of an engine. A stoichiometric air-fuel ratio, which is considered ideal, causes all of the oxygen and fuel to be consumed inside the engine during combustion, resulting in only harmless water and carbon dioxide being emitted from the vehicle's tailpipe.
The best way to determine whether your engine is running rich or lean is to monitor the fuel trim data via a scan tool that displays live data. On modern cars, the PCM (Powertrain Control Module) continuously monitors and adjusts the air-fuel mixture to keep the engine running optimally. The adjustments made by the PCM are known as fuel trim.
To use the scan tool, simply plug it into the diagnostic port under the vehicle's dashboard, then follow the product instructions to retrieve the live data stream from the car. Fuel trim is typically displayed as a percentage on the scan tool. There are two fuel trim data sets: short-term fuel trim (STFT) and long-term fuel trim (LTFT).
The baselining process involves four steps:
- Connect an OBD II generic scan tool, preferably with recording capabilities.
- Monitor and record the fuel trim values in the four common operating ranges: idle speed, light load (20-30 mph), moderate load (40-50 mph), and heavy load (60-70 mph).
- Analyze the collected data.
- Use the information to determine the next diagnostic steps.
For example, if the Check Engine light is on and fault codes P0171 (Bank 1 System Lean) and P0174 (Bank 2 System Lean) are present, possible causes include a plugged or dirty fuel filter, damaged or worn fuel pump, leaking or contaminated fuel injectors, low fuel pressure, or vacuum leaks, among other issues.
Additionally, many European vehicles use a different fuel trim adjustment strategy, with additive and multiplicative terms. Additive shows fuel trim values at idle or just off idle, while multiplicative shows the fuel trim adjustment at higher RPM and vehicle speed ranges.
The scan tool has become an indispensable diagnostic tool for modern fuel-injected engines, which can be tuned automatically by onboard computers or re-tuned through aftermarket downloaders.
Fuel-Efficient Cars: Less CO2 Emissions?
You may want to see also
Explore related products
$84.99 $94.99
Oxygen sensors and their role
Oxygen sensors, also known as lambda sensors, play a crucial role in modern combustion engines. They are key components that provide accurate feedback to the engine control module (ECM) or engine management system (EMS) to optimise the fuel and air mixture entering the engine's combustion chambers.
Oxygen sensors measure the oxygen content in the exhaust gases, detecting the presence of oxygen in the exhaust stream. This information is then communicated to the ECM or EMS, which adjusts the fuel injection accordingly to achieve optimal combustion. The primary purpose of these sensors is to monitor oxygen density in the exhaust gas and enable the ECM to adjust fuel delivery, ensuring the engine operates at the ideal air-fuel ratio.
The ideal stoichiometric ratio, or Lambda ratio, is the chemically correct ratio of air to fuel that allows for complete combustion without any excess air or fuel. For gasoline engines, this ratio is approximately 14.7:1 (14.7 parts of air to 1 part of fuel by mass). However, this ratio can vary depending on the molecular structure of the gasoline and other factors.
Traditional oxygen sensors, also known as narrowband sensors, provide a binary signal indicating whether the air-fuel mixture is rich or lean. In contrast, air-fuel ratio (AFR) sensors, also known as wideband sensors, provide continuous and precise measurements of the air-fuel ratio, allowing for more accurate fuel control and improved engine performance. AFR sensors are typically used upstream, while oxygen sensors are used downstream to monitor catalytic converter efficiency.
Replacing an oxygen sensor is generally a straightforward task, with labour costs ranging from $50 to $250. However, the expense of replacing an AFR sensor may be higher. Oxygen sensors are essential for maintaining optimal engine performance, fuel efficiency, and reduced emissions, making them critical components in today's automotive industry.
Troubleshooting Fuel Problems in Cars: A Step-by-Step Guide
You may want to see also
Explore related products
The impact of modifications on AFR
Modifications to a car's engine can significantly impact its air-fuel ratio (AFR), which is the ratio of air to fuel in the combustion chamber. This ratio is critical because it determines the combustion efficiency and, consequently, the engine's performance, fuel economy, and emissions. When the AFR is incorrect, it can lead to serious issues such as detonation, pre-ignition, and engine failure.
One of the most common modifications that affect the AFR is the addition of an aftermarket carburetor, intake, cam, or heads. These modifications change the engine's efficiency in burning fuel and air and providing horsepower and torque. As a result, the AFR needs to be adjusted to match the engine's new requirements. For example, a larger carburetor might require a richer mixture, with more fuel relative to air, to prevent knocking and manage higher cylinder pressures.
Another factor that can impact the AFR is the type of fuel used. Different fuels have different stoichiometric ratios, which is the ratio at which all the oxygen and fuel are consumed inside the engine during combustion, resulting in only harmless water and carbon dioxide as emissions. For example, the stoichiometric ratio for traditional gasoline is 14.7:1, while for E10 gasoline (containing 10% ethanol) it is around 14.04:1.
It is important to note that modifications to the AFR can also impact the vehicle's emissions and fuel efficiency. A rich mixture, with a higher fuel content, can lead to poor performance and terrible fuel economy. On the other hand, a lean mixture, with more air than fuel, can potentially be even worse for the engine. Therefore, finding the optimal AFR is crucial for balancing performance and fuel economy.
To determine the correct AFR for a modified engine, it is recommended to use specialized products such as those offered by Innovate Motorsports. These products can accurately determine and record the AFR of the engine, allowing for adjustments to be made accordingly. Additionally, modern fuel-injected engines can be tuned automatically by onboard computers or through aftermarket downloaders, providing real-time AFR information.
Fuel Efficiency and 6-Speed Cars: Any Link?
You may want to see also
Explore related products
Rich vs lean mixtures
The air-fuel ratio in a car engine is the ratio of air to fuel in the combustion chamber. This ratio plays a crucial role in determining the engine's performance, emissions, and overall efficiency. An incorrect air-fuel ratio can lead to engine failure.
A lean mixture refers to a higher concentration of air to fuel than the ideal ratio, which is typically 14.7:1 for gasoline engines. This can be caused by blocked jets in older vehicles with carburetors, or faulty sensors such as the oxygen sensor, mass airflow sensor, or coolant temperature sensor. A lean mixture can result in rough idling, engine knocking, and even backfiring. It can also cause the engine to overheat, leading to premature wear and potential engine damage.
On the other hand, a rich mixture contains an excess of fuel compared to air in the combustion chamber, resulting in a lower air-to-fuel ratio. This can be caused by a faulty fuel pump, problems with the carburetor's adjustment, leaking fuel injectors, or a clogged air filter. While a rich mixture can provide enhanced engine cooling and smoother operation, it also has drawbacks. It can lead to increased fuel consumption, higher emissions, and power loss.
To determine if your engine is running rich or lean, you can use a scan tool to monitor the fuel trim data. This will help you identify if the engine is operating within the acceptable range, which for a gasoline engine is typically between 8:1 to 18.5:1. Additionally, modern fuel-injected engines have onboard computers that automatically tune the air-fuel ratio, and you can also use products from companies like Innovate Motorsports to determine and record the air-fuel ratio.
Hybrid Cars: Fuel-Saving Mechanics Explained
You may want to see also
Frequently asked questions
If your engine is running rich or lean, this could be a sign that your air-fuel ratio is off. You can use a scan tool to check the fuel trim data and determine if the engine is running rich or lean.
A rich air-fuel mixture contains an excess of fuel, while a lean mixture has less fuel. Rich mixtures can improve engine power but increase fuel consumption and emissions. Lean mixtures can improve fuel efficiency but may lead to reduced power and increased nitrogen oxide emissions.
You can adjust the air-fuel ratio by bumping up your pressure to 38-40 with the vacuum line disconnected (red) and your finger over it when the car is idling and at operating temperature. You can also refer to the Haynes Manuals for more information on achieving the correct air-fuel ratio.
