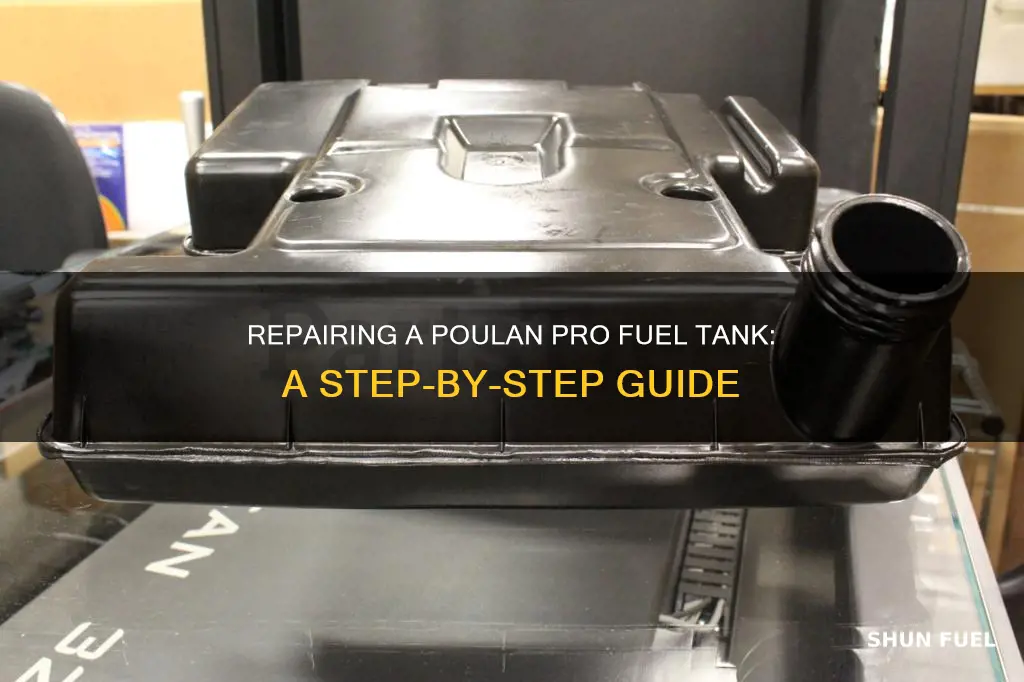

If you're experiencing issues with your Poulan Pro fuel tank, there are several troubleshooting steps you can take to identify and resolve the problem. Fuel tank issues can vary, from leaks to clogged fuel filters, and the specific steps to fix them depend on the model of your equipment. For example, if you own a Poulan Pro chainsaw, you may need to replace the fuel lines or the fuel return line, which can be done by carefully disconnecting the old lines, cleaning the tank, and installing new lines. On the other hand, if you own a Poulan Pro lawn mower, you might be dealing with a fuel tank leak, which can be fixed using an epoxy gas tank repair kit or by replacing the tank.
| Characteristics | Values |
|---|---|
| Fuel tank leak | Purchase a tube of gas tank repair (epoxy) from a local auto parts store and apply it to the leak area |
| Fuel line replacement | Purchase compatible new fuel lines, unscrew the housing, identify connection points, disconnect the lines, attach new fuel lines to the carburetor and fuel filter, secure the lines, reassemble the machine, test for leaks |
| Fuel return line replacement | Purchase a new fuel line, remove the fuel cap and compression fitting, cut the old fuel line, align the old and new fuel lines, cut the new fuel line to size, cut an angle on one end of the new fuel line, thread the angled end through the mounting hole, pull the new fuel line through, square the end of the new fuel line, install the plastic fitting, pull the fuel return line until the fitting engages, connect the new fuel return line to the primer bulb assembly |
Explore related products
What You'll Learn
Fixing a fuel tank leak
Firstly, ensure you have the right tools and materials. You will need new fuel lines that are compatible with your machine model, and a screwdriver to remove screws and access the fuel tank.
Next, locate the fuel lines. Identify the main fuel line that runs from the fuel tank to the engine, and the return line that allows excess fuel to return to the tank. Then, prepare the machine by ensuring it is turned off and cool to the touch before starting work.
Once the machine is prepared, remove the housing covering the fuel tank to easily access the fuel lines. Identify the connection points by finding where the fuel lines are connected to the engine and the tank. Carefully disconnect the lines using needle-nose pliers to gently loosen the clamps securing them, then disconnect from the engine and tank.
Now you can attach the new fuel lines. Connect the lines to the carburetor and the fuel filter, following the same path as the old lines. Ensure the lines are secure and won't come loose during operation.
Finally, reassemble the machine by putting back any parts or covers you removed to access the fuel tank. Double-check all connections to prevent leaks, and test for leaks once installed.
If the fuel tank itself is leaking, rather than the fuel lines, you can try to repair it with an epoxy gas tank repair kit from your local auto parts store. However, this may not work depending on the type of plastic used in the tank, in which case you will need to replace the tank.
Draining the Fiero Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Replacing fuel lines
The fuel line on a Poulan Pro links the gas tank with the carburetor, which feeds the combustion chamber. This plastic line can break easily, get torn from the carburetor, or malfunction. If you've stored your Poulan for a long time, dried-out gas deposits can also ruin the line or make it difficult for the carburetor to get enough fuel.
- Empty the gas tank into a proper container. Start the engine and let it run until it dies to ensure that any excess gasoline is used up and doesn't spill when you're working on the tank.
- Disconnect the fuel return line from the primer bulb. The fuel return line is usually secured inside the fuel tank by a plastic compression fitting. Removing the fitting and the return fuel line requires patience and a good pair of hemostats.
- Cut the return fuel line as close to the fuel tank as possible, using snippers or scissors.
- Remove the fuel cap. Take out the compression fitting and the remainder of the return fuel line from the inside of the fuel tank, again using hemostats.
- Cut the old fuel line away from the plastic fitting, which will be re-used.
- Measure the new fuel line by aligning it with the old fuel line. Cut the new line to the same length as the original, accounting for the small piece that was cut from the plastic fitting.
- Install the new fuel return line. Thread the angled end of the new line through the mounting hole on the fuel tank. Use hemostats to pull the new line from the inside of the tank through the mouth of the tank, being careful not to pull it completely out of the mounting hole. Pull the line just far enough so that you can install the plastic compression fitting.
- Square the end of the new fuel line with snippers or scissors, removing the angle that was cut earlier.
- Install the plastic fitting onto the end of the new fuel line, then install the plastic fitting and the fuel line back into the fuel tank.
- Pull the new fuel return line from the outside of the fuel tank with hemostats until the plastic fitting is secure inside the tank.
- Connect the new fuel return line to the primer bulb assembly.
- Reinstall the carburetor. Connect the incoming fuel line (often green) to the intake nipple on the bottom of the carburetor.
- Connect the fuel tank purge line to the outlet on the top of the carburetor. Slide the carburetor onto the two mounting posts on the engine.
- Connect the carburetor to the intake tube and press it toward the engine until the intake tube is fully seated against both components.
- Connect the throttle linkage to the carburetor linkage. Pull and hold the throttle trigger to expose the attachment point for the trigger portion of the throttle linkage, then connect the two.
- Slide the air filter housing over the carburetor mounting posts and secure it to the engine with nuts.
Note that the fuel line routing may vary depending on the model. For example, for the Poulan Pro 32cc Trimmer, the thinner line with the fuel filter goes on the bottom nipple of the carb. The nipple next to the high/low screws goes to the short (in) nipple on the primer, and the remaining nipple (long) goes on the fatter line and into the gas tank.
Draining the 1989 P30's Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Locating the fuel lines
Identifying the Fuel Lines
Begin by examining the placement near the fuel tank to identify the fuel lines. The main fuel line is the one that runs from the fuel tank to the engine. It supplies fuel from the tank to the engine to power the equipment.
Locating the Return Line
In addition to the main fuel line, there is also a return line. This line allows excess fuel that is not used by the engine to return to the fuel tank. This line is secured inside the fuel tank by a plastic compression fitting, which prevents the line from being accidentally pulled out.
Understanding the Primer Bulb
The primer bulb plays a crucial role in the fuel system. It is responsible for priming the engine with fuel, ensuring a smooth and easy start. The primer has two nipples: the longer one is the tank return line, and the shorter nipple goes to the top of the carburetor.
Carburetor and Fuel Filter Connections
The fuel lines are connected to the carburetor, which mixes air and fuel for the engine. The thinner line with the fuel filter on it connects to the carburetor near the choke/start lever. This filter ensures that the fuel entering the carburetor is clean and free of contaminants.
Disconnecting the Lines
When performing repairs or maintenance, it is important to carefully disconnect the fuel lines. Use needle-nose pliers to gently loosen the clamps securing the fuel lines. This will allow you to safely disconnect them from both the engine and the fuel tank without causing any damage to surrounding components.
By following these steps, you will be able to successfully locate and identify the fuel lines in your Poulan Pro equipment, enabling you to perform maintenance, repairs, or replacements effectively. Remember to always refer to specific models' manuals for detailed instructions.
Draining Fuel Tanks: Using a Hose to Remove Gasoline
You may want to see also
Explore related products
Disconnecting old fuel lines
Disconnecting the old fuel lines of your Poulan Pro chainsaw requires careful attention to avoid damaging other components. Before beginning any work on your chainsaw, ensure that it is turned off and cool to the touch.
Firstly, locate the fuel lines. Identify the main fuel line that runs from the fuel tank to the engine, and the return line that allows excess fuel to go back into the tank. The return line is secured inside the fuel tank by a plastic compression fitting, which prevents the line from being accidentally pulled out.
Next, remove the housing covering the fuel tank to easily access the fuel lines. Find where the fuel lines are connected to the engine and the tank. Using needle-nose pliers, gently loosen the clamps that secure the fuel lines, and carefully disconnect them from the engine and the tank.
To remove the return line, you will need a good pair of hemostats, snippers or scissors, and a utility knife. First, cut the return fuel line as close to the fuel tank as possible. Then, using hemostats, remove the compression fitting and the remainder of the return fuel line from inside the tank. Finally, cut the old fuel line away from the plastic fitting, which will be reused.
A Step-by-Step Guide to Dropping Your Hyundai Sonata's Fuel Tank
You may want to see also
Explore related products
Installing new fuel lines
To install new fuel lines in your Poulan Pro equipment, you will need to first purchase the right fuel lines. Ensure that you get the correct-sized fuel lines for your specific model. Next, locate the fuel lines by identifying the main fuel line that runs from the fuel tank to the engine, and the return line that allows excess fuel to flow back into the tank.
Before removing the old fuel lines, prepare your chainsaw by ensuring it is turned off and cool to the touch. Then, remove the housing covering the fuel tank by unscrewing it. Identify where the fuel lines are connected to the engine and the tank. Using needle-nose pliers, carefully loosen the clamps securing the fuel lines and gently disconnect them from the engine and the tank.
Now, you can attach the new fuel lines. Connect the lines to the carburettor and the fuel filter, following the same path as the old lines. Ensure that the lines are securely attached and will not come loose during operation. Reassemble the chainsaw by putting back any parts or covers you removed to access the fuel tank.
Double-check all connections to prevent leaks. Once installed, check for any fuel leaks before using the chainsaw. You can also test the chainsaw under load by engaging it in cutting a small piece of wood to verify its performance.
Draining the Holden Captiva Fuel Tank: Step-by-Step Guide
You may want to see also
Frequently asked questions
You can try to fix the leak by purchasing a tube of gas tank repair epoxy from your local auto parts store. Apply the epoxy to the leak area, mixing it beforehand. If this does not work, you will need to purchase a new tank.
First, purchase the right fuel lines for your chainsaw model. Then, clean the fuel tank to prevent debris from getting into the new lines. Next, connect the new lines to the carburetor and the fuel filter, following the same path as the old lines. Make sure the lines are secure and won't come loose during operation. Reassemble the chainsaw and double-check for leaks.
The fuel primer has an "in" tube that connects to the larger line coming from the fuel tank (without the filter). The output side of the primer bulb connects to the thinner line, which goes on the bottom nipple of the carb.
The main fuel line runs from the fuel tank to the engine, and the return line allows excess fuel to return to the tank.
Ensure the chainsaw is turned off and cool. Unscrew and remove the housing covering the fuel tank. Identify where the fuel lines are connected to the engine and the tank. Gently loosen the clamps with needle-nose pliers and disconnect the lines.
