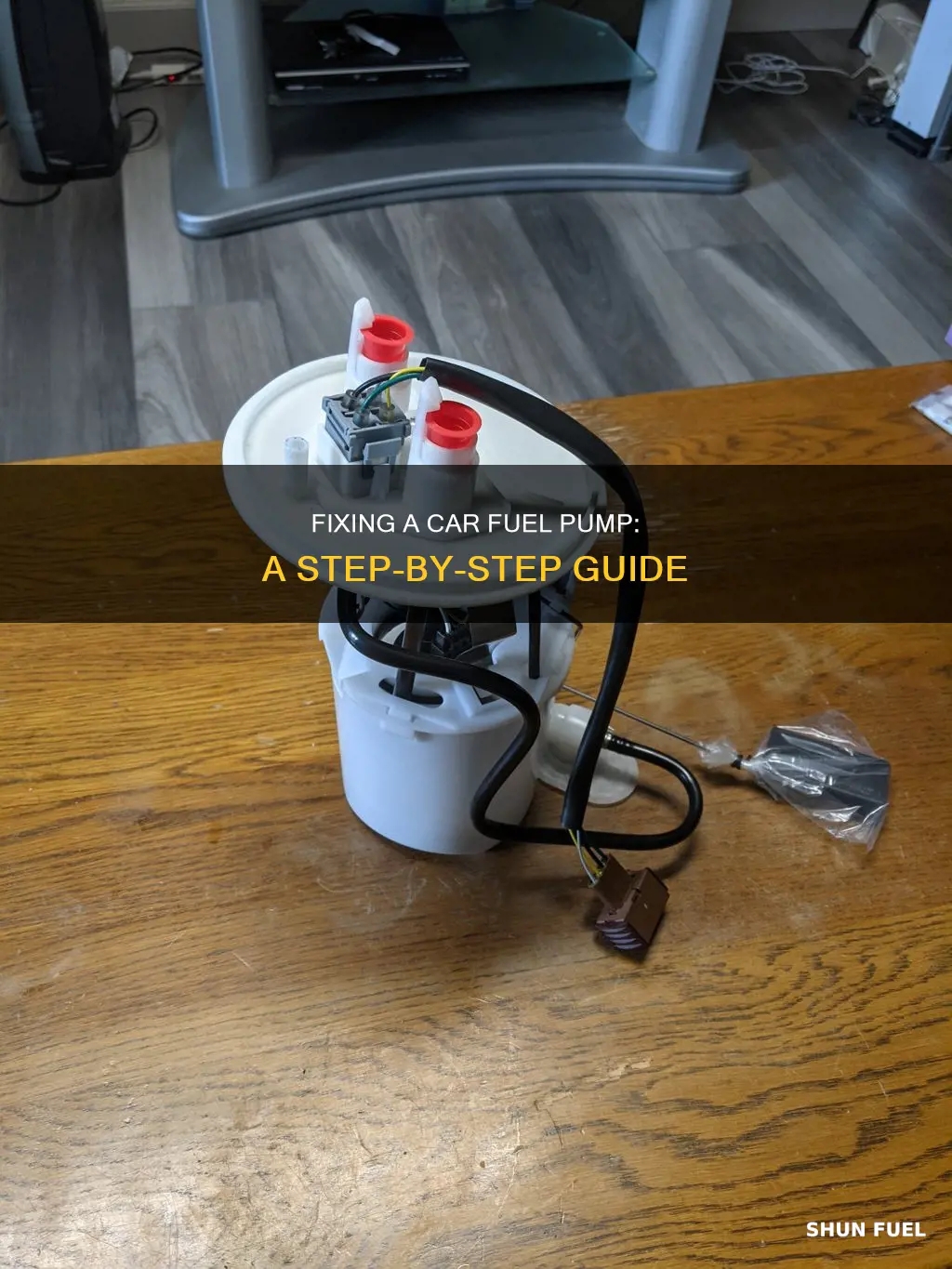

Troubleshooting Your Car's Fuel Pump: A Step-By-Step Guide

Fixing a fuel pump in a car can be a challenging but rewarding task for those with some mechanical knowledge and experience. The fuel pump is a critical component that ensures a steady supply of fuel to the engine, and when it fails, it can lead to engine misfires, stalling, or even complete loss of power. This guide will provide a step-by-step approach to diagnosing and repairing a faulty fuel pump, covering everything from identifying the issue to replacing the pump if necessary. Whether you're a car enthusiast looking to save on repairs or a DIY enthusiast, understanding how to fix a fuel pump can be an invaluable skill.

Diagnose Issues: Check for fuel pump noise, weak fuel pressure, or no power to the pump

When diagnosing fuel pump issues, it's essential to follow a systematic approach to identify the problem accurately. Here's a step-by-step guide to help you check for common fuel pump-related concerns:

• Listen for Noises: Start by inspecting the fuel pump's location, typically found near the fuel tank. Use your ears to listen for any unusual noises. A roaring or whining sound could indicate that the pump is running but not functioning optimally. If you hear a continuous noise, it might suggest a failing pump. This symptom often arises when the pump's internal components wear out or become damaged.
• Check Fuel Pressure: Weak fuel pressure is a common issue that can lead to engine starting problems or poor performance. You can use a fuel pressure gauge to measure the pressure at the fuel rail or injectors. Compare the reading with the manufacturer's specifications. If the pressure is significantly lower than the recommended range, it may indicate a faulty pump or a clogged fuel filter/lines.
• Inspect Power Supply: Ensure that the fuel pump receives the necessary power to operate. Start by checking the fuse and relay associated with the fuel pump circuit. A blown fuse or a faulty relay can disrupt power supply, causing the pump to fail. Locate the appropriate fuse box and inspect the relevant fuses. If a fuse is blown, replace it with a new one of the same amperage. Similarly, check the relay module and consider testing or replacing it if the pump doesn't respond.
• Visual Inspection: Carefully examine the fuel pump for any visible signs of damage or wear. Look for cracks, corrosion, or burnt spots on the pump's housing. Over time, the pump can develop issues due to fuel contamination or excessive heat. If you notice any physical damage, it might require professional repair or replacement.

Remember, if you're unsure about any step or suspect a more complex issue, it's advisable to consult a professional mechanic. They can provide accurate diagnoses and ensure the problem is resolved safely and effectively.

Access the Pump: Locate the fuel pump, often under the car or in the fuel tank

Accessing the fuel pump is a crucial step in any fuel pump repair or replacement process. The location of the fuel pump can vary depending on the make and model of your car, but it is typically found in one of two places: under the car or inside the fuel tank. Here's a guide to help you locate and access the fuel pump:

Under the Car:

Many vehicles have their fuel pumps mounted beneath the car, often near the front or rear of the engine compartment. To access this area, you'll need to pop the hood and locate the fuel lines and tank. Start by lifting the hood and ensuring it is securely latched. Look for the fuel tank, which is usually a rectangular or oval-shaped plastic or metal container. Carefully inspect the tank and the surrounding area for any signs of damage or corrosion. The fuel pump is often connected to the tank via a small hose or pipe. You might need to remove some clips or fasteners to gain access to the pump.

In the Fuel Tank:

In some cars, the fuel pump is integrated into the fuel tank itself. This design is common in older vehicles or those with compact engine compartments. To access the fuel pump in this case, you'll need to remove the fuel tank. Park your car on a level surface and engage the parking brake. Jack up the car to lift the front or rear end, ensuring it is stable and secure. Locate the fuel tank, which is usually located near the front of the vehicle. Carefully drain the fuel tank by disconnecting the fuel line and placing a container underneath. Once drained, you can remove the tank by unbolting it from the vehicle's frame. With the tank out, you'll find the fuel pump, often a small, electric motor-like component.

When accessing the fuel pump, it's essential to take safety precautions. Ensure the car is parked on a level surface, and engage the parking brake. Wear protective gear, such as gloves and safety goggles, to prevent injury from any potential fuel or debris. Additionally, disconnect the battery to prevent any accidental electrical discharges while working on the pump.

Remember, if you're unsure about any step or encounter any complications, it's best to consult a professional mechanic. They can provide expert guidance and ensure the job is done safely and effectively.

Test and Replace: Use a multimeter to test the pump's continuity and replace if faulty

When dealing with a car's fuel pump, testing its functionality is crucial to ensure optimal performance and prevent potential issues. Here's a step-by-step guide on how to test and replace the fuel pump using a multimeter:

Testing Continuity with a Multimeter:

Start by ensuring you have a multimeter, a tool used to measure electrical properties. Set the multimeter to the ohms setting, which measures resistance. Locate the fuel pump's electrical connections, typically found near the pump itself or along the fuel line. Detach the electrical connectors to access the pump's terminals. Connect the multimeter probes to the terminals, ensuring a secure connection. The multimeter should now display a reading. A healthy fuel pump should have a low resistance reading, often in the range of a few ohms or less. If the reading is significantly higher or infinite, it indicates a potential issue with the pump or its wiring.

Checking for Continuity:

In addition to measuring resistance, you can test for continuity. Set the multimeter to the continuity setting, which beeps when there is a complete circuit. Touch the probes to the pump's terminals and listen for the beep. A healthy pump should have a continuous path, indicating good conductivity. If there's no beep or a high resistance reading, it suggests a break in the circuit, and the pump may require replacement.

Replacing the Fuel Pump:

If the testing reveals a faulty pump, it's essential to replace it promptly. Here's a general procedure:

• Locate the fuel pump, usually positioned near the engine or fuel tank.
• Disconnect the electrical connections and fuel lines carefully.
• Remove any retaining clips or fasteners to access the pump.
• Carefully pull the old pump out and install the new one, ensuring proper alignment.
• Reattach the electrical connections and fuel lines, tightening any fasteners.
• Test the new pump's functionality using the multimeter to ensure it's working correctly.

Remember, working on a car's fuel system requires caution due to the presence of fuel, which can be flammable. Always ensure the engine is off and the car is in a well-ventilated area before beginning any repairs. If you're unsure about any step, consult a professional mechanic to ensure the job is done safely and effectively.

Clean or Repair: Inspect for debris, corrosion, or damaged wiring, cleaning or repairing as needed

When it comes to maintaining your car's fuel pump, a crucial component for efficient engine operation, regular inspection and maintenance are essential. Here's a step-by-step guide on how to inspect and address common issues:

• Inspect for Debris: Start by physically examining the fuel pump and its surroundings. Remove any visible debris, such as dirt, dust, or small objects, that might have accumulated around the pump. Use a soft-bristled brush or compressed air to gently clean the area. Ensure that no foreign matter is present, as it could interfere with the pump's functionality or cause damage over time.
• Check for Corrosion: Corrosion is a common issue, especially in areas with high humidity or salt on the roads. Inspect the fuel pump for any signs of rust or corrosion. This might be more noticeable on exposed metal parts or wiring connections. If you find any corrosion, carefully clean it using a non-abrasive cleaner or a mixture of water and vinegar. Ensure that all surfaces are dry before reassembling the pump.
• Examine Wiring and Connections: The fuel pump relies on electrical wiring to function. Inspect the wiring harness for any signs of damage, frays, or exposed wires. Check for loose connections and ensure that all wiring is securely attached to the pump and the vehicle's electrical system. If you notice any damaged wiring, it's best to replace it to prevent potential electrical issues.
• Repair or Replace Damaged Parts: Depending on the inspection results, you may need to perform repairs or replacements. For minor issues like small corrosion spots or minor wiring damage, you can use appropriate cleaning agents or electrical tape to fix them. However, if the damage is extensive or you're unsure about your abilities, it's advisable to consult a professional mechanic. They can ensure the work is done safely and effectively.

Remember, regular maintenance and inspections can help prevent unexpected fuel pump failures, saving you from potential roadside emergencies. Always refer to your vehicle's manual for specific instructions and safety guidelines when performing any DIY repairs.

Reinstall and Test: Reattach the pump, refill the tank, and start the car to ensure proper operation

After you've gathered the necessary tools and parts, it's time to reinstall the fuel pump and ensure its proper operation. Here's a step-by-step guide to help you through the process:

Reattachment and Refill: Begin by carefully reattaching the fuel pump to its original position. Ensure that all connections are secure and aligned correctly. Once the pump is back in place, refill the fuel tank to its maximum capacity. This step is crucial as it allows you to test the pump's functionality under normal operating conditions.

Starting the Engine: With the fuel pump reinstalled and the tank full, it's time to start the car. Turn the ignition key to the 'On' position, but do not start the engine yet. This initial step helps to prime the fuel system and ensure that the pump is receiving power. After a few moments, try to start the engine. If the car starts without any issues, it indicates that the fuel pump is functioning correctly.

Testing for Proper Operation: If the engine starts, you can perform a few tests to confirm the pump's efficiency. First, check for any unusual noises or vibrations while the engine is running. A healthy fuel pump should operate silently and smoothly. Next, observe the engine's performance; it should run smoothly and respond promptly to acceleration and deceleration. If the engine hesitates or stalls, it might indicate a potential issue with the fuel delivery system, requiring further investigation.

Post-Test Maintenance: After ensuring the pump's proper operation, consider performing routine maintenance to keep your fuel system in optimal condition. This includes regularly checking and replacing the fuel filter to prevent contamination and ensuring the fuel tank is kept clean. Regular maintenance can help extend the life of your fuel pump and overall engine performance.

Remember, if you encounter any issues during this process, it's essential to seek professional assistance. Fuel pump issues can be complex, and improper handling may lead to further complications. Always prioritize safety and consult experts when dealing with car mechanics.
