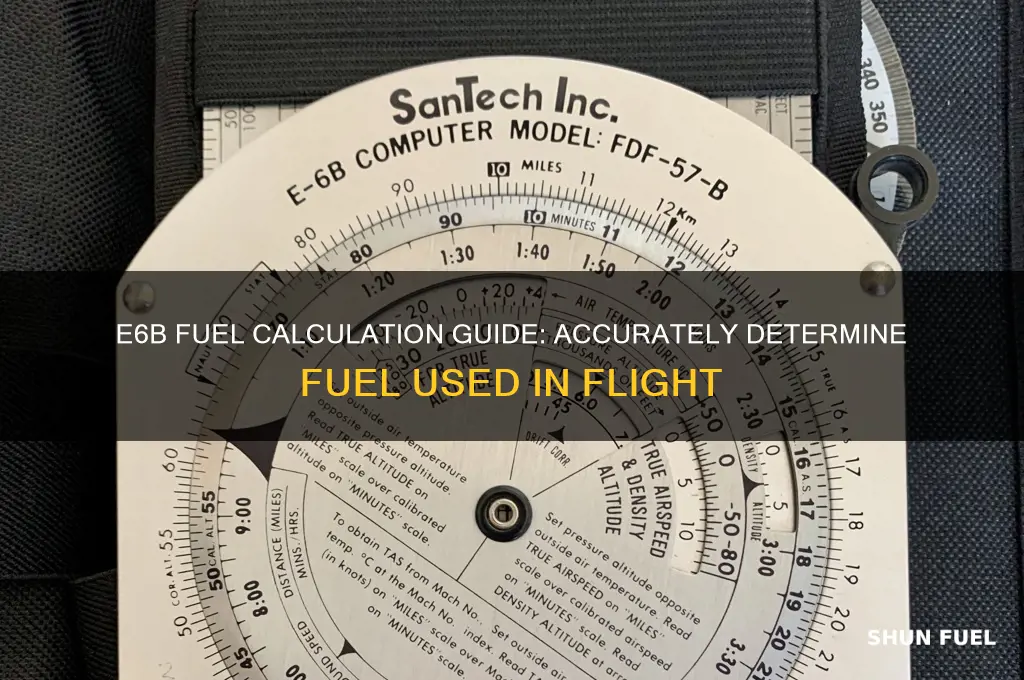

The E6B flight computer, a staple tool for pilots, is essential for various in-flight calculations, including determining fuel consumption. To find the fuel used on an E6B, you first need to understand the relationship between time, speed, and fuel burn rate. Start by setting the outer circular scale to the aircraft's ground speed, then align the time flown on the inner scale. Next, locate the fuel burn rate per hour on the appropriate scale, typically found on the wind side or a dedicated fuel ring. By aligning these values correctly, the E6B will display the total fuel consumed for the given flight duration, providing pilots with a quick and accurate way to monitor fuel usage during their journey.
| Characteristics | Values |
|---|---|
| Tool Required | E6B Flight Computer (mechanical or electronic version) |
| Primary Inputs Needed | Time (in minutes or hours), Ground Speed (GS), Fuel Flow Rate (FF) |
| Calculation Method | Multiply Time by Fuel Flow Rate: Fuel Used = Time × FF |
| Units for Time | Minutes or Hours (ensure consistency with Fuel Flow Rate units) |
| Units for Fuel Flow Rate | Gallons per Hour (GPH) or Pounds per Hour (PPH), depending on aircraft |
| Ground Speed Relevance | Used to calculate Time if Distance and GS are known: Time = Distance / GS |
| Wind Correction | Not directly applicable for fuel calculation, but affects GS |
| Precision | Depends on accuracy of inputs (Time, GS, FF) |
| Example Calculation | Time = 2 hours, FF = 10 GPH → Fuel Used = 2 × 10 = 20 gallons |
| Alternative Method | Use the E6B's "Fuel" ring for direct calculation if available |
| Common Mistakes | Mismatched units (e.g., Time in minutes, FF in GPH without conversion) |
| Latest Data Source | E6B Manuals, Aviation Training Guides (2023 updates) |
Explore related products
What You'll Learn
- Understanding E6B Functions: Learn basic E6B operations for accurate fuel consumption calculations
- Inputting Flight Data: Correctly enter distance, speed, and time for fuel estimation
- Using Fuel Rings: Align rings to calculate fuel burn rates efficiently
- Adjusting for Wind: Factor wind speed and direction into fuel calculations
- Verifying Results: Cross-check E6B fuel estimates with aircraft performance charts
Understanding E6B Functions: Learn basic E6B operations for accurate fuel consumption calculations
The E6B flight computer, a staple in aviation, offers a tactile, reliable method for pilots to calculate critical flight parameters, including fuel consumption. Unlike digital tools, the E6B requires manual input and manipulation, fostering a deeper understanding of the underlying principles. To find fuel used, start by aligning the True Airspeed (TAS) on the outer circular scale with the Distance on the inner scale. This setup reflects the relationship between speed, time, and distance. Next, rotate the device to align the Time (in minutes) with the Fuel Flow Rate (in gallons per hour or pounds per hour). The result, found at the Fuel Used index mark, provides the total fuel consumed for the leg. This process demands precision—misalignment by even a single mark can lead to significant errors.
Consider a practical example: a pilot flying at 120 knots for 180 nautical miles with a fuel flow rate of 8 gallons per hour. On the E6B, place 120 opposite the distance of 180. The time required for the flight is read as 90 minutes. Rotate the device to align 90 minutes with 8 gallons per hour. The fuel used index will indicate 6 gallons. This straightforward calculation becomes second nature with practice, but it’s crucial to verify inputs—a common mistake is misreading TAS as Indicated Airspeed (IAS) or using incorrect units. Always cross-check with flight logs or digital tools when learning.
While the E6B is intuitive for basic calculations, its limitations become apparent in complex scenarios. For instance, variable fuel flow rates or wind corrections require additional steps. To handle variable rates, break the flight into segments with constant fuel consumption and sum the results. For wind correction, calculate Ground Speed (GS) separately and repeat the process. This modular approach ensures accuracy but demands patience and attention to detail. Pilots transitioning from digital tools often underestimate the E6B’s precision, assuming it’s less accurate—in reality, its accuracy depends entirely on the user’s skill.
Mastering the E6B for fuel calculations isn’t just about memorizing steps; it’s about internalizing the relationship between speed, distance, time, and fuel. This understanding becomes invaluable in emergencies when electronic systems fail. For instance, if an engine fails mid-flight, a pilot can quickly estimate remaining fuel by adjusting the E6B for single-engine performance. Practical tips include using a fine-tip pen for precise markings and practicing with real flight plans to simulate pressure scenarios. The E6B’s tactile nature also makes it a superior backup tool—its reliability in extreme temperatures or electromagnetic interference is unmatched by digital alternatives.
In conclusion, the E6B’s fuel calculation function is a blend of simplicity and depth. By aligning TAS, distance, time, and fuel flow rate, pilots can derive accurate fuel consumption figures. However, mastery requires practice, especially in handling variable rates or wind corrections. The E6B’s true value lies in its ability to deepen a pilot’s understanding of flight dynamics, making it an indispensable tool for both routine and emergency situations. Whether for training or real-world application, the E6B remains a testament to the elegance of analog precision in aviation.
Aerobic Energy System: Fuel Sources for Sustained Physical Performance
You may want to see also
Explore related products
Inputting Flight Data: Correctly enter distance, speed, and time for fuel estimation
Accurate fuel estimation begins with precise input of flight data into the E6B. Start by determining the true airspeed (TAS) and distance of your flight. TAS, not ground speed, is critical because it accounts for wind effects and reflects the aircraft’s actual speed through the air. Measure distance in nautical miles (NM) for consistency with aviation standards. For instance, a flight from Chicago to New York covers approximately 780 NM. Input these values into the E6B’s wind side or directly into the calculator function, ensuring units align to avoid errors.
Next, calculate time en route using the formula *Time = Distance ÷ Speed*. On the E6B, align the distance under the true airspeed index on the outer circle to read the time directly from the inner circle. For example, flying 780 NM at 180 knots TAS takes roughly 4.33 hours. Double-check this calculation by cross-referencing with a digital aviation calculator or app to ensure accuracy. Small discrepancies in time can lead to significant fuel miscalculations, especially on longer flights.
Once time is confirmed, estimate fuel consumption by multiplying time en route by the aircraft’s fuel burn rate. Most general aviation aircraft consume between 5 to 10 gallons per hour (GPH), depending on the engine and altitude. For a Cessna 172 burning 8 GPH, a 4.33-hour flight would require approximately 34.64 gallons. Always add a reserve, typically 30–45 minutes’ worth of fuel, to account for unforeseen delays or diversions. Input this reserve into the E6B by extending the time and recalculating fuel.
A common pitfall is neglecting wind correction angle (WCA) or ground speed (GS) adjustments. If wind is a factor, calculate GS and adjust time accordingly. For example, a 20-knot headwind reduces effective speed, increasing flight time and fuel burn. Use the E6B’s wind side to find the WCA and apply it to TAS to derive GS. Re-enter the adjusted GS into the calculator to refine fuel estimates. This step is crucial for cross-country flights where wind conditions vary.
Finally, verify all inputs and calculations before finalizing the fuel estimate. Errors in distance, speed, or time compound quickly, leading to unsafe fuel margins. Practicing with real-world scenarios, such as a 300 NM flight at 120 knots with a 10-knot tailwind, sharpens proficiency. Mastery of these steps ensures the E6B becomes a reliable tool for accurate fuel planning, enhancing both safety and efficiency in flight operations.
Do Commercial Airlines Use JP-8 Fuel? Exploring Aviation Fuel Types
You may want to see also
Explore related products
Using Fuel Rings: Align rings to calculate fuel burn rates efficiently
Fuel rings on an E6B flight computer are a pilot's secret weapon for quick and accurate fuel burn calculations. These concentric rings, often overlooked by beginners, simplify the complex task of determining fuel consumption during different phases of flight. By aligning the appropriate rings with your ground speed and time, you can instantly read off the fuel used, saving precious time in both pre-flight planning and in-flight decision-making.
To use fuel rings effectively, start by identifying the correct ring for your aircraft's fuel burn rate, typically measured in gallons per hour (GPH) or pounds per hour (PPH). For instance, if your aircraft consumes 10 GPH, locate the 10 GPH ring on the E6B. Next, align this ring with your estimated ground speed on the outer ring. Now, as you rotate the inner disc to match the duration of your flight leg in minutes, the fuel used will be directly indicated at the "FUEL" index mark. This method eliminates the need for manual calculations, reducing the risk of errors, especially under the pressure of in-flight adjustments.
Consider a practical example: a pilot flying a Cessna 172 with a fuel burn rate of 8 GPH at a ground speed of 120 knots for a 45-minute leg. Align the 8 GPH ring with 120 knots, then rotate the inner disc to 45 minutes. The fuel used will read approximately 6 gallons. This straightforward process highlights the efficiency of fuel rings, making them indispensable for pilots who prioritize precision and speed in their calculations.
However, accuracy depends on proper alignment and correct input values. Misalignment or using the wrong fuel burn rate can lead to significant errors. Always double-check your inputs and ensure the rings are correctly positioned. Additionally, fuel rings are most effective for steady-state flight conditions; they may not account for variations in burn rates during climbs, descents, or turbulence. For more complex scenarios, combine fuel ring calculations with other E6B functions or digital tools for comprehensive planning.
In conclusion, mastering fuel rings on the E6B empowers pilots to calculate fuel burn rates efficiently and accurately. By understanding their mechanics and limitations, you can leverage this tool to streamline both pre-flight preparation and in-flight adjustments, enhancing safety and confidence in every journey.
Biobutanol as Fuel: Does It Produce CO2 Emissions?
You may want to see also
Explore related products
Adjusting for Wind: Factor wind speed and direction into fuel calculations
Wind significantly alters fuel consumption by affecting ground speed and flight duration. A headwind reduces ground speed, extending time en route and increasing fuel burn, while a tailwind does the opposite. Crosswinds, though less direct, can still impact efficiency by forcing deviations from the intended course. Ignoring these factors can lead to inaccurate fuel calculations, risking fuel exhaustion mid-flight.
To adjust for wind, first determine the wind correction angle (WCA) using the E6B flight computer. Plot the true course and wind direction on the circular slide, then align the wind speed with the true airspeed (TAS) to find the WCA. This angle represents the necessary deviation from the desired track to counteract wind drift. For example, a 20-knot headwind on a 100-knot TAS flight might require a 10-degree correction, reducing ground speed to 80 knots and increasing fuel consumption proportionally.
Next, calculate the ground speed by subtracting headwind or adding tailwind values to the TAS. Use the E6B’s time-distance section to find the revised flight time based on this adjusted speed. Multiply the new time by the aircraft’s fuel burn rate (e.g., 8 gallons per hour) to determine total fuel required. For instance, a 2-hour flight with a 10-knot headwind might extend to 2.5 hours, increasing fuel from 16 to 20 gallons.
Practical tips include rounding wind speeds to the nearest 5 knots for simplicity and adding a 10% fuel reserve to account for unexpected wind shifts. Always cross-check calculations with GPS or flight planning software for accuracy. Remember, wind’s impact compounds with distance; a 5-knot headwind on a 500-mile leg consumes significantly more fuel than on a 100-mile hop. Mastery of these adjustments ensures safer, more efficient flight planning.
How Gas Burners Efficiently Utilize Fuel for Optimal Combustion
You may want to see also
Verifying Results: Cross-check E6B fuel estimates with aircraft performance charts
Cross-checking E6B fuel estimates with aircraft performance charts is a critical step in flight planning, ensuring accuracy and safety. While the E6B flight computer provides a reliable method for calculating fuel consumption, it’s essential to verify these figures against manufacturer-provided data. Aircraft performance charts, often found in the Pilot’s Operating Handbook (POH), offer precise fuel burn rates based on specific conditions like altitude, airspeed, and power settings. By comparing E6B estimates with these charts, pilots can identify discrepancies and adjust their calculations accordingly, reducing the risk of miscalculations that could lead to fuel exhaustion mid-flight.
To begin the cross-checking process, first calculate the fuel required using the E6B. For instance, if planning a 2-hour flight at a cruise speed of 120 knots with a fuel burn rate of 6.5 gallons per hour (GPH), the E6B would indicate a total fuel need of 13 gallons. Next, consult the aircraft’s performance charts for the same conditions. If the charts specify a fuel burn rate of 6.8 GPH at the planned altitude and power setting, the total fuel required would be 13.6 gallons. This 0.6-gallon difference highlights the importance of cross-referencing, as even small variances can accumulate over longer flights.
A practical tip for effective cross-checking is to account for real-world variables that the E6B may not fully capture. For example, headwinds or climbing to a higher altitude can increase fuel consumption beyond the E6B’s initial estimate. Aircraft performance charts often include correction factors for such conditions, providing a more nuanced calculation. Additionally, consider adding a 10–15% fuel reserve to the chart-derived value, ensuring a safety buffer for unexpected delays or deviations from the flight plan.
While the E6B is a versatile tool, it relies on pilot-inputted data, which can introduce errors. Aircraft performance charts, on the other hand, are grounded in empirical testing and manufacturer specifications, offering a more authoritative reference. By systematically comparing the two, pilots can refine their fuel calculations and build confidence in their flight planning. This dual-verification approach is particularly crucial for longer flights or operations in remote areas, where fuel availability is limited.
In conclusion, cross-checking E6B fuel estimates with aircraft performance charts is not just a best practice—it’s a necessity for accurate and safe flight planning. By leveraging both tools, pilots can account for real-world variables, correct for potential E6B limitations, and ensure they carry sufficient fuel for the journey. This methodical approach underscores the principle that redundancy in critical calculations is the cornerstone of aviation safety.
Automatic Cars and Fuel Efficiency: Do They Consume More Gas?
You may want to see also
Frequently asked questions
An E6B flight computer is a manual circular slide rule used in aviation for various calculations, including fuel consumption. To find fuel used, you typically input the distance flown and the aircraft's fuel burn rate (in gallons or pounds per hour) into the appropriate scales, then align them to calculate the total fuel consumed.
The primary scales used for fuel calculations are the Time (or Distance) Scale and the Fuel Consumption Scale. The Time Scale is used to represent the duration of the flight or distance, while the Fuel Consumption Scale is used to represent the fuel burn rate. Aligning these scales gives you the total fuel used.
First, determine the distance flown and the fuel burn rate (e.g., gallons per hour). Place the distance or time on the Time Scale and align it with the fuel burn rate on the Fuel Consumption Scale. The result will be the total fuel used for the flight.
Yes, the E6B can handle both. If you know the flight time and fuel burn rate per hour, use the Time Scale directly. If you know the distance and fuel burn rate per mile or nautical mile, convert the distance to time using the aircraft's speed, then perform the calculation.
If your fuel burn rate is in pounds per hour, you can still use the E6B. Simply ensure the Fuel Consumption Scale is aligned with the appropriate unit (pounds per hour) and perform the calculation as usual. The result will be in pounds of fuel used.
