A fuel injector with a bad spray pattern can cause engine problems such as rough idling, misfires, poor fuel economy, and stalling. While it is challenging to inspect the spray pattern of a fuel injector while it is still on the vehicle, there are tests you can perform to identify a faulty injector. One such test involves removing the injectors, placing them in mason jars, and observing the spray pattern. A properly functioning injector will produce a fine, even mist, while a faulty injector may produce a single stream of fuel or an uneven spray.
Explore related products
What You'll Learn
Testing the spray pattern
Remove the Injectors:
Carefully remove the suspect fuel injectors from the engine. This step may involve removing the air filter box and popping off the retaining clips, as well as disconnecting any necessary wiring. The specific process may vary depending on the vehicle and injector design.
Connect to a Tester:
Attach each removed injector to a fuel injector tester or a diagnostic tool that can simulate engine conditions. Tools such as the ANCEL AJ400 fuel injector tester offer features specifically designed for this purpose, including ultrasonic cleaning and resistance measurement.
Observe the Spray Pattern:

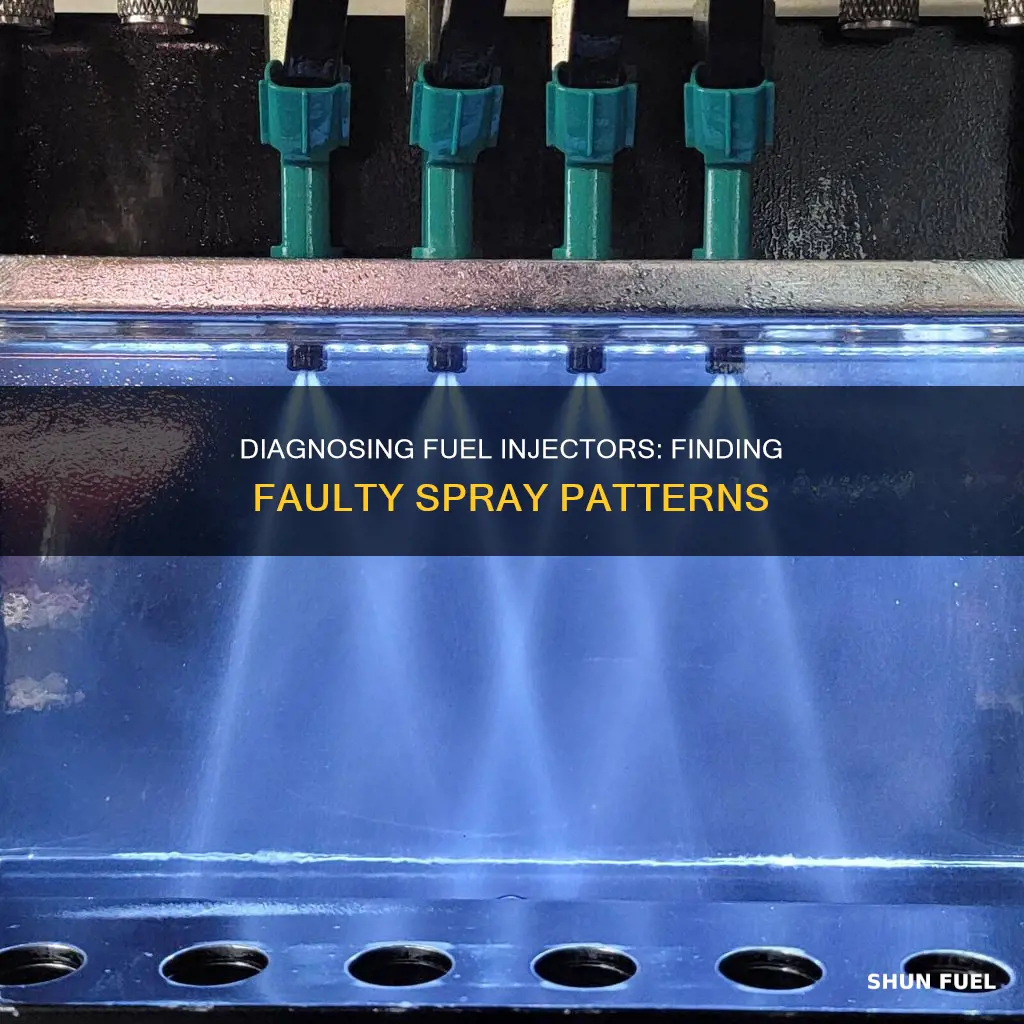

With the injectors connected to the tester, activate them and carefully observe the spray pattern. A properly functioning injector will produce a fine, even mist, ensuring the fuel is atomized correctly. Pay attention to any injectors that produce a single stream of fuel or exhibit a jagged, uneven spray, as these may be clogged or damaged. Compare the spray patterns across all injectors to identify any inconsistencies.
Additional Steps for Poor Spray Patterns:
If some injectors display a poor spray pattern or release less fuel than others, do not immediately assume that the injectors themselves are faulty. The issue could lie with the fuel distributor. To pinpoint the problem, change the ports on the fuel distributor and re-run the test. If the same injector continues to perform poorly, it is likely an issue with the injector itself.
Understanding Spray Patterns:
It is important to recognize that there are various types of spray patterns, and the specific design depends on the engine and fuel system. Common patterns include the tapered pintle design, the two-hole spray pattern, and the multi-hole design, which helps with atomization. Understanding the expected spray pattern for your specific injectors is crucial for accurate testing and diagnosis.
Fuel Injectors: Choosing the Best for Your Engine
You may want to see also
Explore related products
Identifying a bad injector
Another method to identify a bad injector is to remove it from the vehicle and test it. This can be done by placing the injector in a mason jar and observing the spray pattern. A healthy injector should produce a clear, fine mist, with an even spray pattern across all injectors. If you observe a solid, single spray or an irregular pattern, it may indicate a dirty injector or a broken internal component.
Before removing the injector, you should disconnect the electrical connector and perform a circuit test. If the test light does not glow when connected to the terminals, there may be a bad connection or a blown fuse.
It is important to note that a poor spray pattern may not always be due to a faulty injector. It could be caused by a faulty fuel distributor, so it is recommended to change the ports on the fuel distributor and re-run the test to confirm the issue.
Additionally, you can test the injector's coil by obtaining the resistance value from the car's manual and using a multimeter to check for any issues.
Jasper's Comprehensive Coverage: Fuel Injectors Included
You may want to see also
Explore related products
Common causes of spray pattern distortion
A distorted spray pattern in a fuel injector can cause engine misfire. A common cause of spray pattern distortion is a dirty or clogged injector. This can occur when deposits stick and accumulate in the injectors.
To test the spray pattern of your fuel injectors, you will need:
- A flat-head screwdriver
- A 10mm socket wrench
- 6 glass mason jars
- A jumper (12-14 gauge wire with two prongs crimped on the ends)
First, remove the air filter box from the intake to access the injectors more easily. Then, pop off the retaining clips from the injectors and place each one in a mason jar. Next, access your electrical compartment and remove the RPM relay, jumping pins 30 and 87. At this point, turn the key to the 'acc' position to power up everything without cranking the engine. Now, with the fuel pump running, observe the spray patterns of the injectors.
If you notice any issues with the spray pattern, such as an injector that is not spraying but dripping, or one that sprays sporadically, it is important to identify the cause. In some cases, the issue may not be with the injector itself, but rather with the fuel distributor. To determine this, change the ports on the fuel distributor feeding each injector and re-run the test. If the same injector continues to perform poorly, then it is likely that the injector itself is the issue.
When to Clean Fuel Injectors for Optimal Performance
You may want to see also
Explore related products
Fuel injector diagnostics
Fuel injectors are an essential component of an engine's fuel system. They regulate the precise amount of fuel entering each cylinder, ensuring optimal combustion. A bad injector, whether clogged, leaking, or electrically faulty, can severely disrupt engine performance and efficiency.
Common Causes of Fuel Injector Issues:
- Heat Soak: When the engine is shut off, the injectors undergo heat soak. Fuel residue evaporates, leaving behind waxy olefins that harden into varnish deposits. Over time, these deposits can clog the injectors.
- Short-Trip Driving: If a vehicle is primarily used for short trips, varnish deposits may build up faster than detergents can wash them away.
- Dirty or Clogged Injector: This is a common cause of distorted spray patterns.
Symptoms of a Bad Fuel Injector:
- Rough idling
- Misfires
- Poor fuel economy
- Stalling
- Incomplete combustion
- Engine knocking
Testing Fuel Injector Spray Patterns:
- Remove the air filter box and retaining clips from the fuel injectors.
- Carefully remove the injectors and place each one in a mason jar.
- Access the electrical compartment and remove the RPM relay.
- Jump pins 30 & 87 and turn the key to the 'acc' position to power up the system without cranking the engine.
- Observe the spray patterns. Compare them to reference images online.
- If some injectors display poor spray patterns, don't assume they are faulty. The issue could be with the fuel distributor. Change the ports on the fuel distributor and re-test.
Additional Tests:
- Fuel Leak Test: Use a fuel pressure gauge to pressurize the fuel system. Turn off the engine and check for fuel dripping or leaking from the injector nozzle. Inspect O-rings and seals for damage.
- Ultrasonic Cleaning: Use tools like the ANCEL AJ400 to clean injectors with ultrasonic waves, removing carbon build-up and debris.
- Resistance Measurement: Test the resistance of each injector to determine if it is functioning properly or showing signs of wear.
Fuel Injector Cleaner and Anti-Freeze: A Safe Mix?
You may want to see also
Explore related products
Cleaning and restoring injectors
Dirty or clogged fuel injectors can significantly impact a vehicle's performance and efficiency, and even prevent it from starting. Fuel injectors have the critical job of spraying the right amount of fuel, at the right time, and at the right angle into the vehicle engine.
Before cleaning the injectors, it is important to locate them. Typically, fuel injectors are located near the engine intake manifold. Consult your vehicle's owner manual for the exact location and details.
There are two main methods for cleaning fuel injectors: using an over-the-counter fuel injector cleaner and a more invasive method that requires some wrenching.
The first method involves using a fuel injector cleaner to flush the injectors. These cleaners contain detergents that break down gunk and are applied directly to the fuel tank, allowing them to run through the injectors along with the fuel. This method is suitable for preventative maintenance but may not be effective for heavily clogged injectors.
The second method is more complex and involves the following steps:
- Disconnect the fuel pump to prevent fuel from entering the injectors during cleaning. This can usually be done by removing a fuse or relay.
- Start the engine and let it run until it uses up the fuel in the lines and dies, depressurizing the fuel system.
- Disconnect the electrical connectors and use a wrench to remove any bolts or fasteners holding the fuel rail in place.
- Gently lift the fuel rail and carefully remove the injectors.
- If the injectors are heavily clogged, they may need to be removed for manual cleaning. Soak the injectors in a dedicated injector cleaner fluid, then use compressed air to blow through them to remove any remaining debris.
- Attach a hose from the fuel injector cleaning kit to the fuel port on the fuel rail.
- Turn on the cleaning kit's pump and allow the cleaning solution to run through the injectors for 15 to 30 minutes, depending on the level of clogging and the kit specifications.
- Reattach the fuel rail with the injectors to the engine, ensuring all injectors are properly seated and secured.
- Reconnect the fuel pump by replacing the previously removed fuse or relay.
- Turn the ignition to the "on" position for a few seconds and then off again to re-pressurize the fuel system.
- Check for any leaks around the injectors and fuel rail.
- Start the engine and let it idle, listening for any unusual noises and observing the engine's performance.
- Take the vehicle for a test drive to ensure the injectors are functioning properly.
It is important to consult the instructions provided with your specific fuel injector cleaning kit, as different kits may have varying procedures. Additionally, always wear gloves and safety glasses when working with chemicals under pressure.
Rebuilding Diesel Fuel Injectors: A Comprehensive Guide
You may want to see also
Frequently asked questions
You can test your fuel injectors by removing the air filter box and the retaining clips from the injectors. Then, place each injector in a mason jar, and power up the fuel pump by jumping the RPM relay. Observe the spray pattern and compare it to reference images online.
A good fuel injector spray pattern should be a fine, even mist. It should not be a single stream of fuel or a jagged, uneven spray, as this indicates a clogged or damaged injector.
A distorted spray pattern could be caused by a dirty or clogged injector. Over time, fuel residue can evaporate in the injector nozzles, leaving behind hard varnish deposits that can build up and cause blockages.
You can try cleaning your fuel injectors using an ultrasonic cleaner or a tool like the ANCEL AJ400 fuel injector tester and cleaner, which uses ultrasonic waves to remove carbon build-up and debris.
A bad fuel injector spray pattern can lead to incomplete combustion, engine knocking, poor fuel efficiency, rough idling, misfires, and stalling.
