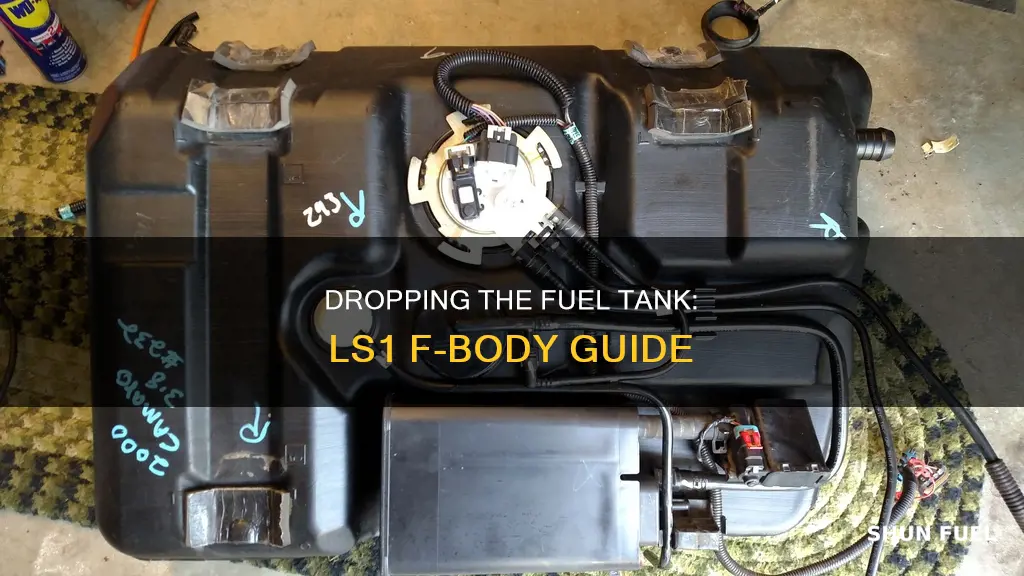

Dropping the fuel tank of an LS1 F-Body car is a complex process that requires careful attention to several steps. Before beginning, it is important to relieve the fuel system pressure and drain the fuel tank. The next steps involve raising the vehicle, removing the fuel fill pipe shield, exhaust system, and various pipes and connectors, before finally lowering and removing the fuel tank. Some car owners opt to cut an access port in the hatch area to change the fuel pump, but this is not recommended due to potential structural issues and rust problems. Instead, it is suggested to drop the tank and perform the necessary maintenance or replacements.
Explore related products
What You'll Learn
Siphoning fuel out of the tank
It is important to note that siphoning gas is illegal in some states and regions and can be dangerous and damage your vehicle if not done correctly. Therefore, siphoning fuel should only be done in an emergency. If you are dealing with a contaminated fuel problem, it is best to contact a specialist.
If you are going to siphon fuel, you will need a length of tubing that is long enough to reach from the gas tank to a container on the ground, a container to hold the gas, and a pair of pliers. The fuel tank is usually located beneath the car, near the rear wheels. Insert one end of the tubing into the gas tank through the filler neck, making sure it is secure and reaches the bottom of the tank.
Alternatively, you can disconnect the fuel line, place it in a bucket, and jump power to the fuel pump to let the fuel drain out. You can also try sticking a hose onto the fuel line and directing the fuel into a container.
If you know anyone who has a fuel pressure gauge, you can connect it to your fuel rail and run power to the pump to pump out the fuel.
Some other methods of draining fuel include:
- Using a siphoning pump, which can be manual or electric.
- Disconnecting the fuel line and turning on the ignition to let the pump do its thing.
- Cutting an access port in the hatch area to change the fuel pump.
Draining the Hayabusa Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Disconnecting the fuel line
Firstly, locate the fuel filter and fuel pump relay. Disconnecting the fuel line at the fuel filter inlet is a common approach. This will allow you to drain the fuel tank without dropping it. Ensure you have a suitable container for the fuel, such as a gas can, and consider renting siphoning equipment from a local parts store to assist in the process.
Next, you will need to jumper or connect a wire from the battery to the fuel pump relay. This will activate the pump and enable you to drain the tank. Before proceeding, ensure that you have relieved the fuel system pressure by following the standard Fuel Pressure Relief Procedure. It is important to note that simply turning the ignition on may not be sufficient to keep the pump running, as it typically requires the engine to be on. However, some older models, such as the 1992 LS1 F-Body, may have a wire on the firewall that can be connected directly to a 12-volt power source to activate the pump for draining.
Once you have connected the wire to the pump relay, attach a hose to the fuel valve and direct it into your gas can or siphoning equipment. This will allow the fuel to be drained safely and efficiently. Be cautious and ensure that all connections are secure to prevent fuel leakage.
After completing these steps, you can proceed to drain the fuel tank. Remember to refer to the Fuel Tank Draining Procedure for comprehensive instructions on this process. Always exercise extreme caution when working with fuel to avoid any potential hazards.
By following these steps, you can successfully disconnect the fuel line and drain the fuel tank of your LS1 F-Body vehicle, making it ready for further maintenance or repairs.
Dodge Ram 3500 Fuel Tank Removal Guide
You may want to see also
Explore related products
Removing the rear end
First, ensure that the vehicle is securely lifted and supported, following the standard safety procedures for lifting and jacking a car. Disconnect the negative battery cable to prevent any electrical issues during the process. Next, relieve the fuel system pressure by following the Fuel Pressure Relief Procedure. This is an important step to avoid any potential hazards.
Now, let's move on to draining the fuel tank. This can be done in several ways, depending on your vehicle's specific setup. One common method is to pull the valve from the fuel rail and run a hose from the rail to a gas can. Then, go to the fuse panel and connect a wire from the battery to the pump, allowing the pump to drain the tank quickly. Alternatively, you can disconnect the fuel line before the filter and turn the key to the accessory position to let the pump run and drain the tank.
Once the fuel tank is drained, it's time to remove the fuel tank fill pipe support bracket bolt and the exhaust system, including the heat shields. Clean all fuel pipe connections and surrounding areas to prevent contamination before disconnecting the fuel pipes. Be cautious when handling these components as they are crucial for the vehicle's performance and safety.
With an assistant, carefully support the fuel tank and remove the fuel tank strap attaching bolts from the underbody brackets. Lower the fuel tank straps and set the fuel tank aside in a suitable work area. At this point, you have successfully removed the rear end, and you can now access the fuel pump or perform any necessary maintenance on the fuel system.
Remember to refer to a qualified mechanic or a detailed LS1 F-Body service manual for specific instructions and safety precautions. This process may vary slightly depending on your vehicle's model and year.
Draining Fuel Tank C6: Step-by-Step Guide
You may want to see also
Explore related products
Replacing the fuel pump
To perform the trap-door trick, you will need to cut a hole in the floor of the car, being careful to avoid any structural components or stress zones. The metal in this area is typically soft and can be cut with ordinary snips. Rounding off the corners can help avoid creating weak points. Once you've made the cut, you can access the fuel pump and perform the necessary replacements or repairs. After completing the work, seal the trap door with a piece of sheet metal cut to the same shape but slightly larger than the hole. Lay this over the trap door with a bead of RTV sealant, and your cabin will be sealed from the fuel tank as good as new.
Another option for replacing the fuel pump is to drop the fuel tank. This method may be necessary if you are unable to access the fuel pump through the trap door or if there are other issues with the tank that require attention. Before dropping the tank, it is recommended to drain the fuel to make the process safer and easier. This can be done by disconnecting the fuel line and allowing the pump to run, or by using a siphoning kit to remove the fuel through the filler neck. Once the tank is drained, you can proceed with dropping it and accessing the fuel pump for replacement.
When replacing the fuel pump, it is important to consider the type of fuel tank you have. If you are using a factory plastic 4th gen F-body LS1 tank, you can use the factory 3rd gen EFI fuel filter. The pressure can be regulated by a valve in the return line built into the pickup unit. To ensure optimal fuel flow and temperature, it is recommended to "T" into the return line somewhere after the filter, preferably up at the engine. If you are using a 3rd gen tank, the Vette filter can be mounted in the factory filter location, but you will need to splice the filter return into the return line.
Additionally, when choosing a replacement fuel pump, there are a few options available. Some popular choices include the Racetronix fuel pump and the Walbro 255. It is also worth considering the fuel filter and regulator, as these can impact the performance of the fuel pump. For example, one user reported using a Vette fuel filter/regulator with their LS1 engine.
Draining Your Moped's Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Cutting an access port
If you do decide to cut an access port, it is important to be very careful not to cut the gas tank as it is very close to the body where you will be cutting. You will feel the cut-off wheel have less tension when you are through, and you only have about a quarter of an inch of clearance. Look at the indentations in the metal to get an idea of where to cut. You can also search "trap door gas f body" on YouTube, which has a video clip showing where to cut.
The metal that needs to be cut is very soft and can be cut in a few minutes with ordinary snips. Try to round off the corners to avoid having weak points at square corners. You can use a bunch of 1/4" Tinnerman nuts to fasten the cover, which should be 1/8" aluminum and overlap by about 8 inches on all edges.
If you do a nice job, it can look like a factory install. However, you are still cutting metal, which will leave bare metal exposed and could cause rust issues down the line.
Removing the Fuel Tank in a 94 Accord: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You can drain the fuel tank by siphoning it out. You can rent siphoning equipment from most part stores, stick it down the neck into the tank, and let it do its thing.
Here are the steps to drop the fuel tank:
- Disconnect the negative battery cable.
- Relieve the fuel system pressure.
- Drain the fuel tank.
- Raise the vehicle.
- Remove the fuel fill pipe shield.
- Remove the fuel tank fill pipe support bracket bolt.
- Remove the exhaust system from the catalytic converter back.
- Remove the exhaust pipe heat shield and the exhaust muffler heat shield.
- Clean all fuel pipe connections and surrounding areas before disconnecting the fuel pipes to avoid possible contamination of the fuel system.
- Disconnect the fuel return pipe at the rear quick-connect fitting.
- Disconnect the EVAP purge pipe at the rear quick-connect fitting.
- Disconnect the fuel feed pipe at the fuel filter inlet.
- Cap the fuel pipes to prevent possible fuel system contamination.
- Remove the rear pipe clip.
- Disconnect the fuel sender and the fuel pressure sensor electrical connectors at the pass-through connector.
- With the aid of an assistant, support the fuel tank (do not bend the fuel tank straps).
- Remove the fuel tank strap attaching bolts from the underbody brackets.
- Lower the fuel tank straps and remove the fuel tank.
Yes, here are some tips and precautions to consider:
- It is recommended to cut an access port in the hatch area for changing the fuel pump, as it can save a lot of time and effort.
- Some people prefer not to drop the tank unless absolutely necessary, as it can be challenging and there is a risk of snapping brake hard-lines.
- If you have a fire and the gas tank blows up, having a solid wall of steel between you and the flammable fluid might be safer.
- Consider the structural integrity of the car after making any cuts or modifications. Welding or using a trap door might be necessary to maintain structural integrity.
- Be cautious when handling fuel and ensure proper ventilation during the process.
