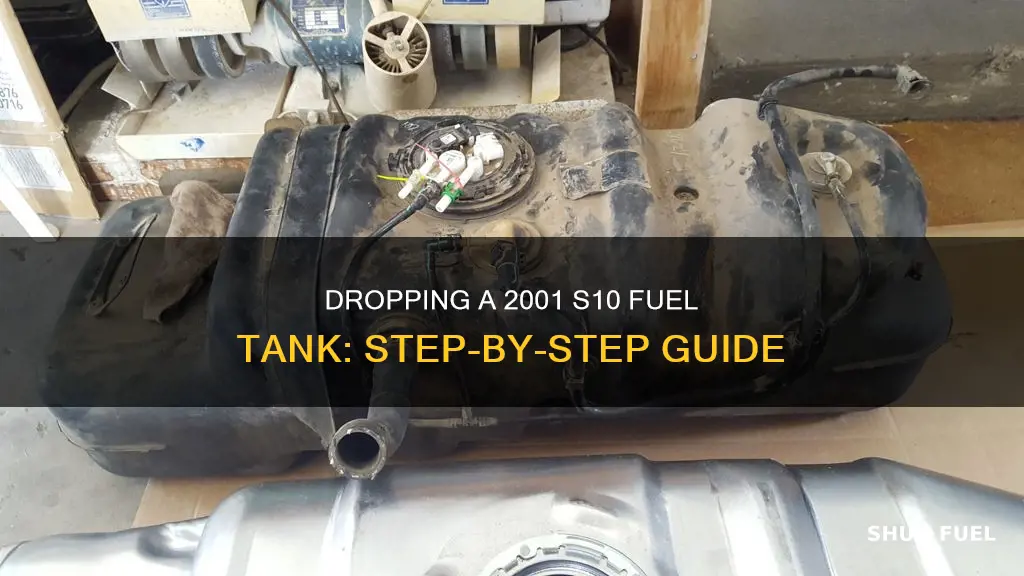

If you need to access the fuel pump in your 2001 S10, you have two options: drop the fuel tank or remove the bed. Removing the bed is generally considered to be easier, as dropping the tank can be difficult and may require multiple people. However, if the bolts on the bed are too rusty, dropping the tank may be the only option. Before dropping the tank, ensure that it is empty or close to it, as a full tank weighs over 125 lbs. You can also use a jumper wire to connect the positive terminal on your battery to the fuel pump, which will pump the gas out. Once the tank is empty, you can remove the four bolts holding the gas tank in place and lower the assembly.
Explore related products
What You'll Learn
Removing the bed vs dropping the tank
When it comes to accessing the fuel pump for replacement or repair, there are two main options: removing the bed or dropping the fuel tank. Both methods have their advantages and considerations, and the best approach may vary depending on the specific circumstances and resources available. Here is a detailed comparison between the two options:
Removing the Bed
Removing the bed of the truck provides easier access to the fuel pump and other components. This method is generally favoured by many due to its convenience and the ability to work from above, avoiding the need to work in tight spaces underneath the vehicle. Here are some key points about removing the bed:
- Easier Access: By removing the bed, you eliminate the need to work in cramped spaces, making it more comfortable to inspect and repair the fuel pump and other components.
- Rust Proofing and Cleaning: With the bed removed, you have the opportunity to thoroughly clean the area, address any rust issues, and apply rust proofing treatments.
- No Fluid Draining: Unlike dropping the tank, removing the bed does not require draining fluids, making it a less messy option.
- Space and Helpers: Removing the bed typically requires more space and may need the assistance of two to four people, depending on the size and weight of the bed.
- Bolt Considerations: Removing and reinstalling bed bolts can be challenging, especially if they are rusty or difficult to access. Some users recommend cutting the bolts and reinstalling with new ones.
Dropping the Fuel Tank
Dropping the fuel tank involves lowering the fuel tank assembly to access the fuel pump. While this method provides direct access to the tank and pump, it can be more complex and may require additional steps. Here are some key points about dropping the fuel tank:
- Direct Access: Dropping the tank allows you to focus specifically on the fuel tank and pump, making it a more targeted approach.
- Complexity: This method can be more complex due to the need to disconnect various components, such as wires and hoses. It may also require draining the fuel tank, adding to the overall complexity.
- Space and Manoeuvrability: Dropping the tank typically requires less space compared to removing the bed, and it can often be accomplished by a single person with the help of jacks or a transmission jack.
- Weight and Safety: A full fuel tank can weigh over 125 lbs, making it cumbersome and potentially unsafe to handle without proper support and equipment.
In summary, removing the bed provides easier access, the opportunity for cleaning and rust proofing, and eliminates the need for fluid draining. However, it may require more space and helpers. On the other hand, dropping the fuel tank offers direct access to the tank and pump but is more complex due to the need to disconnect components and manage the weight and safety considerations of a full fuel tank. Ultimately, the decision between removing the bed vs. dropping the tank may depend on factors such as available space, resources, and the specific repair requirements.
Draining the Kubota L2250 Tractor Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Disconnecting wires and hoses
Step 1: Prepare the Vehicle
Before beginning any work, ensure the vehicle is secure and stable. You may need to jack up the vehicle and place it on jack stands for better access to the fuel tank and related components. It is crucial to engage the parking brake and block the wheels for safety.
Step 2: Disconnect the Battery
Disconnecting the battery is an essential safety precaution when working on any vehicle. Disconnect the negative terminal first, followed by the positive terminal. This step will help prevent any accidental electrical issues during the process.
Step 3: Locate the Wires and Hoses
Identify the wires and hoses connected to the fuel system. These may include wiring harnesses, fuel lines, vent hoses, and evaporation hoses. Label or take note of their locations to ensure proper reconnection during reassembly.
Step 4: Disconnect Wires
Using the appropriate tools, carefully disconnect the wires from their connectors or terminals. Some wires may have clips or fasteners that need to be released before detachment. Be gentle to avoid damage and take note of their routing for correct reassembly.
Step 5: Disconnect Hoses
Start by clamping the fuel lines to prevent fuel spillage. Then, carefully detach the hoses from the fuel tank and related components. Fuel lines, vent hoses, and evaporation hoses may require different detachment methods, so be sure to identify each hose before proceeding.
Step 6: Secure the Disconnected Components
Once the wires and hoses are disconnected, securely fasten or tie them away from the work area. This step ensures that they do not interfere with the rest of the process and helps prevent accidental damage.
Remember to consult a qualified mechanic or a repair manual specific to your vehicle for detailed instructions and safety precautions. Each vehicle may have unique variations, so having a model-specific guide is essential.
Connecting Diesel Fuel Tanks: The Comprehensive Guide
You may want to see also
Explore related products
Using a jack to lift the bed
Jacking up a 2001 Chevrolet S10 can be dangerous if done incorrectly. It is important to refer to the owner's manual to find the jacking points and to follow safety precautions.
To lift the bed of a 2001 S10, you will need a high lift jack and a 2 x 4. First, remove the forward six bolts and then undo the rearmost two bolts about an inch. Disconnect the pump ground and the fuel filler neck from the bed. Check the rear lights wiring to identify any lighting wires that might be affected and rearrange as needed.
Next, lift the front of the bed from underneath and stick a 2 x 4 between the frame and the bed to hold it up. You can also use a milk crate or a jackstand to hold up the bed at about a 25-degree angle. Ensure that the jackstand is placed on a flat surface and that the truck is secure by getting out from under it and shaking the vehicle.
Once the bed is secure, you can access the fuel pump for replacement or removal. It is important to note that you should never get under the vehicle while it is jacked up, and always use jack stands to support the vehicle.
Draining Your Range Rover's Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
$14.99
Replacing the fuel pump
To replace the fuel pump in a 2001 S10, you will need to first drain the fuel tank. There are two methods to access the fuel pump: removing the bed or lowering the fuel tank.
Removing the bed is considered the easier option by many, as it provides access to the pump without having to lower the tank. To do this, start by removing the tailgate to make the bed lighter. Then, remove the screws that hold the gas tank filler hose to the side of the bed, right by the filler cap. Follow the frame down the length of the bed and remove the bolts holding the bed in place. There should be 6 to 8 bolts. With the bolts removed, lift the bed off the truck. This step may require the help of 2 to 4 people, depending on the setup and available manpower.
Once the bed is removed, you can access and replace the fuel pump. After replacing the pump, start the engine to ensure everything works properly before placing the bed back onto the truck.
Alternatively, you can access the fuel pump by lowering the fuel tank. This method is considered more difficult and may require additional equipment. First, drain the fuel tank and lower it, supporting it securely. Undo the tank mounting straps and the filler hose, then slowly lower the tank until you can disconnect the fuel lines and electrical harness. With the tank mounting hardware and hoses disconnected, you can now access and replace the fuel pump assembly. Finally, reinstall the tank and refill it with fuel.
Draining the 79' Bronco: Step-by-Step Fuel Tank Guide
You may want to see also
Explore related products
Dealing with rust
To drop a 2001 S10 fuel tank, it is recommended to remove the truck bed first, as it is easier than removing the tank. This will also allow you to inspect the fuel lines and sending unit and replace them if needed.
Now, if you're dealing with rust on the fuel tank, here's what you can do:
Inspect the Tank
Before attempting any repairs, it is important to assess the severity of the corrosion. Drain a small amount of fuel into a clear container and check for rust particles or debris, which indicate severe rusting or corrosion inside the tank.
Decide on Repair or Replacement
Consider the condition of the tank, the rarity of the vehicle, and the financial implications. If the tank is too damaged, removing the rust may not be sufficient, and replacement might be the best option.
Remove the Tank
If you decide to proceed with repairs, start by removing the gas tank. Refer to your vehicle's manual for the manufacturer's recommended method for draining the fuel. Disconnect the fuel lines and electrical connections, and slowly lower the tank.
Clean the Rust
To clean the rust out of the tank, start by choosing an agitator like steel BBs, small nuts, and bolts, or specially shaped abrasive media from rust removal kits. Next, pour in a cleaning solution, such as vinegar or stronger acids like phosphoric or muriatic acid, filling the tank about halfway. Gently shake the tank to ensure the solution reaches all interior surfaces, then drop in the agitators and shake again to dislodge more rust. Allow the solution to sit and soak, with stronger acids requiring less soaking time.
Seal Holes and Cracks
If the tank has cracks or holes, seal them using rubber or vinyl vacuum caps, silicone plugs, or other appropriate fittings.
Prevent Future Rust
To prevent future rust issues, ensure you use a fuel stabilizer and avoid leaving the tank open for extended periods. Store your vehicle in a dry environment to reduce moisture accumulation inside the tank.
By following these steps, you can effectively deal with rust on your 2001 S10 fuel tank and prevent further corrosion.
