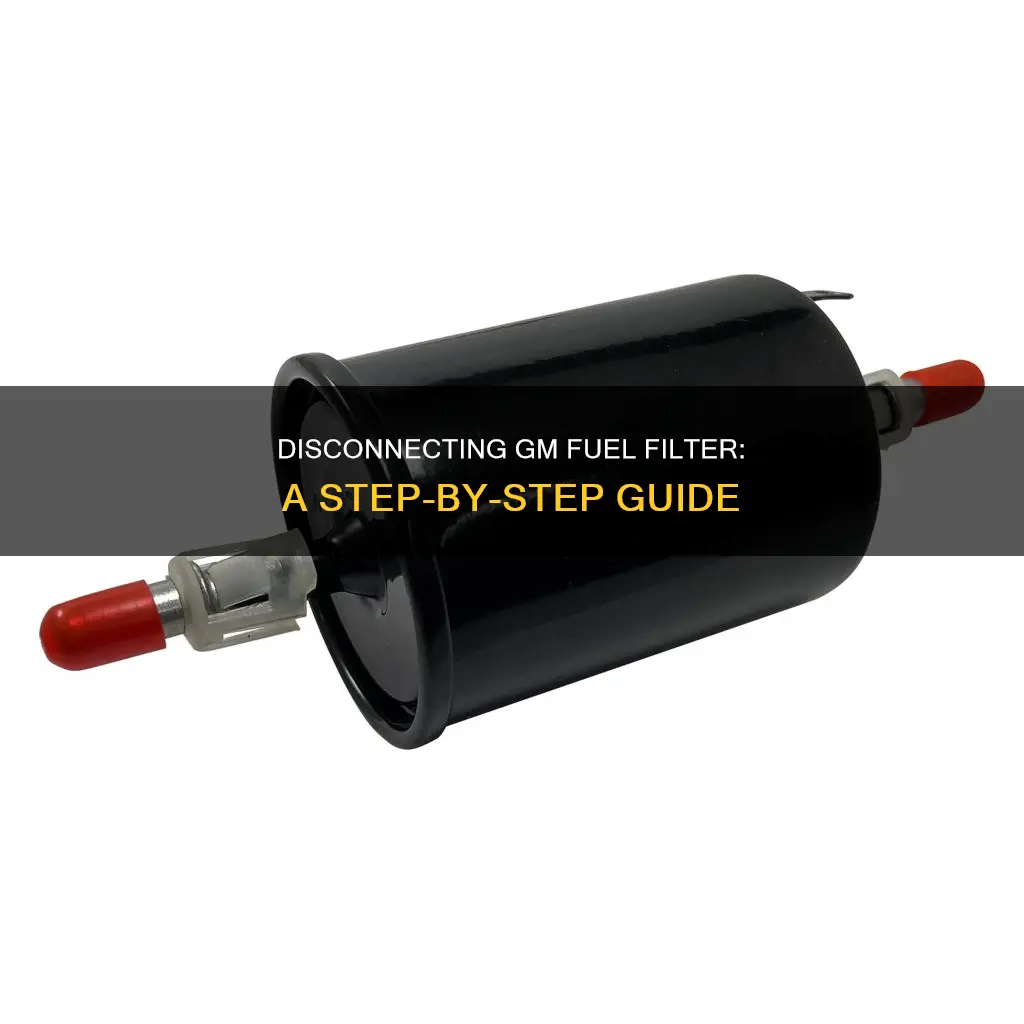

Disconnecting a GM fuel filter can be a tricky task, requiring a variety of tools and precautions. The fuel filter is typically located underneath the vehicle, in series with the fuel line, and different automakers use different methods to secure the fuel filter to the fuel line, such as flare nuts, quick-connect fittings, or hose clamps. Before attempting to disconnect the fuel filter, it is important to relieve the fuel system pressure and disconnect the negative battery cable to prevent any electrical sparks. When it comes to the fuel filter itself, there are a few different techniques to try depending on the type of coupling. For example, if the filter is secured with flare nuts, you will need to use a flare nut wrench to turn the nut counterclockwise. If it has quick-connect fittings, a special disconnect tool may be required. In some cases, penetrating oil may be needed to loosen tight or rusty connections.
Explore related products
What You'll Learn
Use a 20mm wrench to disconnect the flare line
When disconnecting a GM fuel filter, it is important to use the right tools for the job. While some sources suggest that a standard wrench can be used to disconnect the flare line, others recommend using a flare nut wrench or a line wrench. These tools are designed to provide a better grip on the nut and distribute force more evenly, reducing the chance of rounding the flare nut off or damaging the line.
In the case of GM fuel filters, a 20mm wrench is the appropriate size to disconnect the flare line. Cornwell tools sell a 20mm flare nut wrench specifically for GM fuel filters. A 13/16 wrench can also fit, but it may be too sloppy, and a 20mm wrench will provide a better fit.
To disconnect the flare line, position the wrench on the flare nut and turn it in the appropriate direction to loosen the connection. It is important to be gentle and careful during this process to avoid damaging the fuel filter or the surrounding components.
In some cases, the flare nut may be difficult to remove due to corrosion or rust. In such situations, it is recommended to use penetrating oil or another type of lubricant to help loosen the connection. Additionally, a punch can be used to break the corrosion between the line and the nut by hammering on the exposed side of the hex.
By following these steps and using the appropriate tools, such as the 20mm flare nut wrench, individuals can safely and effectively disconnect the flare line of a GM fuel filter.
Cleaning Your Jetta's Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Disconnect the negative battery cable
Disconnecting the negative battery cable is an important step when working on any electrical component of your vehicle. This is because it prevents an electrical spark should a tool or equipment come in contact with an exposed electrical terminal. Failure to do so may result in personal injury and/or damage to the vehicle or its components.
First, locate the negative battery terminal. It is typically marked with a "-" symbol or a black cover. Make sure the ignition and start switch are in the OFF or LOCK position, and all electrical loads are turned off. This is important to ensure that there is no power flowing through the system.
Once you have located the negative battery terminal, you will need to loosen the nut or bolt that secures the cable to the terminal. You can do this by using an appropriate-sized wrench or socket. Be careful not to drop the nut or bolt into the engine bay as it may be difficult to retrieve.
After loosening the nut or bolt, you can now carefully detach the cable from the terminal. Gently pull on the cable and wiggle it free if necessary. Be careful not to let the cable touch any metal parts of the vehicle to avoid any accidental electrical shorts.
Finally, insulate the disconnected cable to prevent accidental contact with the battery terminal. You can use electrical tape or a cable insulator cap to cover the end of the cable. This step is crucial to ensure safety while you work on other components.
Remember to reconnect the negative battery cable properly once you have completed your repairs or maintenance. Tighten the nut or bolt securely and ensure that the connection is firm before starting your vehicle.
Cleaning Your Motorcycle Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Relieve fuel system pressure
Relieving fuel system pressure is an important prerequisite when performing repairs and maintenance on your vehicle. Here are some detailed instructions on how to relieve the fuel system pressure on a GM vehicle:
Preparation:
Locate the fuel pressure relief valve, which is typically a Schrader valve (similar to a bicycle tire valve) found on the fuel rail near the engine. Ensure you have a towel or rag handy to catch any fuel drips and wear suitable personal protective equipment.
Relieving Fuel System Pressure:
Method 1: Pulling the Fuel Pump Relay:
- With the engine off, locate the fuel pump relay.
- Pull or remove the fuel pump relay.
- Attempt to start the engine. It may not start, but this action will relieve fuel pressure.
- Turn off the ignition.
Method 2: Bleeding at the Schrader Valve:
- Locate the Schrader valve on the fuel rail.
- Place a towel or rag over and around the Schrader valve to catch any fuel drips.
- Use a screwdriver to press the little rod inside the valve gently.
- You should see a quick spurt of fuel, indicating that the pressure has been relieved.
Note: It is important to consult your vehicle's manual for specific instructions and safety precautions. The method used may vary depending on your vehicle's make, model, and year. Always exercise caution when working on fuel systems to prevent injuries and accidents.
John Deere Fuel Filter: Maintenance and Inspection Guide
You may want to see also
Explore related products
Use a pick or small screwdriver to remove clips
If you have an older car, it probably has an external fuel filter that requires routine service. The fuel filter is located under the rear of the car, rearward of the fuel tank. Before you begin, make sure to disconnect the negative battery cable to prevent an electrical spark should a tool or equipment come into contact with an exposed electrical terminal.
Now, to the task of removing clips with a pick or small screwdriver. First, you need to identify the type of fitting connecting the fuel filter to the fuel line. This could be flare nuts, quick-connect fittings, or clamps. If your fuel filter is secured by quick-connect fittings, you will need a pick or small screwdriver to remove the clips.
Use the pick or small screwdriver to carefully pry out any clips or retainers that are holding the quick-connect fitting in place. Work slowly and gently to avoid damaging the plastic fittings. You may need to wiggle the hose or tap lightly with a hammer to help free the clips. Once all the clips are removed, you can use a special disconnect tool to separate the fuel lines on each side of the filter.
If your fuel filter is secured with flare nuts, you will need a different approach. In this case, you will need a flare nut wrench to hold the nut on the fuel filter. Then, use another flare nut wrench to turn the nut on the fuel line in a counterclockwise direction. Repeat this process on both sides of the fuel filter to remove it completely.
Checking Your Inline Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Use a breaker bar for additional leverage
If your GM fuel filter is stuck, you may need to use a breaker bar for additional leverage. Before doing this, however, there are a few other steps you can take to try and remove the filter. Firstly, you should apply heat to the filter using a hair dryer or heat gun. This will help to expand the metal and make it easier to unscrew. You can also spray a penetrating oil, like WD-40, onto the threads of the filter to help loosen any rust or corrosion.
If the filter is still stuck, you can try using a wrench or socket. Fit the wrench or socket onto the filter and try to unscrew it. If it's extremely tight, you may need to use a breaker bar or cheater bar for additional leverage. A filter wrench is another option and may be the easiest tool for removing the filter, as it is designed to grip tightly and prevent slipping.
When using a wrench, socket, or breaker bar, remember to turn the filter counterclockwise to remove it. You can also try prying the filter carefully away from the filter with the wrench.
If you're still struggling to remove the filter, you may need to use a specialised tool like the Lisle 35000 Fuel Filter Disconnect. This tool consists of two metal halves that you push into place around the fuel line. Once the pieces are in place, you can leverage the tool to push it further into the line, depressing the "teeth" of the fuel line quick connect.
