Mastering The Art Of Car Fuel System Diagnosis

Diagnosing a car's fuel system can be a complex process, but with the right tools and knowledge, it is a manageable task. The fuel system is crucial for a vehicle's performance and efficiency, so identifying issues early is essential. This guide will explore the steps involved in diagnosing common fuel system problems, including fuel pump and filter issues, fuel injectors, and carburetors. Understanding the symptoms and using diagnostic tools can help car owners and mechanics pinpoint the root cause of fuel-related problems, ensuring the vehicle runs smoothly and efficiently.

Fuel Pump Inspection: Check for proper operation and listen for unusual noises

When inspecting your car's fuel pump, it's crucial to ensure it operates correctly and efficiently. The fuel pump is responsible for delivering fuel from the tank to the engine, and any malfunction can lead to starting issues, poor performance, or even engine failure. Here's a step-by-step guide to help you check the fuel pump's operation and identify potential problems:

Step 1: Locate the Fuel Pump

Start by locating the fuel pump, which is typically found inside the fuel tank or along the fuel line. It is often a small, electric motor-like component. If your car has a separate fuel pump module, locate that as well.

Step 2: Check for Power Supply

Ensure that the fuel pump is receiving power. You can do this by using a voltage tester or a multimeter to check the voltage at the fuel pump's electrical connection. If the voltage is not present or is fluctuating, it could indicate a wiring issue or a problem with the fuel pump's internal circuitry.

Step 3: Listen for Operation

One of the most effective ways to inspect the fuel pump is by listening. Turn the ignition to the 'on' position but keep the engine off. Listen carefully for a humming or whirring sound coming from the fuel tank or the area where the fuel line connects. If you don't hear any sound, it might suggest a faulty pump. If you do hear a sound, but it's unusual or different from the normal operation, it could be a sign of distress or impending failure.

Step 4: Inspect for Leaks and Contamination

Visual inspection is also essential. Check the fuel tank and surrounding areas for any signs of fuel leaks or contamination. Even a small leak can lead to engine misfires and performance issues. Additionally, look for any signs of corrosion or damage to the fuel pump itself.

Step 5: Test for Pressure

Using a fuel pressure gauge, you can test the pump's pressure output. Connect the gauge to the fuel line and turn the ignition to 'on' with the engine off. The gauge should read a specific pressure value, typically around 40-60 psi. If the pressure is too low or inconsistent, it indicates a potential fuel pump issue.

Remember, if you suspect any problems with your fuel pump, it's best to consult a professional mechanic for a thorough diagnosis and repair. Regular maintenance and inspection of the fuel system can help prevent costly repairs and ensure your vehicle's optimal performance.

Pressure Testing: Measure fuel pressure using a gauge to identify leaks or blockages

Pressure testing is a crucial step in diagnosing issues with a car's fuel system. It involves measuring the fuel pressure at different points in the system to ensure it meets the manufacturer's specifications. This test can help identify leaks, blockages, or other problems that might be causing performance issues. Here's a detailed guide on how to perform this test:

Tools and Materials:

• Fuel Pressure Gauge: This specialized gauge is designed to measure the pressure of fuel in the system. It should be compatible with the fuel type in your car (gasoline or diesel).
• Jack and Jack Stands: You'll need to lift the vehicle to access the fuel lines and pump.
• Wrenches and Tools: For any necessary adjustments or removals.
• Clean Rags: To wipe away any fuel spills.

Procedure:

• Safety First: Ensure the engine is off and the vehicle is in a stable position. Disconnect the battery to prevent any accidental electrical discharges.
• Locate the Fuel Pump and Lines: Identify the fuel pump, which is usually located near the engine. Locate the fuel lines that connect the pump to the fuel injectors or carburetor.
• Lift the Vehicle: Use the jack to lift the vehicle, ensuring it is securely supported by jack stands. This step is essential for accessing the fuel system components below the engine.
• Connect the Gauge: Attach the fuel pressure gauge to the fuel line. Ensure a tight connection to get accurate readings.
• Start the Pump: Turn on the fuel pump using the ignition switch or a temporary power source. Listen for any unusual noises and check for leaks around the connections.
• Read the Pressure: Observe the gauge and record the fuel pressure. The ideal pressure varies by vehicle, so consult your car's manual for the correct range. If the pressure is significantly lower or higher than the specified range, it indicates a potential issue.
• Test Multiple Points: If your vehicle has multiple fuel lines, repeat the process at different points to ensure comprehensive coverage.
• Check for Leaks: Inspect the connections and lines for any signs of fuel leakage. Even a small leak can lead to engine performance problems.
• Record Findings: Document the pressure readings and any observed issues. This information will be valuable for troubleshooting and repairing the fuel system.

Troubleshooting:

• Low Pressure: If the pressure is below the recommended range, check for clogs, faulty pumps, or damaged lines.
• High Pressure: Excessive pressure could indicate a malfunctioning pressure regulator or injectors.
• Leaks: Any fuel coming from the lines or connections should be addressed immediately to prevent engine damage.

By following these steps, you can effectively use pressure testing to diagnose and resolve fuel system problems, ensuring your vehicle runs efficiently and reliably. Remember to always refer to your vehicle's manual for specific instructions and safety guidelines.

Fuel Filter Replacement: Regularly replace filters to prevent contamination and clogs

The fuel filter is a critical component of your car's fuel system, and regular maintenance is essential to ensure optimal performance and longevity. Over time, fuel filters can become clogged or contaminated, leading to various issues that may affect your vehicle's operation. Here's a step-by-step guide on how to replace the fuel filter to prevent these problems:

• Locate the Fuel Filter: Start by identifying the fuel filter's location in your vehicle. The filter is typically positioned along the fuel line, often near the engine or under the car. Refer to your vehicle's manual for specific details, as the exact position can vary depending on the make and model.
• Prepare for Replacement: Before you begin, ensure you have the necessary tools and materials. You'll need a new fuel filter, which can be purchased from an auto parts store. Additionally, have a container to catch any remaining fuel or debris, as you'll need to drain the system. It's also a good idea to wear protective gloves and goggles for safety.
• Drain the Fuel System: Safety should be your top priority. To replace the filter, you'll need to drain the fuel from the system. Park your car on a level surface and engage the parking brake. Locate the fuel drain valve, usually found under the car near the fuel tank. Open the valve and allow the fuel to drain into the container. Ensure you drain the system completely to avoid spills.
• Remove the Old Filter: With the fuel drained, you can now proceed with the replacement. Locate the old filter and use a suitable tool (often a fuel filter wrench) to carefully remove it. Be cautious as you might encounter some resistance. Once removed, inspect the filter for any signs of contamination or damage. If it appears clogged or dirty, it's a clear indication that a replacement is necessary.
• Install the New Filter: Take your new fuel filter and align it with the fuel line. Ensure it is the correct size and orientation. Push the filter onto the fuel line until it is securely in place. Tighten any connections or clips as per the manufacturer's instructions.
• Refill and Test: After installing the new filter, refill the fuel tank and start the engine. Let it run for a few minutes to ensure the fuel system is functioning properly. Check for any leaks around the filter connections and listen for any unusual noises. If everything is in order, your car should now be running smoothly.

Regularly replacing the fuel filter is a simple yet effective way to maintain your vehicle's performance and reliability. By preventing contamination and clogs, you can avoid potential issues like reduced engine power, poor fuel efficiency, and even engine damage. Remember, this is a task that can be accomplished by those with basic automotive knowledge, but if you're unsure, consulting a professional mechanic is always an option.

Engine Sensors: Verify sensor readings for accurate fuel injection and performance

When it comes to diagnosing a car's fuel system, engine sensors play a crucial role in ensuring accurate fuel injection and overall engine performance. These sensors provide vital data to the engine control unit (ECU), allowing for precise control of fuel delivery. Here's a detailed guide on how to verify sensor readings for optimal engine operation:

Understanding Engine Sensors:

Engine sensors are electronic components that monitor various parameters within the engine. Common sensors include mass airflow (MAF) sensors, manifold absolute pressure (MAP) sensors, oxygen (O2) sensors, and temperature sensors. Each sensor has a specific function, and their collective data helps the ECU make informed decisions about fuel injection. For instance, the MAF sensor measures the amount of air entering the engine, while the MAP sensor provides information about engine vacuum.

Verifying Sensor Readings:

• Sensor Calibration: Start by ensuring that all engine sensors are properly calibrated. Calibration involves adjusting the sensor's settings to match the vehicle's specific characteristics. This process is typically done using a diagnostic scanner or a specialized tool provided by the vehicle manufacturer. Calibration ensures that the sensor readings are accurate and reliable.
• O2 Sensor Testing: Oxygen sensors, often referred to as O2 sensors, are critical for monitoring the engine's air-fuel mixture. To verify their readings, you can perform a simple test. Start the engine and allow it to reach a steady operating temperature. Then, use a diagnostic scanner to read the O2 sensor's voltage output. The sensor should read a value close to 0.4V when the engine is idling in a closed-loop mode (where the ECU controls fuel injection). Deviations from this value may indicate a faulty O2 sensor.
• MAF and MAP Sensor Verification: These sensors work together to provide the ECU with air density information. You can test them by using a vacuum gauge to measure the engine's vacuum levels. With the engine idling, the vacuum gauge should read a specific value, indicating the correct sensor output. If the gauge readings are inconsistent or off, it may suggest sensor malfunction or contamination.
• Temperature Sensor Check: Engine temperature sensors provide crucial data for fuel injection calculations. To verify their readings, you can use a temperature probe to measure the engine's actual temperature. Compare this reading with the sensor's output. If there's a significant discrepancy, the sensor may be faulty and require replacement.

Impact on Fuel Injection:

Engine sensors directly influence fuel injection accuracy. If a sensor provides incorrect data, the ECU may make improper fuel delivery decisions. For example, a faulty MAF sensor might lead to overfuelling, while a failing O2 sensor could result in poor combustion and reduced engine performance. Regular verification of sensor readings ensures that the fuel system operates optimally, promoting efficient combustion and engine health.

Troubleshooting:

When sensor readings deviate from expected values, it's essential to troubleshoot. This may involve checking sensor wiring, ensuring proper sensor mounting, and inspecting for physical damage. In some cases, sensor replacement might be necessary, especially if multiple sensors show signs of failure.

By systematically verifying engine sensor readings, you can ensure that your car's fuel system operates at its best, delivering optimal performance and fuel efficiency.

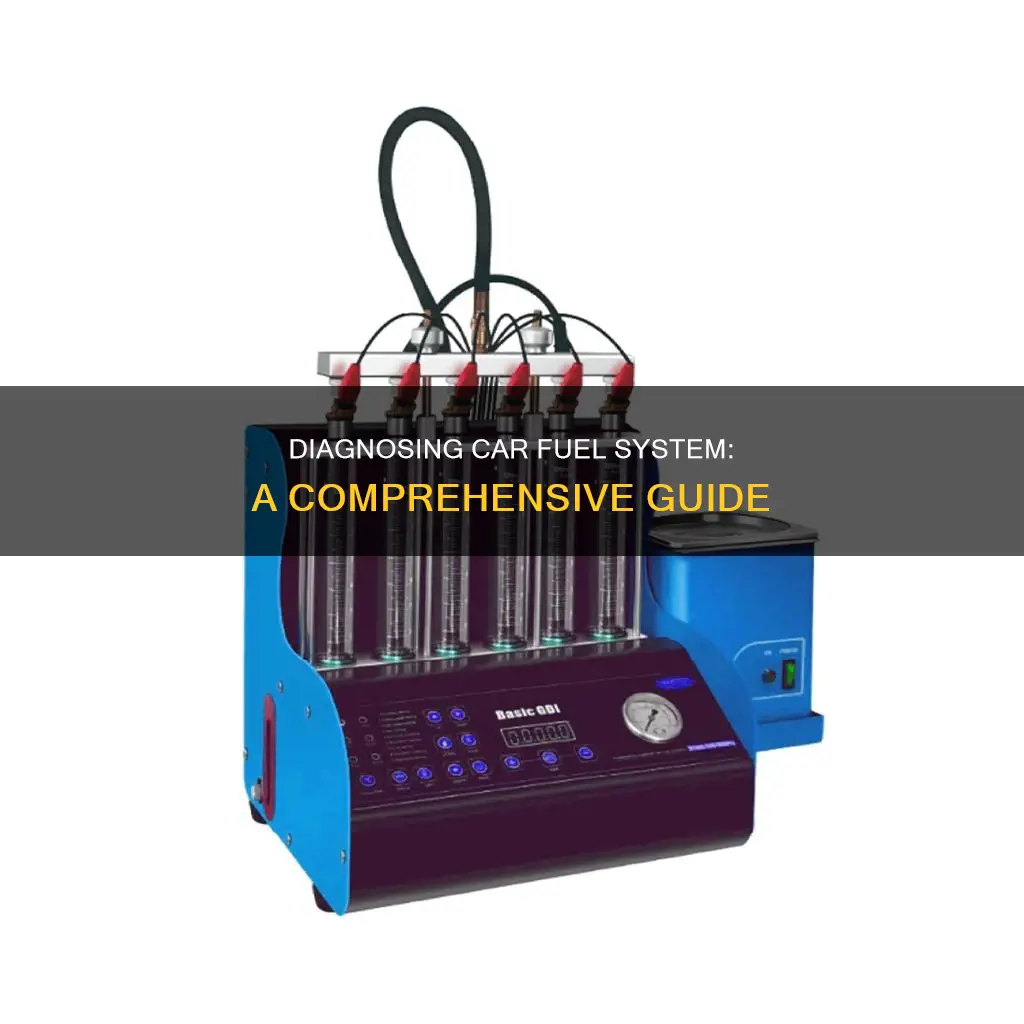

Fuel Injector Cleaning: Use specialized tools to clean injectors and restore performance

The fuel injectors in your car are crucial components responsible for delivering the precise amount of fuel required for optimal engine performance. Over time, these injectors can become clogged with deposits, leading to reduced power, poor fuel efficiency, and even engine misfires. Cleaning the fuel injectors is a process that can help restore their functionality and improve overall engine performance. Here's a step-by-step guide on how to clean your fuel injectors using specialized tools:

Understanding the Process: Before you begin, it's essential to understand the purpose of fuel injector cleaning. The injectors spray fuel into the engine's cylinders, and any obstructions can disrupt this process. Cleaning them can remove carbon deposits, varnish, and other contaminants that accumulate over time. This process ensures that the injectors can deliver fuel efficiently, allowing for better combustion and improved engine performance.

Gathering the Tools: Cleaning fuel injectors requires specialized equipment to ensure effective and safe cleaning. Here's what you'll need:

• Fuel Injector Cleaner: This is a specialized cleaning solution designed to dissolve and remove deposits from the injectors. It is typically a concentrated liquid that needs to be diluted with water.
• Fuel Injector Cleaning Tool: A specialized tool, often in the form of a small, handheld device, is used to apply the cleaner directly to the injectors. This tool ensures that the cleaner reaches all areas of the injectors.
• Pressure Washer or High-Pressure Hose: Some fuel injector cleaning kits include a small pressure washer or a high-pressure hose to force the cleaner through the injectors, ensuring a thorough cleaning.
• Distilled Water: Using distilled water is recommended to avoid any mineral deposits that could be left behind after cleaning.

Step-by-Step Cleaning Process:

• Preparation: Park your car in a well-ventilated area and ensure the engine is cool to the touch. Turn off the engine and disconnect the negative battery terminal to prevent any electrical issues during the cleaning process.
• Cleaning the Injectors: Attach the fuel injector cleaning tool to the appropriate port on your car's engine. Follow the instructions provided with the tool to activate the cleaning process. The tool will typically spray or pump the cleaning solution into the injectors. Hold the tool in place for the recommended duration to ensure the cleaner reaches all parts of the injectors.
• Rinsing: After the cleaning process, disconnect the tool and allow the engine to idle for a few minutes to let the cleaner circulate. Then, use the high-pressure hose or pressure washer to rinse the injectors. Ensure that you direct the water flow carefully to avoid any damage to the engine components.
• Reassembly: Once the cleaning is complete, reassemble the fuel injectors and reconnect the negative battery terminal. Start the engine and let it run for a few minutes to ensure the injectors are functioning correctly. Check for any leaks or unusual noises during this process.

Regular Maintenance: Fuel injector cleaning is not a one-time task. Regular maintenance is essential to keep your injectors in optimal condition. Consider scheduling periodic cleaning, especially if you notice a decline in engine performance or fuel efficiency. Additionally, using a fuel system cleaner as part of your regular engine maintenance routine can help prevent the buildup of deposits.

By following these steps and using specialized tools, you can effectively clean your fuel injectors, ensuring your car's engine operates at its best. Remember, proper maintenance can save you from potential costly repairs and keep your vehicle running smoothly.
