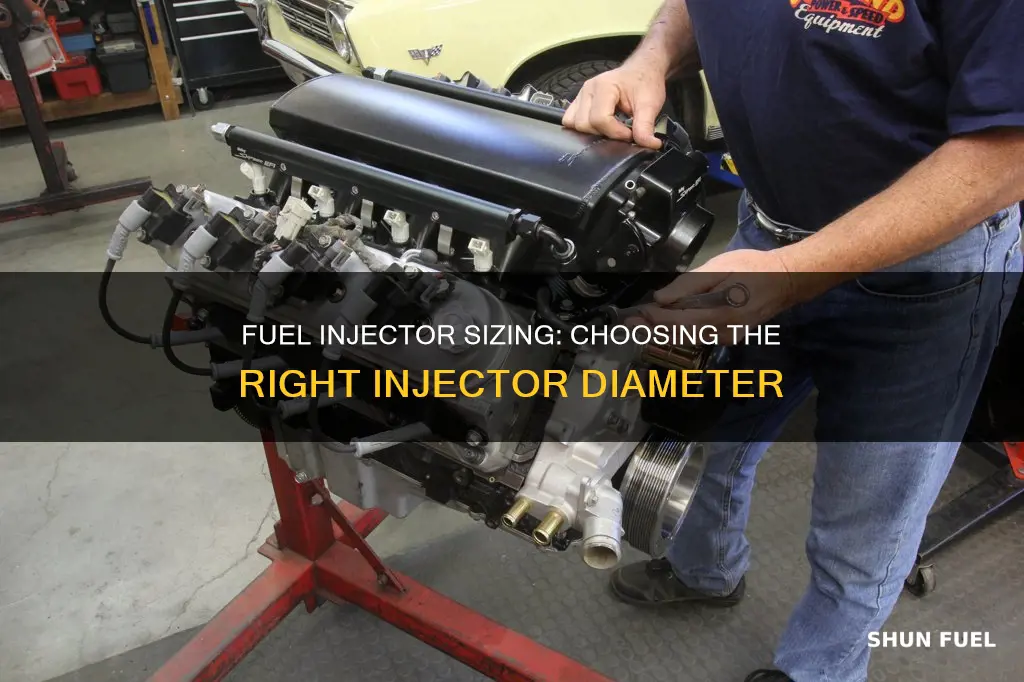

Fuel injectors are responsible for delivering fuel into an engine's combustion chambers. If they are the wrong size, it can cause performance issues and potential damage. Bigger is not always better when it comes to fuel injectors, so it is critical to get the sizing right. The size of the injector will depend on factors such as fuel pressure, horsepower goals, and engine type. To calculate the necessary fuel injector size, you can use a formula that factors in the estimated maximum horsepower, brake-specific fuel consumption (BSFC), and the number of cylinders. Alternatively, you can use a fuel injector calculator, which can help you determine the right size of injector for your horsepower goals and engine specifications.
| Characteristics | Values |
|---|---|
| Importance of determining fuel injector size | Critical for engine performance and tuning control |
| Fuel injector size calculators | FuelTech, Fuel Injector Clinic, POWERNATION |
| Factors in calculations | Estimated maximum horsepower, brake specific fuel consumption (BSFC), number of cylinders, fuel density, fuel pressure |
| Fuel injector size conversion | Multiply injector size in lbs/hr by 10.5 to get cc/min |
| Fuel injector size and engine performance | Injectors that are too small can cause performance issues due to insufficient fuel delivery; injectors that are too large can lead to inefficiency and potential damage due to excess fuel delivery |
| Fuel injector operation | Sequential mode and batch fire mode; sequential mode is preferred for larger injectors |
| Fuel injector sizing and fuel pressure | Higher fuel pressure increases flow rate; lower fuel pressure reduces flow rate |
Explore related products
What You'll Learn
Fuel injector size impacts engine performance
The duty cycle, or the percentage of time the injector is open, must be kept within optimal ranges to prevent injector overloading and ensure reliable performance. At low output and the top end, injectors operate in a non-linear fashion, meaning that the injector can no longer be trusted to deliver the exact amount of fuel that is commanded to flow. If less fuel is delivered, this can be catastrophic for engine survival. This is a major reason to use a conservative duty cycle when determining injector size.
Fuel pressure also has a direct impact on fuel flow. Lower pressure will reduce the flow rate, while higher pressure will increase the flow rate. Most Holley injectors are rated at 43 psi unless otherwise specified.
Larger injectors should typically be run in a sequential mode, as opposed to batch fire mode. Sequential operation fires the injector once per engine cycle, timed during the intake valve opening. This single-fire mode creates a longer pulse width, which positions the injector in a linear range, especially at idle, and allows for the opening and closing to be individually adjusted, which is not possible in batch fire mode.
Locating the Cylinder One Fuel Injector: Where is it?
You may want to see also
Explore related products
Bigger isn't always better
When it comes to fuel injectors, bigger isn't always better. While larger fuel injectors can deliver more fuel to the engine cylinders, there are some important considerations to keep in mind. Firstly, the engine must be set up to handle the extra fuel. If not, the excess fuel can flood the engine, causing it to run too rich and leading to issues such as fouled spark plugs and engine damage. Therefore, it is crucial to ensure that any modifications made to the engine, such as installing a turbocharger or supercharger, are accompanied by the appropriate fuel injector size to avoid these problems.
The size of the fuel injectors should be determined by the amount of fuel that needs to be delivered to the engine, which depends on factors such as the number of cylinders and the horsepower goals. A larger engine with more cylinders will require bigger fuel injectors to deliver sufficient fuel. However, it is important to strike a balance. As the size of the injector's hole increases, the minimum amount of fuel it can flow also increases. If the smallest amount of fuel delivered is more than what is required at idle or cruising speeds, the engine will run too rich, resulting in drivability issues and poor fuel economy.
Additionally, the fuel pressure has a direct impact on fuel flow. Higher fuel pressure will increase the flow rate, and this should be taken into account when determining the appropriate injector size. The duty cycle is another critical factor. Injectors operate in a non-linear fashion at low output and the top end of the output cycle, which can affect the accuracy of fuel delivery. This emphasizes the importance of using a conservative duty cycle when determining injector size to ensure the injectors are adequately sized for the engine's requirements.
In summary, while larger fuel injectors can provide benefits in certain scenarios, it is crucial to consider the specific requirements of the engine and make any necessary modifications to accommodate the increased fuel delivery. Consulting with professionals and using tools like a fuel injector calculator can help ensure that the right injector size is selected to achieve optimal engine performance and avoid potential issues.
Fuel Injectors: Wear, Tear, and Longevity Explained
You may want to see also
Explore related products
Fuel pressure and flow rate are directly linked
Fuel injectors play a critical role in engine performance, and determining their appropriate size involves carefully considering various factors, including fuel pressure and flow rate. Fuel pressure and flow rate are directly linked, and understanding this relationship is essential for proper injector sizing.
Fuel pressure refers to the pressure inside the rail, which can be measured using a fuel pressure sensor. Effective pressure, on the other hand, is the actual applied pressure across the injector, taking into account the pressure differential. When an engine is idling, a vacuum is created in the intake manifold, increasing the effective pressure and pulling fuel out of the injectors. Conversely, in a supercharged or turbocharged vehicle, the pressure inside the manifold pushes fuel back into the injector, reducing effective pressure.
The flow rate of a fuel injector is calculated based on effective pressure, as it determines the injector's ability to deliver fuel at a given pressure and duty cycle. The duty cycle represents the percentage of time the injector is active during a cycle, and it impacts the injector's output volume. A higher fuel pressure will increase the flow rate, while lower pressure will decrease it. This relationship between fuel pressure and flow rate is crucial for ensuring the required fuel delivery to the engine's cylinders.
To illustrate this link, consider an example where an increase in fuel rail pressure at idle is caused by a stuck pressure regulator. As a result, the injector output volume increases. To compensate and prevent overfuelling, the PCM can reduce the injector flow by adjusting the injector pulse width. This showcases how changes in fuel pressure directly impact the flow rate, necessitating adjustments to maintain the desired fuel delivery.
Additionally, injector design and ratings also come into play. Injector flow ratings are typically measured under static conditions, referred to as a 100% duty cycle. However, in practical applications, injectors are pulsed with a varying duty cycle depending on engine load requirements. This dynamic nature of injector operation further emphasizes the direct relationship between fuel pressure and flow rate, as adjustments to one factor often require corresponding changes to the other to achieve optimal performance.
When to Clean Fuel Injectors for Optimal Performance
You may want to see also
Explore related products
Calculators can help determine injector size
FuelTech offers a Fuel Injector Calculator to assist in selecting the proper fuel injector sizing. This calculator takes into account various factors, such as the estimated maximum horsepower, brake-specific fuel consumption (BSFC), and the number of cylinders. By inputting these values, the calculator can determine the necessary fuel injector size in pounds per hour (lbs/hr).
Additionally, the Fuel Injector Clinic offers a Flow Rate calculator, which helps users figure out what size injector would match their horsepower goals. This can be particularly useful for those seeking to maximise their engine's performance, especially in racing or building contexts.
For those with a supercharged engine, it is important to pay close attention to both the BSFC and duty cycle numbers to ensure adequate injector sizing. The duty cycle is a measure of how often the injector is operating at full capacity, and it is important to use a conservative duty cycle when determining injector size. This is because injectors do not typically operate as efficiently at the extreme ends of the output cycle, and a conservative duty cycle helps ensure that the injector delivers the commanded fuel flow.
Furthermore, fuel pressure also plays a role in determining injector size. Most Holley injectors, for example, are rated at 43 psi, and fuel pressure directly impacts fuel flow. A simple formula can be used to determine the change in flow rate when adjusting fuel pressure, allowing for more precise injector sizing.
Fuel Doctor's Injector Cleaning: Does It Work?
You may want to see also
Explore related products
Sequential vs batch fire mode
When determining the size of a fuel injector, it is important to consider whether it will be used in sequential or batch fire mode. Sequential fuel injection systems fire each injector separately when the intake valve opens. This is in contrast to batch fire mode, where several injectors are triggered simultaneously and not timed to the intake valve open period.
Sequential injection attempts to spray fuel only when the intake valve is open, which is usually only possible at low engine speeds. This can improve emissions, drivability, and fuel economy, especially at low engine speeds and loads. However, at higher engine speeds, there may not be enough time to spray all the fuel while the valve is open, and the system may spray fuel with the valve closed, similar to a batch system. Sequential systems also require larger injectors, more components, and more complex programming.
Batch fire mode, on the other hand, commands each injector twice in the cycle. It can inject fuel for the entire period of crankshaft rotation, which is advantageous at higher rpm where the time available to inject decreases. The batch-fired system is simpler and merely requires a tach frequency. However, the fuel sits in the runner for a short period before the valve opens, which can lead to manifold wall wetting and potentially worse fuel and air mixing.
In terms of performance, testing has shown that peak power is more or less the same for both systems, although sequential injection can provide a smoother idle and light throttle response. There are no significant differences in top-end horsepower or fuel economy between the two systems. Emissions at part throttle are likely to be better with sequential injection as it was developed for tougher emission laws and EPA cycle testing.
Cleaning Fuel Injectors in Your Acura 2000 TL: Step-by-Step Guide
You may want to see also
Frequently asked questions
You need to consider the fuel type, injector harness plug style, and flow rate.
Modern injectors fall into one of three sizes: 34mm, 48mm, or 60mm.
All injectors are rated to deliver a specific amount of fuel at a rated pressure. For example, a Holley injector rated at 42 pounds of fuel per hour (lbs/hr) or 42 lb/hr.
A simple rule of thumb is to use 1cc/min flow for each horsepower. For instance, to make 1000 crank horsepower on 93 octane gasoline, you would need a 1000cc injector at a fuel pressure of 43 psi.
Yes, FuelTech offers a Fuel Injector Calculator to help select the proper fuel injector sizing for your engine.
