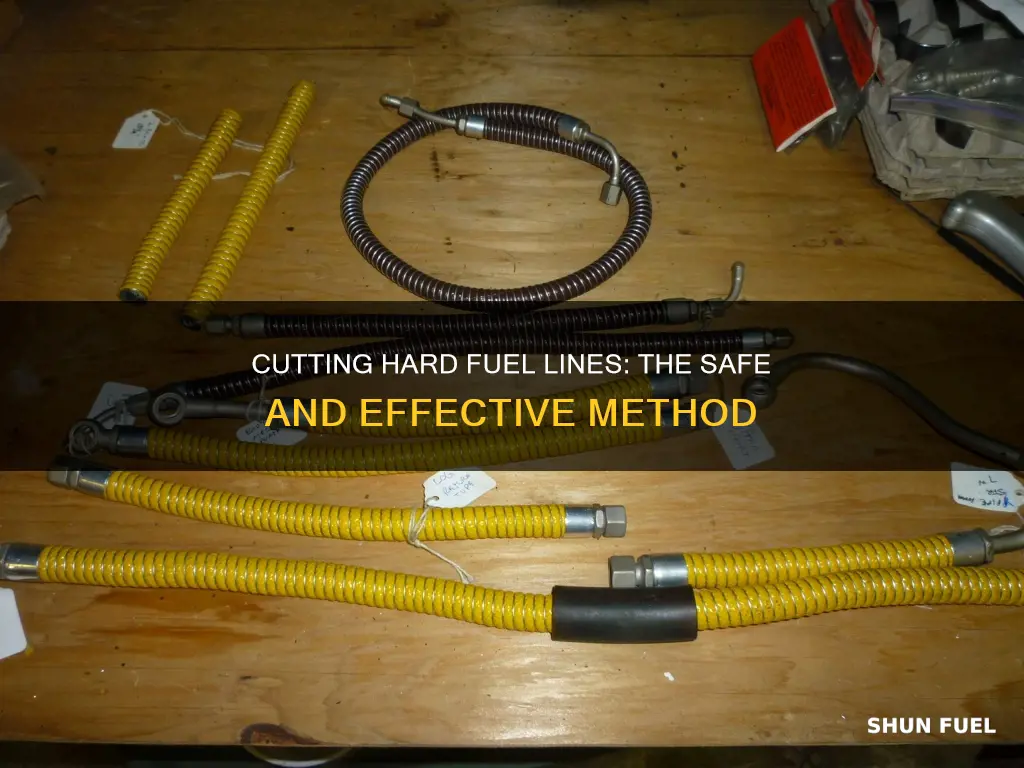

Cutting hard fuel lines can be a tricky task, especially if you want to avoid sparks and the risk of fire. While some people use a Dremel, this can be dangerous due to the sparks it may cause. A safer option is to use a small pipe or tubing cutter, which can be purchased from hardware stores for a reasonable price. It's also important to make sure to debur the end of the fuel line to prevent metal bits from ripping off and causing issues. Before cutting, it's recommended to depressurize the fuel rail and disconnect the FPR and damper, keeping rags nearby to deal with any fuel leaks.
Characteristics and considerations for cutting hard fuel lines:
| Characteristics | Values |
|---|---|
| Tools to use | Tubing cutter, pipe cutter, hacksaw blade, snips |
| Concerns | Sparks, fire |
| Other considerations | Deburring the end, removing the fuel pump without cutting the lines, draining the line |
Explore related products
What You'll Learn
Preventing sparks and fire
Firstly, it is crucial to de-pressurise the fuel system before starting work to prevent being soaked in high-pressure fuel. This can be done by removing the cap of the fuel tank and blowing through a rubber pipe attached to the metal fuel line until you hear air bubbles.
When it comes to the cutting process itself, a tubing cutter is a good option. This tool looks like a small C-clamp with a pizza cutter wheel and can be purchased at any hardware store. It cuts cleanly and straight, leaving no jagged edges, sparks, or shavings.
If a tubing cutter does not fit in the available space, a hacksaw blade can be used, but it should be wrapped in tape, cloth, or both to prevent sparks. This method is slower but safer, as it will not generate sparks due to the reduced speed.
Another option is to use a tungsten carbide-tipped blade or cutting wheel, which can cut through metal without generating sparks or heat.
In any case, it is always best to work outdoors with good ventilation and have a fire extinguisher nearby as a safety precaution.
Fuel Pressure Return Lines: How Do They Function?
You may want to see also
Explore related products
Using a tubing cutter
To use a tubing cutter, first, ensure you have the correct size for the fuel line you are cutting. These tools are available in various sizes, and some are adjustable to fit different pipe diameters. You can purchase a tubing cutter from a hardware store or a plumbing store, and they are relatively inexpensive. Before you begin, it is essential to depressurize the fuel system and ensure the fuel tank is almost empty. Work outside or in a well-ventilated area, and keep a fire extinguisher nearby as a safety precaution.
Next, position the tubing cutter around the fuel line, ensuring it is securely in place. Rotate the cutter around the tube, applying firm and consistent pressure. The cutter wheel will gradually cut through the fuel line. Continue rotating the cutter until you have cut through the tube entirely. You may need to apply more pressure as you cut to ensure a clean and straight cut.
After cutting, it is essential to debur the end of the tube to prevent any sharp metal edges that could cause damage or blockages. This can be done by using a deburring tool or a file to smooth out any rough edges. Finally, stagger the new line fittings (so they are not touching) and connect the new fuel line, ensuring all connections are tight and secure.
Tygon Fuel Line: Submersible or Not?
You may want to see also
Explore related products
Using a hacksaw
When using a hacksaw, it is important to choose the right type of blade. A fine-tooth hacksaw blade is generally recommended for cutting fuel lines. You can also wrap the blade in a cloth to provide an additional layer of protection. A greased blade can also help with the cutting process.
In terms of the cutting technique, it is important to ensure that you have enough space to work with. If the fuel lines are located in a tight or confined space, a junior hacksaw blade might be more suitable as it can be manoeuvred more easily. However, this will take longer as you won't be able to use full strokes.
After cutting the fuel lines with a hacksaw, there might be some burrs left on the edges. These will need to be filed down to ensure a smooth finish. This is especially important if you plan to connect a rubber fuel line, as the sharp edges could cut through it.
Restarting Your Furnace After Running Out of Fuel
You may want to see also
Explore related products
![Pipe Cutter [1/8" - 1 1/8"] Tube Cutter Tool for Copper Pipe, Stainless Steel Tubing, Metal, Plastic, Brass - Copper Pipe Cutter - Compact & Tight Space Rigid Tubing Cutter Set for Plumbing](https://m.media-amazon.com/images/I/71rgZquR0DL._AC_UL320_.jpg)
Using a pipe cutter
Before you begin, ensure you depressurise the fuel system and work with a near-empty fuel tank to avoid spillage. It is also recommended to work outside with good ventilation and keep a fire extinguisher nearby as a safety precaution.
When using the pipe cutter, start by clamping it around the tube. Then, tighten the cutter gradually as you spin it around the tube. This will ensure a clean cut without damaging the fuel line.
After cutting, use the tapered end of the cutter, or a similar tool, to clean the cut. Insert the tapered end into the fuel line and turn it to scrape out any crushed metal left from the cutting process. This will ensure a smooth finish and help prevent leaks when you connect the new fuel line.
Some people also recommend using a small pipe cutter, especially when working in tight spaces. These can be found at hardware stores and auto parts stores. It is important to note that fuel lines tend to be tightly connected, so care is needed when removing them to avoid bending the fuel rail.
Finding the Return Fuel Line in Your 2003 Suburban
You may want to see also
Explore related products
Using a Dremel
Firstly, it is important to tape off the area you will be cutting with masking or electrical tape. This will help to protect the surrounding area and contain any debris created during the cutting process. It is also recommended to work outside or in a well-ventilated area to avoid inhaling any fumes.
When using the Dremel, it is essential to go slowly and use a climb-cutting technique. This involves walking the Dremel around the outside of the hose, gradually moving towards the centre. By doing this, you can effectively cut through the hard fuel line while minimising the risk of jagged edges or sparks. The climb-cutting technique also helps to prevent the outer braid from unraveling, as the rubber supports the braid while the cut-off wheel is in use.
It is worth noting that some people have reported challenges in achieving a clean cut with a Dremel tool. In these cases, alternative tools such as a tubing cutter or hacksaw blade may be considered. However, with patience and the right technique, it is possible to successfully cut hard fuel lines with a Dremel.
After cutting the hard fuel line, it is important to clean the newly cut metal surface to remove any debris or residue. This can be done by blowing into the hose or using a mild solvent to flush the hose.
Sealing a Ruptured Return Fuel Line in a 1999 Lesabre
You may want to see also
Frequently asked questions
A small pipe cutter or tubing cutter is recommended for cutting hard fuel lines. A hacksaw blade may also work, but it is more difficult to get a clean cut.
Before cutting, make sure to depressurize the fuel rail and drain the fuel line. Keep some rags nearby, as there may still be some fuel leakage.
No, you do not need to remove the fuel pump. However, you will need to cut an access panel for the fuel pump to reach the fuel lines.
It is important to clean off any newly cut metal and debur the ends to prevent metal bits from getting jammed in an injector. Cover the lines with a thermosleve or thermal wrap to protect against heat damage.
