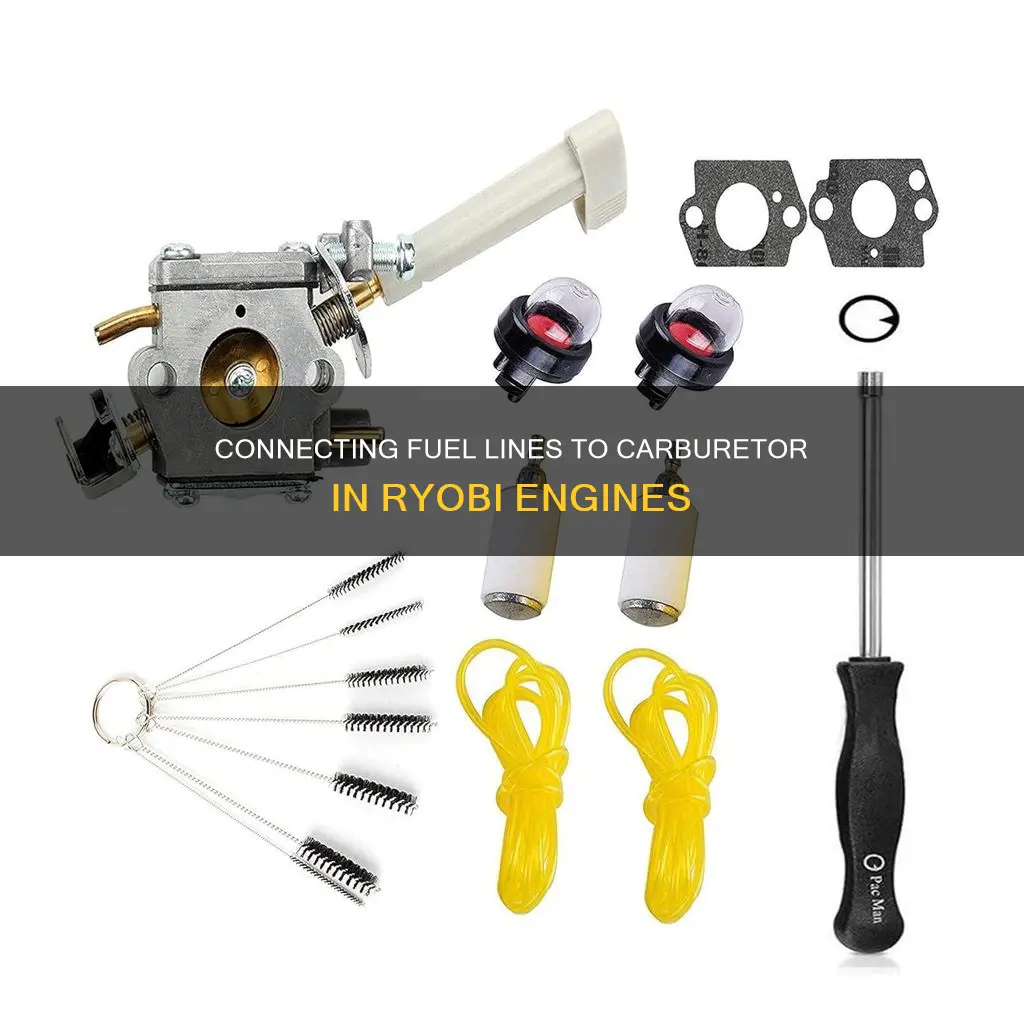

Ryobi engines, like any other small engines, require regular maintenance and repair. One common issue that may arise is a clogged or kinked fuel line, which can lead to burning out other parts such as the cylinder, piston seals, and crankcase. Replacing the fuel lines on a 2-cycle engine involves understanding the carburetor design and the correct fuel line routing. This process can vary depending on whether the engine has a \local primer\ or \remote primer\ carburetor. In this article, we will discuss the steps to connect the fuel line to the carburetor for both types of carburetors, as well as provide troubleshooting tips for common issues.
Explore related products
What You'll Learn
Removing the fuel lines from the carburetor
First, remove the rear cover from the engine and drain any excess fuel from the fuel tank. It is important to ensure that there is no fuel remaining in the tank to prevent spills or accidents during the removal process.
Next, locate the carburetor and the relevant screws. There should be two carburetor mounting screws, one above and one below the air filter. Remove these screws, and then carefully take off the washer, choke lever, and metal plate. Some Ryobi models may also have limiter caps on the carburetor, which should also be removed.
Once the carburetor is exposed, use needle-nose pliers to reach into the carburetor and gently unhook both the fuel tank line and the return line from the carburetor's nozzles. Be cautious when performing this step to avoid any damage to the nozzles or the fuel lines themselves.
After the lines are disconnected, open the gas cap and use the pliers to pull out the fuel filter and fuel line through the tank. It may be necessary to cut the lines to fully remove them, especially if they are old and stiff.
Finally, to reassemble the carburetor, follow the previous steps in reverse. Ensure that all connections are secure and tight to prevent any fuel leaks.
It is important to note that the process may vary slightly depending on the specific model of the Ryobi engine and carburetor design. Some models may have additional components or variations in the fuel line routing. Always refer to the appropriate manual or diagram for your specific model when performing any maintenance or repairs.
Fuel Line Cover: A Two-Part Component?
You may want to see also
Explore related products
Testing the primer assembly
Understanding the Primer Assembly
The primer bulb on small engines is a crucial component that draws fuel from the fuel reservoir into the carburetor. The carburetor then mixes the fuel with air to enable combustion. Typically, three pumps of the carburetor bulb are sufficient to start the engine.
Visual Inspection
Before conducting any tests, it is essential to perform a thorough visual inspection of the primer bulb and its associated components. Check the primer bulb for any cracks on its surface. A cracked carburetor bulb will be unable to create a vacuum, preventing it from properly drawing fuel. Additionally, inspect the ring around the primer bulb for any damage. This ring holds and seals the carburetor bulb in place.
Testing Fuel Line Orientation
If you have replaced the fuel lines or reassembled the carburetor, it is crucial to test the orientation of the fuel lines. Place the ends of both lines in 2-cycle fuel (never use water) and prime the bulb. If the orientation is correct, you should see fuel being pushed out of the unfiltered line. If bubbles emerge from the line with the fuel filter, the lines are installed incorrectly, and you will need to switch them and retest.
Remote Primer Carburetors
For "remote primer" carburetors, where the primer assembly is separate from the carburetor body, determining the correct fuel line routing is slightly more complex. Fuel only flows one way through primer assemblies, so you must identify the input and output sides of the primer. The primer assembly should pull fuel through the carburetor, not push the fuel into it.
Troubleshooting
If the primer bulb sticks or returns slowly during testing, switch the positions of the fuel lines on the carburetor and retest. When the line routing is correct, bubbles will emerge from the primer assembly's return line. If the primer assembly return line is lifted out of the fuel while priming, you will observe fuel squirting from the line.
Always refer to the owner's manual for specific instructions and safety precautions when working on your Ryobi engine's carburetor and primer assembly.
Fuel Line Routing Guide for Can-Am Outlander 330
You may want to see also
Explore related products
Reattaching the fuel lines to the carburetor
- Identify the Fuel Line Types: Determine whether your carburetor has a local primer or remote primer design. In a "local primer" design, the primer bulb is built on top of the carburetor, while in a "remote primer" design, the primer assembly is separate from the carburetor body. Knowing the type of carburetor you have will help you understand the correct fuel line routing.
- Prepare the Fuel Lines: Cut the new fuel lines to the appropriate length. Typically, you'll need about 7 inches for the gas line and 4 inches for the return line. Angle one end of each line at a 45-degree angle. Lubricate the outside of the fuel lines with two-cycle engine oil. This will make it easier to insert the lines into the tank and carburetor.
- Insert the Fuel Lines: Insert the tapered end of the fuel lines into the fuel tank through the mounting hole at the bottom. Use a screwdriver to press down on the center portion of the fuel filter while pulling the lines firmly and steadily from the bottom. Ensure the fuel filter and line are fully seated within the mounting hole.
- Secure the Fuel Filter: Slide the plastic washer over the fuel filter nipple, flush against the fuel tank, to secure the fuel filter in place.
- Connect to the Carburetor: Pass the tapered end of the fuel line through the opening in the carburetor mounting assembly. Use needle-nose pliers to connect the fuel lines to the carburetor's nozzles. Ensure that the lines are securely attached.
- Reinstall the Primer Bulb: Reinsert the primer bulb and its hose into their designated places. Screw them down securely. The primer bulb is responsible for pulling fuel through the carburetor and, in "local primer" designs, pushing it out of the unfiltered return line.
- Reattach Other Components: Reinstall the air filter, choke lever, and any other components that were previously removed. Ensure that all connections are secure and that there are no leaks.
It is important to note that the correct routing of fuel lines is critical for the proper functioning of your engine. If you are unsure about the specific steps for your Ryobi engine model, consult the product manual or seek assistance from a qualified technician.
Fuel Line Tube Sizing: What Diameter Do I Need?
You may want to see also
Explore related products
Reinstalling the carburetor
To reinstall the carburetor, begin by reconnecting the incoming fuel line to the carburetor inlet. Then, connect the throttle cable to the throttle linkage of the carburetor. Next, install the carburetor mounting screws onto the choke plate and lever. Ensure that the choke lever and the wavy washer are properly aligned before tightening the upper screw.
Secure the carburetor and choke plate to the engine using the screws. Now, reinstall the rear cover onto the engine. Use four screws to secure the rear cover in place.
Finally, to reassemble your device, follow the disassembly steps in reverse order.
Fuel Line Maintenance for Silverado Owners
You may want to see also
Explore related products
Troubleshooting leaks
If you are experiencing leaks in your Ryobi engine, there are several troubleshooting steps you can take to identify and resolve the issue.
Firstly, it is important to determine the source of the leak. Leaks can occur at different points in the fuel system, such as between the fuel line and the fuel tank, as mentioned by a user with a Ryobi S430 Trimmer. Another user with a Ryobi Line Trimmer observed that the fuel was leaking from the muffler or exhaust. Therefore, carefully inspect the engine to pinpoint the exact location of the leak.
If you have recently replaced the fuel lines or performed maintenance on the carburetor, it is possible that the fuel line routing is incorrect. As one user experienced, mixing up the orientation of the fuel lines can lead to leaks. Refer to the specific carburetor design of your Ryobi engine to ensure correct fuel line installation. There are two main carburetor designs: "local primer" carburetors with the primer bulb built on top and "remote primer" carburetors with a separate primer assembly. For "local primer" carburetors, perform a test by placing the ends of both lines in 2-cycle fuel and priming the bulb. If bubbles emerge from the line with the fuel filter, the lines are installed incorrectly and need to be switched.
Additionally, issues with the carburetor float can cause fuel leaks. The float regulates the amount of fuel in the carburetor float bowl, and if it is not functioning properly, it can lead to excess fuel leaking from the carburetor.
If you are unable to identify the cause of the leak or resolve the issue, it is recommended to seek assistance from a qualified technician or a repair service with experience in small engine diagnostics and repairs. They will have the knowledge and tools to troubleshoot and fix the leak effectively.
