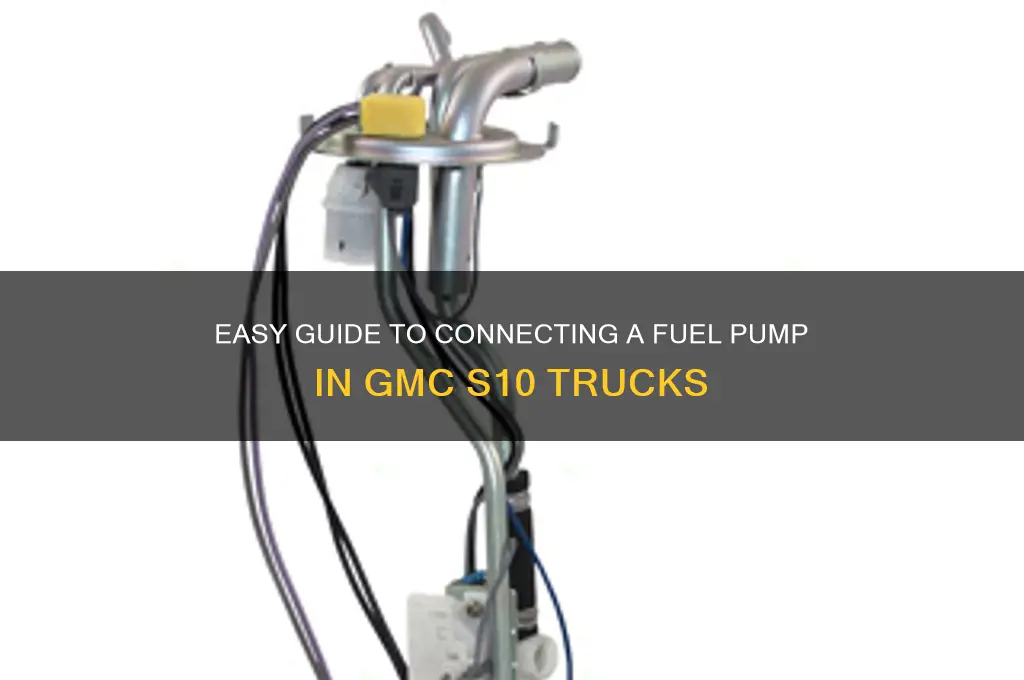

Connecting a fuel pump in a GMC S10 requires careful attention to detail to ensure proper functionality and safety. Begin by locating the fuel pump, typically found inside the fuel tank, which may necessitate removing the tank for access. Disconnect the negative battery terminal to prevent electrical hazards, then detach the fuel lines and electrical connectors from the old pump. Install the new fuel pump by reversing these steps, ensuring all connections are secure and sealed to avoid leaks. After installation, reattach the fuel tank and reconnect the battery, then test the system for proper operation. Always refer to the vehicle’s manual or a repair guide for model-specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | GMC S10 |
| Fuel Pump Location | Inside the fuel tank (in-tank fuel pump) |
| Tools Required | Socket set, wrenches, screwdriver, safety goggles, gloves, fuel line tools |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Access Fuel Pump | 1. Drain fuel tank 2. Remove bed or access panel 3. Disconnect fuel lines and electrical connectors |
| Electrical Connections | Typically a 2-wire connector (power and ground) |
| Fuel Lines | Inlet and outlet lines (ensure proper orientation) |
| Testing Procedure | Check for power at the pump connector and fuel pressure after installation |
| Common Issues | Faulty wiring, clogged fuel filter, pump failure |
| Replacement Parts | Fuel pump module, fuel lines, filter, gaskets |
| Difficulty Level | Intermediate to advanced (requires mechanical and electrical knowledge) |
| Estimated Time | 2-4 hours depending on experience and tools |
| Reference Sources | GMC S10 service manual, online repair guides, automotive forums |
Explore related products
What You'll Learn
- Locate Fuel Pump: Identify fuel pump location under rear seat or in fuel tank
- Disconnect Battery: Ensure safety by disconnecting the battery before starting work
- Access Fuel Lines: Remove protective covers and access fuel lines for pump connection
- Connect Electrical Wires: Attach electrical connectors to the fuel pump securely
- Test Fuel Pump: Reconnect battery and test pump functionality for proper operation
Locate Fuel Pump: Identify fuel pump location under rear seat or in fuel tank
The GMC S10's fuel pump location varies by model year and engine type, so identifying its exact position is crucial before attempting any work. In most 1982-2004 models, the fuel pump is situated beneath the rear bench seat, making it relatively accessible for maintenance. However, some later models or those with specific engine configurations may have the fuel pump integrated into the fuel tank, requiring tank removal for access. Understanding this distinction is essential to avoid unnecessary disassembly and potential damage.
To locate the fuel pump under the rear seat, start by removing the seat itself. This typically involves lifting the seat upward and unhooking the retaining clips or bolts securing it to the vehicle floor. Once removed, you'll find a metal access panel covering the fuel pump assembly. Carefully remove this panel to expose the pump, taking note of any wiring harnesses or fuel lines connected to it. If the pump is in the fuel tank, you'll need to drain the tank, disconnect the fuel lines, and lower the tank to access the pump, which is a more involved process.
When identifying the fuel pump location, consider the vehicle's age and any previous modifications. Older S10 models are more likely to have the pump under the seat, while newer or modified versions may require tank removal. Additionally, consult the vehicle's service manual for specific instructions, as some models may have unique configurations. For instance, the 1998-2004 S10 with the 4.3L Vortec engine often has the pump in the tank, whereas earlier models with smaller engines typically place it under the seat.
A practical tip for confirming the fuel pump's location is to listen for the pump's hum during vehicle startup. If you hear it near the rear seat, it's likely under the seat; if the sound comes from the fuel tank area, the pump is integrated into the tank. This simple diagnostic can save time and effort before beginning any work. Always exercise caution when working with fuel systems, ensuring the vehicle is on a level surface, the engine is cool, and the battery is disconnected to prevent accidents.
In summary, accurately identifying the GMC S10's fuel pump location—whether under the rear seat or in the fuel tank—is critical for efficient and safe maintenance. By understanding the model-specific differences, using diagnostic techniques, and following safety precautions, you can approach the task with confidence and minimize the risk of errors or damage. This knowledge not only streamlines the repair process but also ensures a more professional and effective outcome.
