Clogged fuel injectors can cause your vehicle's engine to idle roughly or stall altogether. If you notice signs of dirty and clogged fuel injectors, you can clean them without removal or by removing them from the engine. To clean them without removal, you can use a gasoline additive or force acetone through them. Alternatively, to clean them outside of the engine, you can remove the fuel injectors and the o-rings, attach a rubber hose to prevent spills, and connect one side of an electrical lead to the injectors and the other side to the positive terminal of your vehicle's battery.

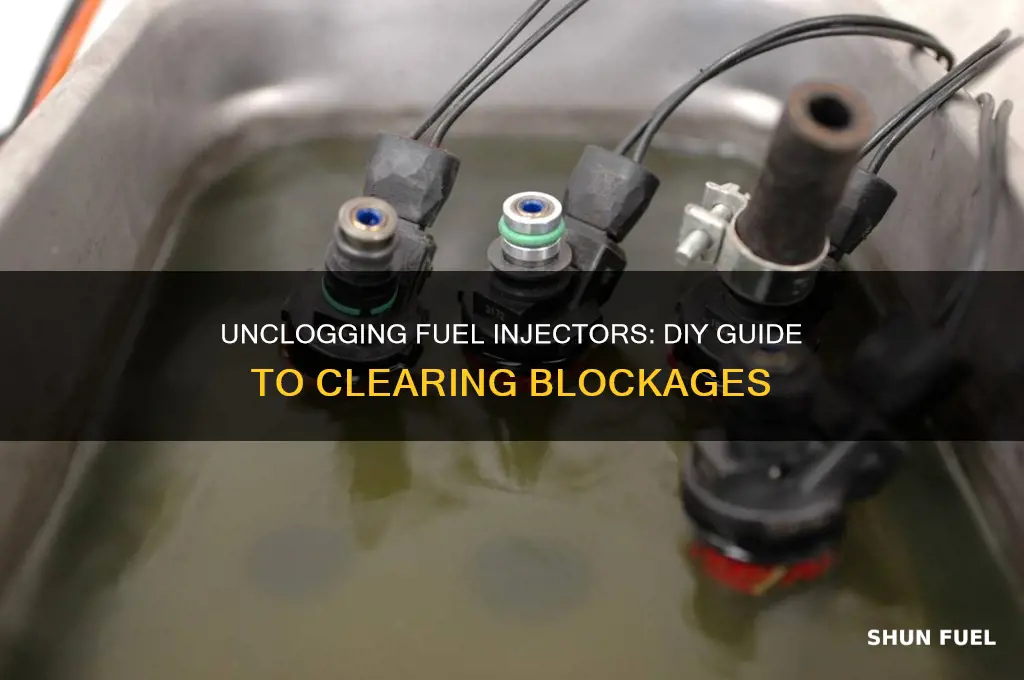

How to Clear a Clogged Fuel Injector
| Characteristics | Values |
|---|---|
| Reasons for Clogged Fuel Injectors | Carbon accumulation, gunk in the fuel supply, rust from the gas tank, or a bad fuel filter |
| Signs of Clogged Fuel Injectors | Rough engine idling, stalling, increased fuel consumption, poor fuel economy |
| Cleaning Methods | Using a high-quality injector cleaner, fuel system cleaners, gasoline additive, acetone, brake cleaner, or carb cleaner |
| Steps to Clean | Remove fuel injectors, disconnect fuel supply, remove fuel rails and o-rings, attach rubber hose, connect electrical lead to injectors and battery, run cleaner, reinstall o-rings and injectors |
| Alternative Methods | Using a 9V battery and aerosol injector cleaner, building an Arduino relay system, using a fuel pump and acetone |
Explore related products
What You'll Learn
Removing the fuel injectors from the engine
To remove the fuel injectors from the engine, start by letting the car cool off for 30 to 45 minutes if you've been driving recently. Put on some gloves and remove the battery terminals to disconnect the battery. Locate the fuel injectors on the intake manifold, which is right behind or above your engine, with 4-8 pipes leading into it. These 4-8 connectors running from the fuel rail into the pipes are your fuel injectors.
Next, use pliers to remove the fuel injector connectors on the fuel rail. You may need to use a screwdriver or wrench to unlock the connectors first, depending on the make and model of your vehicle. Look for tabs on the side of the connectors that you can press with your pliers to unlock them. If there is pressure in the fuel line, you may need to relieve it by holding a rag over an air valve or unscrewing the fuel line with a socket wrench.
Once the connectors are removed, unlock and remove the fuel rail using a socket wrench or screwdriver. Gently lift the fuel rail off the intake manifold, bringing the injectors with it. This may require some force as the injectors are attached snugly to the rail. Be careful not to use too much force and deform or bend the fuel rail.
Now, you can focus on removing the individual fuel injectors. If you see a small metal clip that looks like a staple, use a small flathead screwdriver to remove or depress it. Then, while still wearing gloves, grasp the injector and gently wiggle it back and forth while pulling to remove it from the fuel rail. You may need to apply a little more pressure if there is significant buildup. Take a quick photo with your phone to have a reference for the orientation and direction of each injector, as you'll want to install the new injectors in the same way.
Fuel Injectors: Vital for Engine Performance and Efficiency
You may want to see also
Explore related products
Using a high-quality injector cleaner
There are various injector cleaners available on the market, such as Air-Tec High Class Injector Cleaner, Berryman 1112 B-12 Chemtool, and Redline SI-1. These cleaners use high-energy solvent technology to dissolve fuel residues and improve engine performance. When selecting an injector cleaner, opt for one that contains polyetheramine (PEA) as it is the most effective at dissolving thick carbon deposits.
To use an injector cleaner, start by reviewing your vehicle's engine layout to locate the fuel injectors. Different types of engines have different layouts, so consult your vehicle's manual or look up the information online. Once you have located the injectors, remove them from the engine as this is the only guaranteed way to properly clean them.
After removing the injectors, follow the instructions provided with your chosen injector cleaner. Typically, this involves soaking the injectors in the cleaning solution and using a brush to remove any stubborn deposits. Some injector cleaners may also recommend using compressed air to blow through the injectors to remove any remaining debris. Make sure to cover all openings and seals properly during this process.
Finally, reinstall the cleaned and dried injectors by following the removal steps in reverse. Ensure that all wires and fuel pumps are reconnected and tightened properly. By using a high-quality injector cleaner and following the recommended instructions, you can effectively clear clogged fuel injectors and restore optimal engine performance.
Fuel Injector Cleaner: Half-Tank Treatment?
You may want to see also
Explore related products
Cleaning without removing injectors
Clogged fuel injectors can cause a range of issues, including rough idling, reduced efficiency, power loss, and engine misfires. To clean your fuel injectors without removing them, you can follow these steps:
Firstly, it is important to identify the symptoms of clogged fuel injectors. Some common signs include noticeable vibrations, a shaky engine, and a decline in engine power. If you are experiencing these issues, it is likely that your fuel injectors need to be cleaned.
Before beginning the cleaning process, ensure that you have the necessary tools and a fuel injector cleaner kit. The basic tools required include a wrench and a fuel injector cleaner solution. It is also important to refer to your vehicle's manual to understand the specific layout and location of the fuel injectors.
Open the hood of your car and locate the fuel injector. Disconnect the fuel rail from the injector by removing its bolts or loosening the clamp, depending on your car's make and model. This step may vary, so it is essential to refer to your vehicle's manual for specific instructions.
Once the fuel rail is disconnected, pour the cleaning solution into the cleaner canister until it is full. Hang the canister on the open hood and connect the pipe end to the disconnected fuel rail. Ensure that you have removed the fuel tank cover to prevent pressure buildup and potential combustion.
Remove the fuel pump from the fuse box to prevent fuel from being sent to the engine during the cleaning process. Connect an air compressor to the canister's air intake connector, with PSI settings between 40 and 50. This will pressurize the cleaning solvent, which will be injected into the fuel injectors to remove any debris and grime.
Allow the cleaning solution to run through the injectors for approximately 15 to 30 minutes, depending on the level of clogging and the specifications of your cleaning kit. Once the cleaning process is complete, reattach the fuel rail and injectors to the engine, ensuring all connections are secure.
Finally, reconnect the electrical connectors to each injector and the fuel pump. Turn the ignition to the "on" position for a few seconds and then off again to re-pressurize the fuel system. Check for any leaks around the injectors and fuel rail, and start the engine to ensure everything is functioning correctly. Listen for any unusual noises and observe the engine's performance to ensure an improvement.
Kia Rio 2007: Fuel Injectors and Their Number
You may want to see also
Explore related products
Signs of clogged fuel injectors
It is important to watch out for signs of clogged fuel injectors in your vehicle's engine, as clogged injectors can cause the engine to run inefficiently or not at all. Here are some tell-tale signs that your fuel injectors might be clogged:
Engine Idling or Stalling
Clogged fuel injectors can cause your engine to idle roughly, vibrate, or jolt. The car might feel like it's stalling or even stall completely when stopped at a red light. These issues occur because the engine isn't getting a steady flow of fuel, leading to uneven combustion.
Increased Fuel Consumption
Clogged fuel injectors can lead to a sudden drop in fuel mileage and more frequent trips to the gas station. When the injectors are blocked, they can't deliver fuel efficiently, so the engine compensates by consuming more fuel than necessary.
Strong Gasoline Odor
Clogged fuel injectors can cause excess fuel to leak into the combustion chamber, resulting in incomplete combustion. The unburned fuel then exits through the exhaust, creating a strong gasoline odor.
Difficulty Starting the Engine
If your car is taking longer than usual to start, clogged fuel injectors could be the culprit. Blocked injectors fail to deliver the right amount of fuel during startup, making it harder for the engine to ignite.
Exhaust Smoke
Keep an eye out for black or gray smoke coming from your car's tailpipe, as this could indicate clogged fuel injectors. This is caused by the excess fuel from incomplete combustion exiting through the exhaust.
It is important to address these warning signs promptly and seek professional help if needed to prevent bigger and more expensive problems down the line. Regular maintenance, including using quality fuel and replacing fuel filters, can also help prevent injector clogs.
Fuel Injectors: Costly Maintenance or Affordable Fix?
You may want to see also
Explore related products
Cleaning the valve area
Firstly, remove the injectors from the engine. This is the only guaranteed way to properly clean and unclog the injector. Once removed, you can either clean the injectors yourself or send them to a professional injector cleaning service. Professional services, such as Injector RX, use manufacturer-approved equipment and an ultrasonic cleaning process to ensure a thorough clean. They will also replace any worn parts and test each injector for fuel flow comparison.
If you choose to clean the injectors yourself, you will need to use chemicals that dissolve varnish, carbon, and other debris. Common cleaning agents include acetone, brake cleaner, and carburetor cleaner. You can also use a fuel injector cleaner, but be cautious as these can sometimes make the problem worse. When using a cleaner, you will need to get inside the injector and remove the filter basket to access the valve area. You can do this by connecting the injector to a 9V battery and spraying the cleaner through it, followed by compressed air.
Another method is to build an Arduino relay system to open and close the injectors, allowing you to compare the spray pattern and flow rate over time. You can also use a fuel pump to force acetone through the injectors in both directions.
Remember to always wear face and eye protection and have a fire extinguisher nearby when cleaning fuel injectors. It is important to consult a professional if you are unsure about any part of the process, as incorrect cleaning can damage your vehicle.
Fuel Injector: Emissions System Problem or Not?
You may want to see also
Frequently asked questions
Your vehicle’s engine may idle roughly, stall, or not start at all. You may also burn more gas and get worse fuel economy. Your vehicle’s Check Engine Light will probably turn on.
First, remove the fuel injectors from your vehicle’s engine. You will need to disconnect the fuel supply and remove the fuel rails, and the rubber o-ring from the fuel rail side of the injector. Then, attach a rubber hose to the opening using hose clamps. Connect one side of an electrical lead to the injectors and the other side to the positive terminal of your vehicle’s battery. Spray aerosol injector cleaner through the injectors, followed by compressed air.
Yes, you may use a gasoline additive that cleans fuel injectors. However, these cleaners dilute into a full tank of gas, weakening their potency and effectiveness.
You can use a high-quality injector cleaner. There are hundreds of cleaners on the market. You can also use acetone, brake cleaner, or carb cleaner.
