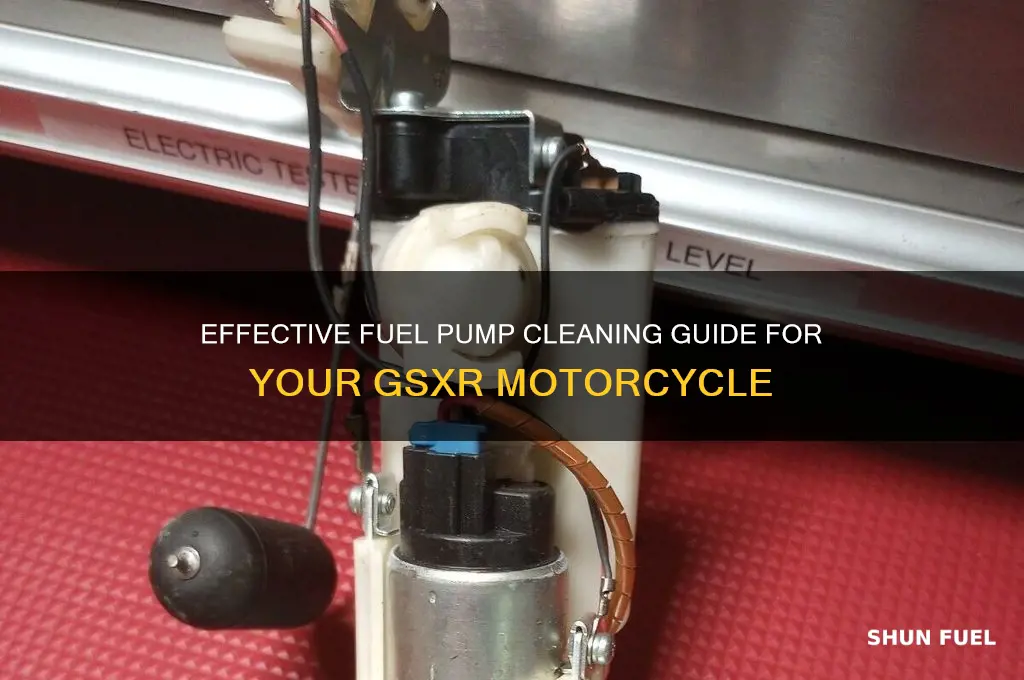

Cleaning the fuel pump on a GSX-R is a crucial maintenance task to ensure optimal engine performance and longevity. Over time, debris, dirt, and contaminants can accumulate within the fuel system, leading to reduced fuel flow and potential pump failure. To clean the fuel pump effectively, start by disconnecting the battery and relieving fuel system pressure. Carefully remove the fuel tank and locate the pump assembly, typically found inside the tank or as a separate unit. Disassemble the pump, taking note of the components’ orientation, and clean each part using a specialized fuel system cleaner or carburetor cleaner. Pay close attention to the filter, inlet, and outlet ports, ensuring all debris is removed. Once cleaned, reassemble the pump, reinstall it, and reconnect the fuel lines and electrical connectors. Finally, refill the tank with fresh fuel and test the system to ensure proper operation. Regular cleaning of the GSX-R’s fuel pump not only enhances performance but also prevents costly repairs down the line.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdrivers, wrenches, pliers, fuel line disconnect tool, cleaning solvent, soft brush, clean rags, safety gloves, safety goggles. |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, disconnect the battery, relieve fuel pressure before removal. |
| Fuel Pump Location | Typically located inside the fuel tank (GSXR models vary, consult manual for exact location). |
| Fuel Tank Removal | Drain fuel, disconnect fuel lines, remove tank mounting bolts, lift tank carefully. |
| Fuel Pump Disassembly | Disconnect electrical connectors, remove pump retaining bolts, carefully extract pump from tank. |
| Cleaning Process | Use a cleaning solvent (e.g., carburetor cleaner) and a soft brush to remove debris and buildup from pump components. |
| Inspection | Check for worn or damaged parts (e.g., filters, seals, impeller) and replace if necessary. |
| Reassembly | Reinstall the pump, reconnect electrical connectors, secure with bolts, ensure proper sealing. |
| Fuel Tank Reinstallation | Place tank back, reconnect fuel lines, secure mounting bolts, refill fuel. |
| Post-Cleaning Testing | Reconnect battery, start the bike, check for proper fuel delivery and leaks. |
| Frequency of Cleaning | Recommended every 10,000-15,000 miles or as needed based on performance issues. |
| Common Signs of Dirty Fuel Pump | Poor acceleration, engine stalling, difficulty starting, irregular idle. |
| Alternative Method | Use a fuel system cleaner additive if disassembly is not feasible. |
| Professional Assistance | Consult a mechanic if unsure or if the pump requires advanced repairs. |
Explore related products
$39.98
What You'll Learn
- Pre-Cleaning Preparation: Gather tools, disconnect battery, relieve fuel pressure, and locate the fuel pump
- Fuel Pump Removal: Disconnect fuel lines, unbolt the pump, and carefully remove it from the tank
- Cleaning Process: Use carburetor cleaner to remove debris and ensure all components are clear
- Inspection Tips: Check for wear, cracks, or damage; replace faulty parts before reassembly
- Reinstallation Steps: Reattach fuel lines, secure the pump, reconnect the battery, and test functionality
Pre-Cleaning Preparation: Gather tools, disconnect battery, relieve fuel pressure, and locate the fuel pump
Before diving into the cleaning process of your GSXR's fuel pump, it's essential to lay the groundwork with meticulous pre-cleaning preparation. This phase is not just about gathering tools; it's about ensuring safety, efficiency, and precision. Start by assembling a toolkit tailored to the task: a fuel line disconnect tool, safety gloves, safety goggles, a drain pan, and a suitable cleaning solvent recommended for motorcycle fuel systems. Each tool plays a critical role, from preventing chemical exposure to capturing any residual fuel, ensuring that your workspace remains clean and hazard-free.
Once your tools are in order, the next critical step is to disconnect the battery. This action is paramount for safety, as it eliminates the risk of electrical shorts or accidental ignition during the cleaning process. Locate the battery, typically found under the seat or in a side panel, and carefully remove the negative terminal first, followed by the positive. This sequence minimizes the risk of arcing and potential damage to the bike's electrical system. With the battery disconnected, you’ve effectively neutralized one of the primary hazards associated with fuel system maintenance.
Relieving fuel pressure is the subsequent step, a procedure that demands attention to detail. Start the engine and let it run until it stalls, which will naturally depressurize the fuel system. Alternatively, if your GSXR is equipped with a Schrader valve on the fuel rail, use a pressure gauge to release the pressure manually. This step is crucial as it prevents fuel from spraying uncontrollably when you disconnect the fuel lines, reducing the risk of spills and ensuring a safer working environment. Always work in a well-ventilated area and avoid open flames or sparks during this process.
Finally, locating the fuel pump is the last piece of the preparation puzzle. On most GSXR models, the fuel pump is situated inside the fuel tank, requiring you to remove the tank for access. Begin by relieving any remaining fuel into the drain pan, then carefully unbolt and lift the tank, taking note of its orientation and any sensors or connectors attached. With the tank removed, the fuel pump module will be exposed, typically secured by a locking ring or screws. Familiarize yourself with the pump’s design and connections, as this knowledge will streamline the cleaning process and ensure that reassembly is straightforward. By meticulously following these preparatory steps, you set the stage for a successful and safe fuel pump cleaning.
Diagnosing a Mechanical Fuel Pump: A Step-by-Step Troubleshooting Guide
You may want to see also
Explore related products
Fuel Pump Removal: Disconnect fuel lines, unbolt the pump, and carefully remove it from the tank
Fuel pump removal is a critical step in cleaning a GSXR’s fuel system, but it’s not as daunting as it seems. Begin by disconnecting the fuel lines, ensuring you relieve any residual pressure in the system first. Use a fuel line disconnect tool to avoid damaging the lines or spilling fuel. Once disconnected, cap or plug the lines to prevent debris from entering. This step is straightforward but requires precision to avoid leaks or contamination later.
Next, unbolt the fuel pump assembly, typically secured by a few screws or bolts around its perimeter. Keep track of the bolt locations and their torque specifications for reassembly. Some GSXR models may have an access panel or require partial tank removal, so consult your service manual for specifics. The pump is often nestled snugly within the tank, so patience is key to avoid forcing it out and causing damage.
Carefully lifting the pump from the tank is where technique matters most. Tilt the tank slightly to allow the pump to slide out without snagging on internal components. Inspect the pump for signs of wear, such as cracked seals or clogged filters, as these are common issues in older GSXRs. If the pump is stuck, gently rock it side to side rather than pulling forcefully, which could damage the tank or pump housing.
A practical tip: place a clean cloth or tray beneath the tank to catch any residual fuel or debris during removal. This not only keeps your workspace tidy but also prevents contaminants from re-entering the system during reassembly. Once removed, the pump is ready for cleaning or replacement, ensuring your GSXR’s fuel delivery system operates at peak efficiency.
In summary, fuel pump removal involves disconnecting fuel lines, unbolting the assembly, and carefully extracting the pump from the tank. Each step demands attention to detail, but with the right tools and approach, it’s a manageable task that significantly contributes to your GSXR’s performance and longevity.
DIY Guide: Replacing the Fuel Pump in a 2010 Lincoln MKX
You may want to see also
Explore related products
Cleaning Process: Use carburetor cleaner to remove debris and ensure all components are clear
Carburetor cleaner is a potent solvent designed to dissolve varnish, gum, and debris that accumulate in fuel systems over time. When cleaning a GSXR fuel pump, this cleaner becomes your primary tool for restoring efficiency. Its fast-acting formula breaks down contaminants without damaging rubber or plastic components, making it ideal for delicate fuel pump parts. However, its strength requires careful handling—always wear gloves and work in a well-ventilated area to avoid skin irritation or inhalation risks.
The cleaning process begins with disassembling the fuel pump to access all components. Once apart, spray carburetor cleaner directly onto the pump’s internal parts, focusing on areas where debris tends to collect, such as the inlet and outlet ports. Allow the cleaner to sit for 5–10 minutes to penetrate stubborn buildup. For heavily clogged pumps, use a soft-bristle brush to gently scrub away residue, ensuring not to damage any seals or gaskets. Rinse thoroughly with fresh cleaner to remove loosened debris and leave no residue behind.
A critical step often overlooked is testing the pump’s components after cleaning. Reassemble the pump temporarily and manually operate the diaphragm or rotor to ensure all parts move freely and without resistance. If any component feels stiff or clogged, repeat the cleaning process. This step ensures the pump will function optimally once reinstalled, preventing potential fuel delivery issues down the line.
While carburetor cleaner is effective, it’s not a one-size-fits-all solution. For older GSXR models with aged rubber components, consider using a milder solvent to avoid degradation. Additionally, always refer to the manufacturer’s guidelines for specific cleaning recommendations. Properly cleaned and maintained, a GSXR fuel pump can deliver reliable performance, ensuring your bike runs smoothly for years to come.
Efficient Motorcycle Fuel Pump Cleaning: Step-by-Step Guide for Optimal Performance
You may want to see also
Explore related products
Inspection Tips: Check for wear, cracks, or damage; replace faulty parts before reassembly
Before reassembling your GSXR's fuel pump, a meticulous inspection is crucial to ensure optimal performance and longevity. Begin by examining the pump's components for any signs of wear, such as frayed wires, corroded terminals, or worn-out seals. Even minor wear can lead to fuel leaks, reduced efficiency, or complete pump failure. Pay close attention to the fuel pump's inlet and outlet ports, as these areas are prone to debris buildup and cracking due to constant fuel flow and pressure fluctuations. A magnifying glass or bright LED light can help detect hairline cracks or stress marks that might otherwise go unnoticed.
Analyzing the fuel pump's internal components requires a systematic approach. Disassemble the pump carefully, following the manufacturer's guidelines, and inspect the impeller, diaphragm, and valves for damage. The impeller, in particular, should be checked for bent or broken blades, which can disrupt fuel flow and cause erratic engine behavior. Similarly, the diaphragm should be free from punctures or tears, as these can lead to air infiltration and reduced fuel pressure. If any internal components show signs of damage, replacement is often more cost-effective than attempting a repair, especially given the precision required for fuel pump operation.
A comparative analysis of new and old parts can provide valuable insights during inspection. Hold a suspected faulty component alongside a known good one to highlight discrepancies in shape, color, or texture. For instance, a discolored or warped fuel pump housing may indicate overheating or material degradation, warranting immediate replacement. This side-by-side comparison also helps in identifying subtle changes that might not be apparent when inspecting a single part in isolation. Keep a reference guide or manual handy to cross-check part specifications and tolerances, ensuring accuracy in your assessment.
Persuasive arguments for proactive replacement are rooted in the potential consequences of ignoring damaged parts. A cracked fuel pump housing, for example, may seem minor but can lead to fuel contamination, engine misfires, or even catastrophic failure if left unaddressed. Similarly, worn-out seals or gaskets can compromise the pump's ability to maintain pressure, resulting in poor fuel economy and reduced engine performance. By replacing faulty parts before reassembly, you not only safeguard your GSXR's reliability but also avoid the higher costs and downtime associated with addressing more extensive damage later.
Instructive steps for effective inspection include documenting your findings with photographs or notes, which can serve as a reference for future maintenance. Use a checklist to ensure no component is overlooked, and consider labeling parts as "good," "replace," or "monitor" to streamline the reassembly process. For parts that fall into the "monitor" category, establish a follow-up inspection schedule to catch potential issues early. Finally, always consult the GSXR's service manual for torque specifications and assembly procedures, as improper reassembly can negate the benefits of a thorough inspection. This meticulous approach ensures that your fuel pump operates at peak efficiency, contributing to the overall health and performance of your motorcycle.
How Fuel Pumps Detect a Full Tank: The Science Explained
You may want to see also
Explore related products
Reinstallation Steps: Reattach fuel lines, secure the pump, reconnect the battery, and test functionality
Reattaching the fuel lines is a critical step in the reinstallation process, as improper connection can lead to leaks or reduced fuel flow. Begin by aligning the fuel lines with their respective ports on the fuel pump, ensuring that the quick-connect fittings are securely seated. Apply a small amount of silicone grease to the O-rings to prevent damage and ensure a tight seal. For GSXR models, the fuel lines typically consist of a supply line and a return line, each with distinct diameters—usually 8mm for the supply and 6mm for the return. Double-check the routing to avoid kinks or sharp bends that could restrict fuel delivery.
Securing the pump is equally vital to prevent vibration-related damage or dislodgement. Reinstall the mounting bracket and tighten the bolts to the manufacturer’s torque specifications, typically around 10-12 Nm for GSXR models. Over-tightening can strip the threads or crack the pump housing, while under-tightening may allow the pump to shift during operation. Inspect the rubber mounting grommets for wear and replace them if necessary to maintain proper vibration dampening. This step ensures the pump remains stable under the high-performance demands of the GSXR engine.
Reconnecting the battery is a straightforward but essential task that restores power to the fuel pump and other electrical systems. Before reattaching the battery terminals, clean them with a wire brush and apply a thin layer of dielectric grease to prevent corrosion. Ensure the positive (+) and negative (-) terminals are correctly aligned and tightened securely. For GSXR motorcycles, the battery is often located under the seat or in a side panel, so reinstalling any removed panels or fasteners is necessary to maintain weatherproofing and aesthetics.
Testing functionality is the final and most crucial step to confirm the fuel pump operates correctly. Turn the ignition to the "on" position and listen for the pump’s priming cycle, which should last 2-3 seconds. If the pump fails to activate, check the fuse and relay in the electrical system. Start the engine and monitor for consistent fuel delivery, indicated by stable idle and throttle response. A fuel pressure gauge can be used to verify the pump is maintaining the correct pressure, typically around 40-60 psi for GSXR models. This test ensures all reinstallation steps were completed successfully and the motorcycle is ready for safe operation.
Determining the Right Number of Fuel Pump Strainers for Your Vehicle
You may want to see also
Frequently asked questions
It’s recommended to clean the fuel pump every 10,000 to 15,000 miles or if you notice symptoms like poor acceleration, stalling, or difficulty starting.
You’ll need a socket set, pliers, a clean cloth, carburetor cleaner or fuel injector cleaner, and a small brush for detailed cleaning.
Yes, you can use a fuel system cleaner additive in your tank to help clean the pump internally, but for a thorough cleaning, removal is recommended.
Common signs include rough idling, reduced power, hesitation during acceleration, or the engine not starting despite having fuel.
Disconnect the battery, relieve fuel pressure, remove the fuel tank, disconnect the fuel lines and electrical connectors, and then unbolt the pump from the fuel tank or assembly.
