Cleaning fuel injectors with a 9-volt battery is a do-it-yourself (DIY) method that can be done at home. This process involves taking out the injectors, connecting a 9-volt battery to a spare pigtail that fits the injectors, spraying carb cleaner into the injector, and then using compressed air. It is important to exercise caution when performing this task, as gasoline and solvents are involved and can be highly flammable.

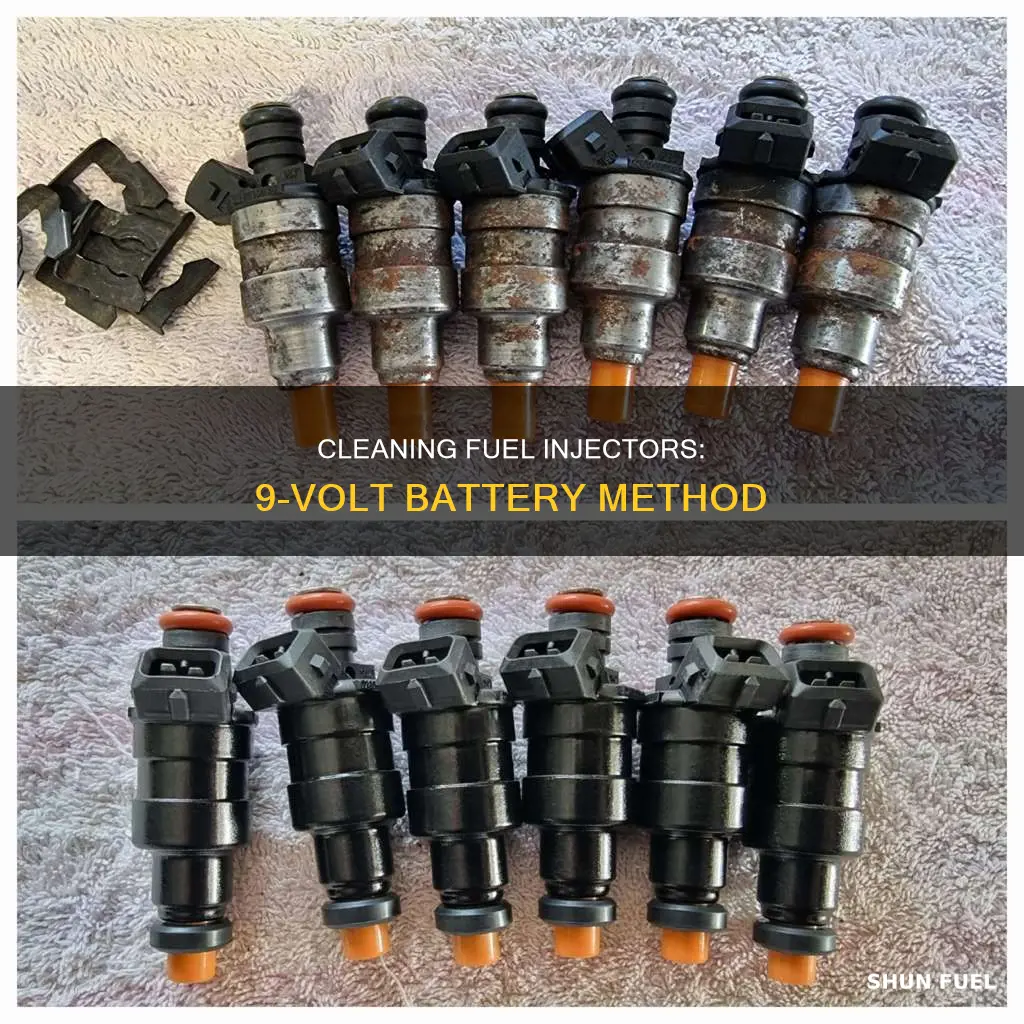

Cleaning Fuel Injectors with a 9-volt battery
| Characteristics | Values |
|---|---|
| Battery Type | 9V flat square torchlight battery |
| Battery Size | Palm-sized |
| Battery Tabs | Two metallic pole tabs, approximately 1 inch each |
| Injector Cleaner | Ultrasonic cleaner, distilled water, aerosol carb cleaner, WD-40, etc. |
| Injector Type | Bosch injectors, Marren Fuel injectors |
| Voltage | 4.5V to trigger the injector |
| Connections | Electric plug, injector wire harness, spare pigtail |
| Procedure | Twist wires from the injector on two paper clips, connect the battery to the paper clips to open and close the injector, spray cleaner in reverse flow, use compressed air |
| Precautions | Ensure proper connections, high pressure and flammable solvents can be dangerous, risk of blindness |
Explore related products
What You'll Learn
Use a 9V battery to pulse the injectors
To clean your fuel injectors with a 9V battery, you will need to use the battery to pulse the injectors. This process involves sending an electric current through the injectors to open them and allow a cleaning solution to flow through. Here is a step-by-step guide on how to do it:
Firstly, you will need to gather the necessary tools and materials, which include a 9V battery, a spare pigtail that fits your injectors, a cleaning solution such as carb cleaner or ultrasonic cleaner with distilled water, and some paper clips. Ensure you have the correct safety equipment, as you will be working with flammable chemicals under high pressure.
Next, remove the fuel injectors from your vehicle, if you haven't already. Then, take the 9V battery and connect it to the spare pigtail. The battery has two metallic pole tabs; twist the wires from the injector around two paper clips, and then slide the paper clips onto the battery tabs. This will allow you to control the opening and closing of the injector by sliding the battery tab in and out of the paper clip.
Now, you can begin the pulsing process. Connect the pigtail to the injector and hook up the 9V battery. This will open the injector. Then, spray your chosen cleaning solution into the injector in the reverse of its normal flow. You can also try using an aerosol can of GM's "Cleens" or diluted water with a small amount of cleaning fluid.
Finally, disconnect the battery and close the injector. You can then use compressed air to blow through the injector, ensuring that it is thoroughly cleaned. It is important to be cautious when performing this task, as gasoline and solvents are highly flammable and dangerous if mishandled. Always double-check your setup before proceeding.
Fuel Injector Relay Faults: Bad Gas Mileage Culprit?
You may want to see also
Explore related products
Prepare the fuel injector
To prepare the fuel injector for cleaning, you will need to remove it from your vehicle. It is important to exercise caution when handling fuel injectors, as gasoline and solvents are highly flammable and can be dangerous if mishandled.
Once the injector is removed, you will need to gather the necessary tools and materials. These include a 9-volt battery, a spare pigtail that fits your injector, carb cleaner or aerosol cleaner, and compressed air. You may also need an injector wire harness, depending on your setup. Ensure that you have eye protection and are wearing appropriate protective clothing to shield yourself from any potential spray or splash of chemicals.
Before beginning the cleaning process, familiarize yourself with the injector's components. The injector will have two metallic pole tabs, each about an inch long. These are the positive and negative terminals, and you will attach the wires from the battery to these tabs. The battery you choose should be a 9-volt flat square torchlight battery, which is palm-sized and easily manageable.
Additionally, prepare a small section of steel pipe (around 3 inches), a fuel line, and a stock 4-cylinder manifold/fuel rail if you intend to create a rig for the cleaning process, as described by some users. This setup will allow you to pressurize the system and pulse the injectors with the 9-volt battery.
By carefully preparing the fuel injector and gathering the necessary tools, you can ensure a smooth and safe cleaning process using a 9-volt battery.
Fuel Injector Cleaner: Spark Plug Cleaning Solution?
You may want to see also
Explore related products
Use a cleaning solution
To clean your fuel injectors with a 9-volt battery and a cleaning solution, you will need to follow these steps:
First, remove the fuel injectors. Once they are removed, you can clean them individually. You will need a soft-bristle brush and a suitable cleaner, such as carburetor cleaner, EFI cleaner, or aerosol GM's "Cleens".
Brush the outside of the fuel injectors with the cleaner and brush. You can also use an ultrasonic cleaner with distilled water and a small amount of cleaning solution (such as Techron or Lubro Moly). Ensure you follow the instructions provided with your ultrasonic cleaner.
Next, you will need to energize the fuel injector to open it up. You can make a simple jumper with a 9-volt battery and wires. Spray the cleaner through the fuel injector from both directions.
After cleaning, reinstall the fuel injectors with new O-rings, reconnect the fuel pump, and start the engine.
To keep your fuel injectors clean, use quality detergent fuels. TOP TIER detergent fuels are recommended to maintain the EFI system and engine performance.
Additionally, consider an intake cleaning service to address external fuel injector deposits and intake deposits.
Fuel Injector Maintenance for Can-Am X3 Performance
You may want to see also
Explore related products
Spray carb cleaner into the injector
To clean your fuel injectors with a 9-volt battery, you'll need to first take the injectors out. Then, get a spare pigtail that fits your injectors and hook the 9-volt battery up to the pigtail to open the injector.
Now, you can spray carb cleaner into the injector. It is important to note that you should not soak the injector in carb cleaner, as this can damage the o-rings and brittle the plastic. Instead, spray the carb cleaner into the injector in reverse of its normal flow. You can also try an aerosol can of GM's "Cleens" or a liquid fuel injection cleaner that you can put in your gas tank.
After spraying the carb cleaner, repeat the process with compressed air. This will help to remove any remaining residue and ensure that the injector is thoroughly cleaned.
Finally, it is important to note that some injectors are made of plastic, so be sure to only soak metal injectors in the cleaner. Always check the manufacturer's instructions and recommendations for your specific injector to ensure you are using the correct cleaning methods and products.
Cleaning Fuel Injectors: Chevy Cruze Maintenance Guide
You may want to see also
Explore related products
Blow clear with air and WD-40
To clean your fuel injectors with a 9-volt battery, you will need to take the injectors out and get a spare pigtail that fits your injectors. You can then hook up the 9V battery to the pigtail to open the injector. Next, spray carb cleaner into the injector in reverse of its normal flow, and then do the same with compressed air.
Now, to the specific part about blowing clear with air and WD-40:
After cleaning the injectors with carb cleaner, some sources recommend using a product like WD-40 as a lubricant to prevent the cleaner from sitting and destroying the internal seals inside. This step is important because if you leave the carb cleaner in the injector for an extended period without rinsing it out, it can leak fuel. However, it is worth noting that not all sources agree on the use of WD-40. Some people specifically advise against using WD-40 on fuel injectors, stating that it can fry out rubber seals. Instead, they suggest using a good brand of silicone lubricant on the injector O-rings and fuel line O-ring seals.
When blowing clear with air and WD-40, you would follow a similar process as with the carb cleaner. You would spray the WD-40 through the injector and then follow it with compressed air to ensure that the injector is clear of any residue. This step helps to ensure that the injector is properly lubricated and protected after the cleaning process.
It is important to note that this process may not work for all injectors, and it is always a good idea to consult a professional or a trusted mechanic if you are unsure about any steps or products to use. Additionally, it is crucial to exercise caution when working with any electrical components or flammable substances.
Diagnosing Car Issues: Fuel Injector or Fuel Rail Clog?
You may want to see also
Frequently asked questions
First, take the injectors out. Then, get a spare pigtail that fits your injectors and hook the 9v battery up to the pigtail to open the injector. Next, spray carb cleaner into the injector in reverse of its normal flow, and then do the same with compressed air.
A pigtail is a spare electric plug that connects to the injector.
You can use a 9-volt flat square torchlight battery, which is the size of a palm.
Make sure to double-check everything before firing it up. Gasoline and solvents will be under high pressure, and failure can be catastrophic. Blindness can occur, and these chemicals are highly flammable.
