Katerina Swanson
Cleaning the fuel injectors on a 2005 Dodge Neon can be a complex process. It involves first relieving the fuel pressure, then removing the fuel pump relay and allowing the engine to use the remaining fuel in the system. Once the pressure has dropped, the fuel rail can be unbolted and gently lifted, taking care not to break any stuck injectors. The injectors can then be cleaned with a carb cleaner and lubricated with engine oil or vaseline. It is important to clean the entire throttle body and fuel rail to ensure optimal performance.

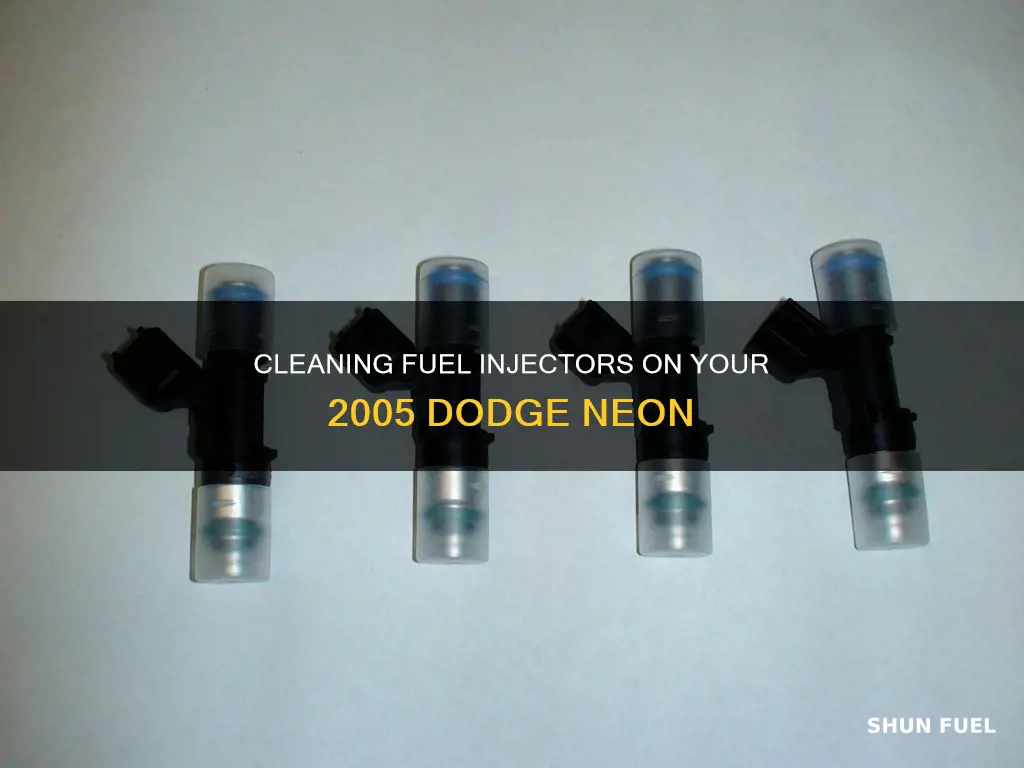

How to clean fuel injectors on a 2005 Dodge Neon
| Characteristics | Values |
|---|---|
| Step 1 | Kill the fuel pressure by pulling the fuel pump relay while the engine is running. |
| Step 2 | Remove the fuel rail by unbolting it and wiggling it while pulling up gently. |
| Step 3 | Spray off any dirt collected around the bottom of the injectors using a carb cleaner spray. |
| Step 4 | Clean the injectors by dunking them in a solvent and letting the cleaner run its cycle. |
| Step 5 | Grease the injectors and the new o-rings with vaseline or engine oil. |
| Alternative methods | Use a sonic cleaner or a machine that can clean and test multiple injectors at once. |
Explore related products
What You'll Learn
Removing the fuel injectors
To remove the fuel injectors from your 2005 Dodge Neon, you will first need to kill the fuel pressure. Do this by pulling the fuel pump relay while the engine is running. The engine will then use the remaining fuel in the system until the pressure drops to a low enough level.
Next, remove the bolts holding the fuel rail in place. You may need to pry off the wiring harness connected to the rail. Once the rail is free, gently wiggle it while pulling upwards to remove it. The fuel injectors are clipped to the rail, so they will come out with it. Be careful not to yank too hard, or you may break the injectors if they are stuck in the ports.
Before removing the injectors from the rail, spray off any dirt that has collected around their bottom ends. Use a carb cleaner spray for this. You can then clean the injectors by dunking them in a solvent or spraying carb cleaner into them.
Some sources recommend lubricating the o-rings with engine oil or silicone-based grease, while others advise against this, suggesting that petroleum jelly or spit is a better option.
Adjusting Fuel Injectors: Using ISTA for Precision Tuning
You may want to see also
Explore related products
Cleaning the fuel injectors
To clean the fuel injectors of a 2005 Dodge Neon, you will first need to gather the necessary tools and materials. These include a fuel injector cleaner, such as Techron Concentrate Plus or Mopar Fuel Injector Cleaner, a can of throttle body cleaner, a can of carb cleaner, Q-tips, and a fuel injector sonic cleaner. You may also need a new O-ring kit, silicone grease, and a vacuum line.
Begin by relieving the fuel pressure. Do this by pulling the fuel pump relay while the engine is running, which will shut off the fuel pump. The engine will then use the remaining fuel in the system until the pressure drops to a safe level.
Next, remove the fuel rail by unbolting it and gently wiggling and pulling it upwards. The fuel injectors are clipped to the rail, so they will come out with it. Be careful not to yank too hard, as the injectors can sometimes stick in the ports and be damaged if forced. Once the rail and injectors are removed, spray them with carb cleaner, and use Q-tips to clean the dirt and carbon deposits.
You can then use a sonic cleaner to clean the injectors. Fill the reservoir with solvent, dunk the injectors, and let the machine run its cycle. Alternatively, you can use a solvent-based cleaner and a vacuum line. Pour some of the cleaner into a cup, and have an assistant work the throttle so the motor doesn't stall while you dip the vacuum line into the cup.
Finally, before reinstalling the fuel rail, ensure that it is thoroughly cleaned and free of any debris, such as Q-tip fuzz. Lubricate the O-rings with engine oil or silicone grease, and clip the injectors back into place.
Cleaning Your GSXR Fuel Injector: A Step-by-Step Guide
You may want to see also
Explore related products
Lubricating the o-rings
When installing the fuel injectors, it is crucial to ensure that the o-rings are properly lubricated to create a tight seal and prevent leaks. The o-rings are small, round rubber seals that fit around the fuel injectors. Their purpose is to form a tight seal, preventing fuel from leaking out and ensuring that the injectors are securely attached to the fuel rail.
To lubricate the o-rings effectively, start by cleaning them with a suitable solvent or cleaner. This will help remove any dirt, grease, or debris that may have accumulated on the o-rings. After cleaning, dry the o-rings thoroughly before applying the lubricant. It is important to use a lubricant that is compatible with the material of the o-rings and will not cause damage or deterioration.
Once the lubricant is applied, spread it evenly across the surface of the o-rings using a small brush or a cotton swab. Ensure that the lubricant is not applied too thickly, as it may cause excess to squeeze out when the fuel injectors are installed. A thin, even coating is usually sufficient to create a proper seal.
Additionally, when lubricating the o-rings, it is important to handle them with care to avoid stretching or damaging them. They are crucial components in the fuel injection system, ensuring a tight seal and preventing fuel leaks. By following these steps and properly lubricating the o-rings, you can help maintain the efficiency and performance of your 2005 Dodge Neon's fuel injection system.
Adjusting Fuel Injectors: Running Richer, the How-to Guide
You may want to see also
Explore related products
Cleaning the fuel rail
To clean the fuel rail of your 2005 Dodge Neon, you will first need to relieve the fuel pressure. Pull the fuel pump relay while the engine is running, which will shut off the fuel pump, and the engine will use the remaining fuel in the system until the pressure drops.
Next, remove the bolts holding the fuel rail in place. The fuel line at the end of the rail is held by a plastic locking ring, and there will be residual fuel pressure, so be prepared for spilled and sprayed fuel. Release the fuel line retainer by squeezing the tabs at the end of the fuel rail, then squeeze and pull the line off.
Now that the fuel rail is exposed, you can begin to clean it. Spray any dirt or grime that has collected around the bottom of the injectors with a carb cleaner spray. Also, clean the ports on the fuel rail with Q-tips and carb cleaner. Ensure that you clean thoroughly around the valves and the valve covers.
Before reinstalling the fuel rail, blow out any remaining residue and ensure that there is no debris or fuzz left behind. You can then reinstall the fuel rail and fuel line, ensuring that the locking ring is secure.
Cleaning Your Duramax: Fuel Injector Maintenance Guide
You may want to see also
Explore related products
Reinstalling the fuel injectors
To reinstall the fuel injectors, first, lube the o-rings with engine oil. Some sources suggest using silicone grease, as it will not deteriorate the rubber and makes installation easier. Next, clip the injectors to the rail, ensuring they are secure.
Now, reconnect the fuel line to the end of the rail. Be cautious, as there will still be fuel pressure in the line. The fuel line is held on by a plastic locking ring. Once the line is connected, release the retainer by squeezing the exposed tabs at the end of the fuel rail.
The next step is to reconnect the wiring harness to the fuel rail. Then, reinstall the two bolts that hold the rail in place.
Finally, start the engine and check for any leaks. If there are no leaks, you have successfully reinstalled the fuel injectors.
Cleaning Fuel Injectors: A Step-by-Step Guide for Geo Cars
You may want to see also
Frequently asked questions
There are a few methods to clean your fuel injectors. Firstly, you can buy a bottle of Techron Concentrate Plus Mopar fuel injector cleaner and put it in your next tank of gasoline. Another option is to use a sonic cleaner, which you can find at Walmart or Sam's. You can also fill a reservoir with a solvent, dunk the injector, and let the cleaner run its cycle.
You can use a can of throttle body cleaner, carb cleaner, and Q-tips to clean your fuel injectors. You can also use a sonic cleaner or a solvent such as Sea Foam.
First, kill the fuel pressure by pulling the fuel pump relay while the engine is running. Then, unbolt the rail and wiggle it while pulling up gently. The injectors are clipped to the rail, so they will come out with the rail.
The connector on the injector has a red-colored lock tab. Slide back the tab from the connector and push down to release the latch and pull off the connector.
