Fuel injectors are an essential component of a car's engine, and keeping them clean is crucial for optimal performance. While it is possible to clean fuel injectors without removing them, taking them out allows for a more thorough cleaning process. This process involves several steps, including removing the upper and lower intake manifolds, unbolting the fuel rail, and carefully pulling out the injectors for inspection and cleaning. The cleaning itself can be done using a variety of tools and solutions, such as a 12vlt Milwaukee battery, rubber hose, kitchen funnel, and injector cleaner. It is also important to consider the replacement of certain parts, such as the o-rings and seals, to ensure the injectors function correctly after reinstallation.
Characteristics and Values
| Characteristics | Values |
|---|---|
| Step 1 | Remove the upper and lower intake manifolds |
| Step 2 | Unbolt the 6x 10mm golden screws holding the gold plate |
| Step 3 | Remove the 2 nuts on either side of the lower intake manifold |
| Step 4 | Lift up the lower intake manifold |
| Step 5 | Unbolt the fuel rail with a 12mm socket |
| Step 6 | Pull each injector and place them in a safe, clean workspace |
| Step 7 | Inspect each injector for damage |
| Step 8 | Clean the outside of the injectors |
| Step 9 | Clean the inside of the injectors with a fuel injector cleaning kit |
| Step 10 | Replace the o-rings and seals |
| Tools | 12vlt Milwaukee battery, two wires, rubber hose, tiny kitchen funnel, injector cleaner, cheap alligator clips |
Explore related products
What You'll Learn
Removing the upper and lower intake manifolds
To remove the upper and lower intake manifolds, start by unbolting the six 10mm golden screws that hold the gold plate in place. Once the plate is removed, you can access the two nuts on either side of the lower intake manifold. Remove these nuts, and then lift the lower intake manifold away.
The intake manifold plays a crucial role in distributing the combustion mixture of air and fuel to the engine's cylinder. Over time, carbon deposits, oil, and debris can build up inside the manifold, leading to an imbalance in the fuel-air ratio, resulting in increased fuel consumption, air pollution, and a loss of horsepower. Therefore, cleaning the intake manifold is essential for maintaining optimal engine performance and efficiency.
Before beginning the cleaning process, ensure you have the necessary tools and safety equipment, such as gloves and a clean microfiber cloth. Basic mechanic tools like wrenches and screwdrivers will be needed for hose/tube removal. It is also crucial to keep the engine off during the cleaning process.
By following these steps and taking the necessary precautions, you can effectively remove and clean the upper and lower intake manifolds, ensuring the optimal performance and longevity of your vehicle's engine.
Fuel Injector Cleaner: Before or After Filling Up?
You may want to see also
Explore related products
Unbolting the fuel rail
First, make sure you have the necessary tools and safety equipment. Safety should always be a priority when working on any vehicle maintenance or repair task. Wear protective gear, including gloves and eye protection, to shield yourself from any debris or chemicals.
Now, locate the fuel rail. It is usually found on the top of the engine, running parallel to the cylinders. The fuel rail is responsible for distributing fuel to the injectors, so it's essential to access it for cleaning or replacement. Once you've identified the fuel rail, gather the appropriate tools, including a 12mm socket, as specified in the source. You may also require a ratchet and extension depending on the accessibility of the bolts.
To begin the unbolting process, carefully place the 12mm socket over the bolt heads of the fuel rail. Ensure the socket is securely fitted to avoid any slippage during the unbolting process. Apply gentle force in a counter-clockwise direction to loosen the bolts. If the bolts are too tight, you may need to apply more force gradually, being careful not to strip the threads. It is recommended to start with the bolt located at the end of the fuel rail farthest from the fuel line.
As you loosen each bolt, keep them organized in a safe place to avoid misplacing them. Fuel rails typically have multiple bolts, so it's important to keep track of them to ensure proper reassembly. Once all the bolts are removed, carefully lift and separate the fuel rail from the injectors. Place the fuel rail in a clean, safe area, ensuring that it is handled with care to avoid any damage.
At this point, you can proceed to inspect and clean the fuel injectors. It is recommended to clean them in a well-ventilated area or outdoors to avoid inhaling any fumes. Additionally, you can refer to online resources or seek professional advice for detailed instructions on cleaning the fuel injectors effectively. Remember to exercise caution and follow safety protocols throughout the cleaning process.
Cleaning Foreman 500 Fuel Injectors: DIY Guide
You may want to see also
Explore related products
Pulling the injectors
First, make sure you have a clean and safe workspace. Lay out some newspapers or a drop cloth to protect the surface and gather all the necessary tools and materials. Have a fuel injector cleaning kit ready, which typically includes adapters, filters, and cleaning solutions. You may also need a 12mm socket to unbolt the fuel rail.
Now, locate the fuel injectors. They are usually attached to the fuel rail, which sits on top of the engine. Before you begin, it's a good idea to take some pictures of the setup so you can remember the exact configuration of the injectors and any attached components. This will help you during reassembly.
With your workspace prepared and the injectors located, it's time to start pulling them out. Start by carefully unbolting the fuel rail with a 12mm socket. Be gentle to avoid damaging the rail or the surrounding components. Once the fuel rail is loose, you can begin to pull out the injectors.
Grip each injector firmly but carefully, and pull it out of its housing. As you remove each injector, lay it down in your prepared workspace. Make sure to inspect each injector as you set it down to check for any visible damage or excessive dirt. This process should be done meticulously to avoid any complications during reassembly. It's important to place the injectors in a clean and safe area to prevent any damage while they are out of the engine.
Once all the injectors are removed, you can proceed to clean them. It is recommended to clean both the outside and inside of the injectors to ensure optimal performance. Remember to handle the injectors with care throughout the entire process, as they are delicate and crucial components of your engine's fuel system.
Fuel Injector Lifespan: How Many Miles Before Replacement?
You may want to see also
Explore related products
Cleaning the outside of the injectors
To clean the outside of the injectors, you will need to remove the upper and lower intake manifolds first. Unbolt the six 10mm golden screws holding down the gold plate. Once the plate is removed, you can take out the two nuts on either side of the lower intake manifold and lift it up.
The next step is to unbolt the fuel rail with a 12mm socket. After that, carefully pull out each injector and place them in a secure, clean area, inspecting each one as you put them down.
Now, you can begin cleaning the surface of each injector. Ensure that you visually inspect each hole to confirm that the entire surface area is clean. Do not insert anything into the holes if they are dirty. Instead, move on to the next step of cleaning the inside of the injectors.
You can clean the outside of the injectors using a 12v Milwaukee battery, two wires, a rubber hose, a tiny kitchen funnel, and a Techron/Lucas injector cleaner.
Rebuilding Fuel Injectors: Step-by-Step Guide for Mechanics
You may want to see also
Explore related products
Cleaning the inside of the injectors

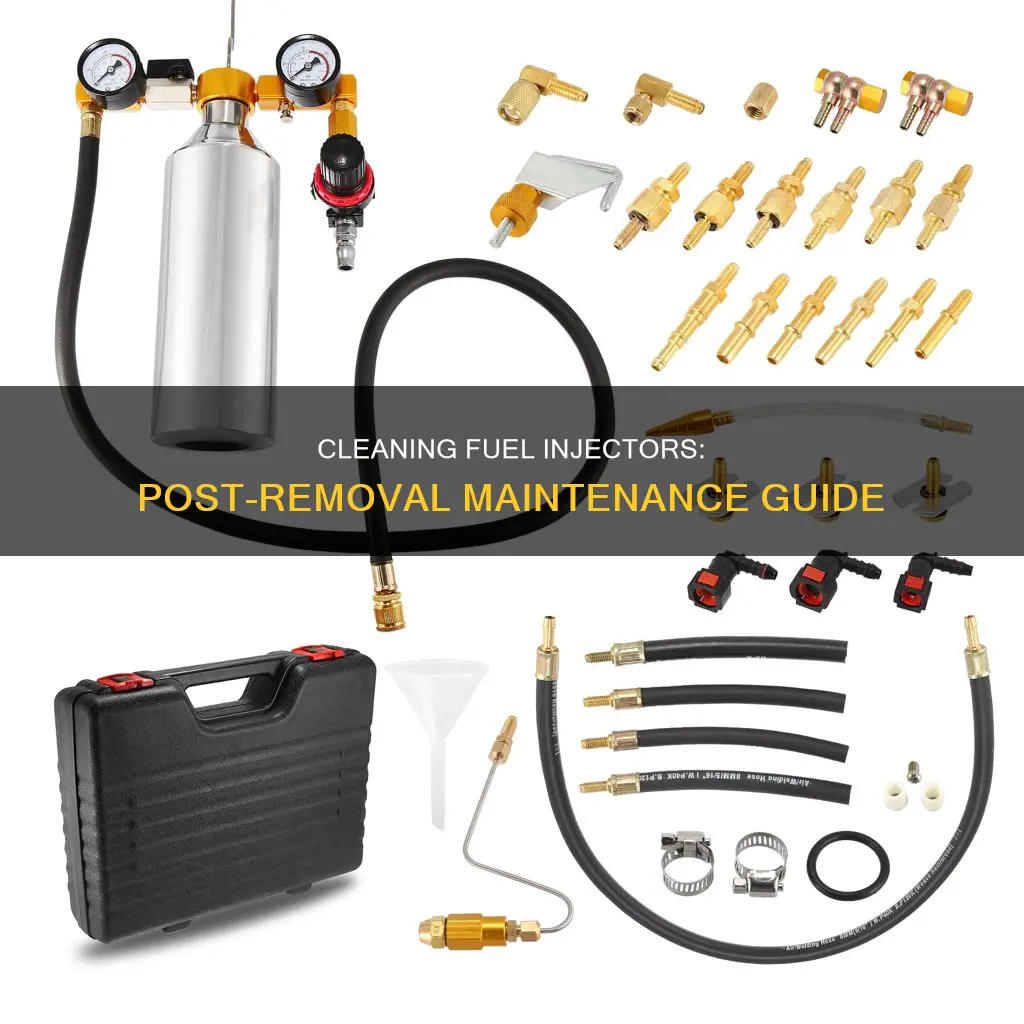

To clean the inside of the injectors, you will need a fuel injector cleaning kit. Attach the kit to each injector to test the flow and spray cleaner through the injector. Point the injector into a water bath to see if it is spraying properly. You can use a 12vlt Milwaukee battery, two wires, a rubber hose, a tiny kitchen funnel, and Techron/Lucas injector cleaner to clean the injectors yourself. There are plenty of videos on YouTube that can guide you through the process.
Alternatively, you can send them out to be professionally tested and cleaned. Most places will also replace the seals for you, which is recommended anytime injectors are removed.
Fuel Injectors: Why They Make a Winding Noise
You may want to see also
Frequently asked questions
There are a few methods to clean your fuel injectors. One method involves using a 12-volt Milwaukee battery, two wires, a rubber hose, a tiny kitchen funnel, and a Techron/Lucas injector cleaner. Alternatively, you can purchase a Fuel Injector Cleaning Kit to attach to each injector.
You will need a 12-volt battery, two wires, a rubber hose, a tiny kitchen funnel, and injector cleaner. You may also need a fuel injector cleaning kit, depending on the method you choose.
First, remove the upper and lower intake manifolds by unbolting the 6x 10mm golden screws holding the gold plate. Then, remove the two nuts on either side of the lower intake manifold and lift it up. Unbolt the fuel rail, pull out each injector, and place them in a clean workspace. Clean the outside of the injectors, inspecting each hole to ensure the entire surface area is clean.
You can use a Fuel Injector Cleaning Kit to test the flow and spray some Brakekleen through the injector.
If you disturb the injectors, it is good practice to replace the O-rings and seals. Most places that test and clean injectors will replace the seals for you, so you can consider sending them out for professional cleaning.
