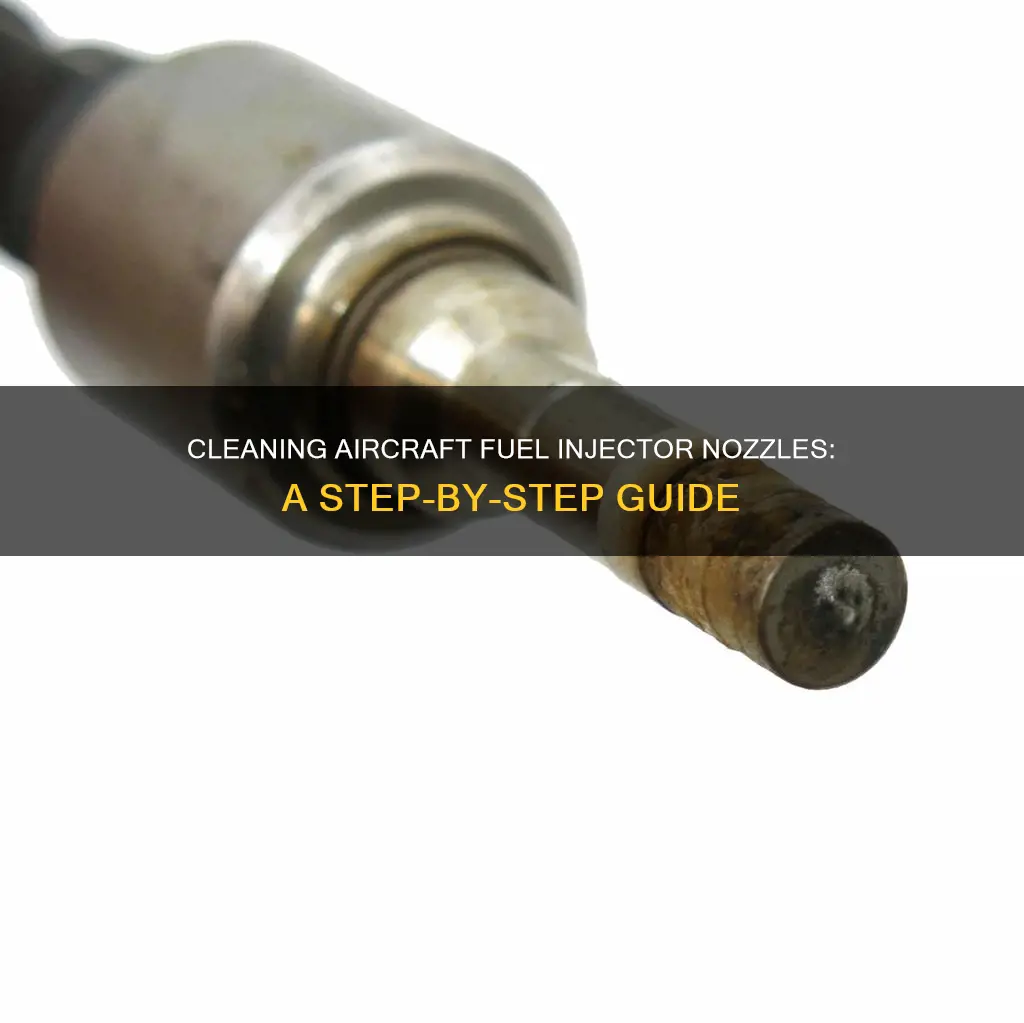

Cleaning aircraft fuel injector nozzles is a maintenance task that can be challenging due to the small size of the nozzles and the risk of contamination. These nozzles are responsible for injecting a metered amount of fuel into each cylinder of a fuel-injected engine. While some sources recommend regular cleaning, others suggest that cleaning is only necessary when there is an issue, as improper maintenance can lead to problems. The process of cleaning involves removing the nozzles, using ultrasonic cleaning or solvents, and ensuring correct reinstallation to avoid issues such as fuel leaks.
Explore related products
What You'll Learn
Ultrasonic cleaning
To perform an ultrasonic cleaning of aircraft fuel injector nozzles, follow these steps:
- Remove the injector nozzles from the engine, being careful not to mix them up or swap nozzle inserts between injector bodies. Marking the injector bodies with a dot system or using a small rack to organize them can help prevent confusion.
- Prepare the ultrasonic cleaning solution according to the manufacturer's instructions. The degassing step, in particular, is important to perform each time a fresh solution is prepared.
- Place the injector nozzles in a basket with the nozzle holes facing upwards. Ensure that the solution will be able to access the interior of the injectors.
- Lower the basket into the ultrasonic cleaning solution and cover the tank with a lid to reduce evaporation and noise.
- Set a timer for the cleaning process. The duration may vary depending on the condition of the injector nozzles, but a good starting point is around 15 minutes.
- Once the cleaning cycle is complete, remove the basket from the solution and rinse the injector nozzles in fresh water.
- Dry the injector nozzles with compressed air or an air hose.
- Inspect the injector nozzles by holding them up to a bright light. They should appear brilliantly bright and new, with a perfectly round point of light visible through the injector, indicating that they are thoroughly cleaned.
It is important to note that ultrasonic cleaning is a powerful process, and the equipment can generate enough energy to puncture tin foil. Therefore, it is crucial to follow the manufacturer's instructions and take appropriate safety precautions when using ultrasonic cleaning equipment. Additionally, some sources suggest that ultrasonic cleaning may not be necessary for certain engines, as it may cause more problems than it prevents. However, when done correctly and under the supervision of a qualified individual, ultrasonic cleaning can be an effective method for maintaining aircraft fuel injector nozzles.
Fuel Injectors: Choosing the Right Ones for Your Ride
You may want to see also
Explore related products
Using gun cleaner
Cleaning your aircraft fuel injector nozzles with gun cleaner is a straightforward process, but it requires careful attention to detail. Here is a step-by-step guide on how to do it:
Step 1: Remove the Fuel Injector Nozzles
Before cleaning the nozzles, you must first remove them from the engine. This step requires caution, as some injectors are specific to their cylinders, such as GAMIjectors. Make sure to pay attention to their locations to ensure proper reinstallation. Brace the fuel pump and then carefully remove the fuel injectors. Once the detachment is complete, either connect the fuel return pipe to the fuel pump or use a U-tube to funnel the fuel back into the tank. If you are unsure about the process, refer to your aircraft's manual or seek guidance from a qualified technician.
Step 2: Prepare the Gun Cleaner
For this method, you will need a suitable gun cleaner, such as Hoppe's #9, which is specifically designed for cleaning fuel injector nozzles. It is important to note that some gun cleaning solvents can etch brass, so be sure to use a product that is safe for your aircraft's components. Follow the instructions on the gun cleaner's packaging for proper preparation and safety precautions.
Step 3: Soak the Fuel Injector Nozzles
Place the fuel injector nozzles in a suitable container, such as a plastic bag or a small vat. Ensure that the container is compatible with the gun cleaner and will not be damaged or dissolved. Pour enough gun cleaner into the container to completely cover the injector nozzles. Allow the nozzles to soak for the recommended amount of time, as specified by the gun cleaner's instructions.
Step 4: Rinse and Dry the Fuel Injector Nozzles
After soaking, carefully remove the injector nozzles from the gun cleaner. Rinse them with clean fuel or a suitable solvent to remove any remaining residue. Ensure that all traces of the gun cleaner are removed. Dry the injector nozzles thoroughly before proceeding to the next step.
Step 5: Reinstall the Fuel Injector Nozzles
Once the injector nozzles are clean and dry, it's time to reinstall them. Refer to your aircraft's manual or seek guidance from a qualified technician to ensure proper installation. Pay close attention to the torques and tightening specifications provided in the manual. Make sure the injector nozzles are correctly positioned and secured before starting the engine.
Additional Tips:
- Regularly cleaning your fuel injector nozzles can help prevent performance issues and maintain the efficiency of your aircraft's engine.
- Always use high-quality fuel to reduce the risk of impurities that can clog the injector nozzles.
- Keep in mind that ultrasonic cleaning is another popular method for cleaning fuel injector nozzles, and it is considered effective by many aircraft owners and technicians.
Remember to consult with a qualified technician or refer to the manufacturer's guidelines if you have any questions or concerns during the cleaning process.
Bleeding Air from Deutz Fuel Injector Pumps: A Step-by-Step Guide
You may want to see also
Explore related products
Avoiding contamination
Understand the Risks of Contamination
Firstly, it is important to recognize that contamination is a significant issue during the cleaning process. Reports indicate that the majority of fuel injector nozzle problems are maintenance-induced, with contamination introduced during the remove-and-replace process. This can lead to fuel leaks, cylinder malfunctions, and performance issues. Therefore, it is crucial to prioritize cleanliness and proper handling during the cleaning procedure.
Regular Cleaning and Maintenance
While some sources suggest that less care is needed for injector nozzles due to the constant solvent cleaning and the presence of upstream screens, regular cleaning and maintenance are still recommended by aircraft and engine manufacturers. Cleaning the injector nozzles at specified intervals can help prevent the buildup of deposits and ensure optimal performance.
Use Recommended Cleaning Methods
It is essential to follow the manufacturer's instructions and recommended cleaning methods for your specific aircraft model. Ultrasonic cleaning and the use of specific gun cleaners, such as Hoppe's #9, are often suggested for effective injector nozzle cleaning. Additionally, cleaning fluids containing polyetheramine (PEA) or polyisobutylene amine (PIBA) can be effective in preventing and removing deposits, respectively.
Proper Handling and Installation
When removing and reinstalling injector nozzles, it is crucial to follow the correct procedures to avoid contamination and damage. Refer to the engine overhaul manual for proper torque values to prevent issues like mistorquing, which can lead to fuel leaks. Ensure that the injector nozzles are correctly positioned and specific to their cylinders, as incorrect installation can result in significant fuel-air mixture imbalances.
Fuel Additives and Specifications
The use of fuel additives can help maintain injector nozzles and prevent contamination. However, it is essential to ensure that any additives are approved and accepted by the relevant aviation authorities, such as the FAA in the United States. Refer to advisory circulars and industry specifications to identify suitable additives that meet the required standards.
By following these guidelines and prioritizing cleanliness and proper handling, you can effectively avoid contamination during the cleaning process of aircraft fuel injector nozzles, ensuring the safe and efficient operation of your aircraft.
Testing Fuel Injectors: A Comprehensive Guide
You may want to see also
Explore related products
Using a threaded bushing
Cleaning aircraft fuel injector nozzles can be a difficult job, but it is important to do so regularly to prevent clogging and build-up. One tool that can be used to clean them is a threaded bushing. This method is particularly useful for cleaning Lycoming fuel injection nozzles.
A threaded bushing has one end tapped for an air chuck fitting, while the other end is tapped 1/8 inch NPT to match the male thread on the injector body. To use the threaded bushing, screw the injector into the tool and then chuck the tool to an air line. This will allow the injector to be blown out with the full air line volume.
The small thread on the injector also happens to be the same size as a tire valve stem. As such, you can acquire an all-metal cap, screw it onto the injector body, and force all the air volume through the air bleed hole located under the shroud.
It is important to note that the cleaning process should be approached with caution. Do not stick any object into the injector to clear it, as that will result in damage. Additionally, make sure to observe the proper torque value for the injectors to avoid stripping the aluminum cylinder head or brass injector. This information can be found in the engine overhaul manual.
Understanding Fuel Injector CC Rating: A Step-by-Step Guide
You may want to see also
Explore related products
Using fuel injector cleaners
It is recommended that fuel injector nozzles are cleaned regularly. However, it is important to note that fuel injectors are constantly being cleaned with a solvent (avgas) and there are two screens upstream of the nozzle, in the gascolator and fuel control unit, so there is almost zero risk of the nozzle becoming plugged.
The use of fuel injector cleaners is not a bad choice. Some products that can be used include Chevron, Lucas, BK44, and Hoppe’s #9. If you are using an additive, ensure that it is approved according to ASTM D910, which governs 100LL avgas.
Ultrasonic cleaning is another effective method for cleaning fuel injectors. This method is recommended by GAMI, which suggests that injectors should be ultrasonically cleaned every 100 hours of operation. Ultrasonic cleaning can also be used to clean the aerator screens that help emulsify the fuel by mixing it with air.
Gun cleaning solvents can also be used to soak injectors, but it is important to note that some of these solvents can etch brass. Carburetor cleaner spray from an auto parts store can also be used, as it contains toluene, acetone, and MEK, which are effective for cleaning injectors.
It is important to be careful when cleaning fuel injectors to avoid damage. Do not stick any object into the injector to clear it, as this will result in damage. Instead, blow air through the injector to clear any remaining cleaner. You can also hold the injector up to a bright light to check if it is clean. If the injector is clean, you will see a perfectly round point of light shining through, and it will be brilliantly bright in colour.
Fuel Injector Maintenance: DIY Home Checks
You may want to see also
Frequently asked questions
The holes that allow the fuel to pass through can become reduced in size due to gum and varnish. The aerator screens that help emulsify the fuel by mixing it with air can also become obstructed, degrading the spray pattern and atomization of fuel entering the cylinder.
GAMI recommends cleaning the injectors every 100 hours of operation. However, some sources suggest that cleaning is more likely to cause a problem than prevent one, and that the nozzles are constantly being cleaned with a solvent (avgas).
Ultrasonic cleaning and soaking the nozzles in gun cleaner are commonly recommended methods. Some suggest using a fuel injector cleaner, such as Chevron, Lucas, or BK44. If the injectors are blocked due to contamination, it may be necessary to remove and bench-clean them.
A threaded bushing, an all-metal cap, and a small rack to organize the injector bodies are recommended tools. It is also important to refer to the engine overhaul manual and follow the proper torque values to avoid damage.
Unbalanced EGTs and CHTs, rough-running engines, increased fuel burn, and lost power can all indicate that the injector nozzles may need cleaning. In addition, erratic combustion or engine surging may be signs of clogged or dirty fuel injector nozzles.
