Sylvie Willis
Checking the fuel pump on a 2009 Nissan Murano is essential for diagnosing potential fuel delivery issues, such as engine stalling or difficulty starting. Begin by locating the fuel pump, which is typically housed inside the fuel tank. To test it, you’ll need to access the fuel pump relay and use a multimeter to check for power and ground at the pump’s electrical connector. Additionally, you can perform a fuel pressure test using a gauge to ensure the pump is delivering the correct pressure. If the pump fails these tests, it may need to be replaced. Always ensure the vehicle is safely parked, and the ignition is off before starting any work to avoid accidents.
| Characteristics | Values |
|---|---|
| Vehicle Model | Nissan Murano 2009 |
| Fuel Pump Location | Inside the fuel tank (access through the rear seat or trunk area) |
| Tools Required | Screwdriver, wrench, multimeter, fuel pressure gauge |
| Safety Precautions | Disconnect battery, relieve fuel system pressure, work in well-ventilated area |
| Fuel Pump Relay Location | Under the hood, in the fuse/relay box (check owner's manual for exact location) |
| Fuel Pump Fuse Location | In the fuse box, typically labeled as "Fuel Pump" or similar |
| Fuel Pressure Specification | 45-50 PSI (pounds per square inch) for 2009 Nissan Murano |
| Fuel Pump Operation Test | Listen for humming sound near fuel tank when ignition is turned to "ON" |
| Multimeter Testing | Check for voltage at fuel pump connector (should match battery voltage) |
| Fuel Pressure Gauge Test | Connect gauge to fuel rail and check pressure against specifications |
| Common Symptoms of Failure | Engine cranks but doesn’t start, stalling, loss of power, whining noise |
| Replacement Procedure | Remove rear seat, access fuel pump module, disconnect electrical and fuel lines, replace pump |
| Estimated Replacement Time | 2-4 hours (depending on experience) |
| Estimated Replacement Cost | $300-$600 (parts and labor, varies by location and mechanic) |
| Preventive Maintenance | Regularly replace fuel filter, use high-quality fuel, avoid running on empty |
| Diagnostic Trouble Codes (DTCs) | P0087, P0088, P0190, P0191, P0192, P0193 (related to fuel pressure issues) |
| Warranty Coverage | Typically 3 years/36,000 miles (check specific warranty for 2009 model) |
Explore related products
What You'll Learn
- Locate Fuel Pump: Find the fuel pump under the rear seat; access by removing seat cushions
- Check Fuel Pressure: Use a gauge to test pressure at the fuel rail for accurate readings
- Listen for Operation: Turn key to ON; listen for fuel pump hum near the fuel tank
- Inspect Fuses/Relays: Check the fuse box for blown fuses or faulty fuel pump relay
- Test Power/Ground: Use a multimeter to verify power and ground at the fuel pump connector

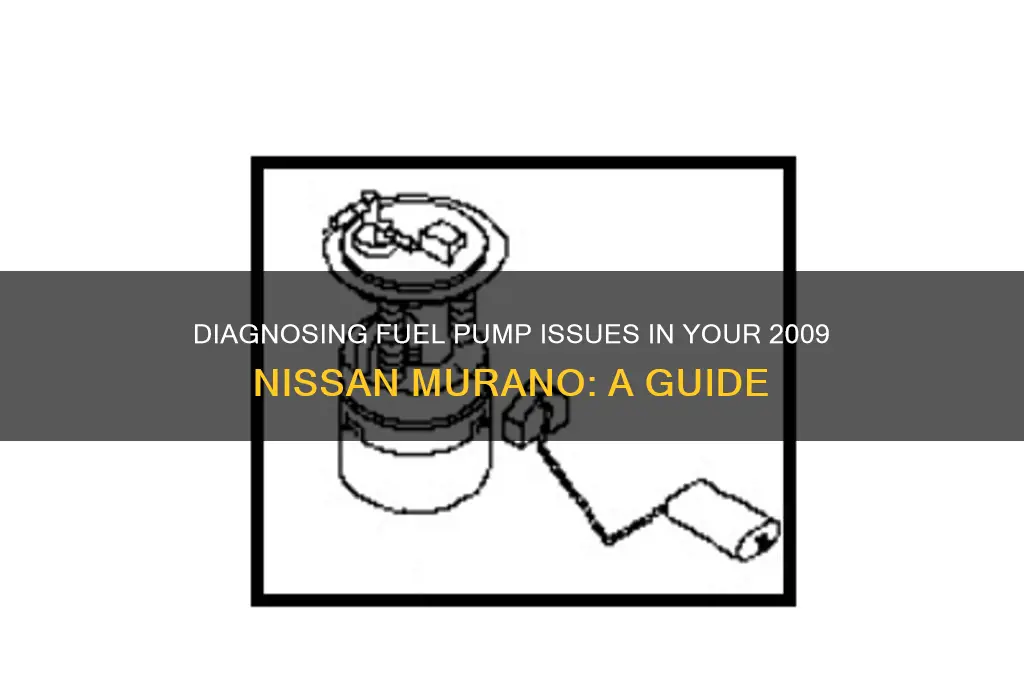

Locate Fuel Pump: Find the fuel pump under the rear seat; access by removing seat cushions
The fuel pump in a 2009 Nissan Murano is strategically located beneath the rear seat, a design choice that balances accessibility with protection. This placement ensures the pump is shielded from external elements while remaining reachable for maintenance. To access it, you’ll need to remove the rear seat cushions, a task that requires minimal tools but careful attention to avoid damaging interior components. This location is both practical and efficient, allowing for quicker diagnostics and repairs compared to models where the pump is buried deeper within the vehicle.
Removing the rear seat cushions to locate the fuel pump involves a straightforward process, but precision is key. Start by locating the retaining bolts or clips that secure the seat cushions in place. These are typically found along the edges or underside of the seat. Use a socket wrench or screwdriver to remove them, ensuring you keep track of the hardware for reassembly. Once the bolts are removed, gently lift the seat cushions to expose the fuel pump access panel. This panel is often marked or labeled for easy identification, simplifying the next steps of your inspection or repair.
While accessing the fuel pump under the rear seat is relatively simple, there are a few precautions to keep in mind. First, ensure the vehicle is on a level surface and the ignition is turned off to prevent accidental activation of electrical components. Second, avoid forcing any part of the seat or panel, as excessive pressure can cause damage. If the cushions feel stuck, double-check for hidden clips or hinges that may need to be released. Lastly, work in a well-lit area to clearly see the components and avoid misplacing small parts during the process.
Once the fuel pump is accessible, you can proceed with testing or replacing it as needed. Common issues with the fuel pump include reduced pressure, unusual noises, or complete failure, all of which can lead to poor engine performance or stalling. Using a fuel pressure gauge, connect it to the test port on the fuel pump and compare the readings to the manufacturer’s specifications for a 2009 Nissan Murano. If the pump fails the test, replacement is typically recommended, as repairs are often impractical. This step-by-step approach ensures you address the issue efficiently, restoring your vehicle’s reliability with minimal downtime.
Step-by-Step Guide to Testing Your Lawn Mower's Fuel Pump
You may want to see also
Explore related products
Check Fuel Pressure: Use a gauge to test pressure at the fuel rail for accurate readings
Fuel pressure is a critical metric when diagnosing issues with a Nissan Murano’s fuel system, particularly in the 2009 model. The fuel pump’s performance directly impacts engine operation, and low pressure can lead to stalling, misfires, or failure to start. To accurately assess whether the fuel pump is functioning correctly, a fuel pressure gauge must be used at the fuel rail—the component that distributes fuel to the injectors. This method provides precise readings, eliminating guesswork and ensuring the problem isn’t misdiagnosed as a sensor or electrical issue.
To test fuel pressure, locate the fuel rail on the engine, typically near the intake manifold. Identify the Schrader valve (similar to a tire valve stem) on the rail, which serves as the test port. Attach a fuel pressure gauge to this valve, ensuring a secure connection to prevent fuel leaks. With the ignition in the "ON" position but the engine off, observe the gauge reading. For a 2009 Nissan Murano, the fuel pressure should fall within the manufacturer’s specified range, typically around 40–60 PSI. If the pressure is outside this range, the fuel pump or related components may be faulty.
Comparing this method to other diagnostic techniques highlights its reliability. Using a scan tool or listening for pump operation can provide clues but lacks the precision of a pressure test. For instance, a pump may run without delivering adequate pressure due to internal wear or a clogged filter. Conversely, a pressure test directly measures the system’s output, making it a definitive step in isolating the issue. This approach saves time and prevents unnecessary part replacements, such as swapping out a fuel pump that isn’t the root cause.
When performing this test, exercise caution to avoid fuel spills or fires. Relieve fuel system pressure before disconnecting any lines, and ensure the engine is cool to prevent burns. If the pressure reading is low, inspect the fuel filter and lines for blockages before condemning the pump. Additionally, verify the fuel pressure regulator’s functionality, as a faulty regulator can mimic pump failure. By combining this test with other diagnostics, such as checking for voltage at the pump connector, a comprehensive assessment of the fuel system can be achieved.
In conclusion, using a gauge to test fuel pressure at the rail is an indispensable step in diagnosing a 2009 Nissan Murano’s fuel pump issues. Its accuracy and specificity make it superior to indirect methods, ensuring the correct problem is addressed. With proper tools and precautions, even a novice can perform this test, potentially saving hundreds in diagnostic fees. Always consult the vehicle’s service manual for exact specifications and safety guidelines to ensure a successful and safe procedure.
Does Your Auto Fuel Pump Noise Indicate Normal Operation or Issues?
You may want to see also
Explore related products
Listen for Operation: Turn key to ON; listen for fuel pump hum near the fuel tank
One of the simplest yet most effective ways to diagnose a fuel pump issue in a 2009 Nissan Murano is to listen for its operation. This method leverages your sense of hearing to detect whether the fuel pump is functioning correctly. When you turn the ignition key to the ON position (without starting the engine), the fuel pump should activate momentarily, producing a distinct humming sound. This sound originates from the fuel tank area and is a clear indicator that the pump is priming the fuel system. If you don’t hear this hum, it could signal a malfunctioning pump, a blown fuse, or an issue with the pump relay.
To perform this check, position yourself near the rear of the vehicle, close to the fuel tank, as the pump’s hum can be faint. Ensure the engine is cold and the surroundings are quiet for optimal clarity. Have an assistant turn the key to the ON position while you listen carefully. The hum should last for about 2–3 seconds, which is the normal duration for the fuel pump to pressurize the system. If the sound is absent or unusually loud, it may indicate a problem. For instance, a grinding noise could suggest mechanical failure, while silence might point to an electrical issue.
Comparing this method to other diagnostic techniques, listening for the fuel pump’s operation is non-invasive and requires no specialized tools. It’s a preliminary step that can save time and money before proceeding to more complex tests, such as measuring fuel pressure or checking for voltage at the pump connector. However, it’s important to note that a functioning hum doesn’t guarantee the pump is delivering adequate pressure, so further testing may still be necessary.
A practical tip to enhance this check is to use a mechanic’s stethoscope or a length of rubber hose to amplify the sound. Place one end near the fuel tank and the other to your ear, which can help isolate the pump’s noise from other vehicle sounds. Additionally, if you’re unsure what a healthy fuel pump hum sounds like, compare it to another 2009 Nissan Murano or consult online audio samples for reference.
In conclusion, listening for the fuel pump’s operation is a quick and reliable first step in diagnosing potential issues with a 2009 Nissan Murano’s fuel system. While it’s not a definitive test, it provides valuable insight into the pump’s electrical functionality. If the hum is absent or abnormal, further investigation is warranted, but if it sounds normal, you can proceed to other diagnostic steps with confidence. This method is a testament to how simple sensory observations can be powerful tools in automotive troubleshooting.
Direct Start Fuel Pump on 01 Mustang: Step-by-Step Guide
You may want to see also
Explore related products
Inspect Fuses/Relays: Check the fuse box for blown fuses or faulty fuel pump relay
A malfunctioning fuel pump in your 2009 Nissan Murano can leave you stranded, but before assuming the worst, a simple inspection of the fuse box could save you time and money. The fuse box acts as the electrical nerve center, protecting components like the fuel pump from power surges. A blown fuse or faulty relay here can mimic fuel pump failure symptoms, making this a crucial first diagnostic step.
Locating the fuse box is straightforward. Consult your Murano's manual for the exact location, typically under the hood or near the driver's side dashboard. Once found, identify the fuse and relay responsible for the fuel pump using the diagram on the fuse box cover. These are usually labeled clearly, but cross-referencing with the manual ensures accuracy.
Visually inspect the fuse for signs of damage. A blown fuse will often have a broken filament or a darkened appearance. If the fuse appears intact, test its continuity using a multimeter. Set the multimeter to the continuity setting and touch the probes to the fuse terminals. A beep indicates a good fuse; no beep suggests a blown fuse needing replacement.
Replacing a blown fuse is a simple fix, but recurring issues point to a deeper problem. If the fuse is good, suspect a faulty fuel pump relay. Relays act as switches, controlling power flow to the pump. A malfunctioning relay can prevent the pump from receiving power even with a good fuse. Testing a relay requires a multimeter and a basic understanding of its pin configuration. Online resources or your vehicle manual can guide you through this process.
Remember, while inspecting fuses and relays is a valuable troubleshooting step, it doesn't guarantee identifying the root cause of fuel pump issues. If problems persist after replacing fuses or relays, further diagnosis, potentially involving professional assistance, may be necessary.
Exploring the Diverse Types of Fuel Injection Pumps in Engines
You may want to see also
Explore related products
Test Power/Ground: Use a multimeter to verify power and ground at the fuel pump connector
A faulty fuel pump can leave you stranded, but before replacing it, verify the basics: power and ground. The fuel pump connector on a 2009 Nissan Murano is your first diagnostic checkpoint. This connector supplies the electrical current necessary for the pump to operate, and a multimeter is your tool to confirm its functionality.
Steps to Test Power and Ground:
- Locate the Fuel Pump Connector: Access the fuel pump by removing the rear seat or trunk lining, depending on your Murano’s configuration. The connector is typically near the fuel tank, often shielded by a protective cover.
- Set Up the Multimeter: Switch the multimeter to the DC voltage setting (20V range is sufficient). Connect the red lead to the power wire (usually pink or pink/black) and the black lead to the ground wire (black or black/white).
- Activate the Fuel Pump: Turn the ignition to the "ON" position (without starting the engine). The fuel pump should prime for 2–3 seconds, sending voltage to the connector.
- Read the Multimeter: A healthy system will show 12V or close to it during the priming cycle. If no voltage appears, check the fuel pump relay and fuse, as the issue may lie upstream.
Cautions: Always disconnect the battery before working near the fuel tank to avoid electrical hazards. Fuel systems are pressurized, so exercise caution to prevent spills or accidents.
Takeaway: Testing power and ground at the fuel pump connector is a straightforward yet critical step in diagnosing fuel delivery issues. If voltage is present but the pump doesn’t operate, the pump itself may be faulty. If no voltage is detected, trace the circuit back to identify the root cause. This method saves time and money by pinpointing the problem before replacing parts unnecessarily.
Metal Fuel Pumps 52 559 03-S: Availability and Applications Explained
You may want to see also
Frequently asked questions
To check if the fuel pump is working, turn the ignition to the "ON" position (without starting the engine) and listen for a humming sound near the fuel tank. This sound indicates the pump is priming the fuel system. If no sound is heard, the pump may be faulty.
Symptoms include difficulty starting the engine, sputtering or stalling while driving, reduced fuel efficiency, and a lack of power during acceleration. If you notice these issues, the fuel pump may need inspection or replacement.
Yes, you can test the fuel pump by checking fuel pressure using a gauge at the fuel rail. Alternatively, you can use a multimeter to test for power and ground at the pump connector. If there’s no power or ground, the issue may be with the wiring or relay, not the pump itself.
