Checking Fuel Pressure: A Guide For Motorcycles

Testing fuel pressure is an essential part of fuel injection system troubleshooting. High fuel pressure can cause an engine to run rich, while low fuel pressure can make an engine run lean or not at all. Fuel pressure issues are often related to the fuel pump, but can sometimes be caused by a clogged fuel filter. Testing fuel pressure can help you identify problems with your motorcycle's fuel pump. There are a variety of fuel pressure testers available for motorcycles, which can be purchased online. When testing fuel pressure, it is important to put safety first, as releasing fuel under pressure can cause fires and injuries.

Safety precautions when testing fuel pressure

Testing fuel pressure on a motorcycle can be a dangerous task, so it is important to take the proper safety precautions. Here are some detailed safety instructions to follow when testing fuel pressure:

Before beginning any diagnostic tests, it is crucial to prioritize safety. Releasing fuel under pressure can pose risks of fire and injury. Always wear protective gear, such as safety glasses and gloves, to shield yourself from potential hazards. Ensure you work in a well-ventilated area to prevent the buildup of flammable fumes. It is imperative not to smoke or have any sources of ignition nearby to eliminate the possibility of sparks that could ignite the fuel.

When testing fuel pressure, make sure to follow the manufacturer's guidelines for your specific motorcycle model. Refer to the manufacturer's specifications to determine the correct fuel pressure and volume levels. If you need to start the motorcycle, ensure it is in an open, well-ventilated space to prevent the buildup of carbon monoxide or other harmful gases. Always perform tests in a controlled and safe environment, away from any potential sources of ignition.

Additionally, it is important to be cautious when handling fuel. Use an appropriate container, preferably made of glass, as fuel can corrode or fog up plastic containers. Always be prepared for potential leaks or spills, and have the necessary absorbent materials or containers ready to safely collect and dispose of any spilled fuel.

If you are unsure about the testing procedure or feel uncomfortable performing it yourself, it is best to seek professional assistance. Taking these safety precautions will help ensure that you can accurately diagnose any fuel-related issues while minimizing the risk of accidents or injuries.

How to test fuel pressure

Testing the fuel pressure on your motorcycle is an essential part of fuel injection system troubleshooting. High fuel pressure can make an engine run rich, while low fuel pressure can make an engine run lean or not at all. Low fuel pressure is usually caused by a problem with the fuel pump or the fuel filter.

Before performing any diagnostic tests, it's important to prioritise safety. Releasing fuel under pressure can cause fires and injuries, so be sure to wear safety glasses and gloves, work in a well-ventilated area, and avoid smoking or creating potential sparks.

To test the fuel pressure, start by installing a fuel pressure gauge. Then, start the motorcycle and let it idle. Run the pump and note the pressure reading. Compare this reading to the manufacturer's specifications. If the pressure is low, you may need to replace the fuel filter or the fuel pump. If the pressure is within the correct range, you can perform a fuel volume test to check if the correct amount of fuel is being delivered to the fuel injectors.

To perform a fuel volume test, use a flowmeter or a glass measuring container. Start the motorcycle and let it idle, then collect a fuel sample for five seconds with the pump running. The pump should deliver a specific amount of fuel within that timeframe, which you can find in the manufacturer's specifications.

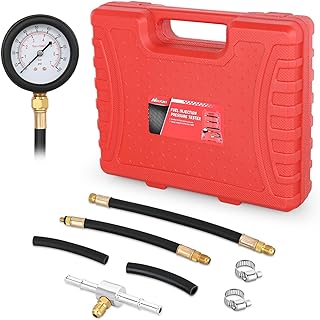

You can also purchase a fuel pressure tester kit, which can be used to test compression and fuel pressure on motorcycles. These kits typically include gauges with connectors and adaptors, as well as hoses and fuel connectors of various sizes.

How to test fuel volume

Testing the fuel volume on your motorcycle is an essential part of troubleshooting fuel injection issues. Before you begin, it's important to prioritise safety. Wear safety glasses and gloves, work in a well-ventilated area, and avoid smoking or creating any sparks.

To test the fuel volume, start by checking the fuel pressure. Turn on the ignition and let your motorcycle idle. Attach a fuel pressure gauge and run the pump, taking note of the pressure reading. Compare this reading to the manufacturer's specifications. If the pressure is low, you will need to address this issue.

If the fuel pump is supplying sufficient pressure, you can proceed to the fuel volume test. This test will determine if the correct amount of fuel is being delivered to the fuel injectors. The most accurate way to test fuel volume is by using a flowmeter. However, if you don't have access to a flowmeter, you can perform a timed fuel delivery test.

For the timed test, you will need to collect a fuel sample while the motorcycle is idling. Run the pump for five seconds and collect the fuel sample during this time. Refer to your manufacturer's specifications to determine the expected fuel volume within this time frame. You may need to convert the units to make an accurate comparison.

By following these steps, you can effectively test the fuel volume on your motorcycle and identify any issues related to fuel pressure or volume. Remember to prioritise safety and consult manufacturer guidelines whenever necessary.

Tools to test fuel pressure

Testing fuel pressure is an essential part of the troubleshooting process of a fuel injection system. It is important to note that releasing fuel under pressure can cause fire and injury, so safety precautions are necessary. Wear safety goggles and gloves, work in a well-ventilated area, and avoid smoking or creating any sparks.

There are various tools available to test fuel pressure. A fuel pressure tester kit is one such tool, which typically includes a pressure gauge and various fittings and hoses to connect for testing. The JIFETOR Fuel Injection Pump Pressure Tester Gauge Kit, for example, comes with three different hose lengths for connecting to different Schrader valves or fuel pressure test ports. It also includes a tee fitting that can be spliced in-line between the fuel pump and engine for most vehicles.

Another option is the Taco Moto Co. inline fuel pressure tester, which allows you to quickly and easily connect the tester to the bike's tank disconnect fitting and monitor the pressure while test riding the bike.

Some fuel pressure tester kits are designed to be used specifically with cars, trucks, or motorcycles, so it is important to choose a kit that is suitable for your vehicle. Additionally, some kits may not work with certain types of fuel injection systems, so it is essential to check the specifications before purchasing.

Other tools that can be used to test fuel pressure include flowmeters and glass measuring containers. A flowmeter can be used to accurately test fuel delivery, but if one is not available, a timed fuel delivery test using a glass container can be performed instead.

Common causes of low fuel pressure

Low fuel pressure can be caused by a variety of issues, some more common than others. Here are some of the most frequent causes of low fuel pressure in motorcycles:

Fuel Pump Issues

The fuel pump is responsible for delivering fuel from the tank to the engine, and if it is not working correctly, it can cause low fuel pressure. This could be due to a faulty pump, a clogged fuel filter, or a problem with the fuel line. In some cases, the fuel pump may need to be replaced, while in others, a simple repair or cleaning may be sufficient.

Clogged Fuel Filter

The fuel filter plays a crucial role in ensuring that clean fuel enters the engine. Over time, the fuel filter can become clogged with dirt, debris, or other contaminants, restricting the flow of fuel and leading to low fuel pressure. Regular replacement of the fuel filter is essential to prevent this issue.

Faulty Fuel Pressure Regulator

The fuel pressure regulator controls the fuel pressure in the fuel rail, ensuring it remains within the specified range. However, if the regulator malfunctions, it can cause the fuel pressure to drop too low or, in some cases, increase too high. While regulator failure is not common, it is worth checking if you are experiencing issues with fuel pressure.

Stuck Fuel Injector

A stuck-open fuel injector can cause a drop in fuel pressure in the rail. This problem is often indicated by misfire codes on a specific cylinder. A stuck fuel injector may require replacement or repair, depending on the severity of the issue.

Damaged Fuel Lines

Riding on bumpy roads or off-road terrain can pose a risk of damage to the fuel lines, which are typically made of steel or aluminium. Striking a stone or other debris can result in compression damage to the lines, leading to reduced fuel pressure.

Fuel Pressure Sensor Malfunction

In vehicles with electric fuel pressure regulators, the fuel pressure sensor plays a crucial role in monitoring the pressure in the fuel rail. However, if the sensor malfunctions, it may provide incorrect readings, causing the regulator to release the wrong fuel pressure. This can lead to low fuel pressure and affect the engine's performance.
