Mercedes Mullins

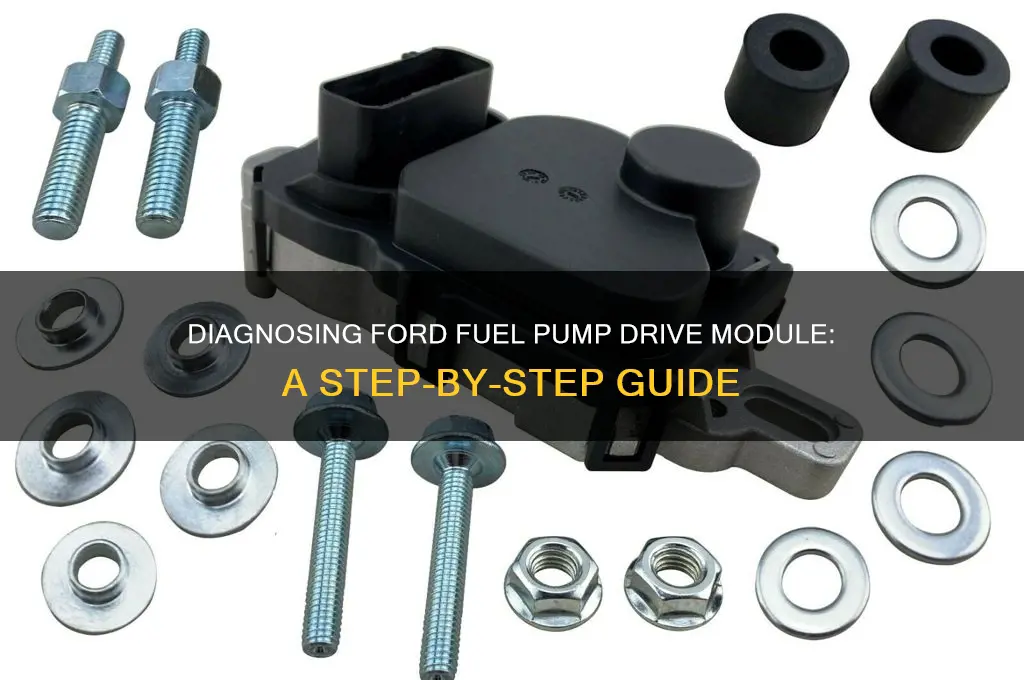

The Ford Fuel Pump Drive Module (FPDM) is a critical component in many Ford vehicles, responsible for controlling the fuel pump and ensuring proper fuel delivery to the engine. Over time, the FPDM can malfunction due to issues like corrosion, electrical faults, or wear, leading to symptoms such as engine stalling, difficulty starting, or a no start condition. Checking the FPDM involves a systematic approach, starting with verifying symptoms and using a diagnostic scanner to retrieve trouble codes. Visual inspection for corrosion or damage, testing power and ground circuits, and checking the fuel pump relay are essential steps. If the module is faulty, it may need to be replaced, and ensuring proper installation and clearing any codes afterward is crucial for restoring the vehicle's performance.
| Characteristics | Values |
|---|---|
| Location | Typically located near the fuel tank or under the rear seat. |
| Function | Controls the operation of the fuel pump to deliver fuel to the engine. |
| Symptoms of Failure | Engine cranks but doesn’t start, intermittent stalling, no fuel pressure. |
| Testing Method | Use a multimeter to check for power and ground at the module connector. |
| Power Supply | Check for 12V at the module’s power wire (usually pin 1 or 2). |
| Ground Verification | Ensure a good ground connection at the module’s ground wire (usually pin 3). |
| Control Signal | Verify the control signal from the PCM (usually pin 4) with a multimeter. |
| Resistance Check | Measure resistance across the fuel pump circuit (typically 1-5 ohms). |
| Relay Test | Test the fuel pump relay for proper operation if applicable. |
| Diagnostic Codes | Scan for trouble codes related to the fuel pump or module (e.g., P0230). |
| Visual Inspection | Check for corrosion, loose connections, or damage to the module. |
| Replacement | Replace the module if it fails testing or shows physical damage. |
| Compatibility | Ensure the replacement module matches the vehicle’s make, model, and year. |
| Safety Precautions | Disconnect the battery before testing or replacing the module. |
| Tools Required | Multimeter, scan tool, basic hand tools. |
| Common Ford Models Affected | F-150, Explorer, Focus, Fusion, Mustang, and others. |
Explore related products
What You'll Learn
- Locate the Module: Identify the fuel pump drive module's position in your Ford vehicle
- Visual Inspection: Check for physical damage, corrosion, or loose connections on the module
- Test Power Supply: Use a multimeter to verify voltage at the module’s power terminals
- Relay Functionality: Inspect the relay for proper operation and continuity during testing
- Diagnostic Codes: Scan for error codes using an OBD-II scanner to diagnose module issues
Locate the Module: Identify the fuel pump drive module's position in your Ford vehicle
The fuel pump drive module in a Ford vehicle is a critical component, often tucked away in a location that balances accessibility with protection from the elements. Typically, you’ll find it mounted near the fuel tank, either on the chassis or directly on the tank itself, depending on the model and year. For instance, in many Ford F-150s, the module is located on the driver’s side frame rail, just ahead of the fuel tank. Knowing this general area narrows your search and saves time when diagnosing issues.
To pinpoint the module’s exact location, consult your vehicle’s service manual or a Ford-specific repair guide. These resources provide detailed diagrams and descriptions tailored to your model. For example, in a Ford Fusion, the module might be found under the rear seat, requiring you to remove the seat cushion for access. In contrast, a Ford Explorer may have it mounted on the top of the fuel tank, accessible through a service panel in the trunk or cargo area. Always cross-reference the information with your specific vehicle to avoid unnecessary disassembly.
Once you’ve identified the general area, inspect the surroundings for clues. Look for wiring harnesses leading to the fuel tank, as the module is often connected to these. In some Fords, the module is encased in a protective housing, which may be labeled or marked with a part number. If you’re unsure, trace the fuel pump’s power wire backward from the tank; it will lead you directly to the module. This method is particularly useful if the module’s location isn’t immediately obvious.
A practical tip for locating the module is to use a digital multimeter to follow the circuit. With the key in the "on" position, test for power at various points along the fuel pump’s wiring harness. The point where power is present but not reaching the pump often indicates the module’s location. This technique is especially handy in older Ford models where the module might be less conspicuously placed. Always disconnect the battery before handling electrical components to prevent short circuits.
Finally, consider the vehicle’s design and intended use. Ford trucks and SUVs often prioritize durability, so their modules are usually mounted in robust, protected areas. Sedans and smaller vehicles may prioritize space efficiency, placing the module in less conventional spots. Understanding this design philosophy can guide your search and help you locate the module more efficiently. Once found, you’ll be better equipped to diagnose and address any issues with the fuel pump drive module.
HHR Fuel Pump Access: Does It Have a Dedicated Panel?
You may want to see also
Explore related products
Visual Inspection: Check for physical damage, corrosion, or loose connections on the module
A thorough visual inspection is the first line of defense in diagnosing issues with a Ford fuel pump drive module. Begin by locating the module, typically found near the fuel tank or under the rear seat, depending on the model. Armed with a flashlight and a keen eye, scrutinize the module’s exterior for any signs of physical damage, such as cracks, dents, or melted components. These issues can stem from road debris, overheating, or electrical surges, and even minor damage can compromise the module’s functionality. If you spot any abnormalities, document them with photos for future reference or professional consultation.
Corrosion is another silent culprit that can disrupt the module’s performance. Focus on the electrical connectors and terminals, where moisture and environmental factors often lead to rust or oxidation. Use a magnifying glass if necessary to detect subtle signs of green or white residue, which indicate corrosion. Gently clean the affected areas with a mixture of baking soda and water or an electronic contact cleaner, ensuring all debris is removed before reassembly. Neglecting this step can lead to poor electrical conductivity, causing intermittent fuel pump operation or complete failure.
Loose connections are equally problematic, as they can cause voltage drops or intermittent contact, leading to erratic fuel pump behavior. Inspect the wiring harness and connectors for any signs of detachment or wear. Wiggle the connectors gently to check for play, and ensure the locking mechanisms are securely engaged. If a connection feels loose, reseat it firmly and consider using dielectric grease to protect against future corrosion. For older vehicles, inspect the wiring for fraying or exposed conductors, as these can short circuit and damage the module irreparably.
Practical tips can elevate your inspection from routine to rigorous. Work in a well-lit area, and use a multimeter to test for continuity in the wiring harness if you suspect hidden issues. Keep a log of your findings, noting the condition of each component and any actions taken. If the module is mounted in a hard-to-reach location, consider removing it for a more detailed inspection. While this may require additional tools and time, it ensures no issue goes unnoticed. By combining visual scrutiny with methodical checks, you can identify and address potential problems before they escalate into costly repairs.
Step-by-Step Guide to Testing Your Fuel Pump Module Effectively
You may want to see also
Explore related products
Test Power Supply: Use a multimeter to verify voltage at the module’s power terminals
A faulty fuel pump drive module can leave you stranded, and diagnosing the issue often starts with verifying power supply. The module relies on a consistent voltage to operate the fuel pump, so testing the power terminals is a critical step. Grab your multimeter and set it to the DC voltage setting, typically denoted by a "V" with a straight line above it. This tool will be your window into the electrical health of the system.
Before diving in, ensure the vehicle is turned off and the ignition is in the "off" position. Safety first – working with electrical systems carries inherent risks. Locate the fuel pump drive module, often found near the fuel tank or under the rear seat, depending on your Ford model. Consult your vehicle's manual for precise location details.
Now, identify the power terminals on the module. These are typically larger than other terminals and may be labeled "B+" or "Power." Touch the multimeter's black probe to a good ground, such as the vehicle's chassis or battery negative terminal. With the red probe, carefully touch one of the power terminals. The multimeter should display the voltage present. A healthy system will show a reading close to the battery voltage, typically around 12.6 volts for a fully charged battery. If the reading is significantly lower or non-existent, suspect a power supply issue.
Double-check your connections and ensure the multimeter is set correctly. If the voltage is still low, the problem could lie in the wiring harness, a blown fuse, or a faulty relay. Further diagnosis will be needed to pinpoint the exact cause. Remember, this test only verifies power reaching the module – it doesn't confirm the module's internal functionality.
This simple multimeter test is a powerful diagnostic tool, helping you narrow down the source of fuel pump issues. By understanding the expected voltage range and potential pitfalls, you can confidently troubleshoot your Ford's fuel pump drive module and get back on the road.
Using Hy-Vee Fuel Saver at the Pump Without a Card: A Guide
You may want to see also
Explore related products
Relay Functionality: Inspect the relay for proper operation and continuity during testing
Relays are the unsung heroes of automotive electrical systems, acting as switches that control high-current circuits with low-current signals. In the context of a Ford fuel pump drive module, the relay ensures the fuel pump receives power only when the engine is running or being started. A faulty relay can lead to a no-start condition or erratic fuel pump operation, making its inspection critical during diagnostics.
To test the relay for proper operation, begin by locating it within the fuse box or relay panel, often labeled as "fuel pump" or "FP." Use the vehicle’s service manual to identify its exact position. With the ignition off, remove the relay and inspect its terminals for corrosion or damage. Clean any debris with electrical contact cleaner and a soft brush. Next, use a multimeter set to the continuity (ohms) setting to check the relay’s internal contacts. Place one probe on the coil terminals (typically pins 85 and 86) and the other on the power input and output terminals (pins 30 and 87). A functional relay should show continuity between these points when activated, either by applying voltage to the coil or using a relay test tool.
During testing, simulate the relay’s operation by applying 12 volts to the coil terminals. If the relay clicks and the multimeter indicates continuity between the power terminals, it’s functioning correctly. If not, the relay is likely faulty and should be replaced. Additionally, test the ground circuit (pin 87a) to ensure it’s not open, as a poor ground can mimic a relay failure.
A practical tip: Always test the relay both in and out of the vehicle. In-vehicle testing ensures the circuit is intact, while bench testing isolates the relay itself. If the relay fails bench testing but passes in-vehicle, suspect wiring issues or a faulty drive module. Conversely, if it fails both tests, replace the relay immediately.
In conclusion, inspecting the relay for proper operation and continuity is a straightforward yet essential step in diagnosing fuel pump drive module issues. By systematically testing its functionality, you can pinpoint whether the relay is the culprit or if the problem lies elsewhere in the system. This approach saves time, reduces guesswork, and ensures a reliable repair.
Does the Avalon Have Two Fuel Pumps? Uncovering the Truth
You may want to see also
Explore related products
Diagnostic Codes: Scan for error codes using an OBD-II scanner to diagnose module issues
One of the most effective ways to diagnose issues with a Ford fuel pump drive module is by leveraging the power of diagnostic codes. These codes, accessed through an OBD-II scanner, provide a direct line of communication with your vehicle's onboard computer, revealing potential problems that may not be immediately apparent through visual inspection or symptom analysis. By scanning for error codes, you can pinpoint the root cause of fuel pump drive module malfunctions, saving time and reducing the risk of misdiagnosis.
To begin the diagnostic process, locate the OBD-II port in your Ford vehicle, typically found beneath the dashboard on the driver's side. Insert the OBD-II scanner and turn the ignition to the "on" position, allowing the scanner to establish a connection with the vehicle's computer. Follow the scanner's prompts to initiate a code scan, which will retrieve any stored diagnostic trouble codes (DTCs) related to the fuel pump drive module. Common codes associated with this component include P0230 (Fuel Pump Primary Circuit Malfunction), P0231 (Fuel Pump Secondary Circuit Malfunction), and P0232 (Fuel Pump Circuit Low Input).
When interpreting the retrieved codes, consider the specific circumstances surrounding the malfunction. For instance, a P0230 code may indicate a faulty fuel pump relay, damaged wiring, or a failing fuel pump drive module. In contrast, a P0232 code often points to a low voltage condition in the fuel pump circuit, which could be caused by a weak battery, corroded connections, or a malfunctioning alternator. By analyzing the codes in conjunction with the vehicle's symptoms and operating conditions, you can develop a more accurate diagnosis and targeted repair plan.
It's essential to note that not all diagnostic codes require immediate component replacement. In some cases, clearing the codes and retesting the system may resolve the issue, particularly if the problem was caused by a temporary glitch or intermittent connection. However, if the codes persist or reoccur, further investigation is necessary. This may involve testing the fuel pump drive module's input and output circuits, checking for proper ground connections, and verifying the integrity of the wiring harness. By combining diagnostic code analysis with hands-on testing, you can effectively diagnose and resolve fuel pump drive module issues in your Ford vehicle.
In practice, suppose your Ford F-150 exhibits symptoms of a failing fuel pump, such as reduced power, stalling, or difficulty starting. After scanning the OBD-II system, you retrieve a P0231 code, indicating a secondary circuit malfunction. Upon further inspection, you discover a damaged wire in the fuel pump harness, which is causing an open circuit. By repairing the wire and clearing the code, you restore proper fuel pump operation, demonstrating the value of diagnostic codes in identifying and resolving complex automotive issues. Remember to consult your Ford vehicle's service manual or a trusted repair guide for specific code definitions, troubleshooting procedures, and repair recommendations.
Step-by-Step Guide: Removing the Fuel Pump on a 2009 Isuzu NPR
You may want to see also
Frequently asked questions
The Ford Fuel Pump Drive Module (FPDM) is an electronic component that controls the operation of the fuel pump. It ensures the fuel pump delivers the correct amount of fuel to the engine. If the FPDM fails, it can cause issues like no-start conditions, engine stalling, or poor performance.
To check the FPDM, start by verifying power and ground connections at the module. Use a multimeter to test for voltage at the FPDM’s power supply pin (typically 12V with the key on). Also, check for diagnostic trouble codes (DTCs) using an OBD-II scanner. If the module isn’t receiving power or shows related codes, it may be faulty.
Common symptoms include the engine not starting, intermittent stalling, reduced fuel pressure, or a dead fuel pump. You may also notice the check engine light is on, with codes like P0230 or P0231 pointing to fuel pump circuit issues. If these symptoms occur, inspect the FPDM for faults.
