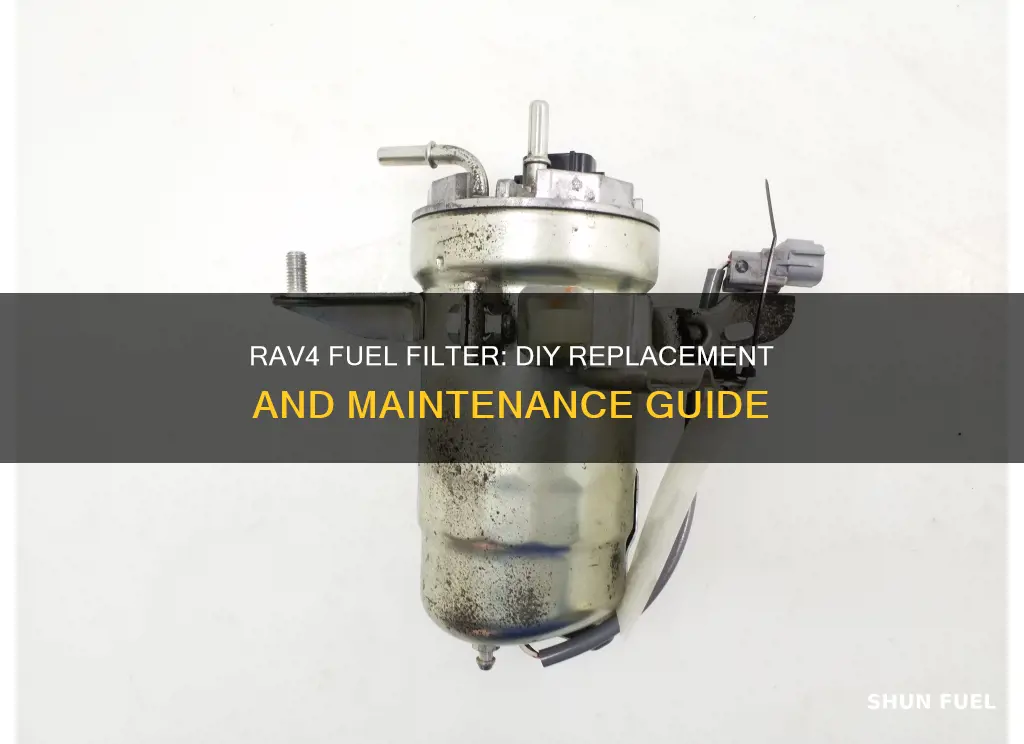

The Toyota RAV4 is an SUV crossover that has been in production since 1994. There are two fuel filter setups for the RAV4 line. One setup is non-serviceable as the fuel filter is part of the fuel pump and is located inside the gas tank. The other setup is serviceable underneath the vehicle, on the frame rail nearest the gas tank. The in-tank fuel filter is designed to last the lifetime of the vehicle and should only be changed if a problem arises. To change the fuel filter, you will need to locate the fuel filter, disconnect the hoses, unscrew the bolt holding the fuel filter, and replace the filter.
Characteristics and Values Table
| Characteristics | Values |
|---|---|
| Vehicle Type | SUV crossover |
| Fuel Filter Location | Inside the gas tank or underneath the vehicle on the frame rail nearest the gas tank |
| Tools Required | 10mm socket or spanner, pipe grips, non-latex gloves |
| Steps | Disconnect negative battery cable, open fuel filler cap, drain diesel, unscrew plastic sensor, disconnect hoses, unscrew bolt holding fuel filter, remove filter, install new filter, tighten by hand, reconnect hoses, prime the system, pump black plunger, reconnect negative battery cable |
| Maintenance | Designed to last the life of the vehicle, change only if a problem arises |
| Notes | The fuel filter is referred to as a "sock" or a "screen" in some models, and its replacement interval is not specified |
Explore related products
What You'll Learn
Locating the fuel filter
For newer Toyota RAV4 models, the fuel filter is typically located inside the fuel tank. To access it, you may need to remove the rear passenger seat or, in some cases, the front passenger seat. Look for a small round cover with a wire coming out, which indicates the location of the fuel filter. If you cannot find it inside the vehicle, it is likely located on top of the gas tank, which can be accessed from outside the vehicle.
For older Toyota RAV4 models, the fuel filter may be located in the engine bay. To access it, open the bonnet and look for the fuel filter at the back right of the engine bay, behind the air filter. You may need to remove the air filter by unclipping the side clips and prising it open from the front. Additionally, you may need to disconnect the plug and remove the lower section of the air filter housing to gain better access to the fuel filter.
In some RAV4 models, the fuel filter is part of the fuel pump and is located inside the gas tank. This setup is not serviceable, and the fuel filter is designed to last the life of the vehicle. Only replace this filter if there is a specific issue or serious contamination.
In other RAV4 models, the fuel filter is located underneath the vehicle, on the frame rail nearest the gas tank. To access this filter for replacement, park the vehicle on a flat surface, set the parking brake, and place wheel chocks to prevent rolling. Open the hood and disconnect the negative battery cable. Open the fuel filler cap to release pressure on the fuel lines, and position a drip pan under the fuel filter.
It is important to consult your specific RAV4 model's owner's manual or seek guidance from a certified mechanic if you are unsure about the location of the fuel filter or the procedure for replacing it.
Changing Fuel Filter: Yamaha Four-Stroke Motor Guide
You may want to see also
Explore related products
Removing the fuel filter
The Toyota RAV4 has two fuel filter setups. One setup is non-serviceable because the fuel filter is part of the fuel pump and is located inside the gas tank. The other setup is serviceable underneath the vehicle, on the frame rail nearest the gas tank.
To remove the fuel filter, first, park the vehicle on a flat, level surface and set the parking brake. Place wheel chocks around one wheel to prevent rolling. Open the hood and disconnect the negative battery cable. Open the fuel filler cap to release pressure on the fuel lines. Position a drip pan under the fuel filter.
If your RAV4 has the in-tank fuel filter, you may need to remove the rear passenger seat to access it. If you do not see it, it is likely on top of the gas tank, which is only accessible from outside the vehicle.
If your RAV4 has the serviceable setup, the fuel filter is located underneath the vehicle. With the bonnet open, locate the fuel filter at the back right of the engine bay, behind the air filter. Remove the air filter by unclipping the three clips around the side and prying it open from the front. Disconnect the plug.
With the hoses disconnected, unscrew the bolt holding the fuel filter to the bracket using a 10mm socket or spanner. Unhook the cable from the bracket by sliding it horizontally and then dropping it down. Be careful with this step as this is a water sensor that sits within the filter. You need to reuse this part. The filter unit is now free to be removed from the car. Remove the cutout in the plastic trim directly above the filter by gently but firmly pulling it upwards. Then, slide the filter unit up and off the bracket.
Nissan Rogue Fuel Filter: Step-by-Step Replacement Guide
You may want to see also
Explore related products
Disconnecting hoses and cables
Disconnecting the hoses and cables is a crucial step in changing the fuel filter of a Toyota RAV4. Here is a detailed, step-by-step guide to help you through the process:
First, open the bonnet and locate the fuel filter. It is usually positioned at the back right of the engine bay, behind the air filter. Once you have located the fuel filter, the next step is to disconnect the hoses and cables. Start by removing the air filter by unclipping the three clips around its side and prising it open from the front. Be gentle but firm during this process. You will then notice four hoses connected to the fuel filter housing. It is important to label or remember the order of these hoses to ensure proper reconnection later on.
Now, disconnect the plug and unscrew the clamp with a large cross-head screwdriver or a 10mm socket. With the clamp unscrewed, you can proceed to unhook the cable from the bracket. Do this by sliding the cable horizontally and then dropping it down. Be cautious when handling the cable, as it is a water sensor that sits within the filter. It is recommended to reuse this component, so handle it with care and avoid misplacing or damaging it.
After unhooking the cable, you may now partially remove the filter. If you are unable to disconnect the cable at this stage, you can do so once the filter is partially out, ensuring that the connector is above the support bar. With the cable disconnected, the filter unit is now ready to be completely removed from the vehicle.
It is important to note that fuel and oil can be hazardous to your health and the environment. When working on your RAV4, ensure you are wearing appropriate protective gear, such as non-latex gloves, and have a drip pan placed under the fuel filter to catch any spills or leaks. Remember to dispose of any waste appropriately at a facility that can handle petroleum products.
Changing Fuel Filter: Polaris Ranger 570 Guide
You may want to see also
Explore related products
Replacing the fuel filter
The Toyota RAV4 has two fuel filter setups. One setup is non-serviceable because the fuel filter is part of the fuel pump and is located inside the gas tank. The other setup is serviceable and the filter is located underneath the vehicle, on the frame rail nearest the gas tank. Consult the owner's manual or look under the vehicle to check which setup your vehicle has.
If your fuel filter is located inside the gas tank, you will need to remove the rear passenger seat to access the fuel tank. Once you have located the fuel tank access panel, remove the bolts to get the panel off. It is likely that a special tool will be needed to remove the tank lock ring. Cover the area with towels and other gas/oil-absorbing materials as gas may leak out.
If your fuel filter is located underneath the vehicle, follow these steps:
- Park the vehicle on a flat, level surface and set the parking brake. Place wheel chocks around one wheel to prevent rolling.
- Open the bonnet and disconnect the negative battery cable.
- Open the fuel filler cap to release pressure on the fuel lines.
- Position a drip pan under the fuel filter.
- Disconnect the hoses and unscrew the bolt holding the fuel filter to the bracket using a 10mm socket or spanner.
- Unhook the cable from the bracket by sliding it horizontally and then dropping it down. If you cannot disconnect the cable, wait until the filter is partially out and the connector is above the support bar. Be careful with this step as this is a water sensor that sits within the filter. You will need to reuse this part.
- Remove the filter unit by pulling it upwards and then sliding it up off the bracket and out.
- Install the new filter, ensuring that you wet the o-rings with a touch of diesel or engine oil before tightening. Tighten the filter by hand until it makes contact, then tighten another 3/4 turn.
- Reconnect the hoses, except for the one with the arrow pointing away from the filter.
- Pump the black plunger with the hose still off and a rag over the end of the metal pipe. Pumping may take a couple of minutes.
- Once the plunger begins to firm and the fuel starts to flow out of the open pipe, stop pumping and reconnect the hose. Pump a little more to continue pushing the diesel through.
- Refit your air filter and the plastic trim directly above the filter before attempting to start the car.
- Press on the gas pedal a few times to move fuel into the new filter.
- Close the fuel filler cap and reconnect the negative battery cable.
Dispose of the old fuel and filter at a place that can handle petroleum products.
Volvo S60 D5: Replacing the Fuel Filter
You may want to see also
Explore related products
Refitting and reconnecting
First, reconnect all the hoses except for the one with an arrow pointing away from the filter. Cover the end of the metal pipe with a rag and pump the black plunger. Keep pumping for a few minutes until the plunger becomes firm and fuel starts flowing out of the open pipe. Once this happens, stop pumping and reconnect the hose.
Next, pump a little more to push the diesel through and ensure the plunger is firm. Refit the air filter and the plastic trim directly above the filter. Start the car—it may take a few turns before it starts, and the sound may be rough initially as the air is pushed out of the system. Once the car is idling, rev it a bit to ensure everything is running well.
Before refitting, make sure to dispose of the old fuel and filter at a place that can handle petroleum products. Do not throw them in the trash.
It is important to note that the fuel filter in the Toyota RAV4 is designed to last the life of the vehicle and should only be changed if a problem occurs. Consult the owner's manual or look under the vehicle to identify which fuel filter setup your car has. One setup is non-serviceable, with the fuel filter integrated into the fuel pump inside the gas tank. The other setup is serviceable and located underneath the vehicle, on the frame rail nearest the gas tank.
Changing Fuel Filter in a PT Cruiser: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel filter is located inside the gas tank, or on the frame rail nearest the gas tank. It can be accessed by looking under the driver's side back seat or the front passenger seat.
The in-tank fuel filter is designed to last the lifetime of the vehicle. It should only be changed if a problem occurs.
When the fuel filter goes bad, the vehicle loses performance and is difficult to operate.
You will need a 10mm socket or spanner, pipe grips, gloves, a drip pan, towels, and other gas/oil absorbing materials.
Dispose of the old filter and any spilled gas at a place that can handle petroleum products. Do not throw them in the trash.
