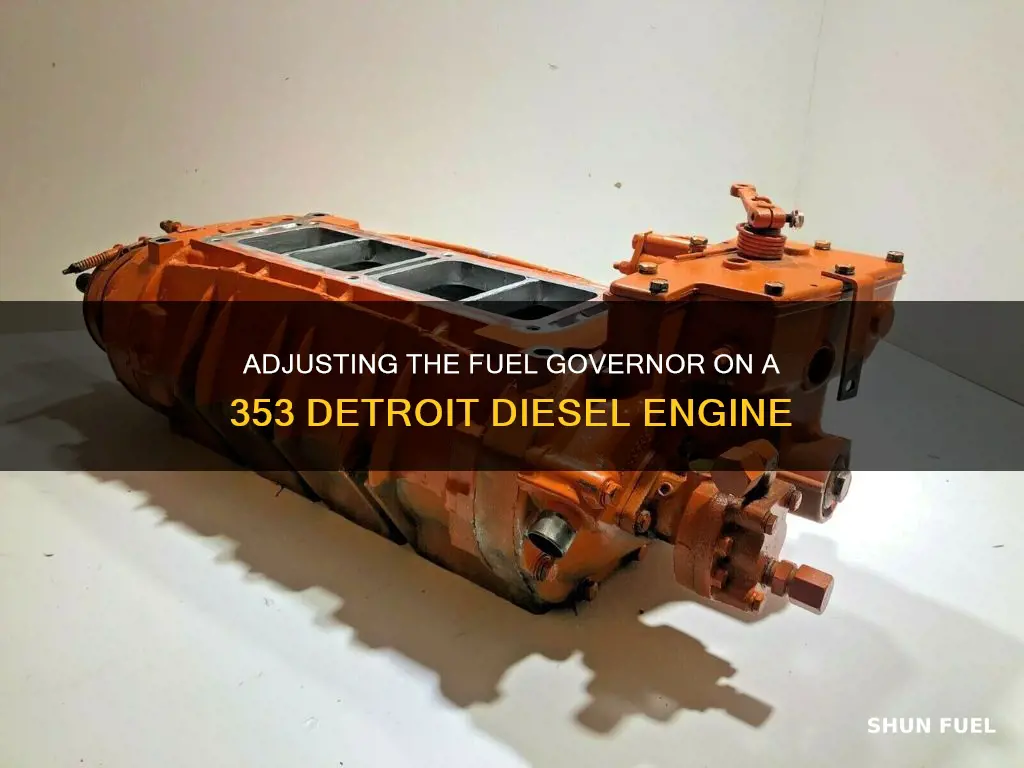

The Detroit Diesel 53 Series engine is a powerful and versatile machine used in various applications, including industrial, marine, and vehicular settings. One of the key components of this engine is the governor system, which plays a critical role in managing fuel delivery and maintaining engine speed. Adjusting the fuel governor on a 353 Detroit Diesel engine is an essential aspect of ensuring optimal performance and efficiency. This process involves a series of precise steps, including adjusting the governor gap, positioning the injector rack control levers, and fine-tuning various screws and springs to achieve the desired engine speed and smooth operation.
| Characteristics | Values |
|---|---|
| Engine type | Detroit Diesel 353 |
| Engine use | Marine, industrial, and vehicular |
| Governor system role | Manages fuel delivery to maintain engine speed under varying load conditions |
| Key components | Governor control lever, idle speed adjustment screw, maximum speed adjustment screw, buffer screw, flyweights and springs |
| Governor control lever function | Regulates fuel flow |
| Idle speed adjustment screw function | Sets the engine's minimum operating speed |
| Maximum speed adjustment screw function | Determines the engine's top speed |
| Buffer screw function | Dampens speed fluctuations and ensures smooth operation |
| Flyweights and springs function | Maintain equilibrium between centrifugal force and spring tension for precise speed control |
| Adjustment steps | Time the fuel injectors, adjust the governor gap, position the injector rack control levers, adjust the maximum no-load speed, adjust the idle speed, adjust the buffer screw, adjust the throttle booster spring, adjust the supplementary governing device |
| Additional considerations | Verify operation of the emergency shutdown, disconnect the fuel modulator on turbocharged engines, inspect and clean fuel delivery systems, replace faulty parts, lubricate governor linkages, adjust shims in the governor, adjust the fingers on the fuel control tube |
Explore related products
What You'll Learn
Adjusting the governor gap
Firstly, it is important to understand the role of the governor system. The governor system in the Detroit Diesel 53 Series engines manages fuel delivery to maintain engine speed under varying load conditions. The governor control lever regulates fuel flow, while the idle speed adjustment screw sets the engine's minimum operating speed, and the maximum speed adjustment screw determines its top speed.
Before beginning any adjustments, ensure that the engine is stopped and at normal operating temperature. Then, disconnect any linkage attached to the governor levers. This includes disconnecting any supplementary governing device, as mentioned in the previous section about adjusting the fuel governor.
The next step is to adjust the buffer screw. Back out the buffer screw until it extends approximately ⅝" from the lock nut. This measurement is crucial for the governor gap adjustment.
After adjusting the buffer screw, proceed to clean and remove the governor cover and the valve rocker covers. This step is important to access the internal components and ensure they are free from debris and buildup.
Now, you can focus on the governor gap adjustment. Refer to the specific measurements and guidelines provided by Detroit Diesel for the 353 engine. Make sure to follow the instructions meticulously for optimal performance and safety.
Finally, once the governor gap adjustment is complete, reassemble the components, ensuring that everything is securely connected. It is important to consult the Detroit Diesel 53 Series manual for detailed specifications and additional maintenance procedures.
Remember that periodic adjustments to the governor and other components may be necessary to compensate for normal wear and tear. Always follow the recommended maintenance schedule and guidelines provided by the manufacturer.
