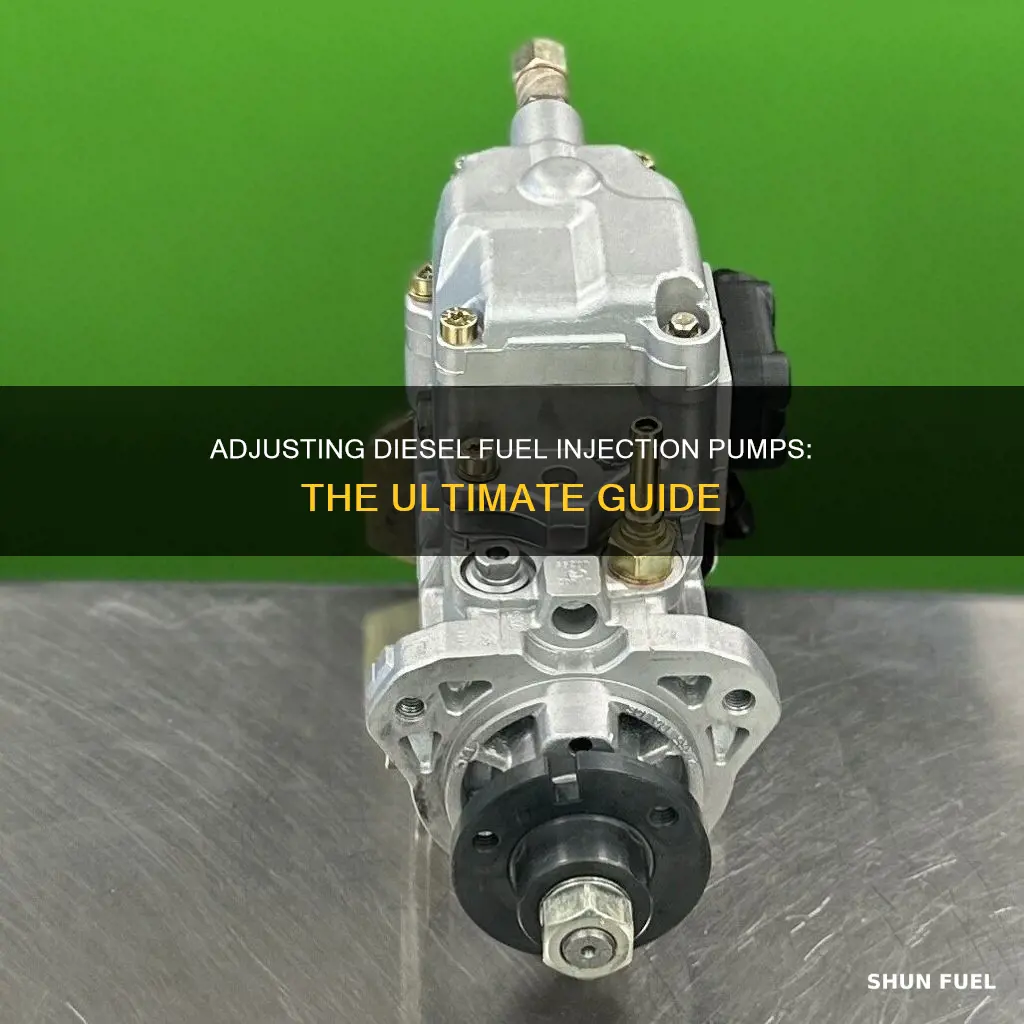

The diesel fuel injection pump is a critical component of a diesel engine, regulating the precise delivery of fuel to ensure efficient combustion and optimal engine performance. Properly adjusting the injection pump is crucial for maintaining power, fuel efficiency, and emissions control. This process involves calibrating the pump to ensure it works in sync with the engine's other components. Injection timing, or spill timing, refers to the moment when diesel fuel enters the cylinder during the combustion phase. Advancing or retarding the timing can alter engine performance, sound, and emissions. Adjusting the injection pump typically involves using tools like wrenches, dial gauges, and timing lights to access and fine-tune the pump's components. It is important to consult the manufacturer's manual and ensure attention to detail during this process.
| Characteristics | Values |
|---|---|
| Purpose | To ensure the right amount of fuel goes into each cylinder and that the fuel is delivered on time. |
| Importance | The most important component of the engine's fuel delivery system. Proper adjustment maintains power, fuel efficiency, and emissions control. |
| Calibration | Comparing and adjusting performance measurements to manufacturer standards. |
| Tools | Dial gauge, timing light, wrenches, safety glasses, gloves. |
| Process | Set timing, loosen mounting bolts, adjust position, adjust fuel delivery, secure injection pump, start engine, check performance. |
| Timing | Advancing causes the injection process to occur earlier than manufacturer settings; retarding causes it to occur later. |
| Injection delay | Advancing the timing decreases the injection delay; retarding increases it. |
| Adjustment method | Depends on the type and age of the engine. Newer engines may require programming the ECM; older engines may require rotating the pump. |
Explore related products
What You'll Learn
The importance of calibration
Calibration is a critical process that ensures the optimal performance of a diesel engine. The diesel injection pump, being the most important component of the engine's fuel delivery system, requires regular calibration to maintain engine performance and fuel efficiency. Over time, due to wear and tear, diesel injection pumps can lose their calibration. Friction between moving parts, abrasion from low-quality fuel, and corrosion from exposure to water, oxygen, acids, and salts can all contribute to a gradual loss of calibration.
By calibrating the injection pump, diesel car owners can ensure that the correct amount of fuel is delivered to each cylinder at the right time. This synchronization is crucial for the seamless functioning of the engine. Any inconsistencies or misalignments in the injection pump's performance can lead to reduced mileage per gallon, diminished engine power, and increased emissions. Therefore, calibration is a vital maintenance task that must not be overlooked.
The calibration process involves fine-tuning the injection pump's performance measurements to match the manufacturer's standards. This is achieved by using tools such as a dial gauge to measure the pump's plunger lift and a timing light to set the injection timing accurately. Adjustments are made to the injection pump's position and fuel delivery to ensure optimal performance. Calibration is usually carried out before repairing or rebuilding the fuel injection pump, followed by the phasing procedure with timing adjustments.
Additionally, the age and type of marine engine can impact the calibration process. Advancing or retarding the engine's timing can alter the injection timing, affecting when combustion occurs. Advancing the timing causes the injection process to occur earlier, while retarding results in fuel release after the recommended time. However, it is important to note that adjustments to the injection timing should be made with caution, as diesel entering the cylinder too soon or too late can cause excessive vibrations or severe damage to engine components.
The Best Way to Clean Diesel Fuel Jugs
You may want to see also
Explore related products
Injection timing
Before adjusting the injection timing, ensure the cold start cable is in place, and the camshaft drive belt has the proper tension. Use a timing meter or probe to accurately measure the timing adjustment, as small movements of the pump can cause massive timing changes. Avoid drastic adjustments and stick to minor alterations.
To adjust the timing, follow these steps:
- Use a socket wrench on the front camshaft bolt to hand-turn the engine clockwise until the first cylinder is at Top Dead Center (TDC).
- Ensure both the intake and exhaust valves are closed, and the TDC mark is aligned.
- Install a dial indicator by removing the timing-check plug, ensuring a preload of about 2.5mm.
- Turn the crankshaft counterclockwise until the indicator stops, then zero the dial.
- Turn the crankshaft clockwise, stopping at TDC.
- Check the gauge reading against the manufacturer's values. If adjustments are needed, you can advance or retard the timing.
Retarding the timing is less common but can be done to address issues like lag or smoking in a marine engine, and to improve fuel economy and performance. Advancing the timing is more common and can help with cold start rough idling. However, be cautious as diesel entering the cylinder too soon or too late can cause excessive vibrations or severe damage to components.
Dyeing Diesel Fuel: A Step-by-Step Guide
You may want to see also
Explore related products
Advancing or retarding the engine's timing
Advancing the timing can be achieved by loosening the injection pump to allow diesel to enter the cylinders sooner. This decreases the injection delay, which is the interval of time from when injection begins to the start of combustion. However, advancing the timing may decrease and delay boost.
On the other hand, retarding the timing can be done by tightening the mounting bolts of the injection pump to slow down the entry of diesel into the cylinders. This increases the injection delay, which can help repair a lag or smoking problem within a marine engine. Retarding the timing is also beneficial for fuel economy and performance.
It is important to note that adjusting the injection timing of the injection pump depends on the type and age of the marine engine. Before making any adjustments, ensure that the cold start cable is in place and the camshaft drive belt has proper tension. Additionally, the manufacturer's specified timing should be followed to ensure the engine receives the maximum possible power without surpassing legal emission limits.
Diesel Engines: Fuel Efficiency and Cost Savings
You may want to see also
Explore related products
Injection delay
The injection delay is an important parameter that characterizes the beginning of the combustion process and its development in diesel engines. It depends on chemical factors related to the fuel structure and its characteristics, as well as physical factors related to the engine operating conditions. For example, the higher the cetane number, the stronger the chemical reaction and the lower the injection delay.
The injection delay can be decreased by advancing the timing of the injection pump, making the diesel enter the cylinders sooner. Conversely, retarding the injection increases the delay. Setting the ideal injection timing is critical to maintaining and boosting the performance of the engine. Diesel that enters the cylinder too soon or too late can result in excessive vibrations or severe damage to components.
To adjust the injection timing, one must first set the injection system's timing to the value specified by the manufacturer using a timing light. This helps align the timing with its strobe. Next, loosen the mounting bolts of the injection pump to adjust its position and achieve the correct timing alignment. Finally, adjust the fuel delivery to control the precise amount of fuel delivered to each cylinder during the engine's combustion cycle. This may require testing the vehicle and observing the performance before making new adjustments until optimal performance is reached.
Diesel Fuel Costs in New Zealand: A Breakdown
You may want to see also
Explore related products
Fine-tuning adjustments
Injector Pressure Timing Adjustment
The pressure at which the injector fires depends on the tension the spring exerts on the pintle. This tension can be adjusted by modifying the shim underneath the spring. Thicker shims increase tension, while thinner shims decrease it. Adjusting the shim thickness impacts the timing of the injector firing sequence.
Fuel Screw Adjustments
The fuel screw or main metering screw controls the overall adjustment of the fuel injection pump. Adjusting the fuel screw can impact the performance of turbocharged engines, especially when coupled with upgrades to the turbo and intercooler, which increase airflow.
Compensator Adjustments
Compensators modify the pump's performance in turbocharged engines by responding to airflow and pressure changes. The compensator no boost screw and compensator pin spring tension can be adjusted to fine-tune the fuel delivery based on boost pressure.
Idle Speed and Maximum RPM Adjustments
Adjusting the idle speed and maximum RPM settings can impact engine performance and power. Increasing the maximum RPM setting can enhance high-RPM power but carries a risk of engine damage from overspeeding.
It is important to note that these adjustments should be made cautiously and in small increments to avoid drastic changes. Fine-tuning a diesel fuel injection pump requires precision and attention to detail, and it is recommended to refer to the manufacturer's manual for specific instructions.
Ensuring Diesel Purity: Avoiding Biofuel Blends
You may want to see also
Frequently asked questions
The diesel fuel injection pump is a critical component of your engine, ensuring the right amount of fuel goes into each cylinder. Proper adjustment maintains power, fuel efficiency, and emissions control.
You will need a dial gauge, a timing light, safety gear (glasses and gloves), and various size wrenches.
With the hood open, look for an engine component with labels or markings that indicate the pump's location. It is usually connected to the fuel lines supplying diesel fuel to the engine cylinders.
First, ensure the engine is off and cool, then disconnect the battery. Next, use the timing light to set the injection timing to the manufacturer's specifications. Loosen the mounting bolts and adjust the pump's position for correct timing alignment. Finally, secure the pump by engaging the locking mechanism and reconnect the battery.
Some indicators of a misaligned pump include reduced mileage per gallon, diminished engine power, increased emissions, and excessive smoke.
