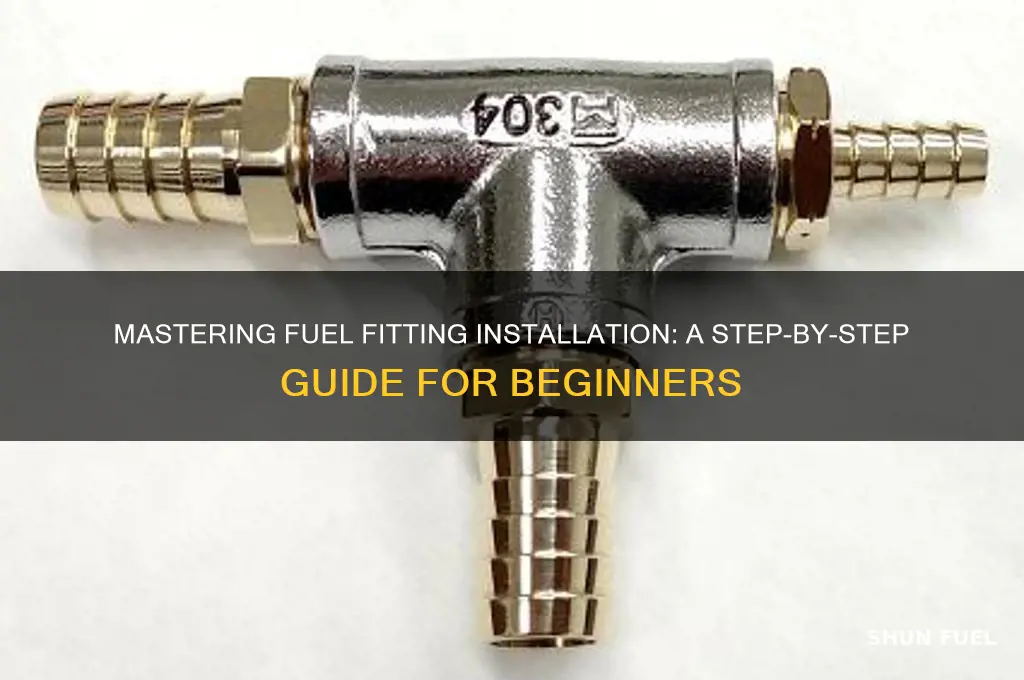

Adding a fuel fitting is a critical task that requires precision and attention to detail to ensure safety and efficiency in fuel systems. Whether you're working on a vehicle, generator, or industrial equipment, the process involves selecting the correct fitting type, such as AN, JIC, or NPT, based on the application and compatibility with existing components. Proper preparation is essential, including cleaning the area, using thread sealant or tape to prevent leaks, and ensuring the fitting is securely tightened without over-torquing. Following manufacturer guidelines and using appropriate tools will help avoid damage and ensure a reliable connection, maintaining the integrity of the fuel system.
| Characteristics | Values |
|---|---|
| Tools Required | Wrenches, fuel line disconnect tool, safety gloves, safety goggles, new fuel fitting, Teflon tape or thread sealant |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, disconnect the battery, relieve fuel system pressure |
| Steps | 1. Relieve fuel pressure, 2. Disconnect the battery, 3. Remove the old fitting, 4. Prepare the new fitting (apply Teflon tape), 5. Install the new fitting, 6. Reconnect fuel lines, 7. Test for leaks |
| Fitting Types | Push-to-connect, threaded, compression, quick-connect |
| Material Compatibility | Ensure fitting material is compatible with fuel type (e.g., steel, aluminum, nylon) |
| Leak Testing Method | Use soapy water or a fuel pressure tester to check for leaks after installation |
| Common Issues | Leaks, incorrect fitting size, incompatible materials, over-tightening |
| Cost Range | $5–$50 depending on fitting type and quality |
| Time Required | 30 minutes to 2 hours depending on complexity |
| Skill Level | Intermediate to advanced DIY or professional mechanic |
Explore related products
What You'll Learn
- Gather Tools and Materials: Collect wrenches, fuel line, fitting, safety gear, and cleaning supplies before starting
- Locate Fuel Line: Identify the correct fuel line section for fitting installation or replacement
- Clean and Prepare: Clean the fuel line and fitting area to ensure a secure, leak-free connection
- Install the Fitting: Attach the fitting using proper tools, ensuring tight and aligned placement
- Test for Leaks: Use soapy water to check for leaks after installation and before vehicle use
Gather Tools and Materials: Collect wrenches, fuel line, fitting, safety gear, and cleaning supplies before starting
Before you even think about tackling the task of adding a fuel fitting, it's crucial to assemble the right tools and materials. This preparatory step is often overlooked, but it's the foundation of a successful and safe project. Imagine trying to build a house without a blueprint or the necessary construction materials – it's a recipe for disaster. Similarly, in the world of fuel fittings, having the correct tools at your disposal can make the difference between a seamless installation and a hazardous situation.
From an analytical perspective, the tools and materials required for adding a fuel fitting can be categorized into three main groups: essential tools, fuel system components, and safety equipment. Essential tools include a variety of wrenches, such as open-end and flare nut wrenches, which are necessary for tightening and loosening fittings. The fuel system components comprise the fuel line, typically made of steel, nylon, or rubber, and the fitting itself, which must be compatible with your vehicle's fuel system. It's essential to verify the fitting's material, size, and thread type to ensure a secure and leak-free connection. For instance, a 3/8-inch steel fuel line with a NPT (National Pipe Taper) fitting is a common choice for many automotive applications.
Now, let's shift to a more instructive tone. To gather the necessary tools and materials, start by consulting your vehicle's manual or a reputable repair guide to identify the specific fuel line and fitting requirements. Next, make a list of the required items, including: a fuel line (ensure it's the correct length and material), a fitting (verify the thread size and type), wrenches (open-end, flare nut, and adjustable), safety gear (safety goggles, gloves, and a fire extinguisher), and cleaning supplies (a clean rag, carburetor cleaner, and a brush). Remember to inspect your tools and materials for any signs of wear or damage before starting the project. For example, a worn-out wrench can round off bolt heads, making it difficult to tighten or loosen fittings.
In a comparative context, consider the advantages of using a flare nut wrench versus a standard open-end wrench. A flare nut wrench is specifically designed to grip and turn flared tubing nuts without damaging them, making it an ideal choice for fuel line fittings. In contrast, a standard open-end wrench may not provide the same level of precision and control, increasing the risk of stripping or damaging the fitting. Additionally, when selecting safety gear, opt for high-quality, fire-resistant gloves and goggles that meet industry standards, such as ANSI Z87.1 for eye protection. This comparative approach highlights the importance of choosing the right tools and materials for the job, ensuring both efficiency and safety.
Finally, from a descriptive standpoint, envision your workspace as a well-organized, clutter-free zone where every tool and material has its designated place. Picture a clean workbench with a neatly arranged set of wrenches, a coil of fuel line, and a fitting ready for installation. The safety gear is within arm's reach, and the cleaning supplies are strategically placed for easy access. By taking the time to gather and organize your tools and materials, you'll create a conducive environment for a successful fuel fitting installation. As a practical tip, consider laying out your tools and materials in the order you'll need them, creating a visual guide that streamlines the installation process and minimizes the risk of forgetting a crucial step.
