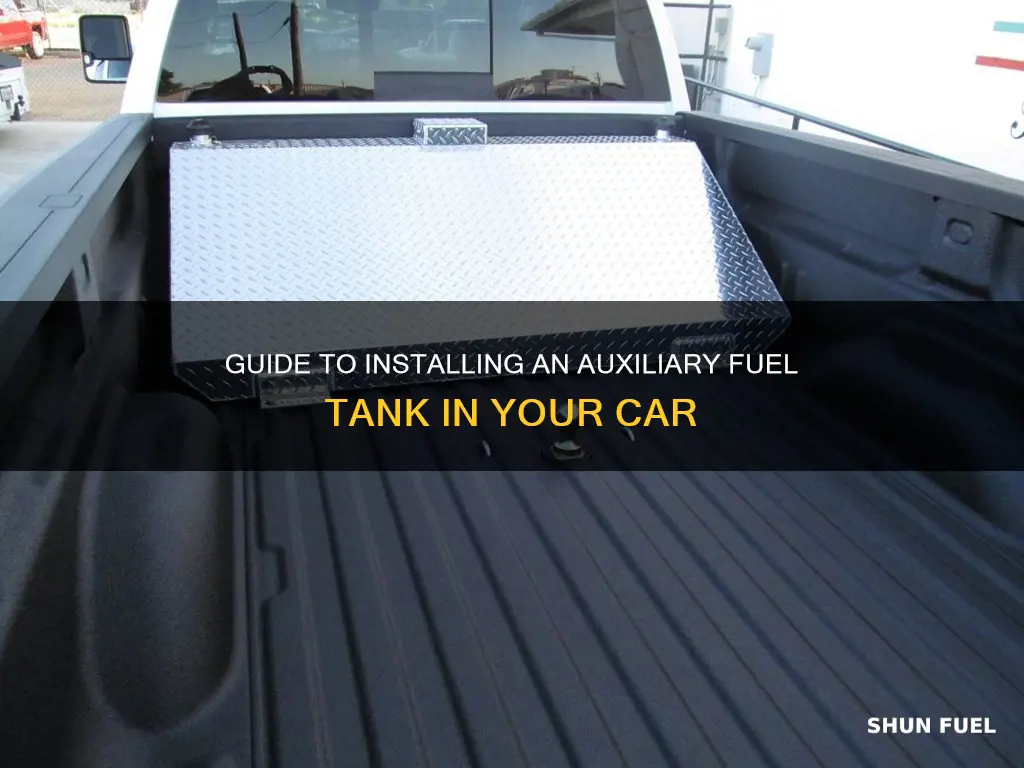

Boost Your Car's Range: A Guide To Adding An Auxiliary Fuel Tank

Adding an auxiliary fuel tank to your car can significantly increase its range, especially for those who frequently embark on long journeys or live in areas with limited fuel station access. This modification involves installing an additional fuel tank, typically behind the rear seat or in the trunk, to provide extra fuel capacity. The process requires careful planning and adherence to safety guidelines, as it involves working with fuel systems that can be complex and dangerous if not handled properly. This guide will provide a step-by-step overview of the installation process, covering everything from choosing the right tank and location to ensuring compliance with local regulations and safety standards.

Tank Selection: Choose a compatible auxiliary tank with the right size and material for your car

When adding an auxiliary fuel tank to your vehicle, the first and most crucial step is selecting the right tank. This process requires careful consideration to ensure compatibility and optimal performance. Here's a guide to help you choose the appropriate auxiliary tank:

Size Matters: The size of the auxiliary tank should be a top priority. It should be compatible with the available space in your vehicle's fuel system. Measure the dimensions of the designated fuel tank compartment and compare them with the specifications of potential auxiliary tanks. Ensure that the new tank fits perfectly without any interference with other components. Consider the desired fuel capacity increase and choose a tank size accordingly. For instance, if you aim to extend your vehicle's range by 200 miles, calculate the additional fuel volume needed and select a tank that accommodates this extra capacity.

Material Selection: The material of the auxiliary tank is another critical factor. Common materials include steel, aluminum, and plastic (often polypropylene or polyethylene). Steel tanks are known for their durability and strength, making them suitable for heavy-duty applications. However, they can be heavier and more expensive. Aluminum tanks offer a lightweight alternative, reducing the overall weight of the vehicle. Plastic tanks are often the most cost-effective option but may have limitations in terms of durability and temperature resistance. Evaluate your specific needs and choose a material that balances performance, cost, and longevity.

Compatibility and Mounting: Ensure that the auxiliary tank you choose is compatible with your vehicle's fuel system. Consider the fuel type (gasoline, diesel, etc.) and the existing fuel pump and lines. The tank should have the appropriate fittings and connections to integrate seamlessly. Additionally, plan the mounting process. Decide whether you want to mount the tank in the trunk, under the seat, or in a custom-built compartment. Consider the vehicle's center of gravity and any structural modifications required for secure installation.

Regulatory Compliance: Familiarize yourself with local regulations and guidelines regarding auxiliary fuel tanks. Some regions have specific requirements for tank size, material, and installation to ensure safety and compliance with environmental standards. Ensure that the chosen tank meets these regulations to avoid legal issues and potential hazards.

By carefully considering size, material, compatibility, and regulatory compliance, you can select the ideal auxiliary fuel tank for your car, ensuring a seamless and safe integration into your vehicle's fuel system.

Installation Process: Follow a step-by-step guide for installing the tank, including plumbing and wiring

Adding an auxiliary fuel tank to your car can significantly increase your vehicle's range, which is especially useful for long-distance travel or off-road adventures. The installation process requires careful planning and execution to ensure it is done safely and effectively. Here is a step-by-step guide to help you through the installation, focusing on plumbing and wiring.

Step 1: Choose the Right Location and Tank

Select a suitable location for the auxiliary tank, typically under the rear seat or in the trunk, ensuring it doesn't interfere with the vehicle's structure or other components. Choose a tank that fits your car's dimensions and complies with local regulations regarding fuel storage.

Step 2: Prepare the Vehicle

Locate the existing fuel tank and identify the fuel lines, pumps, and associated wiring. Mark the positions of these components to plan the new plumbing and wiring routes. Ensure you have the necessary tools and materials, including fuel lines, fittings, wiring harnesses, and connectors.

Step 3: Install the Tank

• Remove the rear seat or access the trunk to reach the installation area.
• Position the auxiliary tank in the chosen location, securing it with appropriate mounting brackets or straps.
• Connect the tank's fuel inlet line to the main fuel line using the appropriate fittings. Ensure a tight seal to prevent fuel leaks.
• Route the fuel outlet line to the engine or fuel pump, following the original fuel line path if possible.

Step 4: Plumbing Connections

• Connect the fuel pump line to the new tank's outlet, ensuring it is securely fastened.
• Install a fuel filter between the tank and the engine to protect the fuel system from contaminants.
• Consider adding a fuel pressure regulator to maintain optimal fuel pressure.
• Use a fuel gauge adapter to connect the new tank to the existing fuel gauge, allowing for accurate fuel level monitoring.

Step 5: Wiring and Electrical Connections

• Identify the power source for the fuel pump and locate the appropriate wiring harness.
• Connect the fuel pump wiring to the harness, ensuring the correct polarity.
• Route the wiring for the fuel gauge adapter and any additional sensors or controls.
• Secure all wiring with ties or clips to prevent tangling and ensure a tidy installation.

Step 6: Final Checks and Testing

Once the installation is complete, perform a thorough inspection to ensure all connections are secure and there are no leaks. Test the fuel pump to ensure it functions correctly, and verify the fuel gauge readings match the actual fuel levels.

Remember, this is a general guide, and specific steps may vary depending on your vehicle and the auxiliary tank kit you choose. Always prioritize safety and consult professional assistance if you are unsure about any part of the installation process.

Fuel System Integration: Ensure the auxiliary tank connects seamlessly to the main fuel system

When integrating an auxiliary fuel tank into your vehicle's existing fuel system, it's crucial to ensure a seamless and efficient connection. This process involves careful planning and precise execution to maintain the integrity of your car's fuel supply and overall performance. Here's a step-by-step guide to achieving this:

Understanding the Fuel System: Begin by thoroughly understanding your car's original fuel system. Familiarize yourself with the location of the main fuel tank, the fuel pump, and the various fuel lines that supply fuel to the engine. This knowledge is essential to determine the optimal placement and connection points for the auxiliary tank. Identify any existing fuel filters, fuel pressure regulators, and fuel injectors or carburetor components that need to remain functional and compatible with the additional tank.

Tank Placement and Routing: Strategically place the auxiliary fuel tank, considering factors such as vehicle weight distribution, accessibility, and available space. Ensure it is securely mounted to prevent movement during driving. Route the fuel lines carefully, starting from the auxiliary tank and extending to the main fuel system. Maintain a slight positive pressure in the auxiliary tank to prevent vacuum formation, which can lead to fuel starvation. Use appropriate-sized fuel lines with adequate bends to accommodate the vehicle's contours without causing unnecessary restrictions.

Fuel Pump and Filter Considerations: Integrate the auxiliary fuel tank with the existing fuel pump and filter. If your vehicle has a single fuel pump, you may need to install a secondary pump or utilize a bypass system to supply fuel to the engine while the main pump is active. Ensure that the auxiliary tank's fuel level sensor is compatible with the vehicle's fuel gauge system for accurate fuel level readings. Consider adding a fuel filter between the auxiliary tank and the main system to prevent contamination and maintain the health of the fuel system.

Testing and Safety Measures: After the integration, thoroughly test the fuel system to ensure proper functionality. Check for any leaks at all connections and verify that the fuel pressure is within the specified range. Perform a road test to assess the vehicle's performance, fuel efficiency, and engine operation with the additional tank. Implement safety measures such as a fuel shut-off valve or a pressure relief valve to prevent overfilling and potential hazards.

By carefully following these integration steps, you can ensure that the auxiliary fuel tank works in harmony with the main fuel system, providing increased fuel capacity without compromising performance or safety. It is essential to consult the vehicle's manual and seek professional advice when making modifications to ensure compliance with manufacturer guidelines and local regulations.

Safety Measures: Implement safety features like fuel level sensors and emergency shut-off valves

When considering the addition of an auxiliary fuel tank to your vehicle, implementing robust safety measures is paramount to ensure the well-being of both the driver and the environment. One crucial aspect is the installation of fuel level sensors, which provide real-time data on the amount of fuel in the tank. These sensors are typically connected to a gauge or a digital display, allowing the driver to monitor the fuel levels accurately. Modern vehicles often utilize electronic sensors that transmit data to the dashboard, ensuring that the driver is always aware of the remaining fuel. It is essential to choose sensors that are compatible with your vehicle's electrical system and can withstand the rigors of the automotive environment.

In addition to fuel level monitoring, incorporating emergency shut-off valves is a critical safety feature. These valves are designed to automatically cut off the fuel supply in the event of a leak or spill. When an issue is detected, the valve closes, preventing the flow of fuel and minimizing the risk of fire or explosion. It is recommended to use solenoid-operated valves, which are reliable and can be easily controlled by the vehicle's electronics. These valves should be strategically placed near the auxiliary tank to ensure rapid response in case of any anomalies.

To further enhance safety, it is advisable to integrate a pressure relief system into the fuel tank's design. This system allows excess pressure to escape, preventing the buildup of hazardous conditions. Overpressure can occur due to factors like temperature changes or rapid fuel consumption, and a well-designed relief system will mitigate these risks. Consider using a pressure regulator that is compatible with the fuel type and tank capacity.

Regular maintenance and inspections are also vital to maintaining the safety of the auxiliary fuel tank system. This includes checking the sensors' accuracy, ensuring the valves are operational, and inspecting the fuel lines for any signs of damage or corrosion. It is recommended to establish a maintenance schedule that aligns with the vehicle's service intervals to guarantee the system's reliability over time.

Lastly, when modifying your vehicle, it is crucial to adhere to local regulations and guidelines regarding fuel storage and handling. This ensures that your modifications are legal and do not compromise the overall safety of your vehicle. By implementing these safety measures, you can confidently enjoy the benefits of an auxiliary fuel tank while minimizing potential risks.

Legal Compliance: Verify that adding a tank complies with local regulations and insurance requirements

When considering the installation of an auxiliary fuel tank to your vehicle, it is crucial to prioritize legal compliance to avoid any potential issues. Local regulations and insurance policies can vary significantly, so thorough research and verification are essential. Here's a guide to ensure you meet the necessary legal standards:

Research Local Regulations: Begin by contacting your local government or transportation authority to inquire about any specific rules or permits required for installing additional fuel tanks. Some regions may have strict guidelines to ensure road safety and environmental protection. These regulations often consider factors such as vehicle type, tank capacity, and installation location. Understanding these rules will help you avoid any legal pitfalls and ensure your modifications are in compliance.

Check Insurance Policies: Insurance companies may have specific requirements or restrictions regarding modified vehicles. Adding an auxiliary fuel tank could potentially impact your insurance coverage, especially if it affects the vehicle's overall safety or value. Review your insurance policy or contact your insurer to understand their stance on such modifications. They might provide guidelines or even require additional documentation to ensure the tank's installation is safe and legal.

Compliance with Vehicle Manufacturer's Guidelines: Always refer to your vehicle's manufacturer's guidelines and recommendations. Original equipment manufacturers (OEMs) often provide detailed instructions and specifications for their vehicles. Adding an auxiliary fuel tank might require specific modifications to ensure compatibility and safety. Following the manufacturer's guidelines will help you maintain the vehicle's integrity and potentially avoid voiding any warranties.

Documentation and Records: Keep detailed records of the installation process, including receipts, invoices, and any correspondence with local authorities or insurance providers. Proper documentation can be crucial in case of future inspections or claims. It also demonstrates that you have taken the necessary steps to comply with legal requirements.

Consult Legal Professionals: If you are unsure about any legal aspects, consider seeking advice from legal professionals or automotive specialists who can provide guidance tailored to your region. They can help navigate the complex web of regulations and ensure your auxiliary fuel tank installation meets all the necessary criteria.
