If you're looking to add a fuel tank cleanout access cover, you've come to the right place. This paragraph will outline the steps and considerations for installing an access plate system, which is a common method for cleaning and maintaining your fuel tank. Most tanks are manufactured without access points, so adding an access plate provides an easy way to clean and service your tank when needed. The process involves cutting a hole in the tank, using a template to trace the bolt pattern, and installing the access plate with bolts. You can also modify the cover plate with a suction tube for fuel polishing systems, and it's important to note that access plates are suitable for water and diesel fuel tanks but not gasoline or other highly flammable liquids. With easy-to-follow instructions and a range of cover plate sizes and materials available, you'll be able to find the perfect solution for your fuel tank cleanout access needs.
Explore related products
What You'll Learn
Choosing the right access plate system
- Tank Compatibility: The access plate system you choose must be compatible with your fuel tank type. Most access plates are designed for water or diesel fuel tanks and should not be used with gasoline or other highly flammable liquids or gases. Check with the manufacturer or supplier to ensure the selected access plate is suitable for your tank's contents.
- Tank Material: Consider the material of your fuel tank when choosing an access plate. Access plates are commonly available in aluminum or stainless steel. The Seabuilt Tank Access Plates, for example, offer both material options and come in various cover plate diameters (6, 8, and 10 inches). Ensure the access plate material is compatible with the tank material to avoid corrosion or other issues.
- Number of Access Points: If your equipment has multiple tanks or baffles, you may need more than one access point. In such cases, consider an access plate system that can be configured with a manifold. This allows you to control the fuel flow from different points to a central fuel polishing system, providing total control over the fuel polishing process.
- Installation Ease: Opt for an access plate system that is easy to install. Look for systems that provide clear instructions and templates for installation. For example, some access plates can be installed by using the bolt ring as a template, cutting the hole with a saber saw, and drilling for the bolt holes. Easy installation ensures that you can quickly and efficiently add the access plate to your fuel tank.
- Seal Effectiveness: Choose an access plate system that creates a tight seal. Some access plates, like the Aluminum Bolt-In Tank Clean Out Access Plate by Boyd Welding LLC, form a tight seal on flat firm surfaces without the need for sealants, as long as there is no distortion of the tank surface or loose screws. A secure seal prevents leaks and ensures the safe containment of the tank's contents.
- Customization Options: Depending on your specific requirements, consider access plate systems that offer customization. For instance, some users modify their cover plates by welding a suction tube that extends to the bottom of the tank, acting as a suction line. This customization enhances the fuel polishing process. Therefore, evaluate if any additional features or modifications would benefit your application.
By considering these factors, you can make an informed decision when choosing the right access plate system for your fuel tank. This will ensure a seamless and effective solution for accessing, cleaning, and maintaining your fuel tank.
Draining Your Moped's Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Preparing the tank surface
Before installing a fuel tank cleanout access cover, it is important to prepare the tank surface to ensure a proper seal and prevent any leaks. Here is a step-by-step guide to preparing the tank surface:
Firstly, ensure that the tank is made of a suitable material. Access plates are typically designed for water and diesel fuel tanks, and should not be installed on gasoline tanks or tanks containing highly flammable liquids or gases. Check that your tank is compatible with the access plate you intend to use.
Next, inspect the tank surface for any distortion or damage. The area where the access cover will be installed should be flat and firm, without any dents or warping. Clean the surface thoroughly to remove any dirt, grease, or debris that could interfere with the seal. Use a suitable cleaning solution and a clean cloth or brush to wipe down the area. Ensure that the tank is completely dry before proceeding.
If your tank has multiple baffles, you may need to install a tank access point between each baffle. Mark the locations for the access plates, taking into consideration the bolt pattern and centre hole cut. Use a template, such as the gasket or bolt ring, to trace the pattern onto the tank surface. This will ensure that the holes are drilled in the correct locations.
After marking the locations, use a drill to create the bolt holes. This step requires precision to ensure that the holes are straight and aligned correctly. Drill the holes according to the template or instructions provided with your access plate kit. Make sure to use the appropriate drill bits and take the necessary precautions to protect your eyes and hands during the drilling process.
Once the bolt holes are drilled, use a saber saw to cut the hole for the access plate. This will create the opening for the access cover. Again, follow the manufacturer's instructions for the correct size and shape of the hole. Be aware that metal debris may fall into the tank during the cutting process, so it is important to clean the tank after this step. Use a suction device, such as the AXI Fuel Polishing unit, to remove any debris from the tank before proceeding.
By following these steps, you will have a clean and prepared tank surface, ready for the installation of the fuel tank cleanout access cover. It is important to work carefully and methodically, ensuring that each step is completed correctly before moving on to the next. This will help ensure a proper seal and maintain the integrity of your fuel tank.
Fuel Tank Costs: The US Breakdown
You may want to see also
Explore related products
Cutting the hole
To begin the installation of an access plate on your fuel tank, you will need to cut a hole in the tank. This is a crucial step, so it is important to be careful and deliberate. Firstly, you must decide on the location of the hole. Consider the size and shape of your tank, as well as the presence of any baffles or multiple tanks, which may require more than one access point.
Once you have determined the ideal location, you can use the bolt ring as a template to mark the cut. It is important to ensure that the surface is clean and dry before proceeding. Using a saber saw, carefully cut along the marked line. Take your time with this step to ensure a precise and clean cut.
After cutting the hole, you will be left with a circular opening in the tank. The next step is to prepare this opening for the installation of the access plate. It is important to note that metal debris may have fallen into the tank during the cutting process. This debris must be removed to prevent contamination of the fuel. Use a suction device, such as the AXI Fuel Polishing unit, to remove any metal shavings or debris from the tank before proceeding.
Now that the hole is cut and the tank is free of debris, you can move on to the next steps of installing the access plate. This typically involves drilling bolt holes and securing the plate in place, ensuring a tight seal to prevent leaks. Remember, it is crucial to follow safety protocols and take your time during the installation process to avoid damage to the fuel tank and surrounding components.
Draining a 2001 Concorde: Step-by-Step Guide to Emptying Fuel Tank
You may want to see also
Explore related products
Installing the access plate
First, ensure that your fuel tank is made of a suitable material for installing an access plate. Access plates are typically designed for water and diesel fuel tanks, and should not be installed on gasoline tanks or tanks containing highly flammable liquids or gases. Check with the manufacturer or a professional if you are unsure about the compatibility of your fuel tank.
Next, determine the number of access plates required. The number of plates needed will depend on the size of your tank and the number of baffles present. If your tank has multiple baffles, you may need to install an access plate between each baffle to ensure proper access for cleaning and maintenance.
Now, select an appropriate access plate kit. Access plates come in various sizes and materials, such as aluminum or stainless steel. Choose a size that fits your tank and a material that is compatible with the tank's substance. For example, the Boyd Welding LLC offers a 6"OD x 4"ID bolt-in tank cleanout access plate made of aluminum that is compatible with any type of tank (aluminum, plastic, steel, or stainless).
Once you have the access plate kit, prepare the installation site by cleaning and drying all surfaces. This step is crucial to ensure that no contaminants enter the fuel tank during the installation process.
If your kit did not come with installation instructions, here is a general guide on how to install the access plate:
- Use the gasket provided in the kit as a template to trace the bolt pattern and center hole cut. This step will guide you in marking the areas you need to cut and drill.
- Using a saber saw, carefully cut the hole according to your markings.
- Use a drill to create the bolt holes.
- Fit the access plate into the designated space, ensuring that it sits securely and creates a tight seal.
- Tighten the nuts supplied with the kit until the outer gasket is compressed and slightly swells from the edge of the outer plate. Be careful not to over-tighten, as this may distort the gasket.
With these steps, you should now have successfully installed the access plate on your fuel tank, providing you with easy access for cleaning, maintenance, and fuel polishing.
Beech G35 Fuel Management: Tips for Aux Tank Use
You may want to see also
Explore related products
Testing and maintenance
- Routine Maintenance: Regularly perform basic tasks such as cleaning the tank, tightening fittings, and applying protective coatings to prevent corrosion. This proactive approach can extend the life of your fuel tank and reduce the likelihood of costly repairs.
- Visual Inspection: Conduct weekly visual inspections of the fuel tank to identify any leaks, spills, or damage. Check the vents, fittings, and pipelines for any signs of deterioration or malfunction.
- Physical Inspection: Every six months, perform a physical inspection of the tank. Check the bolt tightness, paint deterioration, and the general condition of pumps, vents, and valves.
- Water-Finding Test: Regularly check for water or product in the interstitial space (containment area). Remove any accumulation of rainwater or diesel to prevent damage to the tank and equipment.
- Fuel Quality Check: Ensure that you are using high-quality fuel. Poor-quality fuel can lead to sediment formation, clogged filters, and damage to pumps and equipment.
- Fuel Level Monitoring: Keep an eye on fuel levels to avoid running on a near-dry tank. Running on low fuel levels can cause sediment to form at the bottom, blocking pumps and damaging equipment.
- Filter Inspection: Regularly inspect and clean mesh filters (strainers) to prevent clogging and maintain fuel flow. The location of these filters varies depending on the tank model.
- Hinge Lubrication: Lubricate the hinges of the cabinet cover or door to avoid rust and wear and tear. Use PTFE grease on the moving parts of the locking mechanism, and lithium grease on filler caps to prevent rust buildup.
- Leak Detection: Use leak detection equipment to check for leaks during internal inspections. Ensure that all safety protocols are followed when conducting these tests.
- Ultrasonic Testing: Perform ultrasonic testing of the tank walls to identify any internal corrosion or damage not visible externally.
- Documentation and Record-Keeping: Maintain detailed records of all inspections, maintenance activities, and repairs. This helps in planning future maintenance, ensuring regulatory compliance, and providing valuable information during audits.
By following these testing and maintenance procedures, you can ensure the optimal condition, safety, and longevity of your fuel tank with a cleanout access cover.
Unlocking More Usable Fuel: Cessna 175 Tanks
You may want to see also
Frequently asked questions

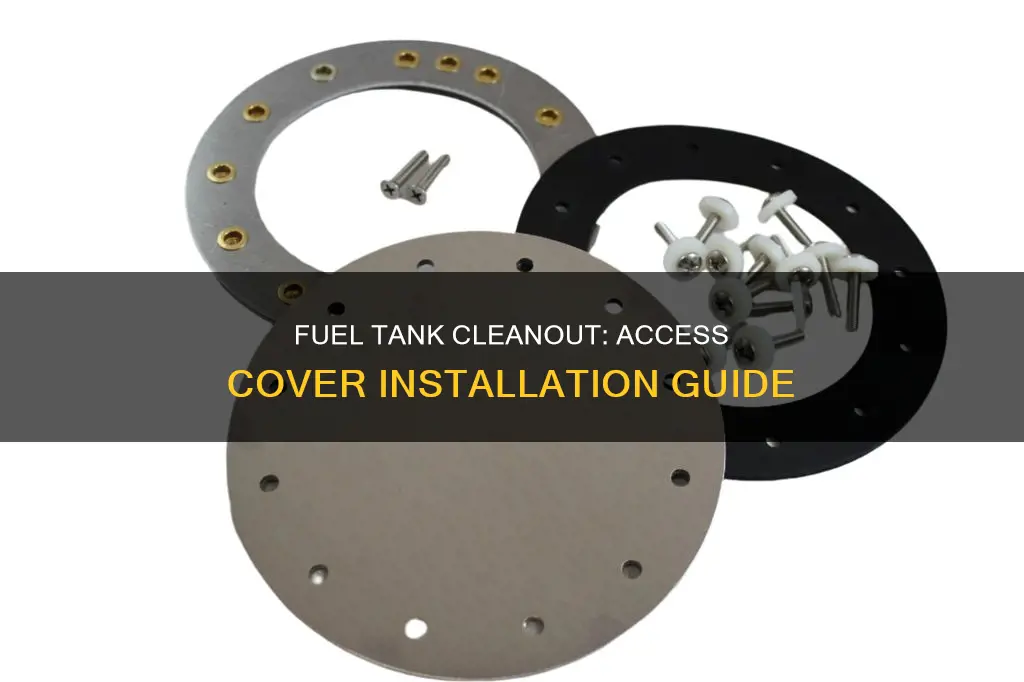

A fuel tank cleanout access cover is a plate that provides access to a fuel tank for cleaning and maintenance. They are typically made of aluminum or stainless steel and are available in various diameters.
Most fuel tanks are manufactured without access points, making it impossible to clean or maintain them without removing the entire tank. A fuel tank cleanout access cover provides an easy means to access the tank for cleaning and inspection.
The installation process typically involves using the bolt ring as a template to cut the hole and drilling for the bolt holes. It is important to ensure that all surfaces are clean and dry during installation. No gasket sealer is usually needed, but it is crucial not to over-tighten the nuts to avoid distorting the gasket.
