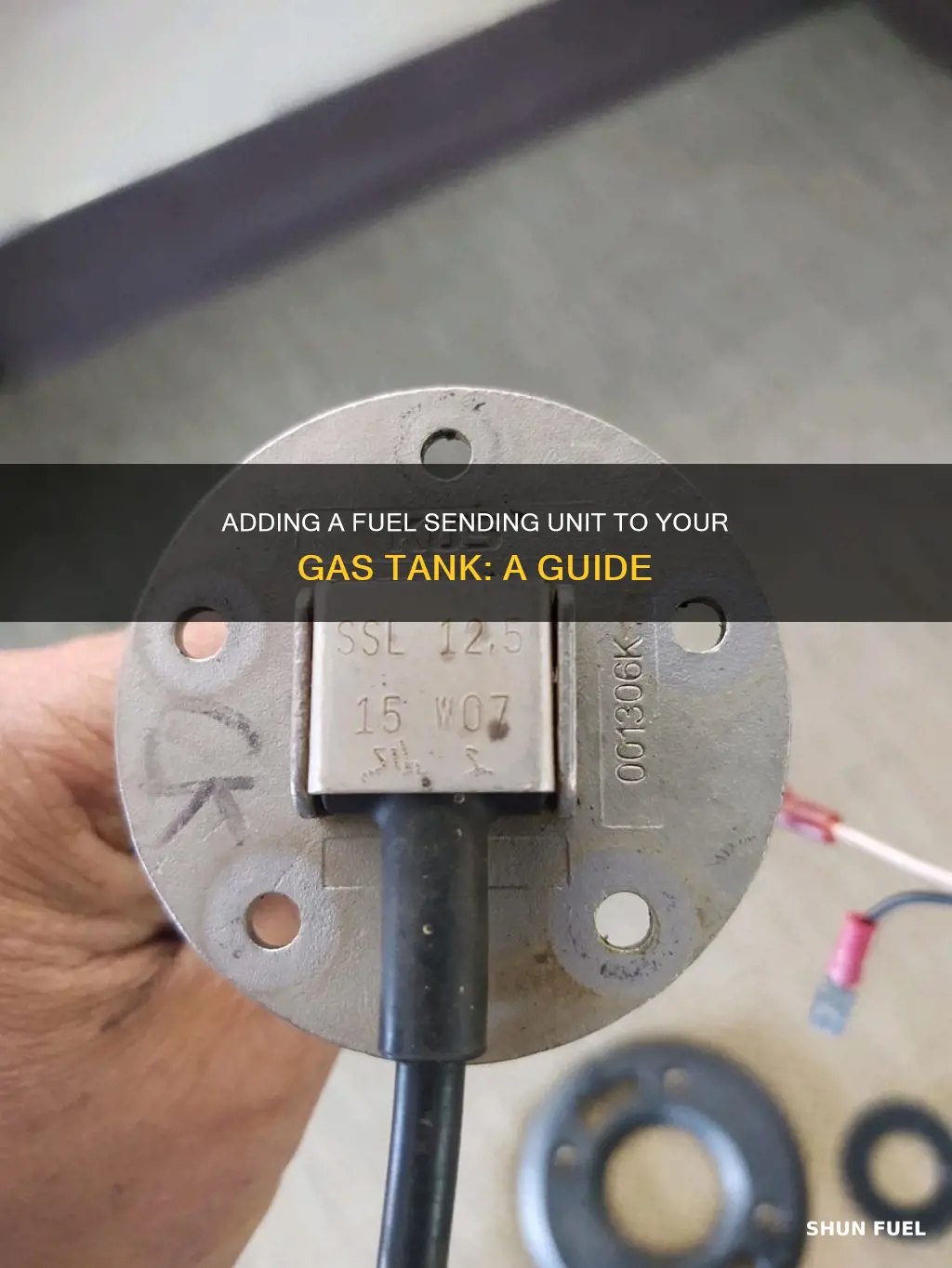

Adding a fuel sending unit to a gas tank can be a straightforward process, but it requires careful attention to safety precautions as gasoline is highly flammable. Before beginning any work, it is crucial to disconnect the negative battery cable to prevent any electrical sparks and ensure proper ventilation to avoid inhaling fumes. The fuel sending unit, also known as the fuel sender, is typically located under the rear seat or in the rear cargo area of a car, and its installation involves securing it to the tank, connecting wires and pipes, and ensuring proper functionality.
| Characteristics | Values |
|---|---|
| Safety precautions | Keep the tank area free from sparks and flames. Avoid using power tools around fuel vapors. Disconnect the negative battery cable to prevent electrical sparks. Work in a well-ventilated area or use a professional respirator. |
| Fuel tank sending unit location | Under the rear seat, in the rear cargo area, or under the carpet in the trunk. |
| Fuel tank sending unit appearance | A wiring harness plugged into the top, which tells the gas gauge how much fuel is in the tank. |
| Installation process | Order the proper length and type of sending unit. Empty the tank of fuel and fumes. Install the sending unit by inserting the down tube into the tank and tightening the mounting screws into place using a star-shaped pattern. Conduct a leak test to ensure proper installation. |
| Troubleshooting | If the fuel gauge reads empty when there is fuel in the tank, the sender unit, gauge, or wiring may be faulty. Check the wiring with a circuit tester. If the sender unit is faulty, replace it. |
Explore related products
What You'll Learn
Prepare the tank
Preparing the tank is a crucial step in adding a fuel sending unit to a gas tank. Here is a step-by-step guide to help you through the process:
Firstly, ensure you are working in a well-ventilated area to prevent the inhalation of fumes. It is highly recommended to work outdoors, with all windows of the vehicle rolled down. Gasoline is highly flammable, so it is imperative to avoid any sources of sparks or flames nearby. Disconnect the negative battery cable to prevent any possibility of electrical sparks.
Next, locate the fuel tank sending unit. In many cars, it is located under the rear seat or in the rear cargo area, often under the carpet in the trunk. You may need to lift the back seat or trunk carpet to find the access cover. Once located, remove the screws holding the cover in place and take off the access cover to access the fuel tank sending unit.
At this point, you should see the fuel tank sending unit with a wiring harness plugged into the top, which communicates with the gas gauge. Unplug this wiring harness and set it aside safely. If your fuel tank sending unit is secured with screws or bolts, proceed to remove them. Some units are of a "'twist-lock'" type, similar to older twist-lock gas caps. For these, use a sturdy, flat-head screwdriver and gently tap it counter-clockwise to loosen the unit.
Now, you can carefully remove the fuel tank sending unit. It may be attached to a long rod with a float at the end, so you might need to adjust the angle to remove it successfully.
As a final step in preparing the tank, it is important to empty the tank of any remaining fuel and fumes. This is a critical safety measure to avoid any accidental spills or combustion.
You are now ready to begin the installation process of the new fuel sending unit. Remember to refer to the installation guide or manual for specific instructions related to your unit.
Installing a Fuel Transfer Tank: A Comprehensive Guide
You may want to see also
Explore related products
Remove the old unit
To remove the old fuel sending unit, start by opening the vehicle's hood and disconnecting the battery. Take the ground cable off the battery's negative post to disable the power to the fuel pump and sending unit. Next, you'll need to raise the vehicle. Use a jack to lift it under the specified jacking points until the wheels are completely off the ground. Place the jack stands under the jacking points and then lower the vehicle onto them. Now, you can remove the fuel filler cap cable from the fuel neck and set it aside. Open the fuel door to access the fuel filler neck, and remove the mounting screws or bolts attached to the cutaway.
Locate the fuel tank and lower it a little. Disconnect the harness from the connector by reaching up on top of the fuel tank. This is the harness for the fuel pump or sending unit. With the harness disconnected, you can now remove the old fuel sending unit. If it is screwed or bolted in place, remove the screws or bolts. Some units are twist-lock types, with notches along the outer ring. Place the tip of a flat-head screwdriver in the notch and gently tap it counter-clockwise to loosen the unit. Be careful not to bend the float arm, as this will cause the gauge to give false readings.
Before removing the unit, take precautions to avoid spilling fuel. Disconnect the fuel pipe if necessary and block it with a plug or an old pencil. Once the unit is loose, carefully remove it in one piece. It may be attached to a long rod with a float at the end, so you may need to try different angles to get it out.
Accessing Your Chainsaw's Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Install the new unit
Now that you've purchased a new fuel sending unit, it's time to install it. This process will vary slightly depending on the type of vehicle you have, but here are some general instructions to follow:
First, ensure your vehicle is in a well-ventilated area to prevent the inhalation of fumes. Disconnect the negative battery cable to avoid any electrical sparks. If your vehicle's fuel tank sending unit is located under the rear seat or in the rear cargo area, lift the back seat or trunk carpet to access it.
With the access cover removed, you will see the fuel tank sending unit. It will have a wiring harness plugged into the top, which transmits fuel level information to the gas gauge. Unplug this wiring harness and set it aside safely. If your old fuel tank sending unit is screwed or bolted in place, remove the screws or bolts. Some units are a "'twist-lock'" type and can be removed by placing the tip of a flat-head screwdriver in the notch and gently tapping it counter-clockwise until it loosens.
Now, it's time to install the new fuel sending unit. If you are using a gasket mounting kit, slide the gasket over the down tube, ensuring the 5-hole screw pattern aligns with the mounting plate. Position the new sending unit above the tank, aligning the screw hole pattern with the hole pattern at the top of the tank. Secure the unit by tightening the mounting screws in a star-shaped pattern. Be careful not to over-tighten, as this can weaken the seal and lead to leakage.
Finally, conduct a leak test to ensure the proper installation of the new fuel sending unit. Pressurize the tank to 3 PSI and use soapy water to check for bubbles around the seal. If bubbles are present, tighten the screws further. Once you've confirmed there are no leaks, reconnect the wiring harness and turn on the power to the sending unit and gauge. Adjust the float and observe the gauge. If the gauge reading corresponds to the float position, your new fuel sending unit is functioning correctly.
Fuel Consumption of an M1A1 Tank: Burning Questions Answered
You may want to see also
Explore related products
Test for leaks
When installing a new fuel sending unit, it is important to check for leaks. Before refilling the tank, ensure that the gasket is properly aligned between the fuel sending unit and the tank. If the fuel sending unit uses screws, tighten them in a star pattern, using the included washers to prevent leaks. Reconnect all electrical connectors and snap the fuel lines back in place.
After refilling the tank, check for leaks. A petrol smell is a good indicator of a fuel-pipe leak. Check the flexible hose between the tank and the filler, making sure that its clips are tight. If all these are sound, the tank may be leaking. Fuel tanks can rust from the inside and outside, particularly at the bottom, and holes may develop. This is more common in older cars, where a series of small pinholes can cause a slow, steady loss of fuel.
If the fuel sending unit is leaking where the fuel gauge connects, it may be necessary to replace the sender. There is a special tool for the lock ring, but a brass drift and a hammer can also be used.
To verify that the fuel sending unit is receiving the proper voltage, set a multimeter to 20 volts. With the battery turned on, back-probe the input connector on the sending unit and check for voltage. Refer to the Service Manual for the proper voltage. If the input voltage is lower than expected, inspect the wiring from the sending unit to the battery as it could be faulty. Checking the output voltage, measure how much voltage is being sent from the fuel sending unit to the fuel gauge. The voltage should measure the same on both ends of the wire. If the voltage is different, there is corrosion or poor wiring between the sending unit and the gas gauge.
If the Ohms are correct but the fuel gauge is not reflecting the correct fuel level, then there is likely a wiring issue between the fuel sending unit and the fuel gauge.
Draining Your Reliable Power Machine's Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Test the gauge
To test the fuel gauge, you must first check the output voltage. Measure the voltage being sent from the fuel sending unit to the fuel gauge. The voltage should be the same on both ends of the wire. If the voltage is different, there is likely corrosion or poor wiring between the sending unit and the gas gauge.
You can also test the gauge with a 9-volt battery. Take the wire off the tank sender and leave it in the air, not touching anything. Turn the key on; the gauge should go past full. Touch the sender wire to the frame (full ground), then turn the key on again—the gauge should read empty. If the wiring and tank ground are good, the sender is not working.
If your car has a modern electronic fuel gauge, it may have a built-in self-test procedure. Check the owner's manual or search online for the specific make and model of your vehicle. The self-test procedure will test the instrument panel lights and displays, as well as run the gauges through their ranges. If the fuel gauge does not complete a run from full to empty, the issue is likely with the gauge itself and not the fuel sending unit.
If the fuel gauge is not reflecting the correct fuel level, you can test the resistance performance with a multimeter set to the Ohms setting. Check the service manual for the correct resistance or Ohms values for the specific fuel tank sending unit you are testing. One of the pins will be voltage feedback to the fuel gauge on top of the unit, so connect the multimeter to that pin. While connected, swing the float arm and the Ohms should increase or decrease depending on the direction of movement. If the Ohms are correct but the fuel gauge is still inaccurate, you likely have a wiring issue.
If the Ohms do not move or match the manufacturer’s specifications, the fuel sending unit is likely faulty and will need to be replaced.
Connecting a Fuel Transfer Tank to Your Truck's Fuel Tank
You may want to see also
Frequently asked questions
If your gas gauge is acting up or you've been running out of gas regularly, you may need to replace your fuel sending unit.
First, disconnect the negative battery cable to prevent electrical sparks as gas is highly flammable. Then, locate the access cover for your fuel tank sending unit. This is usually under the rear seat or in the rear cargo area. Remove the screws holding the cover in place and lift the cover to reveal the fuel tank sending unit.
You will need a screwdriver, a vacuum, and an air blower. You may also need a 5/16” HEX head screwdriver and a circuit tester.
First, empty the tank of fuel and fumes. Then, slide the gasket over the down tube and align the 5-hole screw pattern to fit flush against the underside of the mounting plate. Insert the down tube into the tank and secure the unit by tightening the mounting screws into place using a star-shaped pattern. Do not over-tighten as this can weaken the seal. Finally, conduct a leak test to ensure the unit is properly installed.
