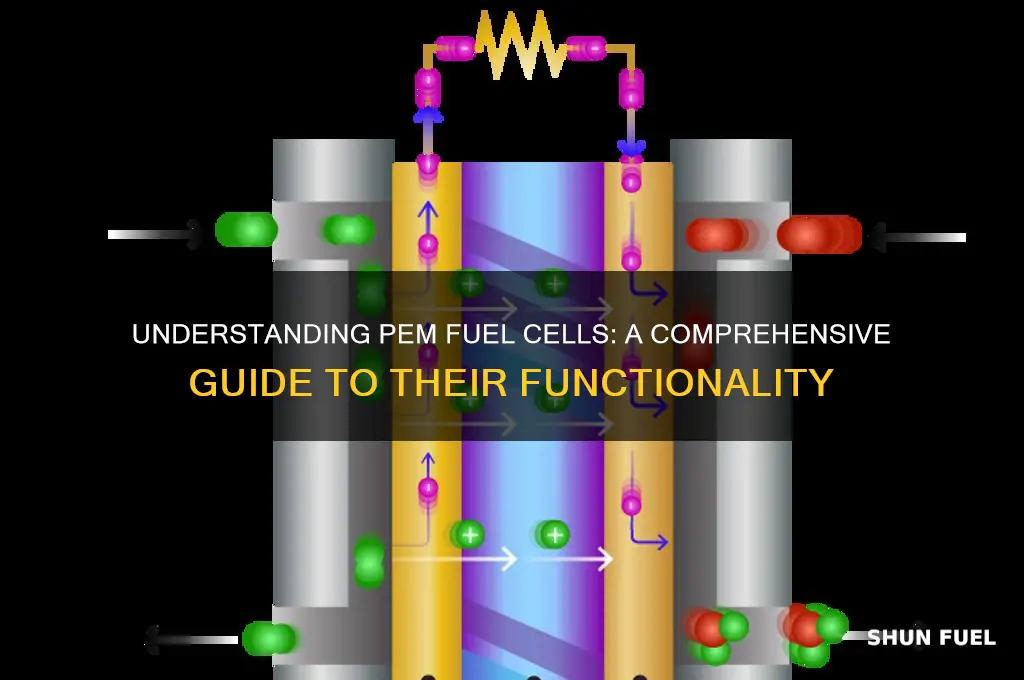

A Proton Exchange Membrane (PEM) fuel cell is an electrochemical device that converts chemical energy from hydrogen and oxygen into electricity, with water and heat as the only byproducts. The process begins when hydrogen gas is supplied to the anode, where a catalyst splits the hydrogen molecules into protons and electrons. The protons pass through a specially designed membrane, known as the proton exchange membrane, while the electrons are forced through an external circuit, generating an electric current. Simultaneously, oxygen is supplied to the cathode, where it combines with the protons and electrons to form water. This efficient and clean energy conversion makes PEM fuel cells a promising technology for applications ranging from electric vehicles to portable power systems.
Explore related products
What You'll Learn
- Hydrogen Supply: Hydrogen gas is fed into the anode side of the fuel cell
- Oxidation Reaction: Hydrogen splits into protons and electrons at the anode catalyst
- Proton Exchange Membrane: Protons pass through the membrane to the cathode side
- Reduction Reaction: Oxygen combines with protons and electrons at the cathode catalyst
- Electricity Generation: Electrons flow through an external circuit, producing usable electricity
Hydrogen Supply: Hydrogen gas is fed into the anode side of the fuel cell
Hydrogen gas, the lifeblood of a PEM fuel cell, must be delivered with precision to the anode side to initiate the electrochemical reaction. This process begins with the careful feeding of hydrogen into the fuel cell, where it encounters a catalyst layer typically composed of platinum nanoparticles. Here, the hydrogen molecules (H₂) are split into protons (H⁺) and electrons (e⁻). The protons permeate through the proton exchange membrane (PEM), while the electrons are forced through an external circuit, generating electricity. This separation is critical, as it ensures the flow of current while maintaining the integrity of the membrane.
The quality and purity of the hydrogen supply are paramount. Impurities such as carbon monoxide (CO) can poison the platinum catalyst, reducing efficiency and lifespan. Industrial-grade hydrogen often contains trace amounts of CO, necessitating purification steps like pressure swing adsorption (PSA) or membrane separation. For automotive applications, hydrogen purity levels must exceed 99.97% to meet fuel cell performance standards. Additionally, the pressure at which hydrogen is supplied—typically between 30 and 70 bar—must be carefully regulated to optimize gas diffusion and reaction kinetics without overloading the system.
Feeding hydrogen into the anode involves a delicate balance between supply rate and fuel cell demand. Excess hydrogen can lead to inefficient utilization and potential system backpressure, while insufficient supply starves the reaction, reducing power output. Advanced control systems, such as mass flow controllers and feedback loops, are employed to match hydrogen flow with the load requirements in real time. For example, in a fuel cell vehicle, hydrogen flow increases during acceleration and decreases during idle or regenerative braking, ensuring optimal performance across driving conditions.
Practical considerations extend to storage and delivery systems. On-board hydrogen storage in vehicles often relies on high-pressure tanks (350–700 bar) or cryogenic tanks for liquid hydrogen. Refueling stations must adhere to strict safety protocols, including leak detection and pressure monitoring, to prevent hazards. For stationary applications, hydrogen can be supplied via pipelines or on-site generation through electrolysis, offering flexibility in deployment. Regardless of the method, the goal remains consistent: deliver hydrogen to the anode with reliability, purity, and precision to maximize fuel cell efficiency.
In summary, the hydrogen supply to the anode is a cornerstone of PEM fuel cell operation, demanding attention to purity, pressure, and flow dynamics. From purification techniques to advanced control systems, every aspect is engineered to ensure seamless integration into the electrochemical process. Whether powering vehicles or stationary systems, the careful management of hydrogen supply underscores its role as the indispensable fuel for clean energy generation.
Exercise Boosts Brain Power: Unlocking Cognitive Benefits Through Physical Activity
You may want to see also
Explore related products
Oxidation Reaction: Hydrogen splits into protons and electrons at the anode catalyst
At the heart of a PEM (Proton Exchange Membrane) fuel cell lies a critical process: the oxidation reaction at the anode catalyst. Here, hydrogen gas (H₂) undergoes a transformation, splitting into protons (H⁺) and electrons (e⁻). This reaction is not merely a chemical event; it is the cornerstone of the fuel cell’s ability to generate electricity. The anode catalyst, typically platinum-based, facilitates this split by lowering the energy barrier, allowing the reaction to occur efficiently even at relatively low temperatures (around 60–80°C). Without this step, the fuel cell’s operation would be energetically infeasible, rendering the technology impractical for applications like electric vehicles or portable power systems.
Consider the mechanics of this reaction: H₂ molecules approach the anode surface, where the catalyst’s active sites break the strong H-H bond. Each hydrogen molecule yields two protons and two electrons. The protons migrate through the PEM to the cathode, while the electrons are forced through an external circuit, creating an electric current. This separation of charge carriers is a delicate dance, dependent on the catalyst’s surface area and the membrane’s proton conductivity. For optimal performance, the catalyst layer must be thin (typically 5–20 micrometers) to minimize resistance while maximizing reaction sites. Engineers often use techniques like sputter deposition or ink-based methods to achieve this precision, ensuring every hydrogen molecule is efficiently utilized.
A comparative analysis highlights the elegance of this process. Unlike combustion engines, which burn hydrogen in oxygen to release energy, PEM fuel cells extract energy electrochemically, producing only water and heat as byproducts. The oxidation reaction at the anode is quieter, cleaner, and more efficient, converting up to 60% of hydrogen’s energy into electricity—a stark contrast to the 20–30% efficiency of internal combustion engines. However, this efficiency comes with challenges. The catalyst’s susceptibility to poisoning by impurities like carbon monoxide (CO) necessitates stringent hydrogen purity standards (typically >99.97%). Even trace contaminants can deactivate the catalyst, underscoring the need for robust fuel purification systems.
For practical implementation, understanding this reaction’s nuances is crucial. For instance, in fuel cell vehicles, the hydrogen flow rate must be precisely controlled to match the power demand, ensuring the anode catalyst operates within its optimal range. Excessive hydrogen pressure can lead to flooding, while insufficient supply reduces power output. Maintenance protocols often include periodic diagnostics to monitor catalyst activity, as degradation over time (due to corrosion or particle agglomeration) can diminish performance. Researchers are exploring alternatives like alloy catalysts (e.g., Pt-Co) or non-precious metal options to reduce costs and improve durability, though platinum remains the gold standard for its unmatched activity.
In conclusion, the oxidation reaction at the anode catalyst is a marvel of electrochemistry, blending precision, efficiency, and environmental friendliness. It exemplifies how material science and engineering converge to harness hydrogen’s potential. While challenges like catalyst cost and durability persist, ongoing advancements promise to refine this process, cementing PEM fuel cells as a viable solution for a sustainable energy future. Whether powering drones, data centers, or heavy-duty trucks, this reaction remains the linchpin of fuel cell technology, quietly driving innovation in the background.
Gamer Fuel: Boosting Performance or Just a Marketing Myth?
You may want to see also
Explore related products
Proton Exchange Membrane: Protons pass through the membrane to the cathode side
At the heart of a Proton Exchange Membrane (PEM) fuel cell lies a selectively permeable barrier, the proton exchange membrane itself. This thin, polymeric film is the unsung hero, facilitating the flow of protons (H⁺ ions) from the anode to the cathode while simultaneously blocking electrons, forcing them to travel through an external circuit and generate electricity.
Imagine a crowded marketplace where only specific vendors are allowed to pass through a designated gate. Similarly, the PEM acts as a bouncer, allowing only protons to pass through its structure, ensuring a controlled and efficient flow of charge carriers.
This proton migration is a multi-step process. Firstly, at the anode, hydrogen gas (H₂) is split into protons and electrons through a process called oxidation, aided by a catalyst like platinum. The protons, being positively charged, are attracted to the negatively charged cathode. The membrane, typically made of materials like Nafion, possesses acidic functional groups that readily conduct protons while repelling electrons. This selective permeability is crucial for the fuel cell's operation.
The membrane's thickness is critical, typically ranging from 25 to 50 micrometers. Thinner membranes offer lower resistance to proton flow, enhancing efficiency, but may compromise mechanical strength. Thicker membranes, while more robust, can impede proton conductivity.
The efficiency of proton transport through the membrane is influenced by several factors. Humidity plays a vital role, as water molecules within the membrane facilitate proton hopping, a mechanism where protons jump from one water molecule to another. Maintaining optimal humidity levels, typically around 50-80%, is essential for maximizing proton conductivity.
Temperature also significantly impacts membrane performance. Higher temperatures generally increase proton mobility, but excessive heat can degrade the membrane material. Operating temperatures for PEM fuel cells typically range from 60°C to 80°C, balancing efficiency and membrane longevity.
In essence, the proton exchange membrane is the linchpin of PEM fuel cell technology. Its ability to selectively conduct protons while blocking electrons is fundamental to the generation of electricity. Understanding the intricacies of proton transport through this membrane, including the influence of humidity, temperature, and membrane thickness, is crucial for optimizing fuel cell performance and paving the way for wider adoption of this clean and efficient energy technology.
Accurate Fuel Volume Measurement: Methods and Tools for Checking
You may want to see also
Explore related products
Reduction Reaction: Oxygen combines with protons and electrons at the cathode catalyst
At the heart of a PEM (Proton Exchange Membrane) fuel cell lies a critical process: the reduction reaction at the cathode. Here, oxygen from the air, protons (H⁺) transported through the membrane, and electrons (e⁷) returning from the external circuit converge. This reaction is catalyzed by platinum or platinum-based materials, which lower the energy barrier for the process. The result? Water (H₂O) is formed, releasing electrical energy in the process. This step is not just a chemical transformation; it’s the culmination of the fuel cell’s energy conversion, turning chemical potential into usable electricity.
To visualize this, imagine a bustling intersection where oxygen molecules arrive at the cathode, eager to react. Protons, having traversed the PEM, and electrons, fresh from powering a device, meet here. The catalyst acts as a traffic director, ensuring these components combine efficiently. The reaction, ½O₂ + 2H⁺ + 2e⁻ → H₂O, is deceptively simple but requires precise conditions. Humidity levels, temperature (typically 60–80°C), and catalyst surface area all play roles. For instance, a catalyst layer with 0.4 mg/cm² of platinum ensures optimal activity without excessive material use, balancing cost and performance.
Now, let’s break this down practically. If you’re designing or troubleshooting a PEM fuel cell, focus on the cathode’s oxygen supply. Insufficient airflow reduces reaction efficiency, while excessive moisture can flood the catalyst layer, blocking access. A tip: maintain a stoichiometric ratio of 2:1 for air-to-oxygen flow, ensuring excess oxygen without wasting energy. Additionally, monitor the membrane’s hydration; a dry PEM hinders proton conduction, while over-saturation can lead to water buildup. Aim for a relative humidity of 60–80% for peak performance.
Comparatively, this reduction reaction mirrors the oxygen reduction reaction (ORR) in other electrochemical systems but with unique constraints. Unlike metal-air batteries, PEM fuel cells operate at lower temperatures and require pure hydrogen fuel. The cathode’s role here is more delicate, as it must balance water production with gas diffusion. For example, while a lithium-air battery’s cathode might tolerate solid byproducts, a PEM cathode must expel water vapor promptly to avoid flooding. This distinction highlights the precision required in PEM design.
In conclusion, the reduction reaction at the cathode is a masterclass in electrochemical efficiency. It’s where the fuel cell’s promise—clean energy from hydrogen and oxygen—materializes. By understanding and optimizing this step, engineers can enhance durability, reduce costs, and push PEM technology closer to widespread adoption. Whether you’re a researcher, engineer, or enthusiast, mastering this reaction is key to unlocking the full potential of PEM fuel cells.
From Crude to Combustion: The Fuel Oil Production Process Explained
You may want to see also
Explore related products
$299.24 $314.99
Electricity Generation: Electrons flow through an external circuit, producing usable electricity
At the heart of a Proton Exchange Membrane (PEM) fuel cell lies a simple yet powerful principle: the controlled movement of electrons. When hydrogen gas is introduced to the anode, a platinum catalyst splits hydrogen molecules into protons and electrons. The protons pass through the membrane, but the electrons are forced to take a detour—an external circuit. This diversion is where the magic happens. As electrons flow through the circuit, they create an electric current, the lifeblood of modern technology. This process is not just efficient; it’s clean, producing only water and heat as byproducts.
To harness this electricity effectively, consider the load you’re powering. A PEM fuel cell can generate anywhere from 0.6 to 1.0 volts per cell, depending on operating conditions. For practical applications, multiple cells are stacked in series to achieve higher voltages. For instance, a 12-volt system might require 12 to 20 cells, depending on efficiency. When designing a system, ensure the external circuit includes a voltage regulator to stabilize the output, especially if powering sensitive electronics like laptops or medical devices.
One of the most compelling aspects of PEM fuel cells is their scalability. A single cell can power a small device, while a stack of cells can energize an entire vehicle or building. For example, the Toyota Mirai fuel cell vehicle uses a PEM stack to generate over 100 kW of power, sufficient for a range of 400 miles. In stationary applications, such as backup power systems, PEM fuel cells can be integrated with renewable energy sources like solar panels to provide uninterrupted electricity. The key is matching the fuel cell’s output to the load’s requirements, ensuring neither overloading nor underutilization.
However, maximizing electron flow isn’t without challenges. The external circuit must be designed to minimize resistance, as higher resistance reduces efficiency. Use high-conductivity materials like copper for wiring and ensure connections are clean and secure. Additionally, temperature and humidity levels affect membrane performance, indirectly impacting electron flow. Maintain operating temperatures between 60°C and 80°C and humidity levels around 100% within the membrane for optimal efficiency. Regular maintenance, such as checking for membrane degradation or catalyst poisoning, is crucial to sustain consistent electricity generation.
In conclusion, the flow of electrons through an external circuit is the cornerstone of PEM fuel cell electricity generation. By understanding the voltage output, scalability, and potential challenges, you can design systems that leverage this technology effectively. Whether powering a smartphone or a city bus, the principles remain the same: control the electron path, optimize the circuit, and maintain the cell. With careful planning and execution, PEM fuel cells offer a reliable, clean, and versatile solution for electricity generation in the 21st century.
