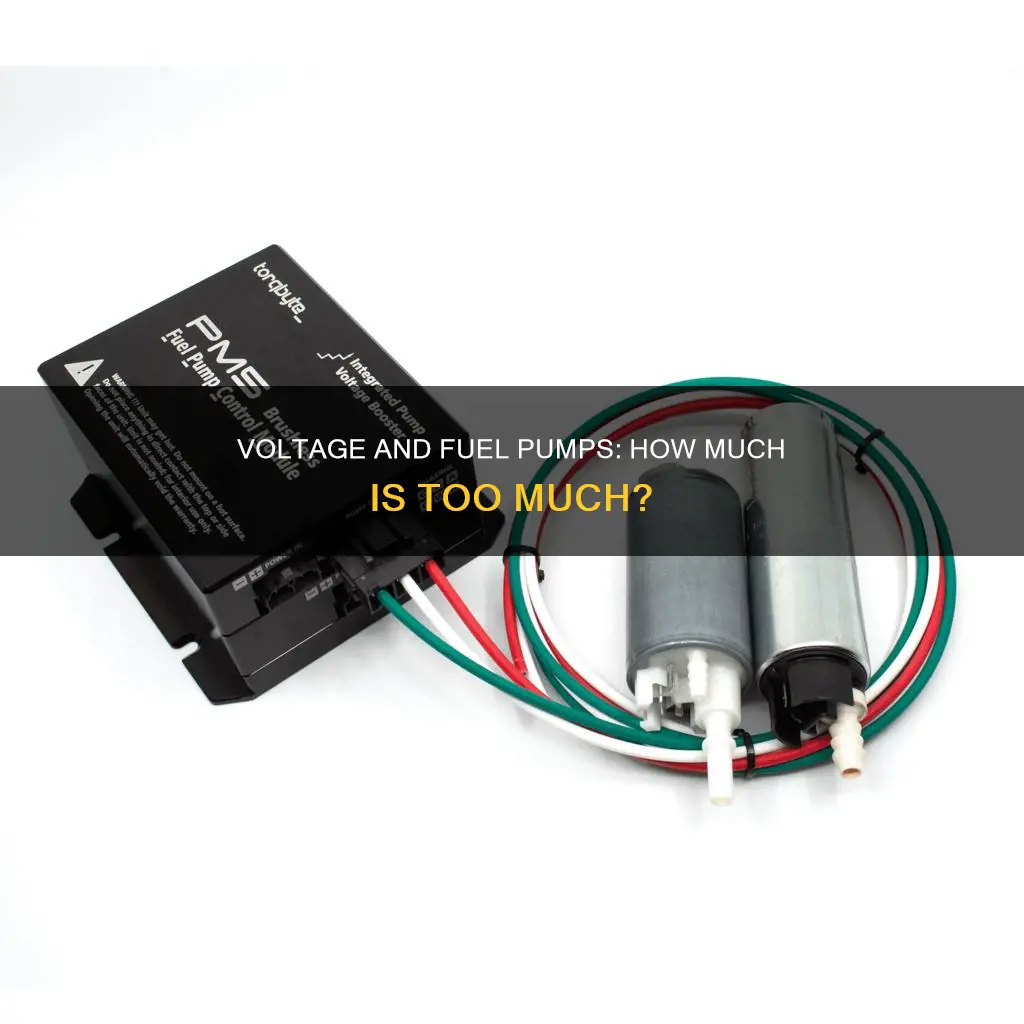

The voltage delivered to a fuel pump is a crucial aspect of any vehicle's performance. Typically, fuel pumps require an initial voltage of 12V to charge the system and create sufficient pressure for ignition. However, various factors can impact the voltage delivered, such as resistance in the circuit caused by corrosion or weak connections. Voltage drops can be detrimental, leading to insufficient fuel delivery, especially during acceleration when more volume is required. To maximize pump speed and fuel flow, it is essential to maintain the highest possible voltage at the pump, and voltage drop tests are crucial for identifying excessive resistance. Understanding the relationship between voltage and fuel pump performance is essential for optimizing vehicle efficiency and preventing fuel-related issues.
Explore related products
What You'll Learn
- A nominal voltage of 12V is required for most auto electrical items
- Voltage drop testing compares the battery voltage to the voltage at the component
- Voltage drops can be good or bad. Good drops occur when fuel pumps are given multiple speeds
- A voltage drop test is the only effective way to find excessive resistance in high-amperage fuel pump circuits
- The output voltage for an alternator is typically between 13.7 and 14.3 volts
A nominal voltage of 12V is required for most auto electrical items
A nominal voltage of 12V is the standard requirement for most automotive electrical items. This includes fuel pumps, which are integral components in modern fuel-injected engines. Maintaining the correct voltage is critical for optimal performance and longevity of these parts.
The 12V standard has been established as it offers a balance between power delivery and safety. This voltage level provides sufficient energy to operate various automotive accessories, including fuel pumps, without posing significant safety hazards. The standardisation of this voltage also simplifies the design and manufacturing processes, ensuring compatibility and interchangeability of electrical components across different vehicles.
Fuel pumps, in particular, rely on this consistent 12V supply to function effectively. They are responsible for delivering fuel from the tank to the engine, and the voltage ensures the pump operates with the necessary force and consistency to deliver the required fuel flow rate and pressure. A stable 12V supply helps maintain the correct fuel pressure, ensuring the engine receives an optimal fuel mixture for efficient combustion.
Deviations from the nominal 12V standard can have detrimental effects. Voltage fluctuations can impact the performance and lifespan of fuel pumps and other electrical components. Insufficient voltage may lead to decreased pump performance, resulting in inadequate fuel delivery and potential engine issues. Excessive voltage, on the other hand, can overload and damage the pump, leading to premature failure.
Therefore, maintaining a steady 12V supply is crucial. Automotive electrical systems are designed with this voltage in mind, and any deviations can have far-reaching consequences. Ensuring voltage stability helps optimise performance, fuel efficiency, and the longevity of critical components like fuel pumps. This standard voltage also simplifies troubleshooting and repairs, as technicians can rely on standardised procedures and parts designed for this specific voltage.
The True Cost of Fossil Fuel Subsidies in America
You may want to see also
Explore related products
Voltage drop testing compares the battery voltage to the voltage at the component
Voltage drop testing is a valuable tool for locating a battery draw and diagnosing engine-related service issues. It involves using a digital multimeter (DMM) or a similar tool to measure and compare the actual circuit voltage with the desired or anticipated circuit voltage. Voltage drop testing compares the battery or charging voltage to the voltage at the component.
When performing a voltage drop test, you are measuring the amount of voltage dropped through part of the circuit. It is a measurement of the energy lost in trying to push energy through a bad connection. The voltage drop occurs due to resistance in the circuit that supplies the pump. The resistance could be in the connectors, grounds, or harness. This resistance may be caused by corrosion, fretting, or even air. For example, if you put a 1.0-ohm resistor in a fuel pump circuit, it would lower the 13.25 volts to 9.78 volts, resulting in a voltage drop of almost 4.0 volts.
To measure voltage drop for a starter, you connect your voltmeter to the battery terminal and the post on the starter. When you turn on the meter, the display should show zero volts. Then, crank the engine. If the maximum voltage is greater than 0.5 volts, it indicates an issue with the cable or the connections at the battery or starter.
Voltage drop testing can also be used on ground circuits and other high-draw circuits like fuel pumps, headlights, and blower motors. When testing a fuel pump circuit, it must be energised by back-probing the connectors or piercing the wires. If the voltage drop readings are larger than 0.5V DC, it indicates system wiring or connector issues.
The True Cost of Fueling a B-52 Bomber
You may want to see also
Explore related products
Voltage drops can be good or bad. Good drops occur when fuel pumps are given multiple speeds
Voltage drops and fuel pumps are generally considered a bad combination. However, good voltage drops can occur when fuel pumps are designed to operate at multiple speeds. This design is made possible by connecting the fuel pump to a computer with a dedicated signal wire that instructs the module to increase or decrease its speed. This is often achieved through a serial data bus, such as a Controller Area Network (CAN) bus-controlled fuel pump module.
The voltage supplied to a fuel pump is crucial for its proper functioning. A voltage drop test is an effective method to identify excessive resistance in high-amperage fuel pump circuits. This test can be performed without disassembling the fuel pump by using specialised piercing probes to access the connectors or wires. A voltage drop reading larger than 0.5V DC indicates wiring or connector issues.
In some systems, a control unit may introduce a resistor into the circuit to intentionally reduce the fuel pump's speed. This can impact the results of voltage drop and current tests. Additionally, resistance in the circuit can cause voltage drops, and this resistance may be caused by corrosion, fretting, or even air.
The voltage required by a fuel pump can vary depending on the system. Some sources mention a voltage of 12 volts, while others state that the pump receives 12 volts for only a few seconds during the initial priming phase. It is important to note that the voltage supplied to the fuel pump should match the system's requirements, such as a 12.5-volt or 14.5-volt system, to ensure the correct fuel pressure and volume.
Carbon Emissions: Fossil Fuels' Dark Side
You may want to see also
Explore related products
A voltage drop test is the only effective way to find excessive resistance in high-amperage fuel pump circuits
Fuel pumps require a specific voltage to function optimally, and issues with voltage delivery can lead to performance problems. Voltage drop testing is a valuable technique for diagnosing fuel pump issues and identifying excessive resistance in the circuits.
A voltage drop test is a diagnostic procedure that compares the battery or charging voltage to the voltage at the fuel pump component. This test helps identify any voltage loss or excessive resistance in the circuit. By conducting this test, technicians can pinpoint issues that may be causing the fuel pump to malfunction or perform inefficiently.
To perform a voltage drop test, technicians follow a specific procedure: First, the negative side of the circuit is addressed, followed by the positive side. Specialized piercing probes are recommended to connect one digital voltmeter test lead to the negative battery terminal and the other to the negative terminal at the fuel pump. The fuel pump circuit must be energised to conduct the test accurately. Once energised, the fuel pump relay is powered, and the fuel pump circuit is activated.
The voltage drop readings indicate the circuit's condition. If the negative circuit is functioning correctly, the voltage drop measured should be 0.5V DC or less. Larger voltage drop readings suggest a problem, often due to damaged or corroded vehicle wiring or harness connectors. The test is then repeated on the positive side of the circuit, following similar steps to measure voltage drop. Readings larger than 0.5V DC on the positive side also indicate wiring or connector issues.
A voltage drop test is the only effective method to accurately identify excessive resistance in high-amperage fuel pump circuits. While other tests, such as fuel pressure tests, can indicate whether the pump provides the correct fuel pressure, they cannot pinpoint the root cause of the issue. Voltage drop testing allows for a comprehensive diagnosis, helping technicians identify and address specific problems with the fuel pump circuit's voltage delivery.
Understanding Ethanol Content in Regular Fuel
You may want to see also
Explore related products
The output voltage for an alternator is typically between 13.7 and 14.3 volts
The voltage delivered to a fuel pump is important for its functionality. A fuel pump circuit must be energised to be properly tested. This is done by energising the fuel pump relay and powering the fuel pump circuit. Typically, fuel pumps will only run for a few seconds once the relay is energised, which is usually only long enough to prime the system.
Voltage drop testing is a valid way to test fuel pumps. This compares the battery or charging voltage to the voltage at the component. A fuel pump current draw test should be performed when there is a performance complaint caused by a lack of fuel delivery. However, this is not a replacement for voltage drop testing.
The voltage delivered to a fuel pump can vary. For example, the grey wire which powers the pump usually has a voltage of 5 volts, but the pump itself can require 12 volts. This is because the ecm primes the fuel system for 5 seconds when the key is turned on, and then you won't get any more fuel until there is oil pressure.
The speed of an electric motor is directly proportional to the voltage applied to it, and so more volts mean more fuel. Therefore, to maximise pump speed and fuel flow, the highest possible voltage should be delivered to the pump.
Fuel Pump Replacement Cost for Honda Civic Owners
You may want to see also
Frequently asked questions
Typically, fuel pumps require 12V of voltage to ""charge the system"" with fuel and create enough pressure to start the engine. However, the voltage can vary between 10V and 15V.
Voltage drop testing compares the battery or charging voltage to the voltage at the component, in this case, the fuel pump. Voltage drop tests are used to diagnose and repair engine-related service issues.
Good voltage drops occur when fuel pumps are given multiple speeds with a module that is connected to a computer with a dedicated signal wire. This wire tells the module to increase or decrease its speed.
To test the voltage of a fuel pump, you can use a voltage meter to measure the voltage at the pump. You can also perform a voltage drop test by connecting a digital voltmeter probe to the positive terminal on the battery and the other to the positive fuel pump terminal.
Low voltage readings, or voltage drops above 0.5V DC, typically indicate system wiring or connector issues. This could be due to damaged or corroded vehicle wiring or harness connectors.
