Fuel pump control modules are essential for regulating voltage in modern vehicles, but they can fail due to various reasons, including corrosion, age, and wear. When replacing a fuel pump control module, it is necessary to determine if the module requires programming. Some modules are plug-and-play, while others need to be programmed by a professional mechanic. The cost of the part alone can range from $100 to $900, and additional expenses may arise if professional programming is required. To ensure a successful programming process, specific steps must be followed, such as using external power sources and addressing charging system concerns.
| Characteristics | Values |
|---|---|
| Cost of the fuel pump control module | $100 to $900 |
| Whether programming is required | Depends on the vehicle; some are plug and play, while others need to be programmed by a professional mechanic |
| Tools required for programming | TECH2 with the latest software |
| Time taken for programming | Minimum 1 hour |
| Whether the dealership can program without the vehicle | No |
Explore related products
What You'll Learn
- Fuel pump control module replacement is common in older vehicles
- The fuel pump control module regulates voltage for the fuel pump
- The cost of a fuel pump driver module ranges from $100 to $900
- Some fuel pump control modules are plug and play, others require a professional mechanic
- A multimeter and code reader can be used to test a fuel pump driver module
Fuel pump control module replacement is common in older vehicles

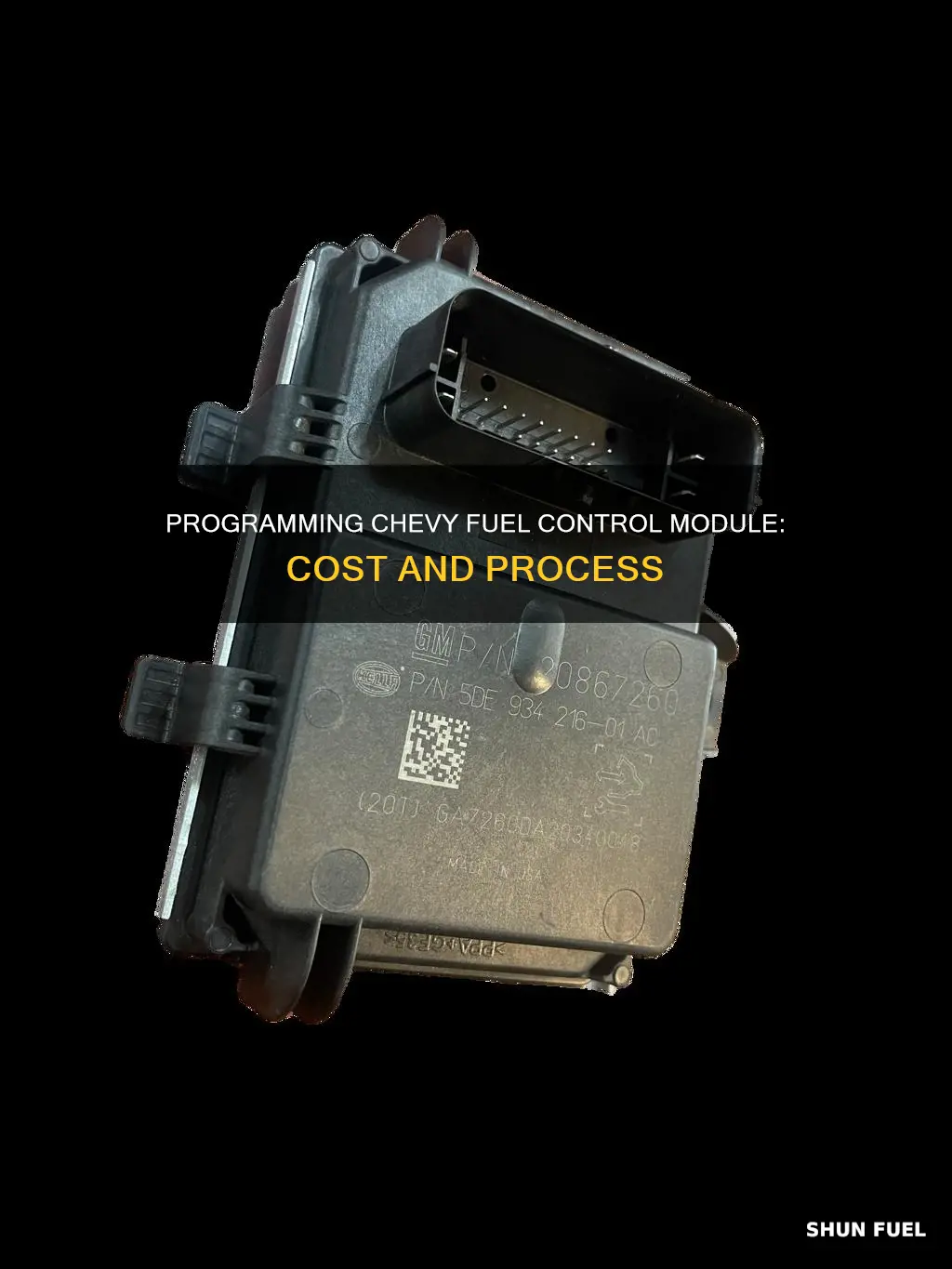

Fuel pump control modules, or FPCMs, are responsible for regulating voltage for the fuel pump. They are a common feature in older vehicles, where they are often located on the frame rail by the spare tire. Due to their exposure, FPCMs in older vehicles are more susceptible to damage and may need to be replaced.
The replacement process typically takes between one and two hours and can often be done by a DIYer. The cost of the part alone ranges from $100 to $900, depending on the model. However, additional costs may be incurred if programming is required, which must be done by a professional in most cases.
The FPCM plays a crucial role in maintaining the correct voltage range for the fuel pump to operate properly. When the ignition is turned on, the FPCM receives a signal from the engine control module, which switches on the fuel pump and adjusts the voltage accordingly. Over time, FPCMs can fail due to various reasons, including corrosion, moisture, overheating, age, and wear.
Symptoms of a faulty FPCM include difficulty starting the engine, poor fuel economy, a whirring noise from the fuel pump, smoke from the engine, and hesitation while driving. Before replacing the FPCM, it is essential to verify that it is faulty by testing the fuel pump driver module using tools like a multimeter and a code reader. If you are unsure, it is recommended to consult a professional mechanic for diagnosis and replacement.
In some cases, programming may be required after installing a new FPCM. This depends on the vehicle, as some modules are plug-and-play, while others need to be programmed by a professional mechanic. It is important to consult the service manual for specific instructions and procedures, as the measurements and processes can vary depending on the vehicle.
Trucking Fuel Efficiency: Miles Per Gallon
You may want to see also
Explore related products
The fuel pump control module regulates voltage for the fuel pump
A fuel pump control module is a device that controls the amount of voltage delivered to the vehicle’s fuel pump. Controlled voltage is necessary to maintain optimum fuel delivery and fuel pressure in the fuel pump. Fuel pumps require a specific voltage range to operate properly, and it is the role of the fuel pump control module to always keep the voltage within the correct range when the ignition is on. The fuel pump control module, or FPCM, is a sole-purpose computer module responsible only for regulating voltage for the fuel pump. It receives a signal from the engine control module that switches it on to feed the fuel pump with power, then it constantly adjusts the voltage to ensure the engine has the correct fuel pressure for the performance needs.
The fuel pump control module is located on the frame rail by the spare tire in older vehicles. In newer vehicles, the module is often located in various places. The Fuel Pressure Driver Module (FPDM) provides voltage control to the fuel pump to regulate fuel pressure by starting and stopping the pump to maintain fuel pressure. It is used in fuel systems that do not have a return fuel line to the fuel tank.
The cost of replacing a fuel pump driver module ranges from about $100 to $900 for the part alone, depending on the model. Programming a new fuel pump control module may require a visit to a professional mechanic, and the cost will vary depending on the vehicle and the complexity of the programming required. Some vehicles are plug-and-play, while others require a professional to program them.
Symptoms of a bad fuel pump driver module include difficulty starting the engine, poor fuel economy, a whirring noise from the fuel pump, smoke from the engine, or hesitation when driving. To test a fuel pump driver module, you will need tools like a multimeter and a code reader to verify that the voltage output is within the correct range. The measurements are vehicle-specific, so it is important to consult the service manual for the exact processes and specifications.
Yacht Fuel Efficiency: How Much Do You Consume?
You may want to see also
Explore related products
The cost of a fuel pump driver module ranges from $100 to $900
While some modules are plug-and-play, others require programming by a professional mechanic. This programming can cost a minimum of one hour's labour, although the process itself may only take five minutes. Some vehicles may require the use of a CANDi module for programming, and it is recommended to use an external power source to maintain system voltage during the process.
Before programming, it is important to ensure that the battery is fully charged and that any systems that may put a load on the battery are turned off. These systems include twilight sentinel, interior lights, daytime running lights, heating, ventilation, and air conditioning (HVAC) systems, and engine cooling fans. Additionally, it is crucial to review the appropriate service information and follow the procedures outlined in the service manual.
Symptoms of a faulty fuel pump driver module include difficulty starting the engine, poor fuel economy, a whirring noise from the fuel pump, smoke from the engine, and hesitation while driving.
Airlines' Expenses: Jet Fuel Cost Insights
You may want to see also
Explore related products
Some fuel pump control modules are plug and play, others require a professional mechanic
Fuel pump control modules are essential for keeping your car's fuel pump within the correct voltage range. They are a type of computer module that regulates voltage for the fuel pump, ensuring the engine has the correct fuel pressure. When replacing a fuel pump control module, it may either be a plug-and-play installation or require the services of a professional mechanic for programming.
Some fuel pump control modules are plug and play, meaning they can be easily installed without the need for additional programming. This is often the case when replacing a defective unit with an identical new one, as some modules are pre-programmed with the necessary vehicle-specific settings. However, it's important to note that even identical modules may require programming in certain cases, such as when the module needs to be linked to the vehicle's anti-theft system or when software updates are needed.
On the other hand, some fuel pump control modules require programming by a professional mechanic. Programming is a precise, vehicle-specific procedure that requires specialized diagnostic tools, OEM software access, a stable power source, and a thorough understanding of automotive electrical systems. It is not a simple task and carries risks if performed incorrectly, including module damage or fuel system malfunctions. The cost of programming can vary depending on the dealer, and it may only take around 5 minutes, but you will likely be charged for a minimum of 1 hour.
The need for programming depends on the vehicle and the specific module being installed. Before attempting any installation or programming, it is crucial to consult the service manual for your vehicle and the module's instructions to ensure you have the necessary tools and knowledge. If you are unsure, it is always best to consult a professional mechanic for diagnosis and assistance.
Additionally, it's important to note that fuel pump control modules can fail due to various reasons, including corrosion, moisture, overheating, or age. Regular maintenance, such as keeping your car clean and using dielectric grease to protect connections, can help prevent these issues and avoid the need for costly repairs or replacements.
Nuclear Fuel Pellets: Weighing the Power Source
You may want to see also
Explore related products
A multimeter and code reader can be used to test a fuel pump driver module
To begin testing, consult your vehicle's wiring diagram to identify the power and ground wires of the fuel pump driver module. Set your multimeter to DC voltage mode and probe the power and ground wires with the ignition turned on. You should observe a voltage reading that matches your battery voltage, typically between 12-14 volts. If the voltage is lower than expected or absent, the issue may lie with the wiring, fuse, or relay.
You can also test for continuity between the power and ground connections on the fuel pump motor. A properly functioning system should exhibit near-zero resistance, and a continuity mode on your multimeter will beep to confirm this.
Additionally, a code reader can be used to identify any error codes or malfunctions related to the fuel pump driver module. Modern vehicles may have fuel rail pressure sensors that relay data to the ECM (Engine Control Module). If the pressure is outside the specified range, a Diagnostic Trouble Code (DTC) will be triggered. Advanced OBD scanners can monitor fuel rail pressure and other sensor data in real-time, aiding in the diagnosis of fuel pump issues.
By combining the use of a multimeter and a code reader, you can effectively test the fuel pump driver module, verify voltage readings, and identify any error codes or malfunctions, ultimately helping to pinpoint any issues and ensure your vehicle's fuel system operates smoothly.
Uranium Fuel Pellets: Weighing the Power Source
You may want to see also
Frequently asked questions
The cost of programming a fuel pump control module depends on the model of your Chevy. The part alone can range from $100 to $900.
It depends on the model of your Chevy. Some modules are plug-and-play and do not require programming. Others require a professional mechanic to program them using specialized tools like a multimeter, a code reader, and a TECH2 with the latest software.
If your car does not start after installing a new fuel pump control module, it likely requires programming. Other signs of a faulty fuel pump control module include difficulty starting the engine, poor fuel economy, a whirring noise from the fuel pump, smoke from the engine, or hesitation while driving.
Before programming, ensure that the battery is fully charged and has a voltage between 12 and 16 volts. Disconnect any systems that may drain the battery, such as interior lights, daytime running lights, and HVAC systems. Refer to the service manual for specific procedures and specifications as they vary by vehicle model.
