The fuel pressure in a diesel engine is a critical factor in achieving optimal performance and efficiency. Diesel engines rely on high fuel injection pressure, which contributes to their power and efficiency. The specific fuel pressure requirements vary depending on the engine type and vehicle, but generally, diesel engines require significantly higher fuel pressure compared to gasoline engines due to their unique compression-based ignition process. This high pressure ensures better atomization and more even fuel distribution to the combustion chamber. The timing of fuel injection is also crucial for achieving the desired power output. While there is no one-size-fits-all answer to the ideal fuel pressure, maintaining sufficient pressure is essential to prevent performance issues and ensure the longevity of the engine.
| Characteristics | Values |
|---|---|
| Fuel pressure | 400 psi on compression stroke |
| Fuel pressure range | 10-20 psi |
| Rail pressure | 58 psi |
| Injection control pressure | 3000 psi |
| Fuel injection pressure | 21,000 psi |
| Fuel pump pressure | 2000 psi |
| Fuel injection pump pressure | 3000 psi |
| Fuel injection pressure range | 1-50mm3 |
Explore related products
What You'll Learn
Fuel injection pumps and timing
The primary purpose of a fuel injection system is to provide diesel to an engine's cylinders. However, the way and time at which the fuel is delivered can impact an engine's performance, sound, and emissions. Advancing the timing causes the injection process to occur earlier than the manufacturer's settings, while retarding involves making changes so that the fuel is released after the recommended time. Advancing the timing decreases the injection delay, while retarding it increases the interval.
The injection pump is the device that pumps fuel into the cylinders of a diesel engine. Traditionally, the injection pump was driven indirectly from the crankshaft by gears, chains, or a toothed belt (often the timing belt) that also drives the camshaft. It rotates at half crankshaft speed in a conventional four-stroke diesel engine. Its timing is such that the fuel is injected only very slightly before the top dead center of that cylinder's compression stroke. Advancing or retarding the engine's timing is possible, but setting the ideal injection timing is critical to maintaining and boosting the performance of your engine. Diesel that enters too soon or too late into the cylinder can result in excessive vibrations or severe damage to components.
Earlier diesel pumps used an in-line layout with a series of cam-operated injection cylinders in a line, similar to a miniature inline engine. Inline pumps are still used in large multi-cylinder engines such as those on trucks and agricultural vehicles. For cars and light trucks, the rotary pump or distributor pump was developed. Later versions, such as the Bosch VE pump, vary the injection timing with crankshaft speed to allow greater power at high crank speeds. There has since been a widespread change to common rail diesel systems and electronic unit direct injection systems, which allow higher pressures, finer control of injection volumes, and multiple injection stages compared to mechanical systems.
There are two pressures that people need to consider: rail pressure and effective (or differential) pressure. Rail pressure refers to the pressure inside the rail, while effective pressure is the actual applied pressure for the injector and is the pressure differential across the injector. When an engine is idling, there is a vacuum in the intake manifold, which pulls fuel out of the injectors and increases the effective pressure across the injector to a pressure higher than the rail pressure. When a supercharged or turbocharged vehicle is in boost, the pressure inside the manifold tries to push fuel back into the injector, reducing the effective fuel pressure below that of the rail. This changes how the fuel system needs to be set up.
Fuel Pump Installation Costs for Your 2004 Dodge Ram
You may want to see also
Explore related products
Rail pressure
In a common rail injection system, the rail pressure is equal to the pressure at the injector tip at the time of opening. This pressure is what allows fuel to be injected into the cylinder. If the injection pressure is lower than the compression, it can cause issues. Therefore, the injection pressure must be higher than the cylinder pressure.
There are several approaches to controlling the pressure in the common rail. One method is to supply more fuel than is needed and use a pressure control valve to spill excess fuel back into the fuel tank. Another approach is to meter the fuel at the high-pressure pump to ensure that only the amount of fuel required by the injectors is supplied to the common rail.
The pressure in the rail can be controlled with a pressure control valve (PCV), which can be located at one rail extremity or at the pump outlet. The pump-integrated PCV solution is often preferred as it leads to lower pump manufacturing costs.
For a GM, the pressure is usually set to 58 psi (factory fuel pressure in the rail). However, the pressure can be adjusted with a vacuum/boost-referenced regulator based on the pressure in the manifold. This will ensure that the effective pressure remains constant at 58 psi.
Some users have reported fuel supply pressures ranging from 10 to 20 psi, with some running mechanical lift pumps with 30-40 psi without any problems. Others have mentioned settings of 15 psi at idle and 13 psi at wide-open throttle, or 19 psi at idle and 16 psi at wide-open throttle.
The Carbon Cost of Fossil Fuels
You may want to see also
Explore related products
Effective pressure
The effective pressure is the actual applied pressure for the injector and is the pressure differential across it. It is the pressure at which the injector flow rate is based. When an engine is idling, there is a vacuum in the intake manifold, which pulls fuel out of the injectors, increasing the effective pressure across the injector to a pressure higher than the rail pressure.
In the case of a supercharged or turbocharged vehicle, the pressure inside the manifold tries to push fuel back into the injector, resisting the flow and decreasing the effective fuel pressure below that of the rail. A return style system can help maintain a constant effective fuel pressure, extending the range of fuel injectors and helping them function at lower fuel demands.
The effective pressure is calculated by subtracting manifold pressure from the rail pressure (which is assumed to be 58 psi for GM vehicles). This is done to calculate the pulse width. The PCM (engine control unit) uses the flow rate table to determine the injector's flow rate at various effective pressures.
For a GM, the vacuum/boost-referenced regulator will adjust the pressure in the rail based on the pressure in the manifold. When idling, the engine may pull 20 inHg of vacuum, translating to roughly 10 psi. The regulator will then lower the pressure in the rail to 48 psi, resulting in 58 psi effective pressure. When the engine is making 10 psi boost, the regulator will increase rail pressure to 68 psi, again resulting in 58 psi of effective pressure.
The effective pressure is an important metric to understand, as it allows users to diagnose problems with their fuel system and make the vehicle function as intended.
Fuel Injector Clog: Cost-Effective Fixes and Maintenance
You may want to see also
Explore related products
Fuel pump specifications
Diesel engines have specific fuel pressure requirements because they operate on a different principle. They require considerably higher fuel pressure to compress the air-fuel mixture and achieve ignition through compression. Additionally, diesel engines rely on precise fuel injection timing to achieve the desired power output. High-pressure fuel injection systems deliver fuel with great accuracy, with some versions achieving intervals as short as 1 microsecond.
The type of engine also affects the required fuel pump pressure specifications. Turbocharged engines, for instance, require higher fuel pressure to accommodate increased air intake, while supercharged engines create boost pressure and need larger fuel injectors. In contrast, aspirated engines depend solely on atmospheric pressure to draw air into the combustion chamber.
Another factor influencing fuel pump specifications is the injection system. Sizing a diesel lift pump based solely on horsepower may not be sufficient; the injection system's requirements must also be considered. The injection system varies, with some relying on oil or cam pressure to raise the injector pressure high enough for proper injection.
To ensure optimal performance and avoid issues, it is essential to maintain accurate fuel pressure for proper atomization and combustion.
The True Cost of Reaction Drive Fuel
You may want to see also
Explore related products
Fuel pressure and flow

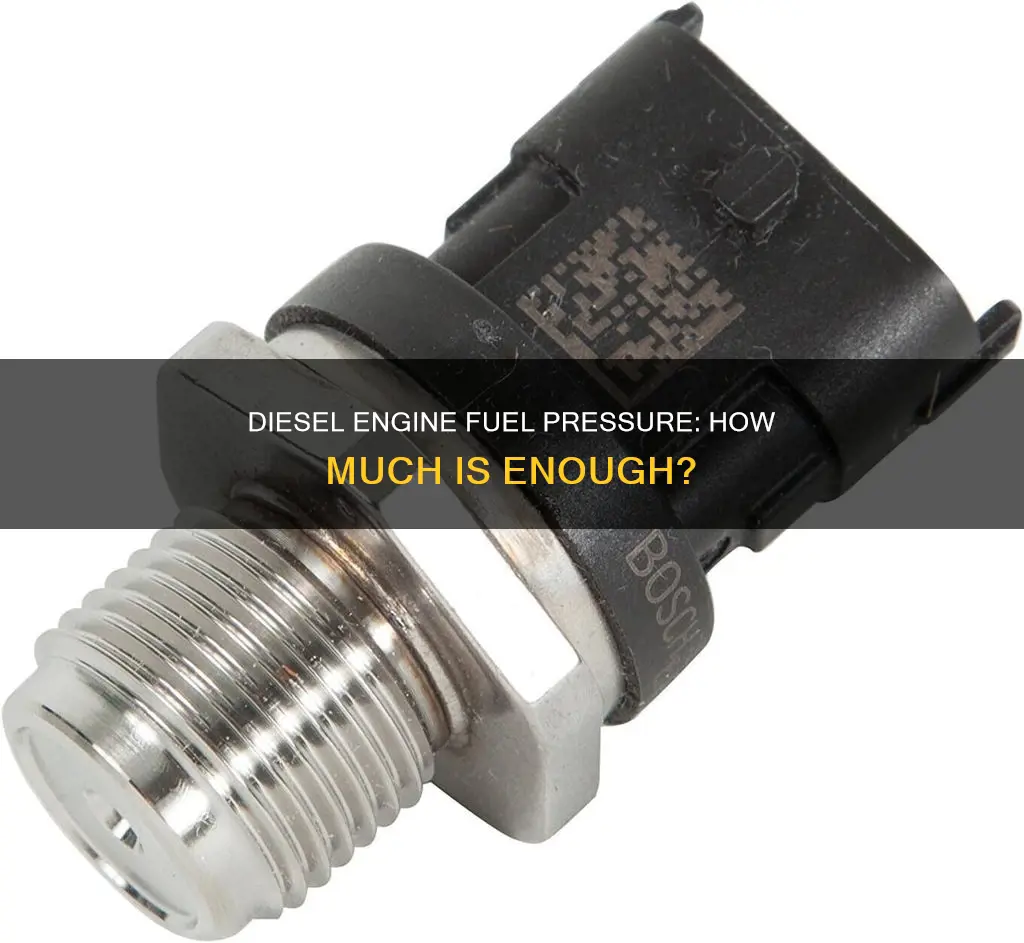

The fuel injection pump plays a pivotal role in maintaining the necessary fuel pressure. It compresses the fuel and transfers it to the fuel rail, ensuring a constant supply of pressurised fuel to the engine. The fuel pressure sensor (FPS) provides real-time data on rail pressure to the engine diesel controller (EDC), which adjusts the desired rail pressures accordingly. This dynamic regulation ensures that the engine receives the required fuel pressure for different operating ranges.
Maintaining adequate fuel flow is equally essential. The flow rate must be sufficient to support the type of injection system utilised. While sizing by horsepower can provide a starting point, the specific requirements of the injection system must be considered for optimal performance. A drop in pressure at wide-open throttle, for instance, may indicate insufficient flow rather than inadequate pressure.
The design of the fuel pressure relief valve also impacts fuel pressure and flow. The commonly used Ball Shaped Poppet design has inherent flaws, as it can lead to valve chatter and fuel pressure spikes. In contrast, the Cylindrical Shaped Poppet design offers smoother fuel flow and significantly reduces fuel pressure spikes, resulting in a more consistent fuel flow curve.
Additionally, the type of engine and its variations influence fuel pump pressure specifications. Turbocharged engines, for example, require higher fuel pressure to accommodate increased air intake, while supercharged engines have their own pressure requirements due to the creation of boost pressure. These factors underscore the importance of tailoring fuel pressure and flow to the specific needs of the diesel engine.
Understanding the Fuel Capacity of a P32 Aircraft
You may want to see also
Frequently asked questions
The fuel pressure of a diesel engine varies depending on the make and model of the vehicle. However, generally, diesel engines require a considerably higher fuel pressure than gasoline engines.
GM vehicles usually have a fuel pressure of 58 psi.
The ideal fuel pressure for a Cummins diesel engine is between 10 and 20 psi.
Incorrect fuel pressure can cause a range of issues, from hard starts to cavitation and vaporization, which can damage the engine.
