Fuel Pressure Maintenance For 2006 Harley Tourers

Harley-Davidson motorcycles are renowned for their power and performance, and maintaining correct fuel pressure is essential to keep them running smoothly. While there is limited information specifically about the 2006 Harley Touring model, we can assume that, like other Harley models, it has a fuel pressure of around 55-62 psi. This pressure should be maintained for a while, and a quick drop could indicate a problem such as a pinhole leak in the fuel line. Harley owners can test the fuel pressure themselves with a fuel pressure tester gauge, and this can help diagnose issues with the fuel pump, filter, or regulator. While fuel pump failure is not common, it can occur, and other problems can arise in the fuel system, so regular checks are recommended to ensure Harley motorcycles are running at their best.

Harley-Davidson fuel pressure tester gauge

If you're experiencing issues with your 2006 Harley Touring, it may be a good idea to test the fuel pressure to help diagnose the problem. A fuel pressure tester gauge can be hooked up to your Harley-Davidson motorcycle to check the fuel pressure. This tool is essential for troubleshooting fuel system issues and can save you time and money in the long run.

There are a few options available for fuel pressure tester gauges that are compatible with Harley-Davidson motorcycles. One popular option is the Fuel-Tool Fuel Pressure Gauge MC-500, which is designed specifically for 2001 and newer fuel-injected Harley-Davidsons. It provides simple, fast, and accurate fuel pressure checks and comes with a solid brass adapter, a release valve, a steel housing gauge, and a nylon storage pouch. This tool is a bit pricey, but it is a high-quality product that can help you quickly diagnose issues with your fuel system.

Another option is the CTA Tools 3425 Fuel Injection Tester, which is compatible with non-Bosch and GM TBI systems. This tester can be purchased online and has been used successfully by Harley-Davidson owners to check their fuel pressure. It is also more affordable than some other options on the market.

Additionally, you can find fuel pressure tester gauges on eBay that are designed specifically for Harley-Davidson motorcycles. These tools allow you to perform fuel pressure checks while the bike is running and can also be used to drain the tank. They are generally well-reviewed and are a good option if you're looking for a more affordable solution.

When checking the fuel pressure on your Harley-Davidson, it's important to refer to the service manual for the correct psi range. The fuel pressure should be checked at the tank bung before the regulator and fuel log, and it should be within the specified range for your particular model. If the fuel pressure is low or high, it could indicate an issue with the fuel pump, fuel filter, pressure regulator, or other components of the fuel system.

By using a fuel pressure tester gauge, you can quickly and accurately diagnose issues with your 2006 Harley Touring's fuel system. These tools are designed to be easy to use and can save you time and money in the long run by helping you pinpoint the exact cause of any fuel-related problems you may be experiencing.

Fuel pump failure

A fuel pump failure can manifest in several ways. Here are some of the most common symptoms:

• Whining noises from the fuel tank: A typical Harley fuel pump will make a low buzzing sound when operating. However, a high-pitched whining sound from the fuel tank indicates an issue with the fuel pump.
• Sputtering engine: If your Harley's engine sputters while riding at high speeds, it could be a sign that the fuel pump is broken. This usually occurs when the fuel pump fails to provide a consistent flow of gasoline at the proper pressure.
• Surge in speed: When travelling at a steady speed, you might occasionally feel that your bike has accelerated without any throttle input. This is often due to an accumulation of erratic resistance within the fuel pump motor, caused by a malfunctioning pump.
• Reduced mileage: If you notice that your bike is consuming more fuel to travel the same distance, it could be that the fuel pump's relief valve is malfunctioning and allowing more fuel to enter the engine than necessary.
• Difficulty in starting the engine: A failing fuel pump may not be able to maintain the necessary fuel pressure, leading to engine stalls, particularly at higher temperatures.
• Stalling while riding: If your Harley frequently stalls while riding, it could be a sign of a dirty or blocked fuel pump. As the blockage gets worse, the fuel supply becomes more erratic, leading to increased stalling, especially when accelerating.
• Poor engine performance: A malfunctioning fuel pump can cause the engine to surge, stumble, or hesitate erratically when operating under solid loads or accelerating, especially uphill.
• Rough idle or random misfires: A failing fuel pump can lead to high fuel pressure, resulting in a lean fuel condition and engine misfires. This can also cause poor fuel economy and difficult idling.
• Difficulty shifting gears: A malfunctioning fuel pump can cause sluggish acceleration, making it challenging to accelerate swiftly, especially when riding uphill.

If you suspect a fuel pump failure, it is recommended to check the fuel pressure and visually inspect the fuel pump and its components, such as the filter and lines, for any blockages or damage. Regular maintenance and replacing the fuel filter as per the service interval can help prevent many common fuel pump issues.

Fuel filter issues

Fuel filters are an important component of your Harley-Davidson's fuel system. They are responsible for straining out any contaminants in the fuel before it reaches the engine, ensuring optimal performance. Here are some common issues you may encounter with your fuel filter:

Clogged Fuel Filter

A clogged fuel filter is one of the most common issues you may face. Over time, contaminants in the fuel can build up on the filter element, restricting the flow of fuel to the engine. This can lead to a loss of engine performance and, in some cases, even make your bike unrideable. Harley-Davidson recommends replacing the fuel filter every 25,000 miles to prevent this issue.

Faulty Fuel Pump

The fuel pump plays a crucial role in delivering fuel to the engine. If the pump fails or becomes faulty, it can lead to low fuel pressure, resulting in hard starting or stalling. In some cases, a faulty fuel pump may also cause the engine to run rich due to over-fuelling. It is recommended to test fuel pressure and replace the pump if needed.

Leaking Fuel Lines

The fuel lines inside the tank can develop cracks or pinhole leaks over time, leading to fuel leaks. This can cause a loss of fuel pressure and affect the performance of the fuel pump. It is advisable to inspect and replace the fuel lines if they show any signs of deterioration.

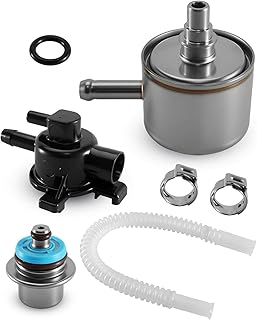

Faulty Fuel Pressure Regulator

The fuel pressure regulator maintains the correct fuel pressure for the engine. If it fails, it can lead to either high or low fuel pressure. Symptoms of a faulty regulator include a rich-running engine, difficulty starting, or stalling. Testing fuel pressure and inspecting the regulator for any signs of failure is recommended.

In-Tank Fuel Line Issues

The in-tank fuel lines can also be a source of problems. They can rub against the tank and develop holes, leading to fuel leaks. Additionally, the factory fuel lines are known to be expensive, so some owners opt for aftermarket fuel injection lines as a more cost-effective solution.

Fuel Filter Replacement Challenges

Replacing the fuel filter on a Harley-Davidson can be a challenging task. It requires removing the fuel tank, disconnecting various components, and accessing the fuel pump assembly. Special tools, such as a fuel tank lock ring tool, may be required to safely remove the fuel tank without damaging it.

Fuel pump regulator problems

Harley-Davidson Fuel Pump Regulator Issues

While Harley-Davidson motorcycles are known for their quality, even iconic brands like Harley aren't immune to fuel pump regulator problems. Owners of Harley-Davidson motorcycles, particularly those with EFI (Electronic Fuel Injection) systems, have occasionally reported issues with fuel pump regulators. Some Harley owners have shared their experiences with fuel pump regulator problems on forums, offering insights into potential issues and solutions.

One Harley owner with a 2001 EFI Road King experienced issues and sought advice on replacing the fuel pressure regulator. It's worth noting that Harley dealerships have been known to misdiagnose issues, so getting a second opinion or verifying the problem through fuel pressure testing is recommended.

Symptoms and Causes of Fuel Pump Regulator Problems

Fuel pump regulators are responsible for maintaining the correct fuel pressure in the engine's fuel system. When they malfunction, it can lead to either low or high fuel pressure, both of which can cause significant issues.

Low Fuel Pressure

Low fuel pressure can be caused by various factors, including issues with the fuel pump, restrictions in fuel lines, faulty check valves, leaks, or indeed, a faulty fuel pressure regulator. Symptoms of low fuel pressure include engine performance issues such as hard starting, rough idling, hesitation, and stalling.

High Fuel Pressure

On the other hand, high fuel pressure can be caused by problems with the check valve or the fuel pressure regulator itself. This can lead to an overly rich fuel mixture, which can result in black smoke from the exhaust, excessive fuel consumption, and potential engine damage.

Other Common Issues

In addition to pressure-related problems, fuel pump regulators can also fail due to internal diaphragm or spring damage. This can be caused by age, wear and tear, or even poor-quality fuel. Additionally, fuel pump regulators may become clogged or gummed up over time, especially if the vehicle has been stored for extended periods without use.

Troubleshooting and Solutions

When faced with fuel pump regulator problems, there are several steps you can take to diagnose and address the issue:

• Fuel Pressure Testing: The first step is to test the fuel pressure. This can be done by attaching a pressure gauge to the fuel rail or fuel tank bung. For Harley-Davidson motorcycles, the fuel pressure should typically be between 55-62 psi.
• Checking for Leaks: If the fuel pressure is low, check for leaks in the fuel lines, hoses, and connections. Pay particular attention to the corrugated hose coming out of the tank, as this has been known to develop pinhole leaks, especially on older models.
• Replacing the Fuel Pump: If the fuel pump is continuously running and failing to build pressure, it may be faulty. Replacing the fuel pump may resolve the issue, as seen in the case of a 2009 Ultra Classic.
• Inspecting the Fuel Filter: A clogged fuel filter can restrict fuel flow and affect pressure. Regularly replacing the fuel filter is essential for maintaining optimal fuel system performance.
• Verifying the Check Valve: A faulty check valve can cause both low and high fuel pressure issues. Ensure the check valve is functioning correctly and replace it if necessary.
• Testing the Fuel Injectors: Issues with fuel injectors can impact fuel delivery and engine performance. Test the fuel injectors and ensure they are receiving power and functioning properly.
• Checking Electrical Connections: Electrical issues can sometimes be the root cause of fuel pump regulator problems. Verify that all electrical connections are secure and undamaged.
• Consulting a Mechanic: If the problem persists or you're unsure about the diagnosis, consult a trusted mechanic or Harley-Davidson specialist. They can perform more advanced diagnostics and provide professional advice.

Preventative Measures

To minimize the chances of fuel pump regulator problems, it's important to maintain your fuel system:

• Regularly replace the fuel filter as per the manufacturer's recommendations.
• Use high-quality fuel and fuel additives to prevent gumming and clogging.
• Inspect fuel lines and hoses for leaks, cracks, or damage, especially if the vehicle has been stored for extended periods.
• Keep the fuel tank adequately filled to prevent air pockets and fuel pump issues.
• Stay up to date with manufacturer recalls and service bulletins related to the fuel system.

Fuel line leaks

A fuel line leak can be a challenging issue to troubleshoot, but it is possible to identify and address the problem. Here is some detailed information and instructions on dealing with fuel line leaks on a 2006 Harley Touring motorcycle:

Identifying the Source of the Leak

Before attempting any repairs, it is crucial to identify the source of the fuel leak. On a 2006 Harley Touring motorcycle, common areas for fuel leaks include:

• Fuel quick connect: The quick-connect fitting at the bottom of the fuel tank is a common source of leaks. This connection point can leak due to damaged or worn O-rings, which may need replacement.
• Fuel pump: The fuel pump, located inside the fuel tank, can develop leaks over time. Leaks may occur at the pump itself or the associated tubing and hoses.
• Fuel regulator: The fuel pressure regulator is responsible for maintaining the correct fuel pressure. Leaks can occur if the regulator fails or becomes clogged, leading to fuel spraying out from the regulator or the system being unable to build sufficient pressure.
• Fuel lines: The fuel lines, particularly the corrugated hose inside the tank, can develop pinhole leaks or cracks over time. Leaks in the fuel lines can lead to fuel spraying out or dripping.
• Fuel tank: The fuel tank itself, especially the connections and O-rings at the bottom, can be a source of leaks. Aged or damaged O-rings may need replacement to seal the tank properly.

Troubleshooting and Repair Steps

Once the source of the fuel leak is identified, you can proceed with targeted troubleshooting and repair steps:

• Fuel quick connect leaks: If the leak is coming from the quick connect fitting, start by inspecting the O-rings. Replace any damaged or worn O-rings with new ones of the correct size. Ensure that the O-rings are properly lubricated and seated before reconnecting the fitting.
• Fuel pump leaks: If the fuel pump is leaking, it may need to be replaced. Drain the fuel tank and disconnect the pump from the tubing and electrical connections. Install a new fuel pump, ensuring all connections are secure.
• Fuel regulator leaks: Leaks from the fuel regulator may indicate a faulty regulator or a clogged fuel filter. Consider replacing the fuel filter first, as a clogged filter can affect fuel pressure and cause regulator issues. If the problem persists, replace the fuel pressure regulator.
• Fuel line leaks: For fuel line leaks, inspect the lines inside and outside the tank for any signs of damage, cracks, or pinhole leaks. Replace any damaged fuel lines with new ones, ensuring secure connections and proper clamping.
• Fuel tank leaks: If the fuel tank itself is leaking, especially at the bottom connections, the O-rings may need replacement. Drain the tank and remove the old O-rings carefully. Install new O-rings of the correct size, lubricate them, and reassemble the tank connections.

Preventative Measures

To minimize the risk of future fuel leaks, consider the following preventative measures:

• Regular maintenance: Perform regular inspections and maintenance of your fuel system, including checking for leaks, replacing worn components, and ensuring proper connections.
• Fuel filter replacement: Replace the fuel filter at recommended intervals or when it becomes clogged. A clogged fuel filter can affect fuel pressure and contribute to leaks.
• Fuel line inspection: Inspect the fuel lines periodically, especially the corrugated hose inside the tank, for any signs of damage or wear. Replace the fuel lines as necessary to prevent leaks.
• O-ring lubrication: Keep the O-rings lubricated to ensure a proper seal. Use a suitable lubricant designed for fuel system components.

By following these instructions and troubleshooting steps, you can effectively address fuel line leaks on your 2006 Harley Touring motorcycle and ensure a safe and reliable riding experience.
