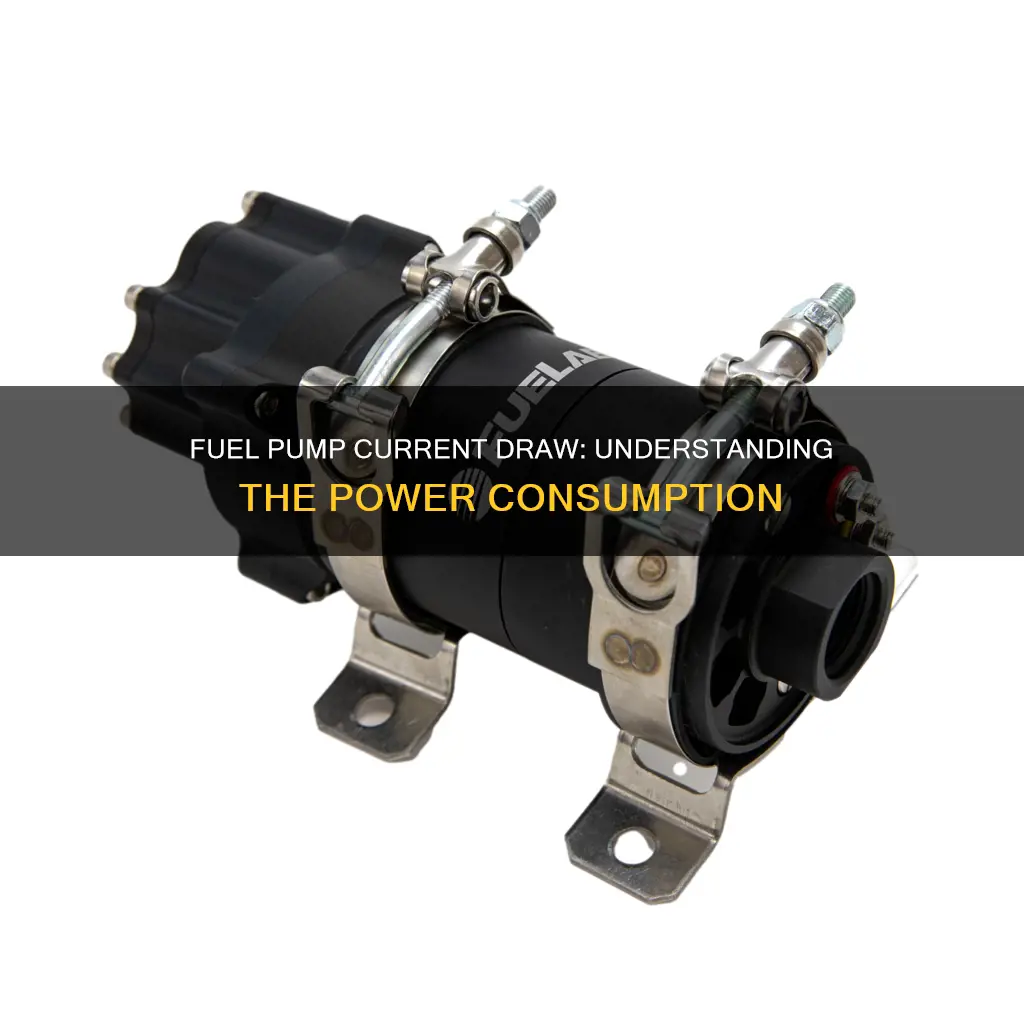

Fuel pumps are integral components of automobiles, and their functionality is critical for optimal vehicle performance. A common question among car enthusiasts and mechanics alike is the amperage drawn by these fuel pumps, which can vary depending on several factors. Understanding the current draw of a fuel pump is essential for diagnosing potential issues and ensuring the pump receives adequate voltage for proper operation. This topic will delve into the intricacies of fuel pump amperage, exploring the factors that influence current draw, the impact of voltage and resistance, and the methods for accurately testing and measuring fuel pump amperage.
| Characteristics | Values |
|---|---|
| Current drawn by fuel pumps | 7 amps (common), 10 amps (common), 11 amps (combined total of two pumps), 5 amps (average for smaller engines), 9.4 amps (peak for smaller engines), 1 amp (max for Facet cube pump), 5 amps (for stalled SU pumps), less than 1 amp (during actual operation of SU pumps) |
| Factors affecting current drawn | Voltage, resistance, fuel flow, pressure, fuel filter, fuel line restriction, type of pump (high-pressure vs. low-pressure) |
| Methods for measuring current | Using a low-amp inductive probe and a digital storage oscilloscope (DSO), measuring voltage drop, using a clamp-on meter, using a test connector or test pin |
Explore related products
What You'll Learn
Fuel pump amperage testing
Step 1: Understanding Amperage and Voltage
Before testing, it is crucial to understand the relationship between amperage and voltage. Amperage, or current, is the rate at which electricity flows through a circuit. Voltage is the force that drives this electrical flow. Ohm's Law states that current (I) is equal to voltage (V) divided by resistance (R), or I = V/R.
Step 2: Prepare the Vehicle
Ensure that the engine and other electrical components are switched off during testing. This is important because running components can affect the voltage available to the fuel pump, influencing its amperage readings.
Step 3: Locate the Fuel Pump Connector
Depending on the vehicle manufacturer, you may find a separate underhood pigtail test connector or a fuel pump test pin in the diagnostic connector. This connector is used to power the fuel pump during testing.
Step 4: Connect a Powered Jumper Lead
Connect a powered jumper lead to the test connector. This provides power to the fuel pump while keeping the engine off. Refer to the vehicle's wiring diagram to ensure correct connectivity.
Step 5: Consider Bypassed Components
When powering the fuel pump externally, you may bypass components like the fuse, relay, or switching components. This can affect current draw, so it's important to understand the vehicle's circuitry.
Step 6: Measure Amperage
Use an ammeter or an amp clamp to measure the amperage. Insert the ammeter in series with the fuel pump load circuit at the fuse block. Alternatively, use an amp clamp on the positive wire of the fuel pump, especially for vehicles with a pulse-width modulated voltage supply.
Step 7: Analyze Results
Compare the measured amperage against the specifications for your fuel pump. If the amperage is above or below the specified range, it indicates a potential malfunction. High pressure and high amperage may suggest a restricted regulator or fuel return line.
Step 8: Voltage Drop Testing
While amperage testing is crucial, it should be complemented by voltage drop testing. Voltage drop tests help identify issues with the voltage supplied to the fuel pump, which can impact its performance.
By following these steps and analyzing the results, you can effectively perform fuel pump amperage testing and identify any potential issues with the fuel pump's performance.
Massive Fuel Capacity of the Iconic 747 Jumbo Jet
You may want to see also
Explore related products
Using a voltage drop test
The current drawn by a fuel pump depends on several factors, including the type of pump, the fuel flow, and the voltage supplied. Fuel pump current can range from around 5 to 11 amps, with some pumps drawing as little as 0.5 amps and others drawing up to 40 amps or more.
Now, to measure the current drawn by a fuel pump using a voltage drop test, you will need a digital multimeter or a digital storage oscilloscope (DSO), and possibly an inductive low-amp probe. Here is a step-by-step guide:
Step 1: Prepare the Vehicle and Multimeter/DSO
- Ensure the engine and other electrical components are turned off to prevent interference with the voltage supply to the fuel pump.
- Put on safety glasses for protection.
- If using a multimeter, set it to the 20-volt DC scale or DC if it has auto-ranging capabilities.
- If using a DSO, adjust the scope settings as follows: set the scope to 100mV per division, and the probe to the 100mV/A scale. Each vertical division equals 1 amp on the DSO screen.
Step 2: Connect the Multimeter/DSO to the Battery
Connect the positive probe of the multimeter/DSO to the positive terminal of the battery.
Step 3: Connect the Multimeter/DSO to the Fuel Pump
With the fuel pump wire harness connected, attach the negative probe to the power feed wire at the fuel pump connector.
Step 4: Turn on the Ignition and Observe Readings
- Turn the ignition to the "on" position. The fuel pump will run for about two seconds or until it gets an RPM signal.
- Observe the multimeter/DSO reading. It should be less than 0.2 volts DC. If it's greater, there may be resistance in the power supply circuit for the fuel pump.
Step 5: Repeat the Test from the Ground Side
- Similar to Step 3, connect the positive probe of the multimeter/DSO to the ground terminal of the fuel pump connector, with the fuel pump wire harness connected.
- Again, turn the ignition to the "on" position and observe the readings.
Step 6: Analyze the Results
If the voltage drop is larger than 0.5V DC, it indicates a problem, possibly with the vehicle wiring or harness connectors.
Note: If you are using a DSO and an inductive low-amp probe, the procedure is similar. The probe converts the current signal into a voltage signal that the DSO can interpret. The DSO will display the fuel pump waveform, which you can analyze to assess the health of the fuel pump.
Earning Eligibility for Fuel Allowance
You may want to see also
Explore related products
Using an inductive low-amp probe
The current drawn by a fuel pump depends on various factors, including the type of fuel pump, the presence of additional components, and the pressure of the pump. For instance, high-pressure pumps in port fuel injection (PFI) systems (35 to 45 psi) require more current than low-pressure pumps in throttle body injection (TBI) applications (9 to 13 psi). A TBI pump may draw as low as 3 to 5 amps, while a PFI pump may pull 4 to 6 amps on average.
To accurately measure the current drawn by a fuel pump, it is essential to use appropriate tools and methods. One effective method is to use an inductive low-amp probe along with a digital storage oscilloscope (DSO). Here is a step-by-step guide on using an inductive low-amp probe to measure the current drawn by a fuel pump:
Step 1: Understand the Basics
Inductive amp probes come in various shapes and sizes and can handle a full range of currents, both AC and DC. A low-amp inductive probe is specifically designed to measure relatively low current flow, typically below 10 amps, in a fuel pump circuit. The probe converts the signal into a format that can be interpreted by the voltage-reading DSO. It is important to note that most low-amp probes have two settings: 10mV/A and 100mV/A, which affect how the fuel pump waveform is displayed on the DSO screen.
Step 2: Prepare the DSO and Probe
Set the DSO to a voltage scale of 100mV per division. This means that each vertical division on the screen represents 100 millivolts, which corresponds to 1 amp of current. Additionally, set the time base on the DSO to either 1 or 2 milliseconds (ms) per division. A time base of 1ms/division allows for a more detailed analysis of the waveform, while a setting of 2ms/division facilitates easier calculation of the rotational speed of the fuel pump.
Step 3: Adjust the Probe Settings
The inductive low-amp probe typically has two settings: 10mV/A and 100mV/A. If the probe is set to 10mV/A, each 10mV displayed on the DSO represents 1 amp of current. On the other hand, if the probe is set to 100mV/A, each 100mV displayed corresponds to 1 amp. Ensure that the probe's setting matches the desired measurement scale on the DSO.
Step 4: Position the Probe
Use the inductive probe's ZERO dial to adjust the waveform to the 0-volt (ground) position on the DSO. This ensures that the measurement starts from a reference point. Then, clamp the probe around the fuel pump wiring. The amp probe clamp can be placed at any point in the fuel pump circuit, as long as it is in series between the voltage supply and the ground for the load. Ensure that there are no additional components, such as a transfer pump, wired in parallel to the main pump, as they may impact the test results.
Step 5: Test Conditions
It is crucial to perform the test when the engine and other electrical components are not running. This is because they can affect the available voltage to the pump, influencing its amperage readings. Additionally, always refer to the wiring diagram before conducting the test to understand the circuit and any potential bypassing of components.
By following these steps and analyzing the waveform displayed on the DSO, you can effectively use an inductive low-amp probe to measure the current drawn by a fuel pump and assess its health.
Jet Fuel's Carbon Footprint: CO2 Emissions Per Gallon
You may want to see also
Explore related products
Determining circuit integrity
To perform a voltage drop test, one must first address the negative side of the circuit, then the positive side. Digital voltmeter test leads are connected to the negative battery terminal and the negative terminal at the fuel pump. The fuel pump circuit must be energized, and the relay energized to power the circuit. Typically, fuel pumps run for just a few seconds until an RPM signal is generated. If the negative circuit is functioning properly, the voltage drop measured should be 0.5V DC or less; larger readings indicate an issue.
Another method for determining circuit integrity is through current testing. A Fuel Pump Current Draw test should be conducted when there are performance issues related to a lack of fuel delivery. This test can be done by inserting an ammeter in series with the fuel pump load circuit at the fuse block and measuring current while the pump operates. Alternatively, an amp clamp can be used on the positive wire of the fuel pump, which is suitable for vehicles with a pulse-width modulated voltage supply. An amperage level deviating from the specification indicates a malfunction.
Additionally, inductive amp probes can be used to measure the low current flow in a fuel pump circuit, usually below 10 amps. The probe converts the signal into one that can be interpreted by the voltage-reading DSO. The DSO interprets the signal as volts, but it actually represents amps. Low-amp probes typically have two settings: 10mV/A and 100mV/A, which influence how the fuel pump waveform is displayed. For instance, with the probe set to 10mV/A, each 10mV displayed on the DSO corresponds to 1 amp of current.
The amp probe clamp can be placed anywhere in the fuel pump circuit, provided it is in series between the voltage supply and the ground for the load. It can be clamped to a pump wire or the pump's power wire at various access points. It is important to ensure that no additional components are wired in parallel to the main pump, as this will impact test results. The engine and other electrical components should be turned off during testing to avoid affecting voltage and amperage readings.
In the case of mechanical returnless or return systems, the fuel pump operates at full speed whenever it is on, and the pressure regulator ensures fuel pressure matches demand. Consequently, significant changes in pump current are typically only observed during cranking or very heavy loads.
Airplane Fuel Costs: Who Pays the Price?
You may want to see also
Explore related products
The effect of mechanical resistance
The current drawn by a fuel pump is influenced by various factors, including voltage, resistance, and mechanical factors. Mechanical resistance inside the pump can lead to higher-than-normal average pump current. This can be caused by a clogged fuel filter or fuel line restriction, resulting in increased pump current.
Mechanical resistance can impact the current draw of a fuel pump in several ways. Firstly, it can lead to increased current draw as the pump has to work harder to overcome the resistance. This can be caused by physical obstructions such as a clogged fuel filter or restrictions in the fuel line. Additionally, mechanical resistance can cause fluctuations in the current draw. As the pump encounters resistance, the current draw may vary, resulting in unstable power delivery.
Another factor affecting current draw is the condition of the pump itself. A pump with worn or damaged components may experience higher mechanical resistance, requiring more current to operate effectively. This can be caused by factors such as corrosion, which can increase resistance in the circuit. Additionally, mechanical resistance can be influenced by the design and efficiency of the pump. A pump with poor design or low efficiency may experience higher mechanical resistance, leading to increased current draw.
Furthermore, mechanical resistance can impact the overall performance of the fuel pump. A pump with high mechanical resistance may struggle to deliver the required fuel flow rate, affecting engine performance. This can lead to issues such as reduced acceleration and fuel starvation, especially when higher fuel volumes are demanded by the vehicle.
To diagnose and address issues related to mechanical resistance, it is essential to perform voltage drop tests and current draw measurements. By analysing the current waveform and rotational speed of the fuel pump, technicians can identify potential issues with mechanical resistance. Additionally, visual inspections and testing of individual components, such as connectors and wires, can help identify signs of excessive resistance, such as discoloured or melted connectors.
E85 Fuel: Alcohol Content and Performance
You may want to see also
Frequently asked questions
The current drawn by a fuel pump depends on various factors, including the type of pump, the vehicle, and the operating conditions. Most fuel pumps draw around 5 to 10 amps, but this can vary.
The current drawn by a fuel pump can be influenced by several factors, including the pump's voltage, resistance in the circuit, and mechanical resistance inside the pump. Poor contact between brushes and commutator segments, a clogged fuel filter, or fuel line restriction can also increase pump current.
You can test the current draw of a fuel pump using a voltage drop test, an inductive low-amp probe, or a digital storage oscilloscope (DSO). It is important to ensure that the engine and other electrical components are not running during the test to obtain accurate readings.
A current draw of 7 amps for a fuel pump is within a normal range and is not considered excessive. This value can vary depending on the specific vehicle and pump configuration.
Yes, different types of fuel pumps have different current draws. For example, high-pressure pumps in port fuel injection (PFI) systems require more current (35-45 psi) compared to low-pressure pumps in throttle body injection (TBI) applications (9-13 psi). Additionally, electronic fuel pumps, such as the Facet cube pump, typically draw a maximum of 1 amp.
