Sylvie Willis

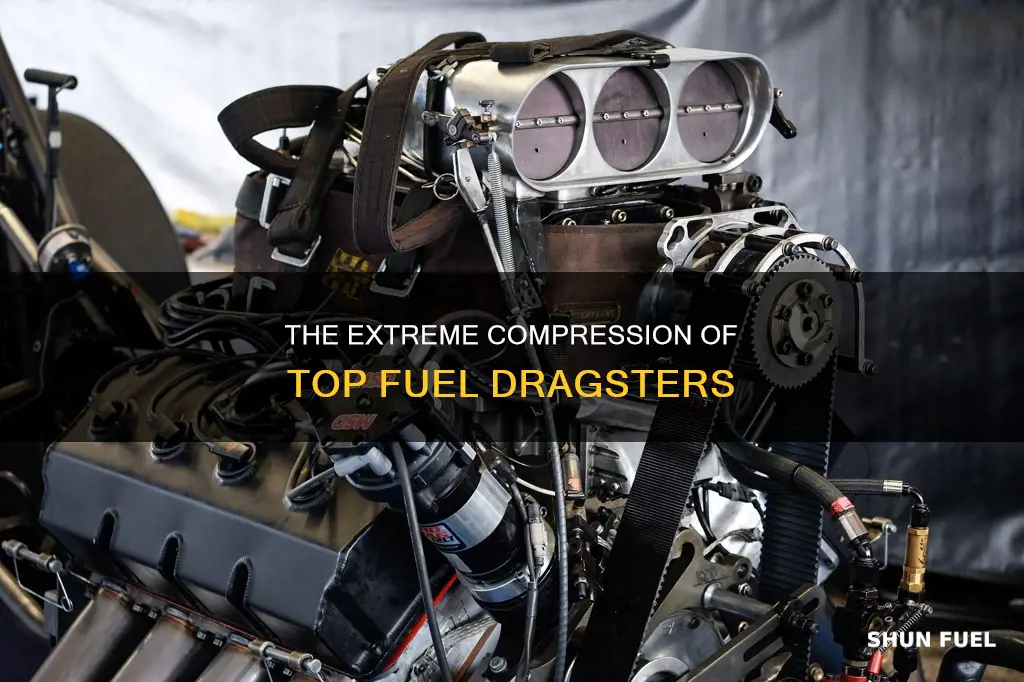

Top Fuel dragsters are the quickest accelerating racing cars in the world, with the fastest competitors reaching speeds of up to 341.58 mph. They are powered by nitromethane, which contains its own oxygen, requiring less atmospheric oxygen compared to gasoline. This fuel is compressed into a near-solid form before ignition, and the engines run on the verge of hydrolock. The compression ratio is one of the factors that force teams to tune these engines cylinder by cylinder.
Explore related products
What You'll Learn
- The fuel used in Top Fuel dragsters is 90% nitromethane, with the remaining 10% being mostly methanol
- Nitromethane contains its own oxygen, requiring less atmospheric oxygen to burn than gasoline
- The air-fuel mixture is compressed into a near-solid form before ignition
- Cylinders run on the verge of hydraulic lock at full throttle
- Top Fuel engines cannot be run at maximum power output for more than 10 seconds without the risk of overheating or exploding
The fuel used in Top Fuel dragsters is 90% nitromethane, with the remaining 10% being mostly methanol
Top Fuel dragsters are the fastest accelerating manned vehicles on Earth, with engines that exceed 11,000 horsepower. They run on a highly specialised racing fuel, which is 90% nitromethane and 10% methanol, with other additives. This mixture has been the standard since 2008, following a brief period between 2004 and 2008 when the nitromethane ratio was reduced to 85% after a fatal crash.
Nitromethane, or nitro, has several advantages over gasoline. Firstly, it contains its own oxygen, meaning less atmospheric oxygen is required for combustion. Chemically, 14.7kg of air is needed to burn 1kg of gas, but only 1.7kg of air is needed to burn 1kg of nitro. This also means that the more nitro used, the more oxygen can be replaced with fuel, allowing the engine to run richer.
Nitro also has a high latent heat of vaporization, meaning it absorbs substantial engine heat as it vaporizes, providing an invaluable cooling mechanism. Additionally, the power output can be increased by using very rich air-fuel mixtures, which also helps prevent pre-ignition, a common problem with nitromethane.
However, nitromethane has a lower energy density than gasoline or methanol, and it produces less energy per kilo. This is offset by the ability to burn more of it at a time, resulting in approximately 2.3 times the power of gasoline. Mixing in methanol also allows for the use of spark plugs to control ignition timing, rather than relying on compression.
The use of nitromethane fuel in Top Fuel dragsters requires careful management of the engine's compression ratio. The air-fuel mixture is compressed into a solid by the time the piston comes up, and if it is not ignited, it can cause massive explosions. This is why Top Fuel engines run on the verge of hydrolock, and the engines cannot be run at maximum power output for more than 10 seconds without risking overheating or explosive destruction.
Fuel Wheels: How Much Do They Cost?
You may want to see also
Explore related products
Nitromethane contains its own oxygen, requiring less atmospheric oxygen to burn than gasoline
Top Fuel dragsters are the pinnacle of drag racing, with engines that can make 11,000 horsepower, or 1,375 horsepower per cylinder. They burn around 15 gallons of fuel in a single run and require a rebuild after just 500 revolutions.
Nitromethane, or "nitro", is the fuel used in Top Fuel dragsters. It is an organic compound with the chemical formula CH3NO2. Nitro carries its own oxygen supply within its molecular structure, meaning it requires less atmospheric oxygen to burn than gasoline.
The stoichiometric air/fuel ratio for gasoline is 14.7:1, meaning 14.7 pounds of air are needed to burn 1 pound of gas. With 100% nitro, the ratio is 1.7:1, so 1.7kg of air is required to burn 1kg of nitro. This means that 8.6-8.7 times more nitromethane than gasoline can be burned during one combustion cycle.
Nitro engines run on a lower compression ratio than gas engines because the fuel's exceptional combustion properties provide the required cylinder pressures without heavy mechanical compression. However, nitro has a lower specific energy than gasoline, providing only 11.3 MJ/kg compared to 42-44 MJ/kg for gasoline. This means that nitro generates about 2.3 times the power of gasoline when combined with a given amount of oxygen.
Using Too Much Tecron Fuel System Cleaner: Good or Bad?
You may want to see also
Explore related products
The air-fuel mixture is compressed into a near-solid form before ignition
Top Fuel dragsters are the quickest-accelerating racing cars in the world, reaching speeds of over 300 miles per hour in just 4.5 seconds. They are powered by engines that produce upwards of 10,000 horsepower, with each cylinder generating an astonishing 1,375 horsepower.
To achieve such extreme performance, Top Fuel engines push the limits of physics. They run on nitromethane (also known as nitro), which contains its own oxygen, requiring less atmospheric oxygen for combustion compared to gasoline. This allows for a higher compression ratio, with the air-fuel mixture being compressed into a near-solid form before ignition.
The process begins with 3000 CFM of air being forced into the engine by a supercharger on overdrive. This high-pressure air contributes to the extreme compression of the air-fuel mixture. The compression ratio is so high that the cylinders run on the verge of hydraulic lock, also known as hydrolock, at full throttle. This means that the piston compresses the air-fuel mixture to the point where it becomes almost solid, like a hydraulic fluid.
The high compression ratio has significant implications for the engine's operation. Firstly, it results in an extremely high flame front temperature of 7050 degrees Fahrenheit at the stoichiometric 1.7:1 air-fuel mixture for nitromethane. Secondly, it increases the risk of massive explosions if the mixture is not ignited properly. This is because the highly compressed mixture can ignite spontaneously, resulting in uncontrolled combustion.
To manage these risks, Top Fuel engines require precise tuning and safety measures. Engine builders and crew chiefs work tirelessly to optimise the engine's performance and ensure its reliability under extreme conditions. Additionally, safety equipment such as fire-resistant suits, on-board fire extinguishers, and externally accessible fuel and ignition shut-offs are mandatory to protect both the driver and the crew in the event of an explosion or other mishap.
Fossil Fuels: Major Carbon Emitters?
You may want to see also
Explore related products
Cylinders run on the verge of hydraulic lock at full throttle
Top Fuel engines run on the verge of hydrolock. The air-fuel mixture is compressed into a solid by the time the piston comes up. That's why if the spark momentarily fails early in a run, unburned fuel builds up in the affected cylinders and then explodes with sufficient force to blow cylinder heads off the block in pieces.
A hydrolocked engine is one that has too much fluid in its cylinders, causing the pistons and other parts to seize immediately. This typically happens when water enters the engine through the air intake or filter, such as during floods or when driving through deep water. However, other fluids like oil and coolant can also cause hydrolocking if they enter the cylinders through a cracked engine block or a worn-out head gasket.
In the context of a Top Fuel dragster, the term "hydrolock" refers specifically to the compression of the air-fuel mixture into a solid due to the extreme pressures and temperatures in the engine. This solid mass of fuel has the potential to explode if not ignited properly, which can result in significant damage to the engine.
To prevent hydrolocking, Top Fuel engine builders, crew chiefs, and teams must carefully tune each cylinder to ensure they are all producing the same amount of power. This process, known as compression balancing, involves adjusting the compression ratio, fuel curve, and timing of each cylinder individually. Additionally, these engines use nitromethane (nitro) as fuel, which contains its own oxygen, reducing the amount of atmospheric oxygen required for combustion. This allows for a higher compression ratio and more power to be extracted from the engine.
The extreme nature of Top Fuel drag racing pushes the engines to their limits, resulting in components that may only last for a few runs before requiring replacement. This constant state of refinement and the pursuit of maximum performance showcase the dedication and expertise of the teams behind these incredible machines.
Hydrogen Fuel Cell Cars: Costly Clean Energy Transportation
You may want to see also
Explore related products
Top Fuel engines cannot be run at maximum power output for more than 10 seconds without the risk of overheating or exploding
Top Fuel engines are incredibly powerful, with calculated power outputs of between 8,500 and 11,000 horsepower. This is achieved through the use of nitromethane (nitro) fuel, which contains its own oxygen, requiring less atmospheric oxygen compared to gasoline. This allows the engine to burn more fuel at a time, resulting in significantly higher power output.
However, this extreme power output comes at a cost. The engines operate at extremely high RPMs and boost levels, placing immense stress on the internal components. As a result, Top Fuel engines cannot be run at maximum power output for more than 10 seconds without risking overheating or exploding. The engines are pushed to the limits of physics, with the air-fuel mixture compressed into a solid before ignition, causing massive explosions if not ignited properly.
The intense conditions within the engine lead to rapid component wear and failure. Pistons, for example, can be significantly deformed by the extreme forces. Additionally, spark plugs are completely consumed during a pass, and the engine can only be shut down by cutting the fuel flow. The extreme temperatures and pressures within the engine also contribute to the risk of overheating and explosion if operated at maximum power output for extended periods.
To manage these risks, the engines undergo meticulous preparation and maintenance. Before each race, the mechanical crew fine-tunes the engine, adjusting fuel levels and cylinder compression ratios to ensure optimal performance. After each run, the entire engine is disassembled, examined, and worn or damaged components are replaced. This meticulous attention to detail is critical to ensuring the engine's performance and safety, highlighting the dedication and expertise of the crew chiefs and teams.
Airplane Fuel Cost: Gallon Pricing Explored
You may want to see also
Frequently asked questions
A lot. The fuel mixture is compressed into a near-solid form before ignition. Cylinders run on the verge of hydraulic lock at full throttle.
The engines in top fuel dragsters can make over 10,000 horsepower, or 1,375 horsepower per cylinder.
Top fuel dragsters are the quickest-accelerating racing cars in the world, with the fastest competitors reaching speeds of over 330 miles per hour.
Top fuel dragsters use nitromethane (aka nitro) as fuel. Nitro contains its own oxygen, so less atmospheric oxygen is needed compared to gasoline.
A top fuel engine can only be run at its maximum power output for up to 10 seconds before it overheats or explodes. From start to finish, the engine will turn 240 revolutions.
