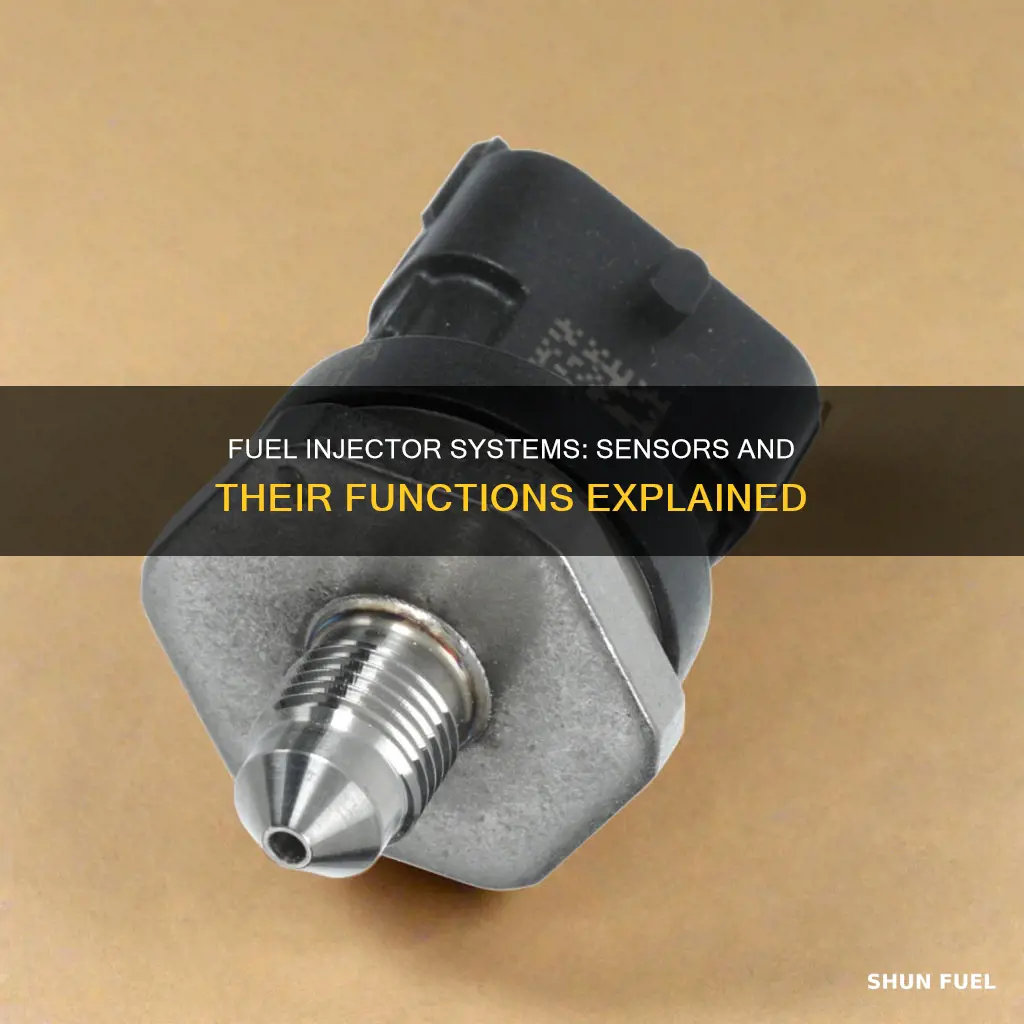

Fuel Injector Systems: Sensors And Their Functions Explained

how many sensors are iin a fuel injector system

Fuel injector systems are equipped with a variety of sensors that monitor and control the engine's performance. These sensors provide data on a range of factors, including air intake, throttle position, engine speed, fuel pressure, and temperature. The engine control unit (ECU) uses this data to adjust the amount of fuel supplied to the engine, ensuring optimal performance and fuel efficiency. The number of sensors can vary depending on the vehicle and engine type, but typically, multiple sensors are employed to gather accurate and comprehensive information for the ECU to process.

Characteristics Values
Number of Sensors A lot
Sensor Types Mass Airflow Sensor, Oxygen Sensor, Throttle Position Sensor, Engine Speed Sensor, Fuel Rail Pressure Sensor, MAP Sensor, ECT Sensor, Injection Control Pressure Sensor, Needle Lift Sensor, Photo (Optical) Sensor, Piezoresistive Pressure Transmitter
Sensor Functions Monitor mass of air entering the engine, monitor amount of oxygen in the exhaust, monitor throttle valve position, monitor engine speed, monitor fuel pressure, measure power load placed on the engine, determine the impact of ambient temperature on the engine, monitor pressure levels of the fuel in the rail feeding the injectors, measure injection and combustion characteristics

shunfuel

Mass airflow sensors

Fuel injector systems are equipped with a variety of sensors that work together to ensure the optimal performance of the engine. One of the key sensors in this system is the mass airflow sensor (MAF). The MAF sensor measures the mass of air entering the engine, which is crucial information for the engine control unit (ECU) to determine the correct amount of fuel to inject. The ECU uses a formula and lookup tables to calculate the pulse width, or the amount of time the fuel injector stays open, based on factors such as engine speed and load.

There are two common types of mass airflow sensors used in automotive engines: the vane meter and the hot wire. The vane meter measures the momentum of the airflow into the engine using a spring-loaded air vane attached to a variable resistor. The vane moves in proportion to the momentum of the airflow, and the resistance on the potentiometer varies with the movement of the vane. This, in turn, regulates the amount of fuel injected.

The hot wire mass airflow sensor, on the other hand, operates by heating a wire in the engine's airstream and measuring the electrical resistance as the wire's temperature increases. As more air passes through the sensor, more current is needed to keep the wire hot. This type of sensor is well-suited to gasoline engines as it responds directly to air density, which is crucial for the combustion process.

In addition to the standard vane meter and hot wire sensors, some MAF sensors also include a humidity sensor. This additional sensor helps the ECU calculate the density of the air, allowing for even more precise fuel delivery. Furthermore, an emerging technology in mass airflow sensors utilizes a thin electronic membrane with temperature sensors on both the upstream and downstream sides. The difference in temperature between the two sides of the membrane indicates the mass airflow.

A properly functioning MAF sensor is essential for optimal engine performance. A faulty sensor can lead to decreased fuel economy, starting troubles, stalling, rough idling, and jerking during acceleration. Replacing a bad MAF sensor can help stabilize the engine's air-fuel mixture and improve the overall performance of the vehicle.

shunfuel

Oxygen sensors

The oxygen sensor generates a voltage signal that corresponds to the quantity of oxygen in the exhaust relative to the atmosphere. A low voltage signal (around 0.2-0.3 V) indicates a lean mixture, where there is a high oxygen content and a low amount of unburned fuel. In this case, the ECU increases the duration of the injector pulses and adds more fuel to the mixture. On the other hand, a high voltage signal (around 0.8-0.9 V) indicates a rich mixture, with a high amount of unburned fuel and low oxygen content. The ECU then shortens the duration of the fuel injector pulses to reduce the amount of fuel delivered.

The oxygen sensor's placement in the exhaust stream means that it does not directly measure the air or fuel entering the engine. However, when combined with information from other sensors, such as the mass airflow sensor and the throttle position sensor, it can be used to indirectly determine the air-fuel ratio accurately. This closed-loop feedback-controlled fuel injection system allows for precise adjustments to the fuel injector output based on real-time sensor data.

shunfuel

Throttle position sensors

A fuel injection system in an automobile is supplied with pressurised fuel by the fuel pump. The amount of fuel supplied to the engine is determined by the duration for which the fuel injector remains open, known as the pulse width. This pulse width is controlled by the engine control unit (ECU). The ECU uses a formula and a large number of lookup tables to determine the pulse width for given operating conditions.

The throttle position sensor (TPS) is a critical component of the engine's fuel management system. It measures the position of the throttle valve and provides this information to the ECU, which then uses it to calculate the correct fuel injection and ignition timing for the engine. The throttle position sensor works by measuring the angle of the throttle plate or lever and transmitting this data to the ECU.

There are two main types of TPS: potentiometer-based and Hall effect-based. The former consists of a variable resistor connected to the throttle shaft. As the throttle opens, the resistance across the potentiometer changes, providing a voltage signal to the ECU. The latter employs a magnetic field to detect the position of the throttle. A small magnet is mounted on the throttle shaft, and as the shaft rotates, it passes over a Hall effect sensor, generating a voltage signal.

Regular maintenance of the throttle position sensor is essential for optimal performance. It is advisable to periodically check the TPS and clean it if necessary. Proper installation is crucial, as improper installation can lead to sensor malfunction or premature failure. It is also important to use high-quality parts when replacing the TPS.

A malfunctioning TPS can cause erratic engine behaviour, such as erratic idling, hesitation during acceleration, and poor fuel economy due to improper fuel injection. It may also trigger the check engine light to illuminate.

shunfuel

Engine speed sensors

Fuel injector systems are equipped with a variety of sensors to ensure the engine receives the correct amount of fuel and functions as it should. One of these sensors is the engine speed sensor, which plays a crucial role in monitoring engine speed and calculating the pulse width.

The engine speed sensor, also known as an RPM sensor, is responsible for measuring the rotational speed of the engine's crankshaft or camshaft. This information is vital for the engine control unit (ECU) to determine the appropriate fuel injection timing and amount of fuel to be injected. The sensor generates a signal that varies in frequency or pulse width, which is then interpreted by the ECU.

By monitoring the engine speed, the sensor helps the ECU calculate the pulse width, which is the duration for which the fuel injector remains open. This calculation involves using lookup tables and equations that take into account multiple factors, including engine speed and load. The pulse width determines the amount of fuel supplied to the engine, ensuring that the air-fuel mixture is optimal for efficient combustion.

In multi-port fuel injection systems, the engine speed sensor's data is used to synchronise the opening of the fuel injectors. The system can either open all the injectors simultaneously or employ sequential fuel injection, where each injector opens just before the intake valve of its cylinder. Sequential fuel injection offers quicker response times to sudden changes, as it only needs to wait until the next intake valve opens instead of a complete revolution of the engine.

Additionally, the engine speed sensor's data is utilised by the Engine Control Module (ECM) or Powertrain Control Module (PCM) to adjust fuel injection timing and duration. This information is crucial for the overall performance and efficiency of the engine, ensuring that the fuel injectors open and close at the right moments to deliver the precise amount of fuel needed.

shunfuel

Fuel rail pressure sensors

The fuel rail pressure sensor is an electronic device that measures the force applied by the fuel passing through it. It consists of a semiconductor and an electric circuit. As the fuel pressure changes, so does the semiconductor's resistance, and this information is converted into a digital signal for the PCM (Powertrain Control Module) or ECM (Engine Control Module). The PCM or ECM then adjusts the fuel rail pressure, fuel injection timing, and duration accordingly.

In some vehicles, a second sensor is used to measure the pressure from the fuel tank to a high-pressure fuel pump at the engine. This additional data is used to regulate the fuel pump speed. Common rail fuel injection systems, found in most modern diesel-powered vehicles and trucks, employ a long tubular rail to maintain high fuel pressure that is then delivered to the individual fuel injectors.

It is important to note that a faulty fuel rail pressure sensor can cause significant issues. Symptoms of a failing sensor include an illuminated check engine light, engine start problems, rough and surging idle, severe loss of power, and misfiring under load. If you suspect a faulty sensor, it is recommended to seek professional assistance as fuel released from common rail fuel injection systems can be dangerous and even fatal.

Overall, the fuel rail pressure sensor plays a critical role in the fuel injector system by ensuring the engine receives the correct amount of fuel, and its malfunction can lead to adverse effects on vehicle performance and safety.

Frequently asked questions

There are many sensors in a fuel injector system. These include:

- Mass airflow sensor

- Oxygen sensor

- Throttle position sensor

- Engine speed sensor

- Fuel pressure sensor

A mass airflow (MAF) sensor measures the amount of air entering the engine. This is important because the engine needs to maintain the right ratio of fuel to air, and the amount of air in the engine changes depending on altitude and temperature.

An oxygen sensor monitors the amount of oxygen in the exhaust so that adjustments can be made to the fuel mixture.

Throttle position sensors provide data about how a car is being driven and the power demands being placed on the engine. This helps the vehicle idle smoothly and accelerate on demand.

Engine speed sensors monitor the engine speed, which is used to calculate the pulse width.

A fuel pressure sensor measures the pressure in the fuel rail leading to the fuel injectors. This information is used to adjust fuel injection timing and duration.
