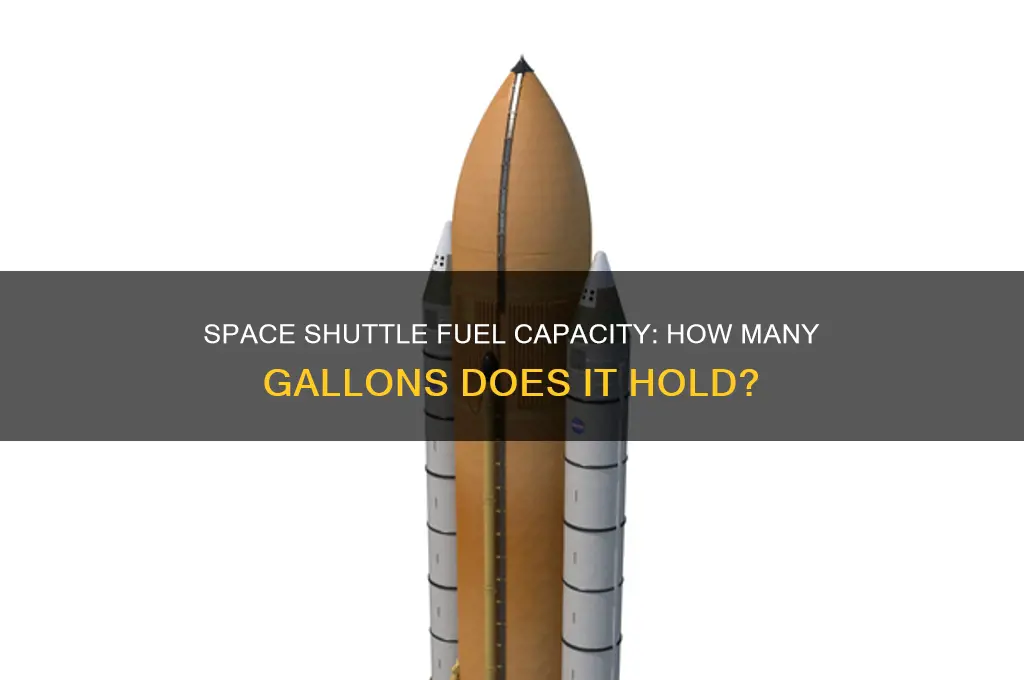

The space shuttle, a marvel of modern engineering, required an immense amount of fuel to propel it into orbit. One of the most fascinating aspects of this iconic spacecraft is its fuel capacity, which played a critical role in its mission success. To answer the question of how many gallons of fuel a space shuttle can hold, it's essential to consider the two primary fuel sources: liquid hydrogen and liquid oxygen, which were stored in the external tank. The space shuttle's external tank had a capacity of approximately 535,000 gallons of liquid oxygen and 143,000 gallons of liquid hydrogen, totaling an astonishing 678,000 gallons of fuel. This massive fuel reserve was necessary to generate the thrust required to lift the shuttle off the ground and into space, highlighting the incredible scale and complexity of space exploration.
Explore related products
What You'll Learn
Fuel Capacity of the External Tank
The Space Shuttle's External Tank (ET) was a marvel of engineering, designed to carry the massive amount of fuel required to propel the orbiter into space. This tank, the largest component of the shuttle system, held 535,000 gallons of liquid oxygen and 143,000 gallons of liquid hydrogen, totaling 678,000 gallons of cryogenic propellants. These fuels were essential for the shuttle's main engines during the first eight minutes of ascent, providing the thrust needed to escape Earth's gravity.
To put this capacity into perspective, consider that the ET's fuel volume is equivalent to roughly 20 railroad tank cars or 10 backyard swimming pools. The tank's size was dictated by the energy demands of space travel, where every pound of payload required an exponential amount of fuel. The ET's design was a delicate balance between structural integrity and weight efficiency, as it had to withstand extreme forces during launch while remaining as light as possible.
One critical aspect of the ET's fuel capacity was its insulation system. The tank was covered in a layer of spray-on foam insulation to prevent the cryogenic fuels from boiling off and to protect the structure from aerodynamic heating during ascent. This insulation was crucial, as even a small breach could lead to catastrophic failure, as seen in the Columbia disaster. Engineers had to ensure the foam was applied uniformly and could withstand the vibrations and stresses of launch.
Comparatively, the ET's fuel capacity dwarfs that of commercial aircraft. For instance, a Boeing 747 holds approximately 57,285 gallons of jet fuel, less than 10% of the ET's capacity. This disparity highlights the extraordinary demands of space travel, where fuel must not only lift a vehicle but also achieve orbital velocity. The ET's design underscores the principle that in rocketry, fuel is not just a resource—it is the foundation of possibility.
In practical terms, the ET's fuel capacity dictated the shuttle's payload and mission profile. Each additional pound of cargo required more fuel, reducing the total weight the shuttle could carry into orbit. Mission planners had to carefully balance fuel consumption with payload requirements, often optimizing trajectories and engine burn times to maximize efficiency. The ET's role was temporary but vital: after fuel depletion, it separated from the orbiter and reentered the atmosphere, breaking apart over the ocean. This single-use design, while costly, ensured the shuttle's safety and performance.
