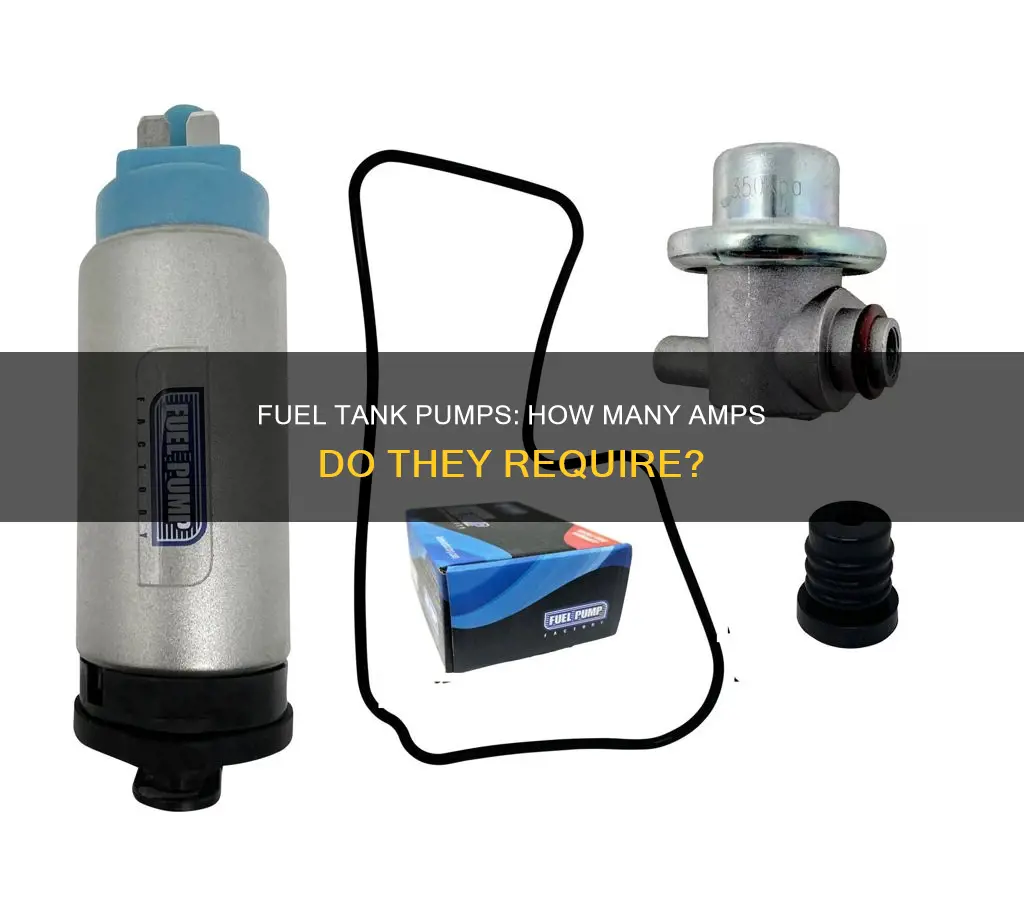

The number of amps a fuel tank pump draws depends on the vehicle and the type of fuel pump. For example, a Honda Passport fuel pump draws 9.4A at peak performance and 5A on average, while a common rail diesel pump draws 7A. Fuel pump current draw also depends on fuel pressure; as a rule of thumb, for every 10 pounds of fuel pressure, the current draw increases by 1 amp. Therefore, it is essential to know the specifications of your vehicle's fuel pump and electrical system to determine the appropriate amperage.
Fuel Tank Pump Characteristics and Values
| Characteristics | Values |
|---|---|
| Fuel pump current draw | 2 amps, 5 amps, 7 amps, 9.4 amps (peak), 5 amps (average), 600 mAh, 11 amps |
| Fuel pump current draw increase | 1 amp for every 10 pounds of fuel pressure |
| Fuel pump current draw malfunction indication | Amperage level above or below specification |
| Fuel pump relay wire colour | Red, yellow |
Explore related products
What You'll Learn
Fuel pump amperage varies with vehicle type
Fuel pump amperage varies depending on the vehicle type, with factors such as fuel pressure, pump size, and engine size influencing the current draw.
For example, on port fuel-equipped vehicles, the fuel pump current draw increases by 1 amp for every 10 pounds of fuel pressure. Thus, a higher fuel pressure will result in a higher amperage draw.
The size of the pump can also impact the amperage. Smaller pumps, such as those found in EFI motorbikes, are designed for lower current consumption, typically drawing around 2 amps. Conversely, larger pumps, like those in trucks, can draw more current, with some Ford trucks drawing around 7 amps, which is still within a normal range.
Additionally, the engine size plays a role in determining the amperage draw of the fuel pump. A Honda Passport with a smaller engine has a peak amperage draw of 9.4 amps, while a 5.4L engine can result in a draw of around 7 amps, as seen in some Ford trucks.
It is worth noting that fuel pumps with multiple speeds connected to a computer-controlled module can exhibit good voltage drops, allowing for efficient control of pump speed.
In summary, the amperage draw of a fuel pump is dependent on various factors, including fuel pressure, pump size, and engine size, and understanding these variables is crucial for optimizing fuel pump performance and diagnosing potential malfunctions.
Dropping Fuel Tank on Saturn Ion: Step-by-Step Guide
You may want to see also
Explore related products
Fuel pump current draw and malfunctions
Firstly, it is important to understand the relationship between fuel pump current draw and fuel pressure. On port fuel-equipped vehicles, for every 10 pounds of fuel pressure, the fuel pump current draw typically increases by 1 amp. Therefore, if the pressure is low and the amperage is above the specified range, it could indicate a malfunction. Additionally, high system pressures will generally lead to higher current draw, so it is crucial to test different fuel pumps to understand normal values.
Voltage drop testing is a valuable technique for diagnosing fuel pump issues. This method involves comparing the battery or charging voltage to the voltage at the component. Voltage drops occur due to resistance in the circuit, which can be caused by factors such as corrosion, fretting, or even air. While some voltage drops are acceptable, significant drops can lead to fuel starvation, especially when the vehicle requires more volume during acceleration.
Electrical faults are a significant contributor to fuel pump failures. Corroded connectors, loose terminals, or damaged wiring can disrupt the consistent electrical current required for proper fuel pump operation. These issues can lead to symptoms such as engine stalling or difficulty starting the vehicle. Additionally, worn-out brushes and commutators within the fuel pump can result in intermittent glitches and affect the flow and pressure of the fuel pump over time.
Fuel contamination is another leading cause of fuel pump failure. When fuel filters become clogged, impurities such as dirt, water, or rust can pass through and reach the pump, restricting fuel flow. This forces the pump to operate under higher strain, leading to premature wear and eventual failure.
To ensure reliable fuel pump operation, it is crucial to maintain the fuel system regularly. This includes cleaning the fuel tank, replacing fuel filters, and using high-quality fuel system components designed for durability and reliability. By understanding the factors that affect fuel pump current draw and addressing potential issues promptly, vehicle owners can help prevent malfunctions and ensure optimal fuel pump performance.
Gravity Fed Fuel Tank: Installation Guide
You may want to see also
Explore related products
Fuel pump polarity and electrical symptoms
Fuel pumps are of two main types: mechanical and electric. Mechanical fuel pumps were more prevalent in older automobiles, but they are susceptible to wear and tear and may produce a loud noise. Electric fuel pumps, on the other hand, are more commonly used in modern vehicles due to their increased reliability, efficiency, and reduced noise.
Now, coming to the topic of fuel pump polarity, it is crucial to ensure correct polarity when installing or working with fuel pumps. Reversed polarity can cause the pump to run backward, leading to issues such as no fuel flow. In some cases, running the pump backward for an extended period may overheat and damage the pump, requiring a replacement.
When dealing with a Bosch fuel pump, for example, determining the polarity can be challenging due to the lack of clear polarity marks on the pump terminals. However, one clue to identifying the positive terminal is that one terminal is usually thicker than the other. In addition, polarity markings may be visible on the pump with good lighting.
While a pump with reversed polarity may still spin, it will not function correctly. This can lead to issues such as unexpected stalling, power loss during heavy loads or inclines, and a loud whining noise instead of the usual low humming sound of a functioning fuel pump. These electrical symptoms indicate a malfunctioning fuel pump that requires immediate attention.
Additionally, it is important to monitor the amperage draw of the fuel pump. A high amperage draw can indicate a problem with the power and ground connections. By measuring the resistance and researching expected current draws, you can gain a working knowledge of the current draw of various components, including the fuel pump.
Calculating Gallons: Fuel Tank Math Made Easy
You may want to see also
Explore related products
Fuel pump relay and power relay wires
The amperage of a fuel pump varies depending on the type of pump and the system it is a part of. For example, a common rail diesel pump can draw around 7 amps, while a generic pump can draw 10-11 amps. It is important to note that some pumps, like the one in a two-pump system, may draw a combined total of 11 amps.
When it comes to the fuel pump relay and power relay wires, it is crucial to ensure that the relay can handle the amperage of the fuel pump to avoid failure and potential damage. Here are the steps to rewire a fuel pump relay:
- Locate the 12V supply wire from the ECU to the fuel pump and cut it, ensuring that one half runs to the fuel pump and the other half runs to the factory ECU.
- Use a four-prong relay with at least 14-gauge wiring. The relay should have four pins typically labeled 30, 85, 86, and 87.
- Wire pin 85 of the relay to the 12V supply wire from the stock ECU. This 12V wire will energize the relay, turning it on.
- Wire pin 86 to a good, clean ground on the car, using appropriately sized wire to prevent burning up the relay.
- Run a dedicated wire from the battery to pin 30 on the relay.
- Run a wire from pin 87 to the factory wire that was previously cut and now runs to the fuel pump.
By following these steps, you can ensure that the fuel pump relay is properly wired and can handle the amperage of the fuel pump. It is important to use appropriately sized wires throughout the process to avoid any issues.
Additionally, if you are running multiple fuel pumps, you will need to calculate the amp draw of all the pumps and ensure that the wire gauge and relay size can handle the total amp draw. This will allow you to turn on both pumps simultaneously by running a 12V output from the relay to each pump.
Lexus NX300: Fuel Efficiency and Tank Capacity Explored
You may want to see also
Explore related products
Fuel pump voltage drops and resistance
It is important to note that voltage drops can occur due to resistance in the connectors, grounds, or harness of the circuit. This resistance can be caused by corrosion, fretting, or even air, leading to a decrease in voltage. For example, a 1.0-ohm resistor in a fuel pump circuit can result in a voltage drop of almost 4.0 volts. While this may not affect the vehicle's idle, it could cause fuel starvation during acceleration when more volume is required.
Visual signs of voltage drops include discoloured plastic or a blue tint on connectors, indicating melted connectors and seized parts due to increased resistance. Additionally, corrosion on terminals, caused by road de-icing brines, can lead to voltage drops and resistance issues. It is recommended to service and clean connectors, apply dielectric grease, and replace connectors to mitigate these issues.
In port fuel-equipped vehicles, the fuel pump current draw increases by 1 amp for every 10 pounds of fuel pressure. Deviations from this specification indicate malfunctions, such as restricted regulators or fuel return lines. On some vehicles, following manufacturer test procedures may be necessary to load the engine or activate the pump.
Furthermore, fuel pump voltage drops can be effectively utilised to control fuel pump speed. By reducing voltage or using pulse width-modulated outputs, the fuel pump can be instructed to run at different speeds based on the engine's fuel demand. This allows for efficient fuel management and performance.
Fixing Fuel Tank Door on Envoy: Easy Steps
You may want to see also
Frequently asked questions
A fuel pump's current draw can vary. A pump with a low current draw can be as low as 2 amps, while a pump with a higher current draw can be as high as 11 amps.
No, 7 amps is not excessive for a fuel pump. This is a typical current draw for a fuel pump, and it is less than 100 watts, which is not a lot of power.
In a mechanical returnless or return system, the fuel pump runs at full speed whenever it is on, so the amp reading will not increase under load.
On port fuel-equipped vehicles, fuel pump current draw increases by 1 amp for every 10 pounds of fuel pressure. Therefore, if the pressure is high and the amperage is above specification, it may indicate a restricted regulator and/or fuel return line.
Good voltage drops occur when fuel pumps are given multiple speeds with a module connected to a computer with a dedicated signal wire that tells the module to increase or decrease speed.
