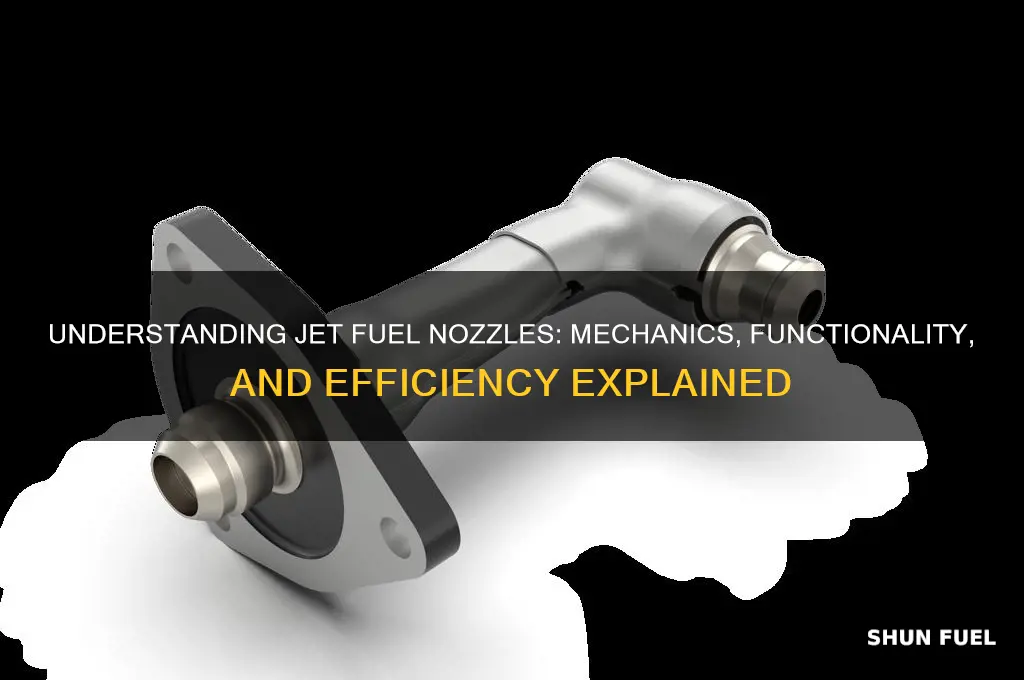

Jet fuel nozzles are critical components in aircraft engines, responsible for atomizing and spraying fuel into the combustion chamber for efficient burning. These nozzles operate under extreme conditions, including high temperatures and pressures, and must deliver a precise fuel-to-air mixture to ensure optimal engine performance. The design of jet fuel nozzles typically involves intricate geometries and materials resistant to wear and thermal stress, such as high-strength alloys or ceramics. They use pressurized fuel, often regulated by a fuel control unit, to create a fine mist that mixes with compressed air, facilitating rapid and complete combustion. Advanced nozzles may also incorporate features like variable spray patterns or cooling mechanisms to enhance efficiency and reduce emissions, making them a cornerstone of modern aerospace propulsion systems.
| Characteristics | Values |
|---|---|
| Function | Atomize jet fuel into fine droplets for efficient combustion in engines. |
| Operating Pressure | Typically 200–1,000 psi (pounds per square inch), depending on engine type. |
| Fuel Flow Rate | Varies by engine size, e.g., 500–2,000 lbs/hr for commercial aircraft. |
| Nozzle Type | Simplex, duplex, or multipoint, depending on engine design. |
| Material | High-strength alloys (e.g., stainless steel, tungsten) for heat resistance. |
| Droplet Size | 10–50 micrometers for optimal combustion efficiency. |
| Spray Pattern | Conical or fan-shaped, tailored to engine combustor geometry. |
| Temperature Resistance | Up to 1,000°C (1,832°F) to withstand combustion chamber heat. |
| Fuel Atomization Mechanism | Uses hydraulic pressure and aerodynamic forces to break fuel into droplets. |
| Maintenance Interval | Typically inspected every 2,000–3,000 flight hours. |
| Failure Modes | Clogging, erosion, or cracking due to thermal stress or contamination. |
| Environmental Impact | Designed to minimize unburned hydrocarbons and soot emissions. |
| Technology Advancements | Incorporates additive manufacturing (3D printing) for complex geometries. |
| Compatibility | Works with Jet-A, Jet-A1, and sustainable aviation fuels (SAFs). |
| Regulations | Complies with FAA, EASA, and ICAO standards for safety and performance. |
Explore related products
What You'll Learn
- Fuel Atomization Process: Breaks fuel into fine droplets for efficient combustion in the engine
- Nozzle Design Types: Includes simplex, duplex, and airblast designs for specific engine needs
- Flow Control Mechanisms: Regulates fuel flow rate to match engine thrust requirements
- Material and Durability: Uses heat-resistant alloys to withstand extreme temperatures and pressures
- Spray Pattern Optimization: Ensures uniform fuel distribution for complete combustion and efficiency
Fuel Atomization Process: Breaks fuel into fine droplets for efficient combustion in the engine
The fuel atomization process is a critical step in jet engine operation, transforming liquid fuel into a fine mist that maximizes surface area for rapid combustion. This process begins when high-pressure fuel is forced through a nozzle’s tiny orifices, creating a shear force that breaks the fuel stream into droplets. The size of these droplets, typically ranging from 10 to 50 micrometers, is crucial; smaller droplets evaporate faster and mix more thoroughly with air, enabling a more complete burn. Without effective atomization, fuel would burn inefficiently, reducing engine performance and increasing emissions.
Consider the analogy of spraying paint: a fine spray covers more area evenly, while a coarse stream leaves streaks. Similarly, fuel atomization ensures uniform distribution within the combustion chamber. Nozzle design plays a pivotal role here. For instance, air-blast nozzles use compressed air to shatter the fuel stream, while pressure-swirl nozzles rely on centrifugal force. Each design must balance fuel pressure (often 400–600 psi) and flow rate to achieve optimal droplet size. Poor atomization can lead to unburned fuel, carbon buildup, and even engine failure, underscoring its importance in jet propulsion systems.
To achieve efficient atomization, engineers must account for fuel properties such as viscosity and surface tension. Kerosene-based jet fuel, for example, has a viscosity of 1.5–3.0 cSt at 20°C, which affects how easily it breaks into droplets. Additives like surfactants can reduce surface tension, aiding atomization. Practical tips for maintenance include regular nozzle cleaning to prevent clogs and monitoring fuel pressure to ensure consistent droplet size. Even minor deviations in atomization quality can reduce engine efficiency by up to 5%, highlighting the need for precision in this process.
Comparing atomization in jet engines to other combustion systems reveals its unique challenges. In diesel engines, for instance, atomization occurs at lower pressures (100–200 psi) and produces larger droplets (50–100 micrometers). Jet engines, however, operate at higher pressures and require finer droplets due to the shorter residence time in the combustion chamber. This distinction emphasizes the specialized design of jet fuel nozzles, which must withstand extreme conditions while delivering consistent atomization. Understanding these differences helps engineers optimize nozzle performance for specific applications.
Finally, advancements in nozzle technology continue to enhance atomization efficiency. For example, 3D printing allows for intricate internal geometries that improve fuel breakup. Additionally, smart nozzles with sensors can adjust fuel flow in real time based on engine conditions. These innovations not only boost performance but also reduce environmental impact by minimizing unburned fuel. For operators, staying informed about such advancements and adhering to manufacturer guidelines ensures that the fuel atomization process remains a cornerstone of reliable jet engine operation.
