Fracking, or hydraulic fracturing, is a controversial yet widely used technique to extract fossil fuels, primarily natural gas and oil, from deep within the Earth's crust. The process involves injecting a high-pressure mixture of water, sand, and chemicals into underground shale formations, creating fractures that release trapped hydrocarbons. These fractures are held open by the sand, allowing the gas or oil to flow into a wellbore and be collected at the surface. Fracking has significantly boosted fossil fuel production in regions with previously inaccessible reserves, such as the United States, but it has also raised environmental concerns, including water contamination, methane emissions, and induced seismic activity. Despite its efficiency, the method remains a subject of debate due to its potential ecological and health impacts.
| Characteristics | Values |
|---|---|
| Definition | Hydraulic fracturing (fracking) is a technique used to extract oil and natural gas from shale rock and other tight geological formations by injecting high-pressure fluid into wells to create fractures, allowing fossil fuels to flow more freely. |
| Process | 1. Drill a vertical wellbore, then turn horizontally into the shale layer. 2. Inject a mixture of water, sand, and chemicals at high pressure to fracture the rock. 3. Prop open fractures with sand (proppant) to allow oil or gas to flow into the wellbore. 4. Extract the fossil fuels via the well. |
| Primary Resources Extracted | Natural gas, tight oil, and shale gas. |
| Fluid Composition | Typically 90% water, 9.5% sand (proppant), and 0.5% chemical additives. |
| Depth of Operations | Typically occurs at depths of 1.5 to 6 kilometers (5,000 to 20,000 feet). |
| Environmental Impact | Concerns include water contamination, methane emissions, seismic activity, and habitat disruption. |
| Water Usage | 1.5 to 16 million liters (4 to 4.2 million gallons) of water per well. |
| Global Usage | Widely used in the U.S., Canada, China, Argentina, and emerging in other countries. |
| Economic Impact | Reduces energy costs and increases domestic energy production but raises environmental and health concerns. |
| Regulation | Varies by country; stricter regulations in some regions due to environmental risks. |
| Alternatives | Renewable energy sources (solar, wind) are increasingly favored as sustainable alternatives. |
Explore related products
What You'll Learn
- Hydraulic Fracturing Process: High-pressure fluid injection creates cracks in rock, releasing trapped oil and gas
- Horizontal Drilling: Extends well reach, accessing larger fossil fuel reserves in shale formations
- Proppants Usage: Sand or beads hold fractures open, allowing continuous flow of oil and gas
- Water Mixture Composition: Fluid mix includes water, chemicals, and sand to maximize fracture efficiency
- Environmental Impact: Fracking affects water, air, and land, raising concerns about pollution and sustainability
Hydraulic Fracturing Process: High-pressure fluid injection creates cracks in rock, releasing trapped oil and gas

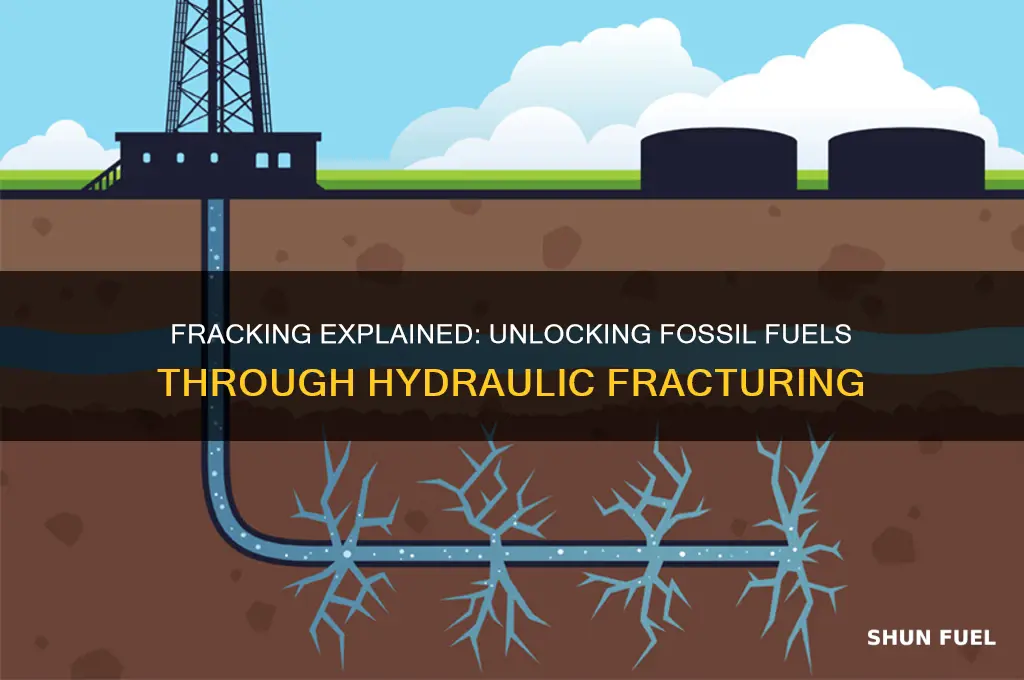

Hydraulic fracturing, commonly known as fracking, is a critical technique used to extract fossil fuels, particularly oil and natural gas, from deep within the Earth’s crust. The process begins with the drilling of a vertical wellbore, which is then extended horizontally into the target rock formation, often shale. This horizontal drilling allows access to a larger area of the reservoir, maximizing the potential for resource extraction. Once the well is drilled, a high-pressure mixture of water, sand, and chemicals is injected into the rock at depths typically ranging from 1,000 to 3,000 meters. The primary goal of this injection is to create fractures in the rock, which are essential for releasing the trapped hydrocarbons.
The fluid used in hydraulic fracturing is carefully engineered to achieve optimal results. Water makes up the majority of the mixture, providing the necessary volume to create pressure. Sand, or proppant, is added to keep the newly formed fractures open, allowing oil and gas to flow freely into the wellbore. Chemicals, though a smaller component, play a crucial role in reducing friction, preventing bacterial growth, and ensuring the stability of the fractures. When the high-pressure fluid is forced into the rock, it overcomes the natural stress holding the rock together, causing it to crack. These fractures extend outward from the wellbore, creating pathways for the oil and gas to migrate toward the surface.
The creation of fractures is a highly controlled process, requiring precise monitoring and adjustments. Operators use advanced technologies, such as microseismic monitoring, to track the propagation of fractures in real time. This ensures that the fractures remain within the target zone and do not extend into unwanted areas, such as groundwater aquifers. Once the fractures are created and stabilized by the proppant, the pressure is reduced, and the fluid is partially recovered. The remaining fluid, along with the released oil and gas, flows back up the wellbore to the surface, where it is collected and separated.
The extracted oil and gas are then processed and transported for various uses, such as fuel, electricity generation, and industrial applications. Fracking has significantly increased the accessibility of previously unrecoverable fossil fuel reserves, particularly in shale formations. However, it is not without controversy, as concerns about water usage, chemical contamination, and induced seismicity have sparked debates about its environmental impact. Despite these challenges, hydraulic fracturing remains a cornerstone of modern fossil fuel extraction, enabling the production of energy resources that power economies worldwide.
In summary, the hydraulic fracturing process involves high-pressure fluid injection to create cracks in rock formations, releasing trapped oil and gas. This technique combines advanced drilling methods, specialized fluid mixtures, and real-time monitoring to maximize resource recovery. While fracking has revolutionized the energy industry, it also underscores the need for responsible practices to address environmental and safety concerns. By understanding the intricacies of this process, stakeholders can better evaluate its role in meeting global energy demands while minimizing potential risks.
Is Natural Gas the Dominant Fossil Fuel Source Globally?
You may want to see also
Explore related products
Horizontal Drilling: Extends well reach, accessing larger fossil fuel reserves in shale formations
Horizontal drilling is a critical technique in modern fracking operations, significantly enhancing the ability to extract fossil fuels from shale formations. Unlike traditional vertical drilling, which accesses resources directly below the wellhead, horizontal drilling involves deviating the wellbore sideways once it reaches a certain depth. This lateral extension allows the well to traverse a much larger area of the shale formation, maximizing the exposure to oil and gas-rich zones. By doing so, horizontal drilling increases the productivity of a single well, reducing the need for multiple vertical wells and minimizing surface disruption.
The process begins with the drilling of a vertical wellbore to a predetermined depth, typically where the shale formation is located. Once this depth is reached, specialized tools are used to gradually curve the drill bit until it is drilling horizontally. This horizontal section, known as the lateral, can extend for thousands of feet, depending on the size and geometry of the shale reservoir. The extended reach of the lateral ensures that a greater volume of the formation is accessible, which is particularly important in shale, where hydrocarbons are trapped in low-permeability rock.
After the horizontal wellbore is drilled, it is lined with a steel casing to maintain its integrity and prevent contamination of surrounding areas. The next step involves perforating the casing and the surrounding rock at specific intervals along the lateral. These perforations create pathways for hydraulic fracturing fluids—a mixture of water, sand, and chemicals—to be injected under high pressure. The pressure exerted by the fluid causes the shale rock to fracture, releasing the trapped oil and gas into the wellbore.
One of the key advantages of horizontal drilling in fracking is its ability to target multiple shale layers or "sweet spots" within a single well. By carefully planning the trajectory of the lateral, operators can ensure that the well intersects the most productive zones of the formation. This precision not only increases the yield of the well but also optimizes resource recovery, making the extraction process more efficient and economically viable.
Furthermore, horizontal drilling reduces the environmental footprint of fossil fuel extraction. Since a single horizontal well can replace multiple vertical wells, there is less need for surface infrastructure such as well pads, access roads, and pipelines. This consolidation minimizes habitat disruption and reduces the risk of surface spills and leaks. As a result, horizontal drilling has become a cornerstone of modern fracking, enabling the industry to tap into vast shale reserves that were previously considered uneconomical to extract.
Fossil Fuels' Devastating Impact: Unveiling the Harmful Truth in Journals
You may want to see also
Explore related products
Proppants Usage: Sand or beads hold fractures open, allowing continuous flow of oil and gas
Fracking, or hydraulic fracturing, is a technique used to extract oil and gas from deep within the Earth by creating and maintaining fractures in rock formations. One critical component of this process is the use of proppants, which are materials like sand or ceramic beads that hold these fractures open, ensuring a continuous flow of fossil fuels. Without proppants, the fractures would close under the immense pressure of the surrounding rock, severely limiting the extraction of oil and gas.
Proppants are introduced into the wellbore along with a high-pressure mixture of water, chemicals, and other additives. Once the fluid creates fractures in the rock, the proppants are carried into these newly formed cracks. As the fluid pressure is reduced, the proppants pack tightly against the fracture walls, preventing them from closing. This creates a conductive pathway for oil and gas to flow from the rock into the wellbore. The choice of proppant material—whether sand, ceramic beads, or other specialized particles—depends on factors like the depth of the well, the type of rock, and the desired flow rate.
Sand is the most commonly used proppant due to its availability and cost-effectiveness. It is particularly effective in shallow to medium-depth wells where the pressure is relatively low. However, sand has limitations, such as lower crush resistance, which can lead to reduced fracture conductivity over time. In contrast, ceramic beads are more durable and can withstand higher pressures, making them ideal for deeper wells. These beads are engineered to have specific sizes and shapes to maximize the flow of oil and gas while maintaining the integrity of the fractures.
The placement of proppants is a precise process. Engineers must ensure that the proppants are evenly distributed throughout the fracture network to avoid uneven flow or blockages. Advanced techniques, such as using resin-coated proppants or lightweight beads, are often employed to enhance performance. Resin-coated sand, for example, can bind the proppant particles together, improving stability and reducing the risk of fracture closure. Lightweight proppants, on the other hand, minimize the risk of settling during injection, ensuring better coverage of the fracture area.
In summary, proppants play a vital role in the fracking process by holding fractures open and enabling the efficient extraction of oil and gas. Whether sand or ceramic beads, these materials are carefully selected and deployed to optimize flow rates and maximize the productivity of the well. As fracking technology continues to evolve, advancements in proppant materials and placement techniques will further enhance the effectiveness of this method in extracting fossil fuels.
Carbon Monoxide: Fossil Fuel Burning's Deadly Legacy
You may want to see also
Explore related products
Water Mixture Composition: Fluid mix includes water, chemicals, and sand to maximize fracture efficiency
The process of hydraulic fracturing, or fracking, relies heavily on a carefully engineered water mixture composition to effectively extract fossil fuels from deep within the Earth. This fluid mix is a critical component, designed to maximize fracture efficiency and ensure the successful release of oil and natural gas. The composition typically consists of water, a variety of chemicals, and sand, each serving specific purposes in the fracking process.
Water forms the base of this mixture, often making up 90% or more of the total volume. The source of water can vary, ranging from freshwater to recycled flowback water from previous fracking operations. The primary role of water is to create the necessary pressure to fracture the rock formations and carry the other components deep into the well. However, it is not just any water; it must be treated to meet specific quality standards to prevent damage to the well and ensure the effectiveness of the chemicals added.
Chemicals are added to the water to enhance its performance and address various challenges encountered during fracking. These additives can include friction reducers, which minimize the energy required to pump the fluid, and biocides to prevent microbial growth that could corrode the well infrastructure. Scale inhibitors are used to prevent the buildup of mineral deposits, while acids may be introduced to dissolve certain rock types and improve permeability. Each chemical is carefully selected and dosed to optimize the fluid's ability to create and propagate fractures in the target rock layer.
Sand, or proppant, is another crucial element in the water mixture. Its primary function is to keep the induced fractures open once the pressure is released, allowing the fossil fuels to flow freely into the well. The choice of proppant material and its concentration in the fluid are critical decisions. Silica sand is commonly used due to its abundance and suitable properties, but alternative materials like ceramic beads or treated sand may be preferred in certain conditions to enhance conductivity and fracture stability.
The precise composition of the water mixture is tailored to the specific geological characteristics of the target formation. Factors such as rock type, depth, and the presence of natural fractures influence the selection and proportion of chemicals and proppants. Advanced modeling and laboratory testing are often employed to simulate the behavior of the fluid under various conditions, ensuring that the mixture will effectively create a network of fractures that maximize the extraction of oil and gas.
In summary, the water mixture used in fracking is a sophisticated blend of water, chemicals, and sand, each component playing a vital role in maximizing fracture efficiency. This fluid is engineered to not only create the necessary fractures but also to sustain them, ensuring a productive flow of fossil fuels. The careful selection and combination of these elements are essential for the success of hydraulic fracturing operations, making it a complex and highly specialized process in the extraction of oil and natural gas.
Wind Farms: Fossil Fuels or Renewable Energy?
You may want to see also
Explore related products
Environmental Impact: Fracking affects water, air, and land, raising concerns about pollution and sustainability
Fracking, or hydraulic fracturing, is a technique used to extract fossil fuels like natural gas and oil from deep within the Earth. The process involves injecting a high-pressure mixture of water, sand, and chemicals into underground rock formations to create fractures, allowing trapped hydrocarbons to flow to the surface. While fracking has significantly boosted energy production, its environmental impact is a growing concern, particularly regarding water, air, and land pollution, as well as long-term sustainability.
Water Contamination is one of the most pressing issues associated with fracking. The process requires millions of gallons of water per well, which is mixed with a cocktail of chemicals, some of which are toxic. There is a risk of this contaminated water leaking into groundwater supplies through poorly sealed wells or surface spills. Additionally, fracking can release naturally occurring harmful substances like methane and heavy metals into nearby water sources. Communities reliant on these water sources face increased health risks, including exposure to carcinogens and other hazardous materials. The strain on local water resources also exacerbates scarcity issues in drought-prone regions.
Air Pollution is another significant environmental consequence of fracking. The process releases volatile organic compounds (VOCs), nitrogen oxides (NOx), and methane into the atmosphere, contributing to smog formation and greenhouse gas emissions. Methane, in particular, is a potent greenhouse gas, with a much higher short-term warming potential than carbon dioxide. Prolonged exposure to these pollutants can lead to respiratory problems, cardiovascular diseases, and other health issues for nearby residents. Furthermore, the cumulative effect of fracking operations on air quality undermines efforts to combat climate change and achieve sustainability goals.
Land Degradation is an often-overlooked impact of fracking. The construction of well pads, access roads, and related infrastructure disrupts natural habitats, leading to deforestation, soil erosion, and loss of biodiversity. The industrialization of previously rural or natural areas also fragments ecosystems, affecting wildlife migration and survival. Additionally, the risk of spills and leaks from fracking operations can render land unusable for agriculture or other purposes, further compromising its value and sustainability. The long-term scarring of landscapes raises questions about the balance between energy extraction and environmental preservation.
Finally, the cumulative environmental impact of fracking raises broader concerns about sustainability. The process not only depletes freshwater resources and degrades ecosystems but also perpetuates reliance on fossil fuels, delaying the transition to renewable energy sources. The short-term economic benefits of fracking must be weighed against its long-term environmental costs, including the potential for irreversible damage to water, air, and land. As the global community seeks to address climate change and promote sustainable development, the environmental risks associated with fracking highlight the need for stricter regulations, improved technologies, and a shift toward cleaner energy alternatives.
Fossil Fuels in Rainwater: Sources, Impact, and Environmental Concerns
You may want to see also
Frequently asked questions
Fracking, or hydraulic fracturing, is a method used to extract fossil fuels (primarily natural gas and oil) from shale rock formations. It involves injecting a high-pressure mixture of water, sand, and chemicals into a wellbore to create fractures in the rock. These fractures allow trapped oil or gas to flow into the well and be collected at the surface.
Fracking is used because it provides access to fossil fuels trapped in hard-to-reach shale formations, which are not accessible through conventional drilling methods. It significantly increases the yield of oil and gas wells, making previously uneconomical reserves viable for extraction.
Fracking raises several environmental concerns, including potential contamination of groundwater from chemicals used in the process, methane leaks contributing to greenhouse gas emissions, and the large volumes of water required, which can strain local water resources. Additionally, the process can cause seismic activity and habitat disruption.
