Regan Brown

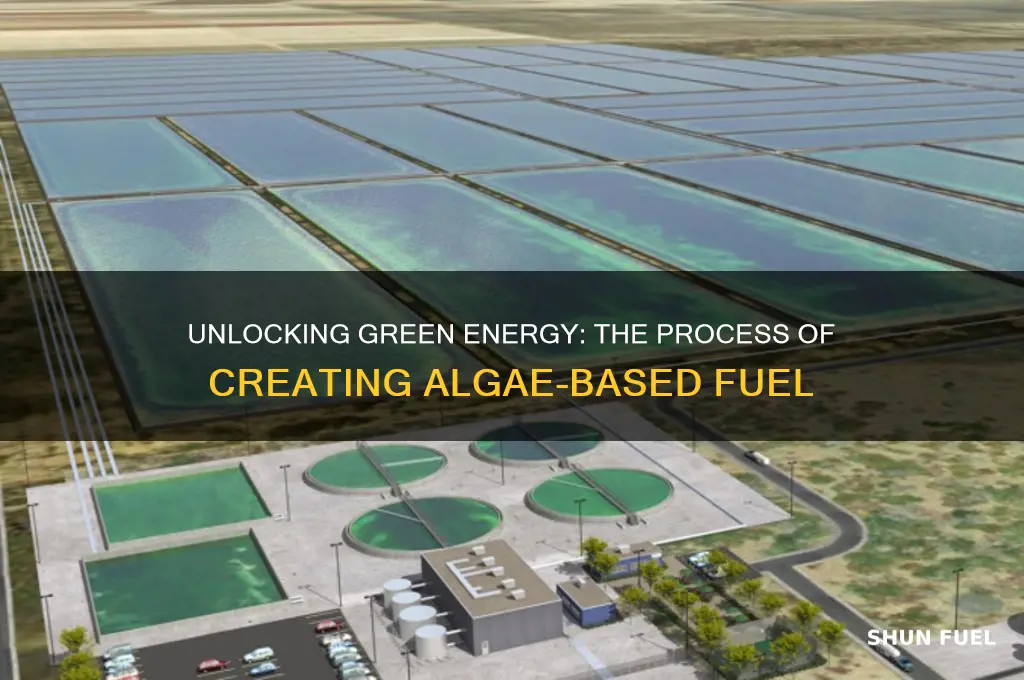

Algae fuel, a promising renewable energy source, is produced through a multi-step process that begins with cultivating algae in controlled environments such as ponds or photobioreactors. These algae are rich in lipids, which can be extracted and converted into biodiesel through a process called transesterification. First, algae are harvested and dried to reduce moisture content, then the lipids are separated using mechanical pressing or solvent extraction. The extracted oils are mixed with an alcohol, typically methanol, and a catalyst to break down the lipids into fatty acid methyl esters (FAME), which constitute the biodiesel. The remaining biomass can also be processed to produce bioethanol or biogas, maximizing the energy output. This sustainable fuel offers a cleaner alternative to fossil fuels, as algae can be grown rapidly, absorb carbon dioxide, and do not compete with food crops for land.
Explore related products
$18.79
What You'll Learn
- Cultivation Methods: Growing algae in open ponds or closed photobioreactors for optimal biomass production
- Harvesting Techniques: Separating algae from water using centrifugation, flocculation, or filtration processes
- Oil Extraction: Removing lipids from algae via mechanical pressing, solvent extraction, or ultrasonic methods
- Conversion to Biofuel: Transforming algae oil into biodiesel through transesterification or pyrolysis reactions
- Sustainability Challenges: Addressing high costs, energy input, and scalability issues in algae fuel production
Cultivation Methods: Growing algae in open ponds or closed photobioreactors for optimal biomass production
Algae cultivation is the cornerstone of algae fuel production, and the choice between open ponds and closed photobioreactors significantly impacts biomass yield, cost, and sustainability. Open ponds, the more traditional method, are essentially large, shallow basins exposed to natural sunlight. They are cost-effective to construct and operate, making them ideal for large-scale production. However, they are susceptible to contamination from invasive species, weather fluctuations, and limited control over growth conditions. For instance, a sudden temperature drop or an influx of predatory microorganisms can decimate an entire crop. Despite these challenges, open ponds remain popular due to their simplicity and lower initial investment, with some systems achieving biomass densities of 0.5–1.0 g/L under optimal conditions.
In contrast, closed photobioreactors (PBRs) offer a more controlled environment, shielding algae from external contaminants and allowing precise regulation of factors like temperature, pH, and nutrient levels. PBRs can be vertical or horizontal, made from materials such as glass, plastic, or acrylic, and often incorporate mixing systems to ensure uniform light distribution. While PBRs can achieve biomass densities of 2–5 g/L, their higher construction and maintenance costs make them less accessible for large-scale operations. However, their ability to produce high-quality, consistent biomass makes them ideal for specialized applications, such as pharmaceutical or nutraceutical production. For example, a tubular PBR system with a surface area of 100 m² can produce up to 20 kg of dry biomass daily, provided CO2 levels are maintained at 1–2% and light intensity is optimized at 100–200 µmol/m²/s.
When deciding between open ponds and PBRs, consider the end goal of your algae fuel project. If cost-efficiency and scalability are priorities, open ponds may be the better choice, despite their vulnerabilities. However, if consistency, purity, and higher biomass density are critical, investing in PBRs could yield greater long-term returns. For instance, a hybrid approach—using open ponds for initial cultivation and PBRs for high-density finishing—can balance cost and quality. Additionally, integrating real-time monitoring systems, such as pH sensors and automated nutrient dosing, can enhance productivity in both setups.
Practical tips for optimizing cultivation include selecting algae strains with high lipid content, such as *Chlorella* or *Nannochloropsis*, and maintaining nutrient levels within specific ranges (e.g., nitrogen at 5–10 mM and phosphorus at 0.1–0.5 mM). In open ponds, regular water quality testing and the use of barriers to deter wildlife can minimize contamination risks. For PBRs, ensuring proper gas exchange and preventing biofouling on reactor surfaces are critical. For example, air flow rates of 0.1–0.2 vvm (volume of air per volume of culture per minute) can enhance CO2 absorption and prevent oxygen buildup, which inhibits growth.
Ultimately, the choice of cultivation method depends on balancing technical feasibility, economic constraints, and production goals. While open ponds offer a low-cost entry point, PBRs provide unparalleled control and efficiency. By understanding the strengths and limitations of each system and implementing best practices, producers can maximize biomass output and pave the way for a sustainable algae fuel industry. For instance, a case study in New Mexico demonstrated that combining open ponds with PBRs increased overall lipid yield by 30%, showcasing the potential of integrated approaches.
Understanding Fuel Stabilizers: How They Work to Preserve Your Fuel
You may want to see also
Explore related products
Harvesting Techniques: Separating algae from water using centrifugation, flocculation, or filtration processes
Centrifugation stands out as a high-efficiency method for separating algae from water, leveraging centrifugal force to isolate biomass. In this process, algae-laden water is fed into a centrifuge, where rapid spinning forces the denser algae cells outward, forming a compact solid cake. The clarified water is then decanted, leaving behind concentrated biomass ready for further processing. Industrial-scale centrifuges can handle flow rates of up to 100 liters per minute, achieving separation efficiencies of 95% or higher. However, the energy intensity of centrifugation—often requiring 5 to 10 kWh per kilogram of dry algae—poses a trade-off between speed and cost. For operations prioritizing rapid turnaround, this method remains unmatched, though energy recovery systems or renewable energy integration can mitigate its environmental footprint.
Flocculation offers a cost-effective alternative, relying on chemical or biological agents to aggregate algae cells into larger flocs that settle or float for easy removal. Common flocculants include aluminum sulfate (alum) at dosages of 10–50 mg/L or chitosan, a biodegradable polymer derived from crustacean shells. The choice of flocculant depends on algae species and water chemistry; for instance, *Chlorella* strains often respond better to cationic polymers, while *Spirulina* may require pH adjustments to optimize floc formation. A key advantage of flocculation is its low energy demand, typically under 1 kWh per kilogram of dry algae. However, residual flocculant chemicals can complicate downstream processing, necessitating thorough washing or the use of food-grade agents for biofuel applications.
Filtration bridges the gap between centrifugation’s speed and flocculation’s economy, using porous media to trap algae cells as water passes through. Microfiltration membranes with pore sizes of 0.1–10 micrometers are commonly employed, capturing even small-celled species like *Nannochloropsis*. For larger operations, drum filters or belt filters provide continuous processing, handling up to 500 liters per minute with minimal manual intervention. While filtration avoids chemical additives, membrane fouling remains a challenge, reducing throughput over time. Regular backwashing or chemical cleaning is essential to maintain efficiency, though advancements in self-cleaning membranes are reducing downtime. Compared to centrifugation, filtration consumes 2–5 kWh per kilogram of dry algae, striking a balance between energy use and operational simplicity.
Each harvesting technique carries distinct advantages and limitations, making the choice context-dependent. Centrifugation excels in high-throughput scenarios but demands robust energy infrastructure. Flocculation suits low-budget operations but requires careful chemical management. Filtration offers a middle ground, ideal for facilities prioritizing consistency and minimal additives. Hybrid systems—combining flocculation with filtration or centrifugation—are increasingly popular, optimizing efficiency while addressing individual method drawbacks. For instance, pre-flocculating algae before filtration reduces membrane fouling, while post-centrifugation flocculation enhances cake dewatering. Ultimately, the selection hinges on factors like algae species, cultivation scale, and end-use requirements, with each technique contributing uniquely to the algae-to-fuel pipeline.
Understanding Jet Fuel Combustion: How It Burns and Powers Flight
You may want to see also
Explore related products
Oil Extraction: Removing lipids from algae via mechanical pressing, solvent extraction, or ultrasonic methods
Algae, often hailed as a green goldmine, holds vast potential as a renewable fuel source. However, unlocking its energy requires meticulous extraction of lipids, the fatty compounds that serve as precursors to biodiesel. Among the arsenal of techniques, mechanical pressing, solvent extraction, and ultrasonic methods stand out, each with its own strengths and nuances.
Understanding these methods is crucial for optimizing algae-based biofuel production, ensuring both efficiency and sustainability.
Mechanical pressing, the brute force approach, involves physically squeezing algae cells to release their lipid content. This method, akin to traditional oilseed pressing, utilizes screw presses or expellers to apply high pressure, rupturing cell walls and liberating lipids. While straightforward and cost-effective, mechanical pressing faces limitations. Its efficiency hinges on algae species and moisture content, often yielding lower lipid recovery rates compared to other methods. Additionally, the process can be energy-intensive, potentially offsetting the environmental benefits of algae fuel.
For optimal results, algae biomass should be dewatered to 60-80% moisture content before pressing, and multiple pressing stages may be necessary to maximize lipid extraction.
Solvent extraction, a more refined approach, employs organic solvents like hexane or ethanol to dissolve lipids from algae biomass. This method boasts higher lipid recovery rates than mechanical pressing, as solvents can penetrate cell walls more effectively. However, solvent extraction introduces new challenges. The process requires careful solvent selection and recovery to minimize environmental impact and ensure fuel purity. Hexane, a common solvent, is highly effective but flammable and toxic, necessitating stringent safety measures. Ethanol, a greener alternative, is less efficient but poses fewer environmental risks.
Solvent extraction is often employed in conjunction with other techniques, such as mechanical pressing, to achieve comprehensive lipid recovery.
Ultrasonic methods, a cutting-edge approach, utilize high-frequency sound waves to disrupt algae cell walls and release lipids. This technique offers several advantages, including reduced processing time, lower energy consumption, and potentially higher lipid yields. Ultrasonic waves create cavitation bubbles within the algae suspension, which implode with tremendous force, breaking down cell walls and releasing lipids. While promising, ultrasonic extraction is still under development, with ongoing research focusing on optimizing parameters like frequency, intensity, and treatment duration. Current studies suggest that ultrasonic treatment at 20-40 kHz for 10-30 minutes can significantly enhance lipid extraction efficiency.
As technology advances, ultrasonic methods hold the potential to revolutionize algae oil extraction, offering a sustainable and efficient solution for large-scale biofuel production.
Understanding Nike Fuel: How It Measures Your Daily Activity
You may want to see also
Explore related products
$34.98
Conversion to Biofuel: Transforming algae oil into biodiesel through transesterification or pyrolysis reactions
Algae oil, rich in lipids, serves as a promising feedstock for biodiesel production. Two primary methods dominate its conversion: transesterification and pyrolysis. Each process offers distinct advantages and challenges, shaping their applicability in industrial settings.
Transesterification, a chemical reaction, involves treating algae oil with an alcohol (typically methanol) in the presence of a catalyst (often sodium hydroxide or potassium hydroxide). This process breaks down triglycerides into fatty acid methyl esters (FAME), the primary component of biodiesel, and glycerol as a byproduct. The reaction requires precise control: a methanol-to-oil molar ratio of 6:1, a catalyst concentration of 0.5–1% by weight, and a reaction temperature of 60–70°C. Stirring for 1–2 hours ensures thorough mixing. Post-reaction, the glycerol separates, leaving biodiesel that meets ASTM D6751 standards. This method boasts high conversion efficiency (90–98%) but demands careful handling of corrosive chemicals and proper disposal of glycerol.
In contrast, pyrolysis is a thermochemical process that heats algae biomass in the absence of oxygen, decomposing it into bio-oil, syngas, and biochar. Temperatures range from 400–600°C, with residence times of 10–30 seconds. The bio-oil produced requires upgrading to meet biodiesel specifications, often involving catalytic cracking or hydrotreating. Pyrolysis is advantageous for its ability to process whole algae without prior lipid extraction, reducing preprocessing steps. However, it yields a lower biodiesel fraction (50–70%) and generates energy-intensive syngas and biochar byproducts.
Choosing between transesterification and pyrolysis depends on feedstock availability, infrastructure, and end-product requirements. Transesterification suits operations with access to extracted algae oil and prioritizes high biodiesel yield, while pyrolysis aligns with facilities seeking to process whole algae and valorize multiple byproducts. Both methods underscore the versatility of algae as a renewable resource, though scaling up requires addressing cost, energy consumption, and environmental impact.
Ideology's Grip: How Beliefs Drive Emotional Political Division
You may want to see also
Explore related products
Sustainability Challenges: Addressing high costs, energy input, and scalability issues in algae fuel production
Algae fuel production, while promising as a renewable energy source, faces significant sustainability challenges that hinder its widespread adoption. High costs, substantial energy input requirements, and scalability issues are critical barriers that must be addressed to make this technology economically viable and environmentally beneficial.
Cost Analysis and Reduction Strategies
The primary expense in algae fuel production lies in cultivation and harvesting. Open-pond systems, though cost-effective initially, suffer from contamination risks, while photobioreactors offer better control but at a steep price—up to $50,000 per hectare for installation. To reduce costs, researchers are exploring hybrid systems that combine the benefits of both methods. For instance, integrating algae cultivation with wastewater treatment plants can offset nutrient costs, as algae consume nitrogen and phosphorus from wastewater. Additionally, genetic engineering of algae strains to enhance lipid production can improve yield efficiency, potentially reducing the cost per gallon of algal biofuel from the current $10–$20 range to a competitive $3–$5.
Energy Input Optimization
Algae fuel production is energy-intensive, particularly during harvesting and oil extraction. Centrifugation, a common harvesting method, consumes approximately 30–50% of the total energy input. Alternatives like flocculation, which uses chemical or biological agents to aggregate algae cells, can reduce energy use by up to 70%. Similarly, solvent-based extraction methods, such as using hexane, are energy-efficient but pose environmental risks. Emerging technologies like ultrasonic extraction offer a greener alternative, reducing energy consumption by 40% while maintaining high lipid recovery rates. Implementing these innovations can significantly lower the energy footprint of algae fuel production.
Scalability Solutions
Scaling up algae fuel production requires addressing logistical and operational challenges. For example, large-scale cultivation demands vast land and water resources, which can compete with food production and ecosystems. Vertical farming techniques, where algae are grown in stacked layers, can increase productivity per unit area by 5–10 times. Co-locating algae farms with industrial facilities, such as power plants, can provide CO₂ for growth and waste heat for temperature control, enhancing scalability. Furthermore, modular production systems allow for incremental expansion, reducing upfront capital investment and enabling gradual scaling based on market demand.
Practical Implementation Tips
To tackle these challenges, stakeholders should adopt a holistic approach. Governments can incentivize research and development through grants and tax credits, while private investors can fund pilot projects to test innovative solutions. Farmers and producers should prioritize strain selection, opting for high-lipid, fast-growing algae species like *Nannochloropsis*. Regular monitoring of pH, temperature, and nutrient levels ensures optimal growth conditions, minimizing resource wastage. Finally, collaboration between industries—such as integrating algae cultivation with aquaculture or agriculture—can create symbiotic systems that enhance sustainability and reduce costs.
By addressing high costs, energy input, and scalability issues through targeted innovations and strategic partnerships, algae fuel production can transition from a niche concept to a scalable, sustainable solution for the global energy crisis.
Understanding National Fuel Charges: Costs, Factors, and Billing Explained
You may want to see also
Frequently asked questions
Algae fuel is a type of biofuel derived from algae. It is produced by cultivating algae in controlled environments, such as ponds or photobioreactors, where they absorb sunlight and CO2 to grow. Once harvested, the algae undergo processes like lipid extraction, transesterification, or hydrothermal liquefaction to convert their oils into biodiesel or other fuel types.
The main steps include: 1) Growing algae in water with nutrients and sunlight, 2) Harvesting the algae through methods like centrifugation or flocculation, 3) Extracting lipids (oils) from the algae, and 4) Converting the lipids into biodiesel or other fuels through chemical processes like transesterification.
Algae is sustainable because it grows rapidly, requires non-arable land, and can be cultivated using wastewater or saltwater. It also absorbs CO2 during growth, reducing greenhouse gas emissions. Additionally, algae produces high oil yields compared to traditional crops like soybeans or corn.
Challenges include high production costs due to energy-intensive harvesting and extraction processes, the need for large amounts of water and nutrients, and the difficulty of maintaining optimal growing conditions. Scaling up production to compete with fossil fuels also remains a significant hurdle.
