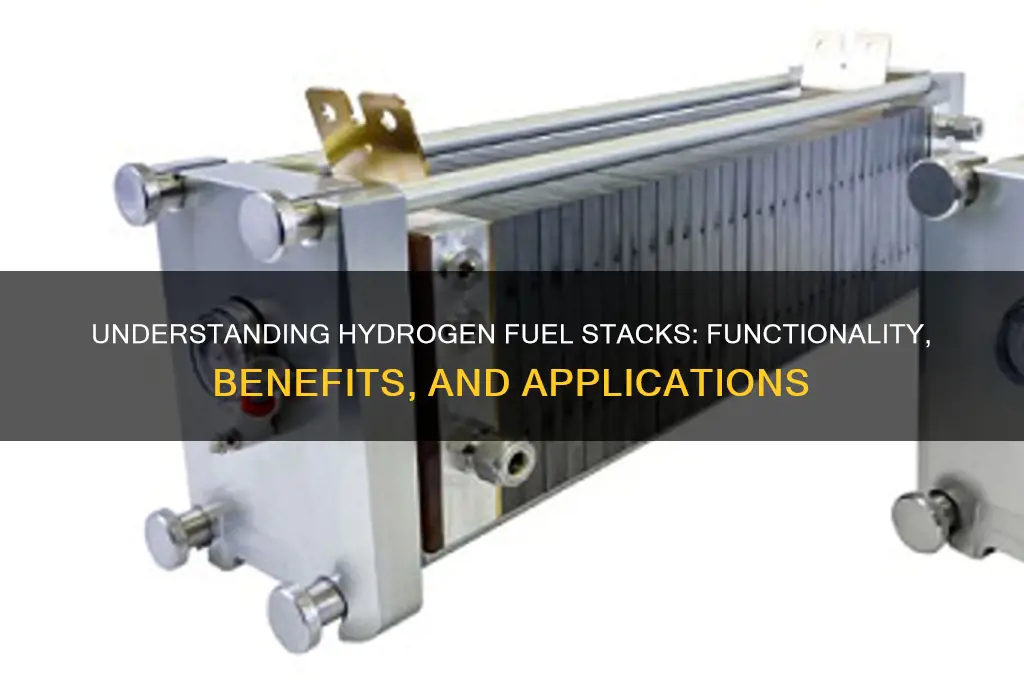

Hydrogen fuel cells are innovative devices that generate electricity through a chemical reaction between hydrogen and oxygen, producing only water and heat as byproducts. At the core of this technology is the fuel cell stack, which consists of multiple individual cells connected in series to increase voltage. Each cell contains an anode, a cathode, and an electrolyte membrane. Hydrogen gas is fed into the anode, where it is split into protons and electrons by a catalyst. The protons pass through the electrolyte membrane, while the electrons travel through an external circuit, creating an electric current. At the cathode, oxygen from the air combines with the protons and electrons to form water, completing the reaction. This efficient and clean process makes hydrogen fuel stacks a promising solution for sustainable energy applications, particularly in transportation and stationary power generation.
| Characteristics | Values |
|---|---|
| Working Principle | Electrochemical conversion of hydrogen and oxygen into electricity and water. |
| Main Components | Anode, Cathode, Electrolyte, Bipolar Plates, Gas Diffusion Layers. |
| Reaction at Anode | Hydrogen molecules split into protons and electrons: (2H_2 \rightarrow 4H^+ + 4e^-). |
| Reaction at Cathode | Oxygen, protons, and electrons combine to form water: (O_2 + 4H^+ + 4e^- \rightarrow 2H_2O). |
| Electrolyte Type | Proton Exchange Membrane (PEM) or Solid Oxide (SOFC) depending on application. |
| Operating Temperature | PEM: 60–100°C; SOFC: 500–1000°C. |
| Efficiency | 40–60% electrical efficiency; up to 80% combined heat and power (CHP). |
| Power Output | Ranges from a few watts (portable devices) to megawatts (industrial use). |
| Fuel Source | Pure hydrogen gas (H₂) stored in compressed tanks or generated on-site. |
| Emissions | Zero direct emissions (only water vapor and heat). |
| Lifespan | 5,000–10,000 hours for PEM; 40,000+ hours for SOFC. |
| Applications | Vehicles, backup power, stationary power generation, aerospace. |
| Challenges | High cost of hydrogen production, storage, and fuel cell materials. |
| Advantages | Quiet operation, modular design, scalability, zero emissions. |
| Latest Advancements | Improved catalysts (e.g., platinum alternatives), durable membranes, and reduced material costs. |
Explore related products
What You'll Learn
- Electrochemical Reactions: Hydrogen reacts with oxygen, producing electricity, heat, and water in fuel cells
- Fuel Cell Components: Includes anode, cathode, electrolyte, and catalysts for efficient energy conversion
- Proton Exchange Membrane: PEM fuel cells use a membrane to conduct protons, separating reactants
- Efficiency and Emissions: High efficiency, zero tailpipe emissions, only water and heat as byproducts
- Applications and Scaling: Used in vehicles, power plants, and portable devices, scalable for various needs
Electrochemical Reactions: Hydrogen reacts with oxygen, producing electricity, heat, and water in fuel cells
Hydrogen fuel cells harness a simple yet powerful electrochemical reaction to generate electricity, offering a clean and efficient energy solution. At the heart of this process is the reaction between hydrogen and oxygen, which produces electricity, heat, and water. This reaction occurs within the fuel cell stack, a compact and modular unit that can be scaled to meet various energy demands, from powering vehicles to supplying electricity for homes and businesses.
Consider the basic chemistry: hydrogen gas (H₂) is supplied to the anode, where a catalyst splits it into protons and electrons. The protons pass through a proton exchange membrane (PEM), while the electrons travel through an external circuit, creating an electric current. Simultaneously, oxygen (O₂) is introduced at the cathode, where it combines with the protons and electrons to form water (H₂O). This process is highly efficient, converting up to 60% of the hydrogen’s energy into electricity, compared to internal combustion engines, which typically achieve 20–30% efficiency. The byproduct? Pure water, making fuel cells an environmentally friendly alternative to fossil fuels.
To implement this technology effectively, it’s crucial to understand the role of catalysts and membranes. Platinum is commonly used as a catalyst due to its ability to accelerate the reaction without being consumed, but research is ongoing to find cheaper alternatives. The PEM, typically made of perfluorinated sulfonic acid, must be durable and conductive to protons while blocking electrons to maintain the flow of electricity. For practical applications, such as in fuel cell vehicles, the stack’s design must balance power output, size, and cost. For instance, a Toyota Mirai’s fuel cell stack operates at around 750 volts and 120 kW, sufficient to power the vehicle while emitting only water vapor.
A key advantage of hydrogen fuel cells is their versatility. They can be used in stationary power systems, portable electronics, and transportation. For example, backup power units for data centers often use fuel cells to ensure uninterrupted electricity supply. In transportation, fuel cell buses in cities like London and Tokyo demonstrate their potential to reduce urban air pollution. However, challenges remain, such as hydrogen storage and distribution infrastructure. Compressed hydrogen tanks, storing gas at 700 bar, are currently the norm, but advancements in solid-state storage could revolutionize portability and safety.
In conclusion, the electrochemical reaction in hydrogen fuel cells exemplifies a sustainable energy paradigm. By focusing on optimizing catalysts, membranes, and system designs, we can unlock their full potential. Whether for powering vehicles, homes, or industries, fuel cells offer a pathway to a cleaner, more efficient energy future. Practical adoption requires addressing infrastructure gaps, but the technology’s promise is undeniable—a silent, water-emitting powerhouse in a carbon-constrained world.
Understanding Dynamic Fuel Management: Optimizing Efficiency in Modern Vehicles
You may want to see also
Explore related products
Fuel Cell Components: Includes anode, cathode, electrolyte, and catalysts for efficient energy conversion
Hydrogen fuel cells are marvels of electrochemical engineering, converting chemical energy into electricity with remarkable efficiency. At the heart of this process are four critical components: the anode, cathode, electrolyte, and catalysts. Each plays a distinct role in facilitating the reaction that powers fuel cell technology.
Consider the anode, the fuel cell’s entry point for hydrogen gas. Here, hydrogen molecules (H₂) are split into protons (H⁺) and electrons (e⁻) through a process called oxidation. This separation is crucial, as the electrons are forced to travel through an external circuit, generating electricity. The protons, meanwhile, migrate through the electrolyte to the cathode. Platinum-based catalysts are commonly used at the anode to accelerate this reaction, reducing the energy required to break the hydrogen bonds. For optimal performance, catalyst loading typically ranges from 0.1 to 0.4 mg/cm², balancing cost and efficiency.
The electrolyte acts as a selective barrier, allowing only protons to pass while blocking electrons. In proton-exchange membrane (PEM) fuel cells, a polymer membrane impregnated with water serves this purpose, ensuring the protons reach the cathode while maintaining electrical insulation. This design is critical for preventing short circuits and maintaining the cell’s voltage, typically around 0.6–0.7 V per cell under load. The electrolyte’s thickness and hydration level are finely tuned to maximize proton conductivity while minimizing resistance.
At the cathode, oxygen from the air combines with the protons and electrons to form water (H₂O) in a reduction reaction. This step completes the circuit and produces the fuel cell’s only byproduct: pure water. Catalysts, again often platinum-based, are employed here to enhance reaction kinetics. However, research into lower-cost alternatives like iron-nitrogen-carbon (Fe-N-C) catalysts is ongoing, aiming to reduce reliance on expensive precious metals. Catalyst layers at the cathode are typically thicker than those at the anode, reflecting the slower kinetics of the oxygen reduction reaction.
Together, these components form a symphony of electrochemical reactions, converting hydrogen and oxygen into electricity, heat, and water. Understanding their interplay is key to optimizing fuel cell performance, whether for vehicles, stationary power, or portable electronics. For instance, in automotive applications, fuel cell stacks are designed to operate efficiently across a wide range of loads, from idle to full power, requiring precise control of reactant flow and temperature. By mastering these components, engineers can unlock the full potential of hydrogen fuel cells as a clean, sustainable energy source.
Understanding Fuel Injection Systems: A Comprehensive Guide to Their Functionality
You may want to see also
Explore related products
Proton Exchange Membrane: PEM fuel cells use a membrane to conduct protons, separating reactants
At the heart of a Proton Exchange Membrane (PEM) fuel cell lies a thin, specially treated polymer membrane that selectively conducts protons while blocking electrons. This membrane, typically made of perfluorinated sulfonic acid (PFSA), acts as a barrier between the anode and cathode, ensuring hydrogen and oxygen reactants remain separated. Without this separation, the fuel cell would short-circuit, rendering it useless. The membrane’s proton conductivity is critical; it must allow hydrogen ions to pass efficiently while maintaining structural integrity under varying temperatures and humidity levels. For optimal performance, the membrane’s thickness is usually kept between 25 to 50 micrometers, balancing durability with proton transport speed.
Consider the process within a PEM fuel cell as a carefully choreographed dance. Hydrogen gas enters the anode, where a catalyst (often platinum) splits it into protons and electrons. The protons migrate through the membrane to the cathode, while the electrons travel externally, creating an electric current. Meanwhile, oxygen enters the cathode, combining with the protons and electrons to form water—the fuel cell’s only byproduct. This separation of reactants and charge carriers is what makes PEM fuel cells so efficient, with energy conversion rates reaching up to 60%. However, maintaining the membrane’s hydration is crucial; too dry, and proton conductivity drops; too wet, and water blocks the gas diffusion layers.
From a practical standpoint, PEM fuel cells are ideal for applications requiring rapid response and compact design, such as electric vehicles and portable power systems. Their operating temperature range of 60°C to 100°C is lower than other fuel cell types, reducing thermal management complexity. However, the reliance on expensive platinum catalysts and the need for pure hydrogen fuel pose challenges. For instance, even trace amounts of carbon monoxide (as low as 10 parts per million) can poison the catalyst, necessitating stringent fuel purification. Despite these hurdles, advancements in membrane materials, such as incorporating hydrocarbon-based polymers, are reducing costs and improving durability.
A comparative analysis highlights PEM fuel cells’ advantages over other technologies, such as alkaline or solid oxide fuel cells. Unlike alkaline cells, PEMs tolerate freezing conditions without permanent damage, making them suitable for colder climates. Compared to solid oxide cells, which operate at 500°C to 1,000°C, PEMs’ lower temperatures simplify system design and reduce material degradation. However, their sensitivity to fuel purity and humidity requires precise engineering. For example, integrating humidifiers and advanced membrane electrode assemblies (MEAs) can mitigate these issues, ensuring consistent performance in real-world scenarios.
In conclusion, the Proton Exchange Membrane is the linchpin of PEM fuel cell technology, enabling efficient, clean energy conversion by separating reactants and conducting protons. Its design and operation demand precision, from maintaining optimal hydration to ensuring catalyst purity. While challenges remain, ongoing innovations are making PEM fuel cells increasingly viable for a range of applications. Understanding this membrane’s role provides a foundation for appreciating the broader mechanics of hydrogen fuel stacks and their potential to revolutionize energy systems.
Understanding Solid Fuel: Mechanics, Combustion, and Energy Efficiency Explained
You may want to see also
Explore related products
Efficiency and Emissions: High efficiency, zero tailpipe emissions, only water and heat as byproducts
Hydrogen fuel cells stand out in the automotive world for their remarkable efficiency, converting up to 60% of the energy in hydrogen into usable power—a stark contrast to the 20-30% efficiency of traditional internal combustion engines. This high efficiency stems from the electrochemical process within the fuel cell, where hydrogen and oxygen combine to produce electricity, water, and heat. Unlike combustion engines, which waste energy as friction and heat, fuel cells directly generate electricity, minimizing energy loss. For instance, a Toyota Mirai, powered by a hydrogen fuel cell, achieves an efficiency equivalent to over 60 miles per gallon of gasoline, showcasing the technology’s potential to revolutionize transportation energy use.
Zero tailpipe emissions are a defining feature of hydrogen fuel cell vehicles, making them a cornerstone of efforts to combat air pollution and climate change. When hydrogen reacts with oxygen in the fuel cell, the only byproducts are water vapor and heat, eliminating the release of harmful pollutants like nitrogen oxides, particulate matter, and carbon dioxide. This is particularly critical in urban areas, where vehicle emissions contribute significantly to poor air quality. For example, a fleet of hydrogen buses in London has reduced local air pollution by replacing diesel vehicles, demonstrating how fuel cell technology can deliver immediate environmental benefits without compromising performance.
The byproduct of water vapor from hydrogen fuel cells is not just a harmless emission—it’s a symbol of clean energy in action. This water is so pure that it’s safe to drink, though it’s typically released into the atmosphere as vapor. The absence of carbon emissions positions hydrogen fuel cells as a key player in achieving net-zero goals, especially when the hydrogen is produced using renewable energy sources like wind or solar power. For instance, green hydrogen, produced via electrolysis powered by renewables, ensures the entire lifecycle of the fuel is carbon-neutral, making fuel cells a truly sustainable solution.
While the efficiency and emissions profile of hydrogen fuel cells is impressive, practical considerations must be addressed to maximize their impact. For example, ensuring a consistent supply of hydrogen refueling stations is crucial for widespread adoption. Additionally, the production and distribution of hydrogen must become more energy-efficient to fully realize the technology’s environmental benefits. Consumers can contribute by advocating for renewable hydrogen production and supporting policies that incentivize fuel cell infrastructure. By focusing on these areas, hydrogen fuel cells can fulfill their promise as a high-efficiency, zero-emission solution for a cleaner future.
Understanding Theta Fuel: Mechanics, Benefits, and Role in Blockchain
You may want to see also
Explore related products
Applications and Scaling: Used in vehicles, power plants, and portable devices, scalable for various needs
Hydrogen fuel cells are remarkably versatile, powering everything from cars to entire power plants. This adaptability stems from their modular design, where individual cells can be combined to meet varying energy demands. For instance, a single fuel cell might generate around 1 volt, but stacking hundreds or even thousands of these cells can produce enough electricity to propel a heavy-duty truck or energize a neighborhood. This scalability is a game-changer, allowing hydrogen technology to seamlessly integrate into diverse applications without requiring a one-size-fits-all approach.
In the automotive sector, hydrogen fuel cell vehicles (FCEVs) like the Toyota Mirai and Hyundai Nexo demonstrate the technology’s practicality. These cars use a fuel cell stack to convert hydrogen and oxygen into electricity, powering an electric motor while emitting only water vapor. The scalability here is evident: smaller stacks suit compact cars, while larger ones can drive buses or trucks. For example, a typical passenger FCEV uses a 100 kW stack, whereas a fuel cell bus might require a 200–300 kW system. Refueling takes just 3–5 minutes, comparable to conventional vehicles, making FCEVs a viable alternative to battery-electric vehicles, especially for long-haul transportation.
Power plants, too, are leveraging hydrogen fuel cells to provide clean, reliable energy. Stationary fuel cell systems, ranging from 10 kW for residential use to multi-megawatt installations for industrial applications, offer a decentralized power solution. In Japan, for instance, the Ene-Farm program has deployed over 300,000 residential fuel cells, each generating 1–5 kW, to provide both electricity and hot water. On a larger scale, projects like the 50 MW hydrogen power plant in South Korea showcase how fuel cells can be aggregated to deliver grid-scale power, ensuring stability and reducing carbon emissions.
Portable devices represent another frontier for hydrogen fuel cells, particularly in off-grid scenarios. Compact fuel cell units, often in the 10–100 watt range, power laptops, drones, and even medical equipment in remote areas. For example, a 50-watt fuel cell can keep a smartphone charged for weeks, provided it’s paired with a small hydrogen cartridge. These devices are especially valuable in disaster zones or for military operations, where traditional power sources are unreliable. Their lightweight, modular design ensures they can be tailored to specific energy needs without sacrificing portability.
Scaling hydrogen fuel cell technology isn’t without challenges, but its potential across sectors is undeniable. Whether it’s optimizing stack efficiency for vehicles, integrating systems into the grid, or miniaturizing designs for portable use, the key lies in customization. As manufacturing costs drop—projected to decrease by 50% by 2030—and hydrogen infrastructure expands, fuel cells will become increasingly accessible. For businesses and consumers alike, understanding this scalability unlocks opportunities to adopt cleaner, more flexible energy solutions tailored to their unique demands.
Are Barges Fuel-Efficient? Exploring Their Eco-Friendly Transport Potential
You may want to see also
Frequently asked questions
A hydrogen fuel cell stack is a device that generates electricity through an electrochemical reaction between hydrogen and oxygen. It consists of multiple fuel cells connected in series. Inside each cell, hydrogen gas is split into protons and electrons at the anode. The protons pass through a membrane, while the electrons travel through an external circuit, creating an electric current. At the cathode, the protons, electrons, and oxygen combine to form water, the only byproduct.
The main components include the anode (where hydrogen is oxidized), the cathode (where oxygen is reduced), and the electrolyte membrane (typically a proton exchange membrane, PEM) that separates the two electrodes while allowing protons to pass through. Additionally, bipolar plates distribute gases and collect electricity, and a catalyst (often platinum) speeds up the reactions.
Hydrogen fuel cell stacks are significantly more efficient than traditional internal combustion engines. While combustion engines typically achieve 20-30% efficiency, fuel cells can reach 40-60% efficiency, depending on the design and operating conditions. When combined with electric motors, the overall system efficiency can be even higher.
Hydrogen fuel cell stacks produce zero tailpipe emissions, as the only byproduct of the reaction is water. When hydrogen is produced using renewable energy sources (green hydrogen), the entire process is nearly carbon-neutral. This makes fuel cell stacks a promising technology for reducing greenhouse gas emissions and combating climate change.
