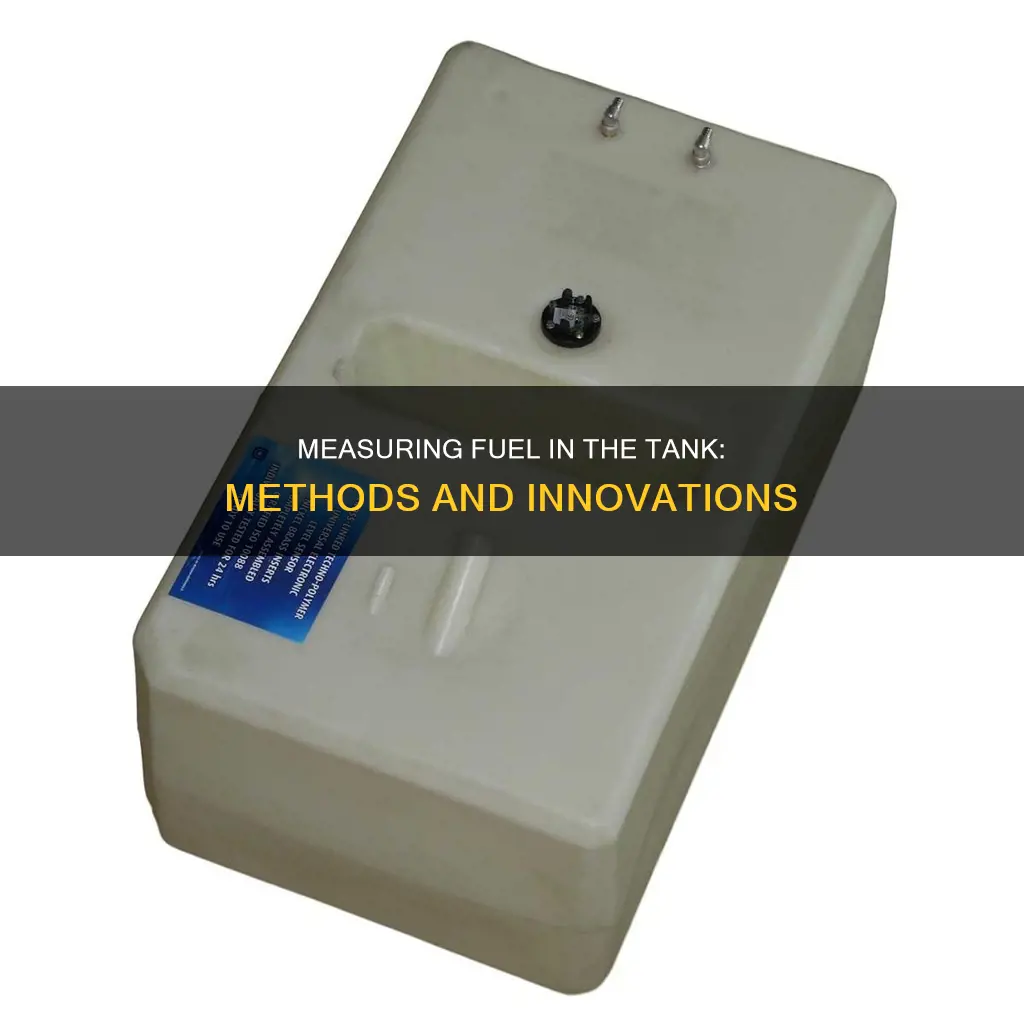

The measurement of fuel in a tank depends on the type of tank and the vehicle in which it is installed. For instance, in the case of vehicles like trucks, the fuel level is measured using a fuel gauge, or a depth measurement with a stick. In the case of airliners, the amount of fuel is measured as mass (kg or lbs) instead of volume, as mass is important for weight and balance. The fuel volume is measured using capacitance probes and then converted to mass by measuring the fuel density.
How fuel is measured in a tank
| Characteristics | Values |
|---|---|
| Fuel gauge | Installed in the tank to measure the amount of fuel |
| Measuring stick | A stick is lowered into the tank to measure the fuel level in inches |
| Tank volume calculator | Used to calculate the volume of fuel in the tank by inputting tank dimensions and fuel measured in inches |
| Rule of thumb for round tanks | When the gauge hits 1/4, the tank should be considered empty |
| Depth measurement | In round tanks with built-in steps, depth measurement with a stick is necessary to dial in a fuel sender |
Explore related products
$66.68 $71.01
What You'll Learn
Fuel volume in round tanks is hard to measure accurately
The volume of fuel in a tank is calculated based on the tank's geometry. While calculations are straightforward for tanks with simple shapes like rectangular prisms, cylinders, circles, and spheres, tanks used in vehicles are rarely perfect geometric shapes. Therefore, calculations for fuel volume are often only estimates.
For example, the total volume of a cylinder-shaped tank is given by the area of the circular end times the length. The area of the circular end can be calculated using the formula A = πr^2, where r is the radius. However, actual fuel tanks may not be perfect cylinders, and there may be other features that are not accounted for in these calculations.
Oval tanks present a similar challenge. While the volume can be calculated by finding the area of the end and multiplying it by the length, oval tanks used in vehicles may not conform exactly to the geometric definition of an oval.
In addition, the shape of the tank can make it difficult to determine the volume of fuel in a partially filled tank. For example, in a horizontal oval tank, the volume of fuel in the tank depends on whether the tank is filled in the two halves formed by a horizontal cross-section.
Due to these challenges, measuring the volume of fuel in a round tank accurately can be difficult, and calculations often only provide estimates.
