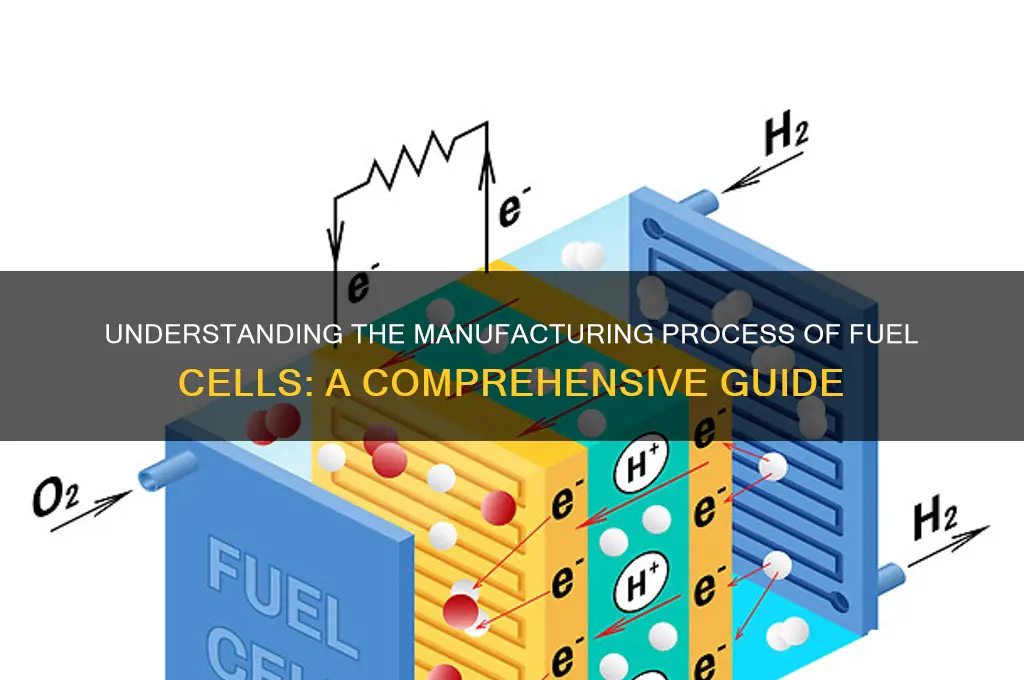

Fuel cells, innovative devices that generate electricity through electrochemical reactions, are manufactured through a precise and multi-step process. It begins with the production of the core components: the anode, cathode, and electrolyte. The anode and cathode, typically made from carbon paper or cloth coated with a catalyst like platinum, are designed to facilitate the chemical reactions. The electrolyte, a critical component that separates the electrodes while allowing ion transfer, is often a polymer membrane or a ceramic material, depending on the fuel cell type. These layers are then carefully assembled into a membrane electrode assembly (MEA), which is sandwiched between bipolar plates that distribute gases and collect electricity. The entire structure is sealed to prevent leaks and ensure efficiency, and additional components like humidifiers, pumps, and heat exchangers are integrated to optimize performance. This intricate manufacturing process ensures fuel cells operate reliably, offering a clean and efficient energy solution for various applications.
| Characteristics | Values |
|---|---|
| Main Components | Electrodes (anode and cathode), electrolyte, catalyst (often platinum), gas diffusion layers, bipolar plates, seals, and interconnects |
| Electrode Materials | Carbon paper or cloth coated with catalyst (e.g., platinum on carbon) |
| Electrolyte Types | Proton Exchange Membrane (PEM), Alkaline (AFC), Phosphoric Acid (PAFC), Molten Carbonate (MCFC), Solid Oxide (SOFC) |
| Catalyst Material | Platinum, platinum alloys, or non-precious metal catalysts (for PEMFC) |
| Manufacturing Process | 1. Electrode Preparation: Catalyst is applied to gas diffusion layers. 2. Membrane Assembly: Electrodes are bonded to the electrolyte membrane. 3. Stacking: Multiple cells are stacked with bipolar plates to form a fuel cell stack. 4. Sealing: Gaskets or seals are applied to prevent gas leakage. 5. Testing: Performance and durability tests are conducted. |
| Operating Temperature | PEMFC: 60–100°C, SOFC: 500–1000°C, MCFC: 600–700°C, PAFC: 150–200°C, AFC: 50–100°C |
| Fuel Source | Hydrogen (primary), methanol, natural gas, or reformed hydrocarbons |
| Oxidizing Agent | Oxygen (from air) |
| Efficiency | 40–60% (electrical efficiency), up to 85% with combined heat and power (CHP) |
| Lifespan | 5,000–40,000 hours (depending on type and application) |
| Applications | Vehicles, stationary power generation, portable electronics, backup power systems |
| Environmental Impact | Zero direct emissions (water and heat as byproducts), reduced greenhouse gases compared to fossil fuels |
| Cost | $50–$100/kW (projected for mass production), currently higher due to catalyst and manufacturing costs |
| Challenges | Durability, cost of catalysts, hydrogen infrastructure, and material stability at high temperatures |
| Recent Advances | Development of non-precious metal catalysts, improved membrane durability, and integration with renewable energy systems |
Explore related products
What You'll Learn
- Materials Selection: Choosing catalysts, electrolytes, and membranes for efficiency and durability in fuel cell construction
- Electrode Manufacturing: Creating anode and cathode layers with precise catalyst distribution for optimal performance
- Membrane Assembly: Integrating proton-exchange membranes to facilitate ion transfer while preventing gas crossover
- Stacking Process: Layering cells into a stack, ensuring electrical connectivity and structural integrity
- Quality Control: Testing for leaks, conductivity, and performance to meet industry standards and reliability
Materials Selection: Choosing catalysts, electrolytes, and membranes for efficiency and durability in fuel cell construction
The heart of a fuel cell's performance lies in its materials. Catalysts, electrolytes, and membranes are the unsung heroes, dictating efficiency, durability, and ultimately, the viability of this clean energy technology. Selecting the right materials is a delicate balance, akin to assembling a high-performance team where each member's strengths complement the others.
Catalysts, for instance, are the workhorses, accelerating the crucial electrochemical reactions. Platinum, while highly effective, is expensive and susceptible to poisoning by impurities. Researchers are exploring alternatives like palladium, iron-nitrogen-carbon composites, and even enzyme-based catalysts, each offering unique advantages and trade-offs in terms of cost, activity, and stability.
Electrolytes, the conductors of ions, demand a different set of qualities. They must be ionically conductive while remaining electronically insulating to prevent short circuits. Solid oxide fuel cells rely on ceramic electrolytes like yttria-stabilized zirconia, prized for their high operating temperatures and efficiency. In contrast, proton exchange membrane fuel cells (PEMFCs) utilize polymer membranes like Nafion, which offer lower operating temperatures but require careful humidity management to maintain conductivity.
Membrane selection is equally critical, as it separates the reactants and facilitates ion transport. Beyond conductivity, membranes must be mechanically robust, chemically stable, and resistant to fuel crossover. Thin, durable membranes with high proton conductivity are ideal, but achieving this balance remains a challenge. Researchers are investigating novel materials like sulfonated polyimides and composite membranes incorporating inorganic fillers to enhance performance and durability.
The interplay between these materials is complex. A catalyst's performance is influenced by its interaction with the electrolyte and membrane, while the membrane's stability depends on the operating conditions dictated by the chosen electrolyte. This intricate dance requires careful consideration of material compatibility, operating temperature, and environmental factors. Ultimately, the optimal material selection hinges on the specific fuel cell type, application, and desired performance metrics. Continuous research and development are pushing the boundaries of material science, paving the way for more efficient, durable, and cost-effective fuel cells, bringing us closer to a sustainable energy future.
Fuel Cells: Unlocking Clean Energy Potential and Real-World Efficiency
You may want to see also
Explore related products
Electrode Manufacturing: Creating anode and cathode layers with precise catalyst distribution for optimal performance
The heart of a fuel cell's efficiency lies in its electrodes, where the anode and cathode layers facilitate the electrochemical reactions that generate electricity. Manufacturing these layers with precise catalyst distribution is critical, as even slight variations can significantly impact performance. Catalysts, typically platinum or platinum-based alloys, must be evenly dispersed across the electrode surface to maximize reaction sites while minimizing material usage. This delicate balance ensures optimal power output and longevity, making electrode manufacturing a cornerstone of fuel cell technology.
Consider the process of catalyst deposition, a key step in electrode manufacturing. Techniques such as sputtering, chemical vapor deposition (CVD), and inkjet printing are employed to apply catalysts onto the electrode substrate. For instance, inkjet printing allows for precise control over catalyst distribution by ejecting tiny droplets of catalyst-laden ink onto the substrate. This method enables the creation of intricate patterns, optimizing the catalyst’s surface area and reducing waste. However, achieving uniformity requires meticulous calibration of ink viscosity, droplet size, and substrate temperature, as deviations can lead to clustering or incomplete coverage.
A comparative analysis of catalyst loading strategies reveals trade-offs between cost and performance. High catalyst loading increases reaction efficiency but escalates material costs, while low loading reduces expenses but may compromise power density. Researchers often target a loading range of 0.1 to 0.3 mg/cm² of platinum, striking a balance between affordability and functionality. Advanced techniques like atomic layer deposition (ALD) offer sub-nanometer precision, ensuring catalysts are distributed in ultra-thin, uniform layers. This approach not only enhances performance but also extends the fuel cell’s operational lifespan by minimizing catalyst degradation.
Practical tips for manufacturers include optimizing the electrode substrate’s porosity to facilitate gas diffusion and product water removal. Carbon-based materials like graphite or carbon fiber are commonly used due to their high conductivity and stability. However, ensuring compatibility between the substrate and catalyst is essential, as poor adhesion can lead to delamination during operation. Post-deposition treatments, such as heat curing or chemical stabilization, can improve bonding and durability. Additionally, real-time monitoring systems, like scanning electron microscopy (SEM), can verify catalyst distribution accuracy, enabling adjustments before assembly.
In conclusion, electrode manufacturing demands precision, innovation, and a deep understanding of material interactions. By mastering catalyst distribution techniques and balancing loading strategies, manufacturers can unlock the full potential of fuel cells. As technology advances, the focus will increasingly shift toward sustainable, cost-effective solutions, ensuring fuel cells remain a viable energy alternative for generations to come.
Understanding Fuel Combustion: Process, Efficiency, and Environmental Impact
You may want to see also
Explore related products
Membrane Assembly: Integrating proton-exchange membranes to facilitate ion transfer while preventing gas crossover
Proton-exchange membranes (PEMs) are the unsung heroes of fuel cell efficiency, serving as the critical interface where ion transfer and gas separation occur. These membranes, typically made from perfluorinated sulfonic acid polymers like Nafion, must balance two seemingly contradictory functions: allowing protons to pass through while blocking the crossover of hydrogen and oxygen gases. This dual role is essential for maintaining the fuel cell’s voltage and preventing internal combustion, which could degrade performance or even damage the system. Achieving this balance requires precise material selection and assembly techniques, as even microscopic defects can compromise the membrane’s integrity.
To integrate a PEM into a fuel cell, the assembly process begins with surface preparation. The membrane must be cleaned to remove impurities and treated to enhance its interface with the catalyst layers. A common method involves soaking the membrane in deionized water or a mild acid solution to remove residual contaminants. Next, the catalyst layers—typically platinum nanoparticles supported on carbon—are applied to both sides of the membrane using a spray or decal transfer method. The catalyst loading is critical; a typical dosage is 0.1–0.5 mg/cm² of platinum, ensuring sufficient catalytic activity without excessive material waste. This step requires precision, as uneven distribution can lead to hot spots or reduced efficiency.
One of the most challenging aspects of membrane assembly is ensuring a robust bond between the PEM and the gas diffusion layers (GDLs) while maintaining the membrane’s proton conductivity. This is often achieved through hot pressing, where the membrane-electrode assembly (MEA) is subjected to temperatures of 120–150°C and pressures of 5–10 MPa for 3–5 minutes. This process fuses the layers together, creating a seal that prevents gas leakage. However, excessive heat or pressure can degrade the membrane, so careful monitoring is essential. For instance, using a thermocouple to measure the actual temperature of the MEA can prevent overheating, especially in thicker assemblies.
Comparing PEM assembly to other fuel cell technologies, such as alkaline or solid oxide fuel cells, highlights its unique challenges. PEMs operate at relatively low temperatures (60–80°C), making them suitable for automotive and portable applications, but this also means they are more susceptible to humidity variations and gas crossover. In contrast, solid oxide fuel cells operate at 500–1000°C, eliminating the need for precious metal catalysts but requiring more robust, heat-resistant materials. The takeaway is that PEM assembly demands a delicate balance of temperature, pressure, and material properties to optimize performance in a specific operational window.
Finally, practical tips for successful membrane assembly include controlling humidity during the process, as dry membranes can crack under pressure, while overly wet membranes may lead to poor adhesion. Storing PEMs in a sealed environment with 50–70% relative humidity is recommended. Additionally, using automated equipment for catalyst application and hot pressing can reduce variability and improve consistency, especially in large-scale production. By mastering these techniques, engineers can ensure that the PEM not only facilitates efficient ion transfer but also acts as a reliable barrier against gas crossover, ultimately enhancing the fuel cell’s durability and efficiency.
Understanding Freighter Fuel: How It Powers Global Shipping Operations
You may want to see also
Explore related products
Stacking Process: Layering cells into a stack, ensuring electrical connectivity and structural integrity
The stacking process is a critical phase in fuel cell manufacturing, where individual cells are layered together to form a functional unit. This step demands precision, as it directly impacts the fuel cell's performance, durability, and efficiency. Each cell consists of an anode, a cathode, and an electrolyte membrane, and when stacked, these components must align perfectly to ensure seamless operation. The challenge lies in maintaining electrical connectivity between cells while also preserving the structural integrity of the entire assembly.
Consider the analogy of building a house of cards—each layer must be placed with care to avoid collapse. Similarly, in fuel cell stacking, each cell is separated by bipolar plates, which serve dual purposes: distributing reactants (like hydrogen and oxygen) and collecting the electric current generated. These plates are often made of graphite or composite materials, chosen for their conductivity and lightweight properties. The assembly process involves interleaving these plates with membrane electrode assemblies (MEAs), ensuring that gaskets and seals are correctly positioned to prevent gas leaks. Automated systems are frequently employed to handle the delicate components, reducing the risk of misalignment or damage during stacking.
One of the key considerations during stacking is managing thermal expansion and contraction. Fuel cells operate under varying temperatures, and materials within the stack expand at different rates. To address this, manufacturers incorporate flexible interconnects or use materials with similar thermal expansion coefficients. For instance, metal bipolar plates coated with corrosion-resistant materials can provide both conductivity and structural stability. Additionally, compressive forces are applied uniformly across the stack to maintain contact between layers without causing damage. This is often achieved using end plates and tie rods, which secure the stack under controlled pressure, typically ranging from 2 to 5 N/mm².
Quality control is paramount in the stacking process. Each layer must be inspected for defects, such as cracks, misalignment, or contamination, which can compromise performance. Non-destructive testing methods, like ultrasonic or thermal imaging, are employed to identify issues without disassembling the stack. Post-stacking, the unit undergoes testing under simulated operating conditions to verify electrical output, gas tightness, and thermal management. This ensures that the stack meets performance benchmarks before integration into larger systems, such as vehicles or power plants.
In conclusion, the stacking process is a blend of art and science, requiring meticulous attention to detail and advanced engineering techniques. By ensuring electrical connectivity and structural integrity, manufacturers create fuel cell stacks capable of delivering reliable, efficient energy. As technology advances, innovations in materials and assembly methods will continue to enhance the scalability and affordability of this critical process, driving the broader adoption of fuel cell technology.
Fuel Your Body: How Fiber Boosts Energy and Health
You may want to see also
Explore related products
Quality Control: Testing for leaks, conductivity, and performance to meet industry standards and reliability
Leak testing is a critical step in fuel cell manufacturing, as even microscopic breaches can compromise efficiency and safety. Manufacturers employ methods like helium mass spectrometry, which detects leaks as small as 10^-9 mbar·L/s, or pressure decay testing, where a pressurized cell is monitored for drops over time. For proton exchange membrane fuel cells (PEMFCs), sealing integrity is paramount; a single faulty gasket or membrane can lead to gas crossover, reducing power output by up to 30%. Automating these tests with robotic systems ensures consistency, as human error can introduce variability in manual inspections.
Conductivity testing verifies the electrical pathways within a fuel cell stack, ensuring minimal resistance for optimal power transfer. Techniques such as four-probe measurements assess the conductivity of catalyst layers, targeting values above 10 S/cm for platinum-based catalysts. In solid oxide fuel cells (SOFCs), impedance spectroscopy is used to evaluate ionic conductivity in electrolytes, critical for maintaining efficiency at operating temperatures of 600–1000°C. Deviations from expected conductivity thresholds often indicate contamination or uneven material distribution, requiring immediate rework to meet standards like ISO 14687-2.
Performance testing under simulated operating conditions is the final arbiter of a fuel cell’s reliability. Manufacturers subject stacks to load cycling, where current density is varied between 0.1 and 1.5 A/cm² to mimic real-world usage. Durability tests, such as those outlined in the DOE’s Protocol for PEM Fuel Cell Durability, run cells for thousands of hours, monitoring voltage degradation. A drop of more than 10% in performance over 5,000 hours typically fails certification. These tests not only validate design but also predict lifespan, ensuring products meet or exceed industry benchmarks like the SAE J2572 standard.
Integrating quality control into every stage of production minimizes defects and enhances consistency. For instance, real-time monitoring systems with AI algorithms can flag anomalies during assembly, reducing scrap rates by up to 20%. Post-production, every cell undergoes a final validation test, where parameters like polarization curves and power density are compared against specifications. This layered approach ensures that only fuel cells meeting stringent criteria—such as achieving 80% efficiency at peak load—reach the market, fostering consumer trust and accelerating adoption in sectors like automotive and stationary power.
The Cosmic Furnace: Unveiling the Fuel Behind Star Power
You may want to see also
Frequently asked questions
The main components of a fuel cell include the anode, cathode, and electrolyte. The anode and cathode are typically made from carbon paper or cloth coated with a catalyst (often platinum), while the electrolyte is a membrane (e.g., Nafion for PEM fuel cells) or a solid ceramic material. These components are manufactured through processes like chemical vapor deposition, sputtering, or membrane casting.
The catalyst layer is applied using techniques such as spraying, brushing, or screen printing. Platinum or other catalytic materials are dispersed in an ink or suspension and then applied to the electrode surfaces. The layer is then dried and bonded to ensure proper adhesion and conductivity.
The electrolyte material varies by fuel cell type. Proton Exchange Membrane (PEM) fuel cells use polymer membranes like Nafion, while Solid Oxide Fuel Cells (SOFCs) use ceramic materials such as yttria-stabilized zirconia. Alkaline Fuel Cells (AFCs) use potassium hydroxide solutions. Each material is chosen for its ability to conduct ions efficiently under specific operating conditions.
Bipolar plates, which distribute gases and collect electricity, are typically made from graphite or metal (e.g., stainless steel or titanium). They are manufactured through processes like molding, stamping, or 3D printing, followed by surface treatments to enhance conductivity and corrosion resistance. Channels for gas flow are also etched or molded into the plates.
