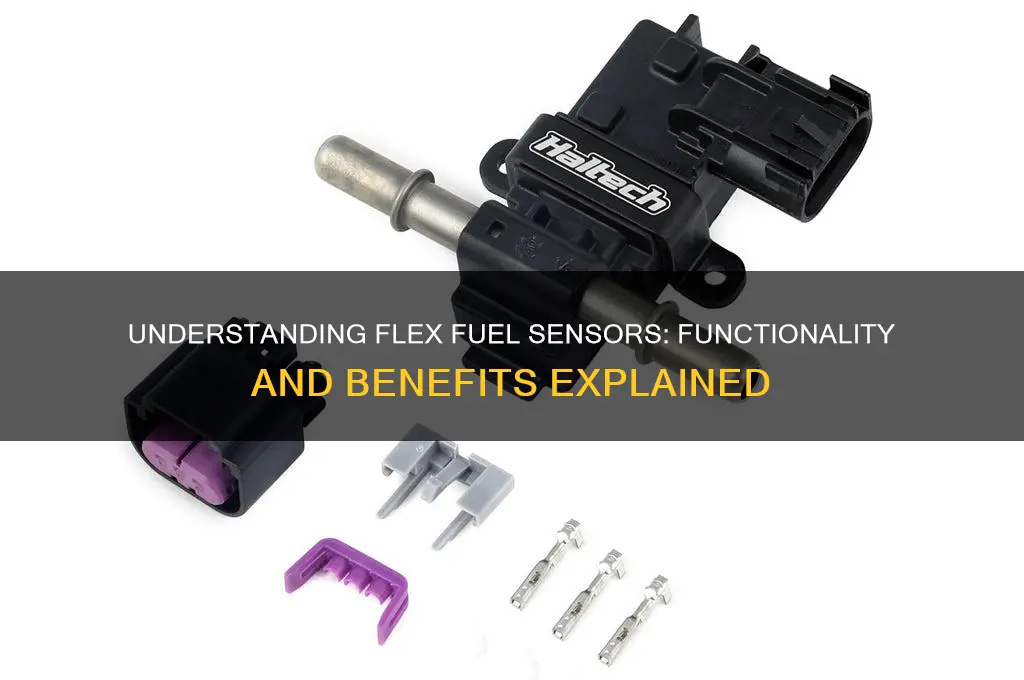

A flex fuel sensor is a critical component in vehicles designed to run on multiple fuel types, typically gasoline and ethanol blends. It operates by detecting the ethanol content in the fuel mixture, ensuring the engine management system can adjust the fuel injection and ignition timing accordingly for optimal performance. The sensor typically uses a capacitive or resistive mechanism to measure the dielectric properties of the fuel, which vary depending on the ethanol concentration. This data is then transmitted to the vehicle’s ECU (Engine Control Unit), allowing it to fine-tune the engine’s operation to accommodate the specific fuel blend being used. This technology not only enhances fuel efficiency and reduces emissions but also provides drivers with the flexibility to use different fuel types without compromising vehicle performance.
| Characteristics | Values |
|---|---|
| Purpose | Measures the ethanol-gasoline ratio in a flex-fuel vehicle's fuel system. |
| Working Principle | Utilizes a capacitive or resistive sensor to detect changes in fuel composition based on dielectric constant or conductivity. |
| Sensor Type | Capacitive (most common) or resistive. |
| Measurement Range | Typically 0-100% ethanol (E0 to E100). |
| Output Signal | Voltage or frequency signal proportional to ethanol content. |
| Accuracy | ±1% to ±2% ethanol concentration. |
| Response Time | 100-500 milliseconds. |
| Operating Temperature | -40°C to +125°C. |
| Power Supply | 5V or 12V DC, depending on the vehicle system. |
| Compatibility | Works with gasoline, ethanol, and ethanol-gasoline blends. |
| Installation Location | Typically mounted in the fuel line or fuel tank. |
| Durability | Designed to withstand fuel exposure and vibrations. |
| Calibration | May require periodic calibration for accurate readings. |
| Integration | Connected to the Engine Control Unit (ECU) for fuel injection adjustments. |
| Advantages | Enables optimal engine performance and fuel efficiency across fuel types. |
| Disadvantages | Sensitive to fuel contaminants; may require replacement over time. |
Explore related products
What You'll Learn
- Sensor Types: Capacitive, resistive, and optical sensors detect fuel ethanol levels in flex fuel systems
- Ethanol Detection: Measures ethanol-to-gasoline ratio via electrical property changes in the fuel mixture
- Signal Processing: Converts sensor data into digital signals for ECU interpretation and engine adjustments
- Installation Location: Typically placed in the fuel line or tank for accurate ethanol measurement
- Calibration: Ensures precise readings by adjusting sensor output to match known fuel mixtures
Sensor Types: Capacitive, resistive, and optical sensors detect fuel ethanol levels in flex fuel systems
Flex fuel sensors are the unsung heroes of modern vehicles, ensuring engines run efficiently on varying ethanol-gasoline blends. Among the most common types are capacitive, resistive, and optical sensors, each employing distinct principles to measure ethanol content. Capacitive sensors rely on changes in electrical capacitance caused by ethanol’s dielectric properties, while resistive sensors measure shifts in electrical resistance due to ethanol’s lower conductivity compared to gasoline. Optical sensors, on the other hand, use light refraction or absorption to detect ethanol levels, leveraging its unique optical properties. Understanding these mechanisms is crucial for diagnosing sensor failures or optimizing system performance.
Capacitive sensors operate on a simple yet ingenious principle: ethanol’s higher dielectric constant alters the capacitance between two electrodes immersed in the fuel. As ethanol concentration increases, the sensor’s capacitance rises proportionally, allowing the engine control unit (ECU) to adjust fuel injection and ignition timing accordingly. For example, a typical capacitive sensor might output a voltage range of 0.5V to 4.5V, corresponding to 0% to 85% ethanol content. This method is highly accurate but requires careful calibration to account for temperature variations, which can affect fuel density and dielectric properties. Regular maintenance, such as cleaning the sensor electrodes, ensures reliable readings.
In contrast, resistive sensors measure ethanol levels by exploiting its lower electrical conductivity. These sensors use a pair of electrodes submerged in the fuel, with a known voltage applied across them. As ethanol concentration increases, the fuel’s resistance rises, reducing the current flow. The ECU interprets this change to determine ethanol content. Resistive sensors are cost-effective and durable but less precise than capacitive or optical sensors, especially in extreme temperatures. They are often used in older flex fuel systems or as backup sensors in modern vehicles. To maximize their lifespan, avoid exposing them to contaminants like dirt or water, which can skew readings.
Optical sensors take a different approach, using light to detect ethanol levels. These sensors emit a beam of light through the fuel and measure its refraction or absorption. Ethanol’s refractive index differs from gasoline’s, causing the light path to change predictably with ethanol concentration. Optical sensors are highly accurate and immune to electrical interference, making them ideal for harsh automotive environments. However, they are more expensive and complex to manufacture, limiting their use to high-end flex fuel systems. Regular inspection of the sensor’s optical window is essential to prevent dirt or fuel residue from obstructing the light path.
Choosing the right sensor type depends on factors like cost, accuracy, and environmental conditions. Capacitive sensors excel in precision and reliability, making them a popular choice for modern flex fuel vehicles. Resistive sensors offer a budget-friendly alternative, though their accuracy may suffer in extreme temperatures. Optical sensors, while costly, provide unmatched accuracy and durability, ideal for premium applications. Regardless of type, all sensors require periodic calibration and maintenance to ensure optimal performance. By understanding these sensor types, vehicle owners and technicians can better diagnose issues and maintain efficient fuel system operation.
Fueling Strategies of Elite Marathoners: Nutrition Secrets for Peak Performance
You may want to see also
Explore related products
Ethanol Detection: Measures ethanol-to-gasoline ratio via electrical property changes in the fuel mixture
Flex fuel sensors are pivotal in modern vehicles designed to run on multiple fuel types, particularly ethanol-gasoline blends. At the heart of their functionality lies ethanol detection, a process that hinges on measuring the ethanol-to-gasoline ratio by exploiting changes in the fuel mixture's electrical properties. This method is both precise and efficient, ensuring optimal engine performance across varying fuel compositions.
Analytical Insight: Ethanol and gasoline differ significantly in their electrical conductivity and permittivity. Ethanol, being an alcohol, has a higher dielectric constant and conductivity compared to gasoline, which is a hydrocarbon. When blended, these properties create a measurable shift in the fuel mixture's electrical characteristics. Flex fuel sensors leverage this principle by employing a capacitor or resistor-based system immersed in the fuel. As the ethanol concentration increases, the sensor detects changes in capacitance or resistance, translating these into a proportional electrical signal. This signal is then interpreted by the vehicle's engine control unit (ECU) to adjust fuel injection and ignition timing accordingly.
Practical Application: Installing a flex fuel sensor involves positioning the sensor probe within the fuel line or tank, ensuring direct contact with the fuel mixture. For DIY enthusiasts, it’s crucial to follow manufacturer guidelines for sensor placement and calibration. For instance, sensors like the GM flex fuel sensor require a 0-5V output range, corresponding to ethanol blends from 0% (pure gasoline) to 85% (E85). Calibration is key—use a known ethanol-gasoline blend (e.g., E10 or E85) to verify sensor accuracy before relying on it for real-time measurements.
Comparative Advantage: Unlike mechanical sensors that rely on fuel density or temperature, electrical property-based sensors offer superior accuracy and responsiveness. For example, a capacitive flex fuel sensor can detect ethanol concentrations with an accuracy of ±1%, whereas mechanical methods may drift by ±3% or more. This precision is critical for high-performance engines, where even minor deviations in fuel composition can impact efficiency and emissions. Additionally, electrical sensors are less prone to wear and tear, ensuring longevity in harsh automotive environments.
Takeaway: Ethanol detection via electrical property changes is a cornerstone of flex fuel sensor technology. By understanding the principles behind this method, vehicle owners and technicians can better appreciate the sensor's role in optimizing fuel efficiency and engine performance. Whether upgrading a vehicle to run on E85 or troubleshooting sensor issues, this knowledge empowers informed decision-making and maintenance practices. Always consult the vehicle’s manual or a professional for specific installation and calibration instructions to maximize the sensor’s effectiveness.
Exhaust System Impact: How It Influences Your Vehicle's Fuel Efficiency
You may want to see also
Explore related products
Signal Processing: Converts sensor data into digital signals for ECU interpretation and engine adjustments
Flex fuel sensors are pivotal in modern vehicles, enabling engines to seamlessly adapt to varying ethanol-gasoline blends. However, raw sensor data is analog and incompatible with the digital language of the Engine Control Unit (ECU). This is where signal processing steps in, acting as the translator between the sensor's physical measurements and the ECU's computational logic.
Without signal processing, the ECU would be blind to the fuel's composition, leading to inefficient combustion, increased emissions, and potential engine damage.
The signal processing stage typically involves several key steps. First, amplification boosts the weak analog signal from the sensor, ensuring it's strong enough for accurate conversion. Next, filtering removes noise and interference, which could otherwise distort the signal and lead to incorrect fuel composition readings. This is crucial, as even minor inaccuracies can significantly impact engine performance. For instance, a 1% error in ethanol content detection can result in a 3-5% decrease in fuel efficiency.
Analog-to-Digital Conversion (ADC) is the heart of signal processing. This step transforms the continuous analog signal into discrete digital values the ECU can understand. The resolution of the ADC, measured in bits, determines the precision of the digital output. A 10-bit ADC, for example, can represent 1024 distinct values, while a 12-bit ADC offers 4096, providing finer granularity for more accurate fuel mixture adjustments.
The processed digital signal is then transmitted to the ECU, which uses it to calculate the optimal air-fuel ratio, ignition timing, and other parameters. This real-time adjustment is essential for maintaining engine performance, fuel efficiency, and emissions control across different fuel blends. For example, a higher ethanol content requires a richer air-fuel mixture and a different ignition timing compared to pure gasoline.
Calibration is another critical aspect of signal processing. The sensor's output must be mapped to known fuel compositions through careful calibration procedures. This ensures the digital signal accurately reflects the actual ethanol percentage in the fuel. Regular calibration is necessary to account for sensor drift and aging, ensuring long-term reliability.
In essence, signal processing is the invisible hero in flex fuel systems, bridging the gap between the physical world of fuel composition and the digital realm of engine control. Its accuracy and reliability are paramount, directly impacting engine performance, fuel economy, and environmental footprint. Understanding these processes highlights the sophistication behind the seemingly simple act of filling up your tank with flex fuel.
Why Fuel Degrades: Understanding How Gasoline and Diesel Go Bad
You may want to see also
Explore related products
![A-Premium Fuel Injection Pressure Sensor [3 Pins] Compatible with Infiniti QX80 2014-2021, QX56 2011-2013, Q70, M37, M56 & Nissan Armada 2017-2021, Juke, NV1500, NV2500, NV3500, Titan](https://m.media-amazon.com/images/I/71h2UJURLuL._AC_UY218_.jpg)
Installation Location: Typically placed in the fuel line or tank for accurate ethanol measurement
The flex fuel sensor's installation location is critical for its accuracy and reliability. Typically placed in the fuel line or tank, this positioning ensures direct contact with the fuel mixture, allowing for precise ethanol content measurement. In the fuel line, the sensor is exposed to the fuel as it flows from the tank to the engine, providing real-time data on ethanol levels. Alternatively, when installed in the fuel tank, the sensor measures the overall ethanol concentration, which is essential for vehicles that require a consistent fuel mixture for optimal performance.
Consider the fuel tank installation as an example. In this setup, the sensor is submerged in the fuel, often near the fuel pump or at the lowest point of the tank to ensure it remains in contact with the liquid. This location is particularly useful in vehicles with large fuel tanks or those that experience significant fuel sloshing during operation. For instance, in a high-performance vehicle, the sensor's placement near the fuel pump can provide accurate readings even during aggressive driving maneuvers. However, this installation requires careful consideration of the sensor's compatibility with the fuel tank material and its resistance to corrosion or degradation over time.
From an analytical perspective, the choice of installation location depends on the vehicle's design, fuel system, and intended use. In vehicles with return-style fuel systems, placing the sensor in the fuel line near the engine can provide more accurate readings, as the fuel mixture is less likely to separate or stratify. In contrast, vehicles with non-return systems may benefit from tank installation, as the fuel mixture is more homogeneous. Additionally, the sensor's response time and accuracy can be influenced by factors such as fuel temperature, flow rate, and pressure, which vary depending on the installation location.
When installing a flex fuel sensor, follow these practical tips: (1) ensure the sensor is compatible with the fuel type and ethanol concentration range expected in the vehicle; (2) use appropriate sealing materials and techniques to prevent fuel leaks or contamination; (3) calibrate the sensor according to the manufacturer's specifications, typically involving a known ethanol-gasoline mixture (e.g., E85 or E10); and (4) verify the sensor's accuracy periodically, especially after modifications to the fuel system or changes in driving conditions. For DIY installers, it's essential to consult the vehicle's service manual and the sensor manufacturer's guidelines to ensure proper placement and secure mounting.
In comparison to other fuel sensors, the flex fuel sensor's installation location is unique due to its focus on ethanol measurement. Unlike traditional fuel level sensors, which primarily detect the amount of fuel in the tank, flex fuel sensors require direct contact with the fuel mixture to analyze its composition. This distinction highlights the importance of strategic placement in achieving accurate and reliable ethanol content readings. By understanding the nuances of installation location, vehicle owners and technicians can optimize the performance of flex fuel systems, ensuring efficient combustion, reduced emissions, and extended engine life.
How Warforged Sustain Energy: Fuel Sources and Mechanisms Explained
You may want to see also
Explore related products
Calibration: Ensures precise readings by adjusting sensor output to match known fuel mixtures
Flex fuel sensors are marvels of modern automotive technology, enabling vehicles to seamlessly transition between gasoline and ethanol blends. However, their accuracy hinges on one critical process: calibration. Without it, even the most advanced sensor becomes a liability, delivering erratic readings that compromise engine performance and fuel efficiency. Calibration is the linchpin that ensures the sensor’s output aligns precisely with the actual fuel mixture in the tank, transforming raw data into actionable insights for the vehicle’s ECU.
Consider the calibration process as a fine-tuning exercise. It begins with exposing the sensor to known fuel mixtures, typically ranging from pure gasoline (E0) to 85% ethanol (E85). During this phase, the sensor’s output is measured and compared against the expected values. Discrepancies are then corrected by adjusting the sensor’s internal parameters, often through software updates or hardware adjustments. For instance, a sensor reading 10% ethanol in a known E20 mixture would require calibration to eliminate the 10% error, ensuring future readings are accurate. This step is crucial, especially in vehicles frequently switching between fuel types, as ethanol content can vary widely across regions and seasons.
The practical implications of calibration cannot be overstated. An uncalibrated sensor might report E30 when the actual mixture is E50, leading the ECU to inject insufficient fuel. The result? Poor combustion, reduced power, and increased emissions. Conversely, overestimating ethanol content can cause excessive fuel delivery, wasting resources and potentially damaging the engine. Calibration mitigates these risks, ensuring the sensor’s readings are reliable across the full spectrum of fuel blends. For DIY enthusiasts, calibration kits are available, often including test fluids and software tools. However, professional calibration is recommended for precision, as it accounts for factors like temperature and sensor aging.
One often-overlooked aspect of calibration is its role in long-term sensor health. Over time, sensors can drift due to wear, contamination, or exposure to extreme conditions. Regular recalibration, typically every 10,000 miles or after fuel system repairs, ensures the sensor remains within its accuracy window. For example, a sensor in a high-mileage flex-fuel vehicle might lose 2-3% accuracy annually without intervention. By recalibrating, drivers not only maintain performance but also extend the sensor’s lifespan, delaying costly replacements.
In conclusion, calibration is not a one-time task but an ongoing commitment to precision. It bridges the gap between theoretical sensor functionality and real-world performance, ensuring flex fuel systems operate optimally. Whether you’re a mechanic, a vehicle owner, or an enthusiast, understanding and prioritizing calibration is key to unlocking the full potential of flex fuel technology. After all, in a system where accuracy is everything, calibration is the difference between guesswork and certainty.
Understanding Bioethanol Fuel: How It Powers Vehicles and Reduces Emissions
You may want to see also
Frequently asked questions
A flex fuel sensor is a device installed in flex-fuel vehicles (FFVs) to detect the ethanol-to-gasoline ratio in the fuel. It ensures the engine control unit (ECU) adjusts the fuel injection and ignition timing for optimal performance based on the fuel mixture.
The flex fuel sensor typically uses a capacitive or resistive sensing mechanism. It measures changes in the electrical properties of the fuel, which vary depending on the ethanol content, and sends this data to the ECU for processing.
The flex fuel sensor is usually installed in the fuel line, often near the fuel tank or fuel rail, to directly measure the ethanol content in the fuel as it flows to the engine.
Yes, a faulty flex fuel sensor can lead to inaccurate ethanol content readings, causing issues like poor fuel efficiency, rough idling, engine misfires, or even check engine light illumination. Regular maintenance and timely replacement are essential.
