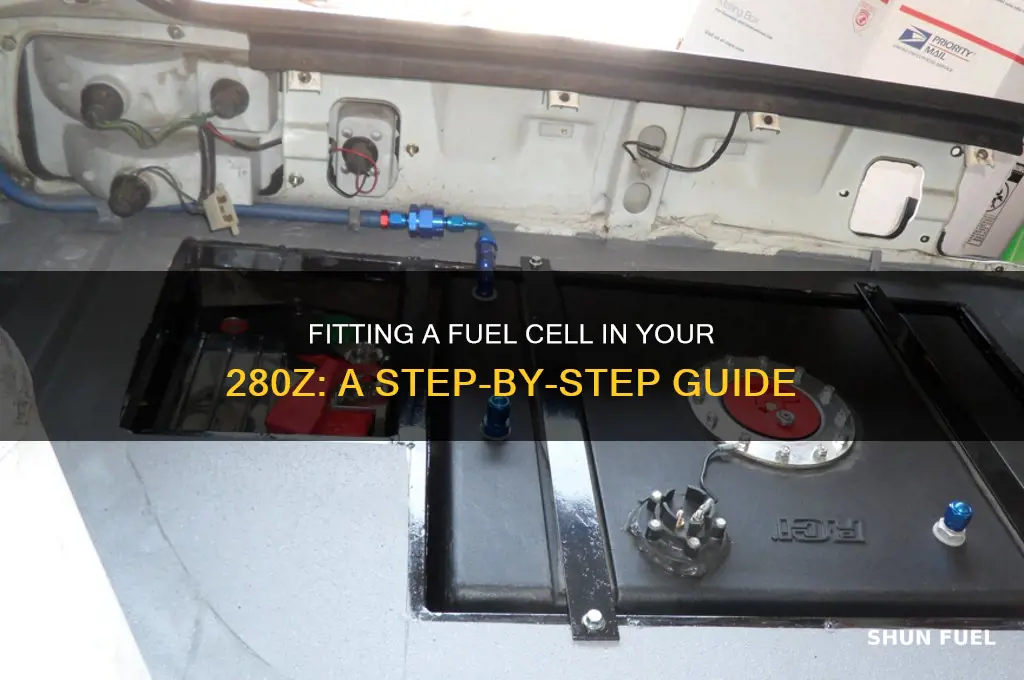

The Nissan 280Z, a classic sports car renowned for its sleek design and performance, has become a popular platform for modern upgrades, including the integration of advanced technologies like fuel cells. Retrofitting a 280Z with a fit fuel cell system offers a unique blend of nostalgia and innovation, transforming this iconic vehicle into a sustainable, zero-emission powerhouse. By replacing the traditional internal combustion engine with a hydrogen fuel cell, enthusiasts can preserve the car’s timeless aesthetics while significantly reducing its environmental footprint. This modification not only aligns with contemporary eco-friendly goals but also showcases the potential for historic automobiles to adapt to the future of transportation. The process involves careful planning, from selecting the right fuel cell system to ensuring seamless integration with the 280Z’s chassis and drivetrain, making it a challenging yet rewarding project for automotive enthusiasts and eco-conscious innovators alike.
Explore related products
What You'll Learn
- Fuel Cell Size & Placement: Optimal dimensions and location for fuel cell in 280Z chassis
- Safety Considerations: Fireproofing, venting, and secure mounting for fuel cell installation
- Fuel Line Routing: Efficient and safe fuel line paths from cell to engine
- Compatibility Checks: Ensuring fuel cell fits with 280Z’s existing fuel system components
- Regulatory Compliance: Meeting racing or street legal standards for fuel cell installation
Fuel Cell Size & Placement: Optimal dimensions and location for fuel cell in 280Z chassis
The 280Z's chassis, while iconic, presents a unique challenge for fuel cell integration due to its compact rear-wheel-drive layout. The fuel cell's size and placement are critical to maintaining the car's balance, handling, and safety. A fuel cell that's too large or poorly positioned can compromise the vehicle's center of gravity, affecting performance and drivability.
Optimal Dimensions:
For a 280Z, a fuel cell with a capacity of 12-15 gallons is generally recommended for road and track use. This size strikes a balance between range and weight, ensuring the car remains agile and responsive. The fuel cell's dimensions should not exceed 24" x 24" x 10" to fit within the confines of the rear cargo area. A slimmer profile, around 8-9" in height, is preferable to lower the center of gravity and minimize intrusion into the rear passenger space.
Strategic Placement:
The ideal location for the fuel cell is in the rear cargo area, centered between the rear wheels. This placement helps distribute weight evenly, reducing the risk of overloading the rear axle. Secure the fuel cell using custom-fabricated mounts or brackets, ensuring it's firmly attached to the chassis. Avoid placing the fuel cell directly over the rear axle, as this can cause excessive weight transfer during acceleration and braking.
Safety Considerations:
When installing a fuel cell, prioritize safety by using a cell with a built-in foam baffle system to prevent fuel slosh and potential fires. Ensure the fuel cell is equipped with a rollover valve and a vented filler neck to comply with safety regulations. The fuel cell should be grounded to the chassis, and all fuel lines should be routed away from hot surfaces and moving components.
Practical Tips:
To maximize space, consider fabricating a custom enclosure that integrates the fuel cell with the rear cargo area. This can be achieved by using lightweight materials like aluminum or composite panels. When measuring for fitment, account for the fuel cell's mounting hardware, fuel lines, and ventilation system. Test-fit the fuel cell before final installation to ensure proper clearance and accessibility for maintenance. By carefully considering the fuel cell's size and placement, you can optimize the 280Z's performance, handling, and safety, transforming it into a capable and reliable track or street machine.
Understanding Fuel Classification: Types, Properties, and Energy Sources Explained
You may want to see also
Explore related products
$25.64 $26.99
$32.3
Safety Considerations: Fireproofing, venting, and secure mounting for fuel cell installation
Fuel cells, while innovative, introduce unique hazards into a vehicle like the 280Z. Their operation involves flammable hydrogen and high-temperature reactions, demanding meticulous fireproofing. Traditional automotive materials often fall short; instead, opt for specialized fire-resistant barriers. Ceramic-based coatings, such as those used in aerospace, provide superior thermal insulation. Wrapping the fuel cell in layers of basalt or silica fabric adds an extra safeguard. Ensure all adjacent components, like wiring looms and fuel lines, are similarly protected to prevent ignition points.
Venting is not just about releasing pressure—it’s about managing a potential explosion. Hydrogen, being lighter than air, requires vents positioned at the highest points of the vehicle to allow rapid escape. Avoid routing vents near hot surfaces or exhaust systems. Install check valves to prevent backflow, and consider active venting systems with fans for faster dispersal. Regularly inspect vents for blockages, especially in dusty environments, as even small obstructions can lead to dangerous pressure buildup.
Secure mounting is the unsung hero of fuel cell safety. A loose cell can shift during hard cornering or collisions, damaging connections and causing leaks. Use vibration-damping mounts to minimize stress on the cell’s structure. Stainless steel brackets, bolted directly to the chassis, provide rigidity without corrosion risks. Double-check torque specifications for all fasteners, as overtightening can crack the cell’s casing. For added security, incorporate a secondary restraint system, such as a nylon strap, to catch the cell if primary mounts fail.
Integrating these safety measures requires a holistic approach. Start by mapping the fuel cell’s location in the 280Z, considering weight distribution and accessibility for maintenance. Prototype your fireproofing and venting systems before final installation, testing under simulated stress conditions. Document every step, from material choices to mounting angles, to ensure compliance with safety standards. Remember, a well-protected fuel cell not only safeguards the vehicle but also its occupants and bystanders.
Top Fuel Dragsters: Unbelievable Speed Secrets Revealed
You may want to see also
Explore related products
Fuel Line Routing: Efficient and safe fuel line paths from cell to engine
Efficient and safe fuel line routing in a 280Z fuel cell conversion demands careful planning to balance performance, safety, and compliance. Begin by mapping the shortest possible path from the fuel cell to the engine, minimizing bends and avoiding sharp angles that restrict flow. Use high-quality, ethanol-resistant fuel lines rated for your system’s pressure and temperature. AN fittings and stainless steel lines are preferred for durability and leak prevention. Ensure all connections are double-checked with thread sealant or Teflon tape, and test for leaks before final installation.
Safety is paramount when routing fuel lines in a 280Z. Keep lines away from heat sources like exhaust manifolds, catalytic converters, and turbochargers. Use heat shielding or insulated sleeves where proximity is unavoidable. Secure lines with clamps or brackets every 12–18 inches to prevent vibration-induced fatigue. Route lines above the chassis to minimize exposure to road debris and moisture, and incorporate a rollover valve if the vehicle will be driven aggressively or on tracks. Always follow local regulations for fuel system safety, such as using a certified fuel cell and ensuring proper grounding to prevent static electricity buildup.
Comparing fuel line materials reveals trade-offs between cost, flexibility, and longevity. Rubber hoses are inexpensive and easy to route but degrade over time, especially with ethanol-blended fuels. Nylon or PTFE lines offer superior chemical resistance but are stiffer and require careful bending. Stainless steel braided lines provide the best protection against abrasion and heat but are heavier and more expensive. For a 280Z, a hybrid approach—using stainless lines near the engine and nylon or rubber for flexible sections—often strikes the ideal balance.
A practical tip for routing fuel lines in a 280Z is to mock up the path with a flexible wire or rope before cutting and installing the actual lines. This allows you to visualize clearances, identify potential interference points, and ensure the route doesn’t compromise other systems. Once finalized, measure twice and cut once, leaving extra length for adjustments. Label lines clearly (e.g., feed, return, vent) to avoid confusion during assembly. Finally, pressure-test the system to 50–75 psi for at least 15 minutes to confirm integrity before starting the engine.
The takeaway is that fuel line routing in a 280Z fuel cell conversion requires a blend of precision, foresight, and adherence to safety standards. By prioritizing efficiency, using high-quality materials, and following best practices, you can create a system that delivers reliable fuel flow while minimizing risks. Remember, a well-planned fuel line route not only enhances performance but also ensures peace of mind, whether you’re cruising the streets or pushing the limits on the track.
Understanding Fuel Assistance: How Programs Help Low-Income Families Stay Warm
You may want to see also
Explore related products
Compatibility Checks: Ensuring fuel cell fits with 280Z’s existing fuel system components
Before installing a fuel cell in a 280Z, verify the fuel pump’s flow rate and pressure requirements. Most fuel cells are designed for high-performance applications, delivering 20–30 gallons per hour (GPH) at 5–10 psi. Compare these specs with the 280Z’s stock fuel pump (typically 3–5 GPH at 3–5 psi) to ensure compatibility. Upgrading the pump may be necessary to match the fuel cell’s capacity, especially if you’re running a turbocharged or high-compression engine. Mismatched flow rates can lead to fuel starvation or excessive pressure, risking engine damage or inconsistent performance.
Next, assess the fuel cell’s physical dimensions and mounting points against the 280Z’s chassis. Fuel cells vary in size, with common capacities ranging from 12 to 22 gallons. Measure the available space in the trunk or rear area, accounting for clearance around suspension components and exhaust systems. Custom mounting brackets or modifications may be required if the cell doesn’t align with factory holes. Use a template or mock-up to test fitment before final installation, ensuring the cell is secure and doesn’t interfere with other components during driving or under load.
Material compatibility is another critical factor. Fuel cells are typically made from aluminum, stainless steel, or bladder-type materials. Ensure the cell’s construction is compatible with the 280Z’s fuel type (usually gasoline) and any additives used. For example, ethanol-blended fuels can corrode certain metals over time. If using a bladder-type cell, confirm the bladder material is resistant to modern fuel formulations. Inspect all fittings, hoses, and connections for compatibility with the fuel cell’s material to prevent leaks or degradation.
Finally, integrate the fuel cell with the 280Z’s existing fuel lines and sensors. Most fuel cells require a return-style fuel system, which may necessitate adding a return line if the stock setup is single-line. Verify the fuel level sender unit is compatible with the cell’s design, or install an aftermarket sender if needed. Test the system for leaks and proper fuel delivery before driving. A pressure test at 10–15 psi can identify weak points in the installation, ensuring safety and reliability on the road or track.
Understanding Fuel Contamination: Causes, Prevention, and Impact on Engines
You may want to see also
Explore related products
Regulatory Compliance: Meeting racing or street legal standards for fuel cell installation
Installing a fuel cell in a 280Z for racing or street use requires strict adherence to regulatory standards to ensure safety, legality, and performance. Racing organizations like the SCCA or NHRA mandate specific fuel cell requirements, including capacity limits (often 5-10 gallons for sprint races), FIA or SFI certifications, and mounting specifications to withstand impacts. For street legality, compliance with FMVSS 301 (fuel system integrity) and local vehicle codes is non-negotiable. Always consult the sanctioning body’s rulebook or your state’s DMV guidelines before proceeding.
Material and Construction Standards
Fuel cells must be constructed from approved materials, typically aluminum, stainless steel, or bladder-type designs with multi-layer construction. Racing cells often require a minimum thickness (e.g., 0.060” aluminum) and must include rollover valves, vented caps, and anti-surge baffles. Street-legal installations may permit polyethylene tanks but must meet DOT or equivalent standards. Inspect for cracks, corrosion, or wear, especially in older 280Z chassis, and ensure all components are compatible with ethanol-blended fuels if applicable.
Mounting and Placement Guidelines
Proper mounting is critical for both safety and compliance. Racing fuel cells should be secured in a reinforced cradle, often behind the driver’s seat or in the trunk, with at least 2” of foam or fire-resistant insulation surrounding the cell. Street-legal setups must avoid encroaching on passenger space and comply with local fire wall regulations. Use grade-8 bolts or certified straps for mounting, and ensure all lines are routed away from exhaust components. A rollover protection structure (e.g., a cage) is highly recommended for racing applications.
Inspection and Maintenance Protocols
Regular inspections are mandatory for both racing and street-legal fuel cells. Check for leaks, loose fittings, and signs of abrasion every 5-10 hours of track use or annually for street cars. Replace cells older than 10 years, as material fatigue increases failure risk. Keep detailed maintenance logs, as many racing organizations require proof of compliance during tech inspections. For street use, a professional installer’s certification can expedite smog or safety checks in some jurisdictions.
Legal Documentation and Labeling
All fuel cells must bear visible certification labels (e.g., SFI 28.1 for racing, DOT for street). Racing setups often require additional documentation, such as material test reports or manufacturer compliance statements. Street-legal installations may need a California Air Resources Board (CARB) EO number if used in emissions-controlled states. Retain all receipts and certifications in the vehicle’s logbook to avoid penalties or disqualification during inspections. Ignoring these details can void insurance coverage or result in fines exceeding $1,000 in some regions.
How Gas Fuel Cards Streamline Business Expenses and Save Money
You may want to see also
Frequently asked questions
A fit fuel cell 280z is a custom fuel cell designed to fit the Nissan 280Z, providing a high-capacity and safe fuel storage solution for racing or performance applications. It works by storing fuel in a durable, leak-proof tank that is optimized for the vehicle's chassis, ensuring proper weight distribution and fuel delivery under extreme conditions.
Installation requires removing the original fuel tank, ensuring the fuel cell fits securely in the designated space, and connecting it to the fuel lines and pump. It’s recommended to follow the manufacturer’s instructions or consult a professional to ensure proper mounting, grounding, and compliance with safety standards.
A fit fuel cell 280z offers increased fuel capacity, improved safety with its rugged construction, and better weight distribution for performance driving. It’s also designed to withstand harsh conditions, making it ideal for racing or off-road use where a standard tank may not suffice.
