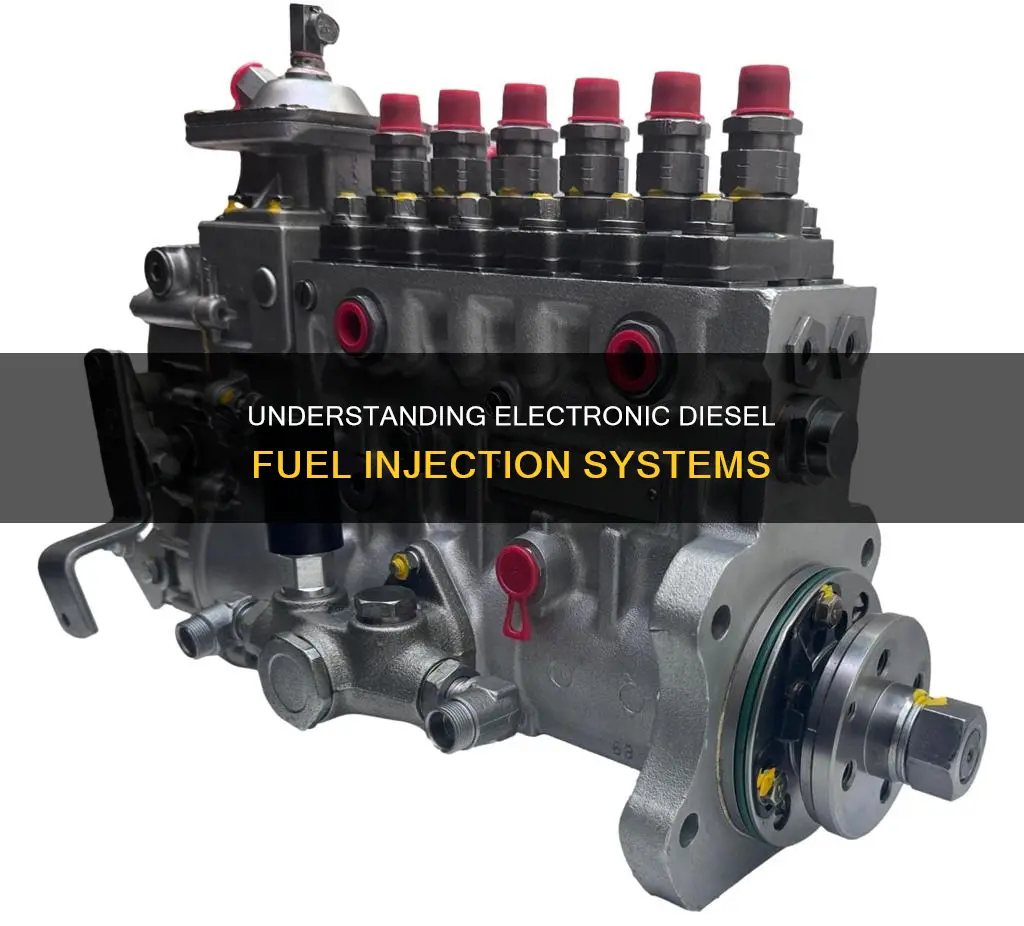

Electronic diesel fuel injection is a system that injects fuel into the combustion chamber at high pressure, at the right time, and in the right quantity. The primary components of the system are the injection pump, which generates high pressure, and the injection nozzles that are linked to the injection pump via high-pressure delivery lines. Electronic unit injectors are designed for high-end, heavy-duty applications, allowing for accurate timing, improved injector control, and enhanced fuel economy. The injector in an electronic system is held closed by a spring but is opened by an electromagnet built into the injector body. The electronic control unit (ECU) determines how long the injector stays open and can interface with various other vehicle systems such as traction control and carry out self-monitoring duties.
| Characteristics | Values |
|---|---|
| Type of system | Electronic unit injectors |
| Use | High-end, heavy-duty applications |
| Benefits | Accurate timing and fuel metering, improved injector control, enhanced fuel economy, and optimized vehicle performance |
| Components | Injection pump, injection nozzles, high-pressure delivery lines |
| Function | Injects fuel into the combustion chamber at high pressure, at the right time, and in the right quantity |
| Control | Electronic (as opposed to mechanical) |
| Operation | Injector is held closed by a spring and opened by an electromagnet; the electronic control unit determines how long the injector stays open |
| Interface | Engine ECU interfaces with various vehicle systems, e.g., traction control, and performs self-monitoring and self-diagnostic functions |
Explore related products
What You'll Learn
- Injector needle movement sensors monitor injection time and send data to the ECU
- The electronic control unit determines how long the injector stays open
- Fuel is injected into the combustion chamber at high pressure
- Electronic unit injectors allow for accurate timing, improved control, and enhanced fuel economy
- Electronic fuel injection is controlled by the ECU, which calculates the quantity of injected fuel required
Injector needle movement sensors monitor injection time and send data to the ECU
Injector needle movement sensors, also known as needle lift sensors, are an integral component of electronic diesel fuel injection systems. These sensors monitor the movement of the valve needle within the fuel injector nozzle, providing critical data on injection timing.
The valve needle plays a crucial role in the fuel injection process. It is biased by a spring toward a closed position, preventing the fuel from being injected. When the injector is activated, the valve needle moves away from the valve seat, allowing the pressurised fuel to be released through the nozzle and into the combustion chamber.
The injector needle movement sensors track the position and movement of the valve needle with precision. This information is used to determine the beginning and end of fuel injection, as well as the duration of the fuel injection pulse. By monitoring the movement of the valve needle, the sensors can provide instant measurements of when the fuel injection process starts and stops.
The data collected by the injector needle movement sensors is transmitted to the Engine Control Unit (ECU). The ECU, also known as the Engine Control Module (ECM) or Powertrain Control Module (PCM), is the brain of the fuel injection system. It uses the data received from various sensors, including injector needle movement sensors, to adjust fuel timing and ensure the engine receives the correct amount of fuel.
By combining the data from injector needle movement sensors with information from other sensors, such as mass airflow (MAF) sensors and throttle position sensors, the ECU can optimise the fuel injection process. This results in improved engine performance, enhanced fuel efficiency, and reduced emissions, making electronic diesel fuel injection systems a popular choice for modern vehicles.
