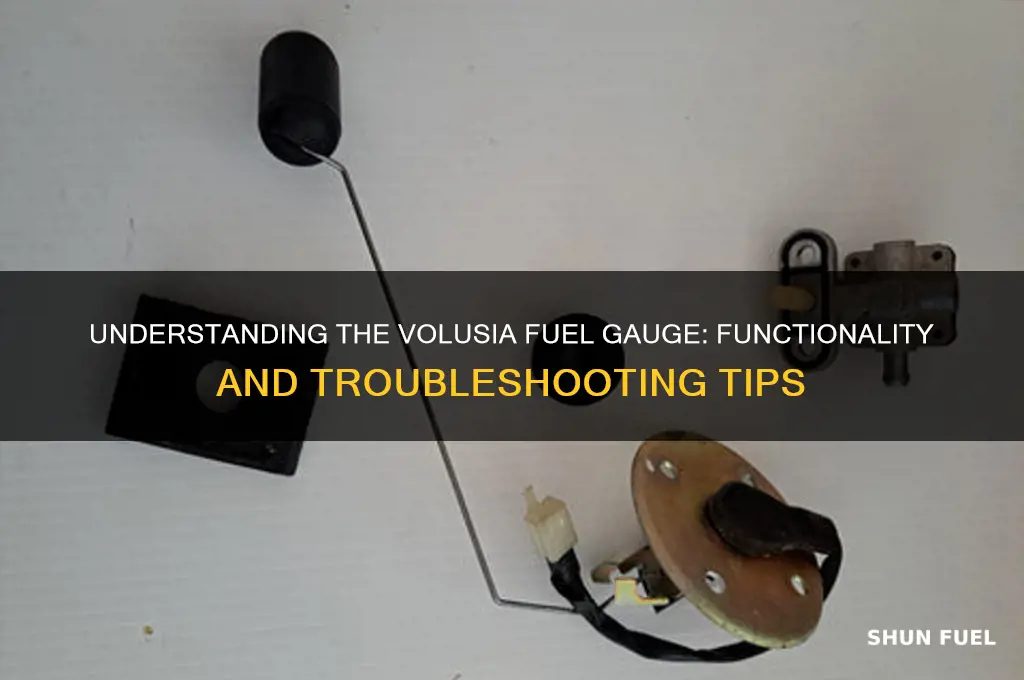

The Volusia fuel gauge is a critical component in the fuel system of motorcycles, particularly the Honda VT600C Shadow VLX and similar models, designed to provide riders with an accurate reading of the fuel level in the tank. This gauge operates through a float mechanism connected to a variable resistor, which adjusts the electrical resistance based on the fuel level, sending a corresponding signal to the gauge on the dashboard. Understanding how the Volusia fuel gauge functions is essential for riders to monitor their fuel consumption effectively, avoid running out of gas, and troubleshoot any issues that may arise, such as inaccurate readings or gauge malfunctions. Proper maintenance and calibration of the fuel gauge ensure reliable performance, enhancing the overall riding experience and safety.
Explore related products
What You'll Learn
- Fuel Gauge Functionality: Explains how the gauge measures and displays fuel levels in Volusia motorcycles
- Sensor Mechanism: Details the operation of the fuel level sensor in Volusia’s tank
- Electrical Connections: Covers wiring and connections between the gauge and sensor system
- Troubleshooting Tips: Common issues and fixes for inaccurate or malfunctioning fuel gauges
- Replacement Guide: Steps to replace a faulty fuel gauge in a Volusia motorcycle
Fuel Gauge Functionality: Explains how the gauge measures and displays fuel levels in Volusia motorcycles
The Volusia motorcycle's fuel gauge is a critical component for riders, providing real-time information about the fuel level in the tank. This gauge operates through a combination of mechanical and electrical systems, ensuring accuracy and reliability. At its core, the fuel gauge consists of a float mechanism inside the fuel tank, which rises and falls with the fuel level. This float is connected to a variable resistor, whose resistance changes as the float moves. The varying resistance is then interpreted by the motorcycle's instrument cluster, which displays the corresponding fuel level on the gauge.
Understanding the mechanics behind the fuel gauge is essential for troubleshooting potential issues. For instance, if the gauge reads inaccurately, the problem could stem from a stuck float, a faulty resistor, or a malfunctioning instrument cluster. Regular maintenance, such as cleaning the fuel tank and inspecting the gauge components, can prevent these issues. Riders should also be aware that extreme temperatures or rough riding conditions may affect the gauge's performance, though the Volusia's design is robust enough to handle most scenarios.
One practical tip for Volusia owners is to monitor the fuel gauge's behavior over time. If the needle jumps erratically or fails to move smoothly, it may indicate a problem with the float or resistor. In such cases, consulting a mechanic is advisable. Additionally, keeping the fuel tank at least a quarter full can reduce strain on the fuel pump and gauge mechanism, prolonging their lifespan. This simple habit can save riders from unexpected breakdowns and costly repairs.
Comparing the Volusia's fuel gauge to those in other motorcycles highlights its efficiency and user-friendly design. Unlike some models that rely solely on digital displays, the Volusia combines an analog gauge with a low-fuel warning light, offering both visual and intuitive feedback. This dual system ensures that riders of all experience levels can easily interpret fuel levels, even at a glance. For long-distance riders, this feature is particularly valuable, as it minimizes distractions and enhances safety.
In conclusion, the Volusia's fuel gauge is a testament to thoughtful engineering, blending simplicity with functionality. By understanding its operation and adopting proactive maintenance practices, riders can ensure their gauge remains accurate and reliable. Whether navigating city streets or embarking on cross-country journeys, the fuel gauge serves as a trusted companion, keeping riders informed and in control. Its design not only meets practical needs but also reflects the Volusia's commitment to rider convenience and peace of mind.
