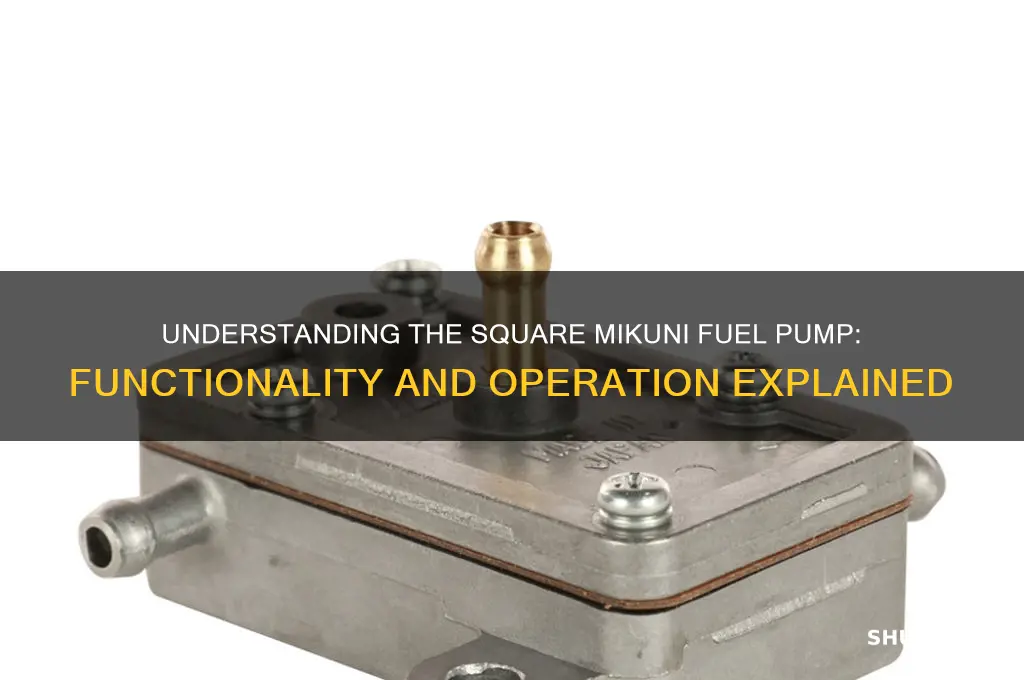

The Square Mikuni fuel pump is a crucial component in many carbureted engines, particularly in motorcycles and small engines, designed to deliver a consistent and reliable fuel supply to the carburetor. It operates using a diaphragm mechanism, which is actuated by an eccentric cam driven by the engine’s motion, typically via a pushrod or linkage connected to the crankshaft. As the cam rotates, it alternately compresses and releases the diaphragm, creating a vacuum that draws fuel from the tank and pushes it through the pump’s outlet to the carburetor. This design ensures a steady fuel flow, even under varying engine speeds and conditions, making it ideal for applications requiring precise fuel delivery without the complexity of electric pumps. The Square Mikuni pump’s simplicity, durability, and mechanical efficiency have made it a trusted choice for decades in carbureted systems.
Explore related products
What You'll Learn
- Pump Mechanism: Explains the internal workings of the Mikuni fuel pump's diaphragm and valve system
- Fuel Flow Process: Details how fuel is drawn, pressurized, and delivered to the engine
- Electrical Operation: Covers the role of the electric motor in driving the pump
- Pressure Regulation: Describes how the pump maintains consistent fuel pressure for optimal engine performance
- Maintenance Tips: Provides key steps for cleaning, inspecting, and troubleshooting the Mikuni fuel pump
Pump Mechanism: Explains the internal workings of the Mikuni fuel pump's diaphragm and valve system
The Mikuni square fuel pump operates on a diaphragm and valve system, a design that ensures reliable fuel delivery in carbureted engines. At its core, the pump uses a flexible diaphragm to create a vacuum, drawing fuel into the pump chamber. This diaphragm is actuated by a lever connected to the engine’s motion, typically via the camshaft or a dedicated eccentric lobe. As the lever moves, it alternately compresses and releases the diaphragm, creating a rhythmic suction and discharge cycle essential for fuel flow.
Consider the valve system, a critical component that ensures unidirectional fuel movement. The Mikuni pump employs two valves: an inlet valve and an outlet valve. When the diaphragm moves downward, the inlet valve opens, allowing fuel to enter the chamber from the tank. Simultaneously, the outlet valve remains closed, preventing backflow. As the diaphragm rises, the inlet valve closes, and the outlet valve opens, forcing fuel into the carburetor. This precise valve timing is achieved through spring-loaded mechanisms calibrated to specific pressures, typically operating between 2-4 psi to maintain optimal fuel delivery.
A closer examination reveals the pump’s efficiency in handling varying fuel demands. During idle or low-load conditions, the diaphragm’s movement is minimal, delivering a steady, controlled fuel supply. Under acceleration or high-load scenarios, the diaphragm’s stroke increases, drawing more fuel into the chamber and ensuring the carburetor receives adequate fuel for combustion. This adaptability is crucial for maintaining engine performance across different operating conditions.
Practical maintenance tips highlight the importance of regular inspection. Over time, diaphragms can degrade due to fuel exposure or mechanical fatigue, leading to leaks or reduced pump efficiency. Inspect the diaphragm for cracks or brittleness, replacing it if necessary—typically every 2-3 years or 10,000 miles, depending on usage. Similarly, valves can become clogged or worn, disrupting fuel flow. Cleaning or replacing valves as part of routine carburetor maintenance ensures the pump operates at peak efficiency.
In comparison to electric fuel pumps, the Mikuni diaphragm pump’s simplicity and mechanical reliability make it a preferred choice for carbureted applications. Its design eliminates the need for electrical components, reducing potential points of failure. However, this reliance on engine motion means the pump’s output is directly tied to engine speed, requiring careful calibration to avoid over- or under-fueling. Understanding this mechanism not only aids in troubleshooting but also underscores the pump’s role in delivering consistent fuel delivery, a cornerstone of carbureted engine performance.
Understanding Manual Fuel Pumps: Mechanics, Functionality, and Operation Explained
You may want to see also
Explore related products
Fuel Flow Process: Details how fuel is drawn, pressurized, and delivered to the engine
The Mikuni Square Fuel Pump operates as a diaphragm-driven marvel, ensuring a consistent and reliable fuel supply to the engine. At its core, the process begins with fuel being drawn into the pump through an inlet valve. This valve opens as the diaphragm moves upward, creating a vacuum that pulls fuel from the tank. The design is ingenious in its simplicity, relying on the rhythmic motion of the diaphragm to initiate the flow. This initial stage is critical, as it ensures that the pump always has fuel ready to be pressurized and delivered.
Once inside the pump, the fuel is pressurized through a series of precise movements. As the diaphragm descends, it forces the fuel through a one-way check valve, preventing backflow and maintaining pressure. This pressurized fuel is then directed into a chamber where it awaits delivery. The pressure generated is typically around 3-5 psi, sufficient to overcome the resistance in the fuel lines and ensure a steady flow to the carburetor or fuel injection system. This stage highlights the pump’s ability to transform mechanical motion into hydraulic energy, a key principle in its operation.
Delivery to the engine is the final and most crucial step. The pressurized fuel is pushed through the outlet valve, which opens under pressure, allowing fuel to flow into the engine’s fuel system. The timing of this delivery is synchronized with the engine’s demands, ensuring that fuel is available precisely when needed. For optimal performance, it’s essential to maintain clean fuel lines and regularly inspect the pump for leaks or diaphragm wear. A clogged filter or worn diaphragm can disrupt this process, leading to poor engine performance or stalling.
Comparing the Mikuni Square Fuel Pump to other designs, its diaphragm mechanism stands out for its durability and efficiency. Unlike electric pumps, it operates without additional power sources, making it ideal for carbureted engines or applications where simplicity is paramount. However, this design requires proper maintenance, such as periodic diaphragm replacement and fuel filter cleaning, to ensure longevity. For enthusiasts working on vintage motorcycles or small engines, understanding this fuel flow process is invaluable for troubleshooting and optimizing performance.
In practice, installing or servicing this pump involves a few key steps. First, ensure the pump is mounted securely and aligned with the fuel lines. Second, check the diaphragm for cracks or stiffness, replacing it if necessary. Finally, prime the pump by filling it with fuel before operation to prevent dry running. By mastering these details, users can ensure their Mikuni Square Fuel Pump operates flawlessly, delivering fuel with precision and reliability to keep their engines running smoothly.
Fuel Pump Heat Interference: Fact or Fiction? Exploring the Connection
You may want to see also
Explore related products
Electrical Operation: Covers the role of the electric motor in driving the pump
The electric motor in the Square Mikuni fuel pump is the unsung hero of its operation, converting electrical energy into mechanical motion to drive the pump’s internal components. This motor is typically a brushless DC type, chosen for its efficiency, reliability, and compact size. When power is supplied, the motor’s rotor spins, creating the rotational force necessary to activate the pump’s diaphragm or impeller mechanism. This process ensures a consistent fuel flow, critical for maintaining engine performance in motorcycles, marine engines, or other applications where precision is key.
To understand its role, consider the motor as the pump’s heartbeat. It operates within a specific voltage range, usually 12V or 24V, depending on the system. The motor’s speed is regulated by a controller, which adjusts the fuel delivery rate based on demand. For instance, during idle, the motor runs at a lower RPM, while acceleration triggers a higher speed to meet increased fuel requirements. This dynamic control is essential for preventing fuel starvation or overflow, ensuring optimal combustion in the engine.
One practical tip for maintaining the motor’s efficiency is to regularly inspect the electrical connections for corrosion or loose wiring. Voltage drops or inconsistent power supply can cause the motor to underperform, leading to erratic fuel delivery. Additionally, ensure the motor is compatible with the fuel type being used, as some motors may require specific lubricants or cooling mechanisms to prevent overheating. For example, ethanol-blended fuels can degrade certain motor components over time, necessitating periodic replacements.
Comparatively, the Square Mikuni’s electric motor stands out against mechanical fuel pumps, which rely on engine motion. Electric motors offer greater flexibility in fuel delivery, especially in systems with variable demands. However, they require a stable power source, making them less suitable for applications with unreliable electrical systems. For DIY enthusiasts, troubleshooting the motor involves checking for unusual noises or vibrations, which may indicate worn bearings or misalignment. A multimeter can verify if the motor is receiving the correct voltage, narrowing down potential issues.
In conclusion, the electric motor is the driving force behind the Square Mikuni fuel pump’s functionality, blending precision and adaptability to meet fuel demands. By understanding its operation and maintenance needs, users can ensure reliable performance and extend the pump’s lifespan. Whether for a high-performance motorcycle or a small marine engine, the motor’s role is indispensable, making it a critical component to monitor and care for.
Understanding the Fuel Pump System in a G35 Coupe
You may want to see also
Explore related products
Pressure Regulation: Describes how the pump maintains consistent fuel pressure for optimal engine performance
The Mikuni Square fuel pump is engineered to deliver a precise and consistent fuel pressure, typically around 30-40 psi, which is critical for optimal engine performance. This pressure is maintained through a sophisticated internal mechanism that balances the demands of the engine with the output of the pump. At the heart of this system is a pressure regulator, a component that ensures the fuel pressure remains within a narrow, predefined range regardless of engine load or speed. This regulator operates by monitoring the pressure in the fuel line and adjusting the pump’s output accordingly, preventing over-pressurization that could lead to fuel system damage or under-pressurization that could cause poor engine performance.
To understand how this works in practice, consider the pump’s operation during acceleration. As the engine demands more fuel, the pump increases its output to meet this need. However, the pressure regulator ensures that the pressure does not exceed the optimal range. It achieves this by diverting excess fuel back to the tank through a return line, a process known as "bleed-off." Conversely, during deceleration or idle, the pump reduces its output, but the regulator ensures that the pressure remains sufficient to maintain a steady fuel supply to the engine. This dynamic adjustment is crucial for preventing fuel vaporization, which can occur at low pressures, and ensuring a consistent air-fuel mixture for efficient combustion.
One of the key advantages of the Mikuni Square fuel pump’s pressure regulation system is its ability to adapt to varying fuel demands without manual intervention. This is particularly beneficial in high-performance applications, where fuel requirements can fluctuate rapidly. For instance, in racing scenarios, the pump must deliver a high volume of fuel at consistent pressure during full throttle while reducing output during corners or braking. The regulator’s responsiveness ensures that the engine receives the right amount of fuel at all times, optimizing power delivery and fuel efficiency. This adaptability is achieved through a combination of mechanical precision and robust design, making the pump reliable even under extreme conditions.
Practical tips for maintaining the pump’s pressure regulation system include regular inspection of the fuel lines for leaks or blockages, as these can disrupt the pressure balance. Additionally, ensuring the fuel filter is clean and free of debris is essential, as clogs can cause pressure drops. For users experiencing inconsistent fuel pressure, checking the regulator’s diaphragm for wear or damage is recommended, as a faulty diaphragm can lead to erratic pressure control. Finally, using high-quality fuel and additives can help prevent contamination, which can adversely affect the pump’s performance and longevity. By adhering to these maintenance practices, users can ensure the Mikuni Square fuel pump continues to deliver consistent fuel pressure for optimal engine performance.
Mastering Ford F150 Fuel Pump Replacement: A Step-by-Step Guide
You may want to see also
Explore related products
Maintenance Tips: Provides key steps for cleaning, inspecting, and troubleshooting the Mikuni fuel pump
The Mikuni square fuel pump is a precision component, and its performance hinges on meticulous maintenance. Neglecting this can lead to reduced fuel efficiency, engine misfires, or even complete failure. Regular cleaning, inspection, and troubleshooting are essential to ensure optimal operation.
Here’s a structured approach to maintaining your Mikuni fuel pump:
Disassembly and Cleaning: Begin by disconnecting the fuel lines and removing the pump from the vehicle. Disassemble the pump carefully, following the manufacturer’s instructions, to access internal components. Use a carburetor cleaner or a mild solvent to clean the pump body, diaphragm, and valves. Pay close attention to the inlet and outlet ports, ensuring no debris or varnish buildup. For stubborn deposits, a soft-bristle brush can be used, but avoid abrasive materials that may damage the pump’s delicate parts. After cleaning, rinse the components with clean solvent and allow them to air dry completely.
Inspection and Replacement: With the pump disassembled, inspect each component for wear, damage, or deformation. The diaphragm, in particular, should be checked for cracks, tears, or thinning. If any part shows signs of deterioration, replace it with a genuine Mikuni spare part to maintain performance and reliability. Inspect the valves for proper seating and operation; a leaking valve can cause fuel pressure issues. Also, examine the pump’s housing for cracks or damage, as this can compromise its ability to maintain pressure.
Reassembly and Testing: Reassemble the pump, ensuring all components are correctly aligned and secured. Apply a small amount of silicone grease to the diaphragm and valves to aid in smooth operation and prevent sticking. Once reassembled, reconnect the fuel lines and reinstall the pump. Before starting the engine, perform a pressure test to verify the pump’s functionality. A fuel pressure gauge can be used to check for the correct operating pressure, typically specified in the vehicle’s manual. If the pressure is outside the recommended range, further troubleshooting may be required.
Troubleshooting Common Issues: If the pump fails to deliver adequate pressure, check for air leaks in the fuel lines or connections. A simple soap solution can be applied to joints to detect bubbles, indicating a leak. Clogged fuel filters or contaminated fuel can also cause performance issues, so ensure the fuel system is clean and free of debris. In cases of erratic fuel delivery, inspect the pump’s electrical connections for corrosion or loose wires. A multimeter can be used to test the pump’s electrical circuit, ensuring it receives the correct voltage.
Preventive Maintenance: To extend the life of your Mikuni fuel pump, adopt a preventive maintenance routine. Regularly inspect fuel lines for cracks or deterioration, replacing them as necessary. Use high-quality fuel and consider adding a fuel stabilizer to prevent varnish buildup, especially during periods of inactivity. Keep the fuel tank and system clean, and avoid running the pump dry, as this can cause damage to the diaphragm. By following these steps, you can ensure your Mikuni square fuel pump operates efficiently, providing reliable fuel delivery for your engine’s performance needs.
BMW E90 N54 Fuel Pump Count: Essential Maintenance Guide
You may want to see also
Frequently asked questions
The Square Mikuni fuel pump is an electric fuel pump designed to deliver fuel from the tank to the engine at the required pressure. It operates using an electric motor that drives a diaphragm or turbine mechanism to create suction and push fuel through the system.
The Square Mikuni fuel pump is typically compatible with gasoline (petrol) and can also work with ethanol-blended fuels, depending on the specific model and specifications.
Installation involves mounting the pump in the fuel tank or externally, connecting it to the fuel lines, and wiring it to the vehicle’s electrical system. It’s crucial to ensure proper grounding and secure connections to prevent leaks or electrical issues.
Common issues include fuel pump failure, reduced pressure, or unusual noises. These can often be resolved by checking for clogged fuel filters, ensuring proper voltage supply, or replacing the pump if it’s worn out. Regular maintenance and using clean fuel can prevent many problems.
